Sq Ft
14,736 FT²
Bed
9
Bath
8
Stories
2
Garage
5
Depth
134'
Width
162'
On Sale
$8,495.75
$9,995.00
© copyright by designer
View All 31 Images | Photographs may reflect modified home
Sq Ft
14,736 FT²
From
$8,495.75
Bed
9
Bath
8
Stories
2
Garage
5
Depth
134'
Width
162'

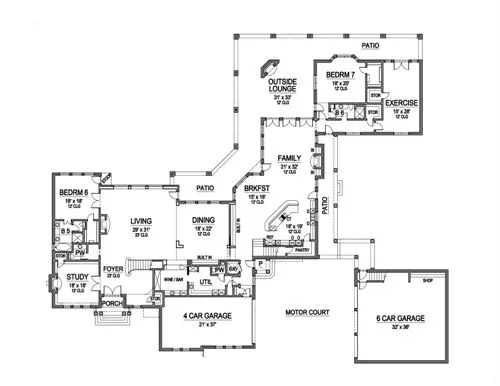

Click to Zoom In on Floor Plan
© copyright by designer



About This Plan

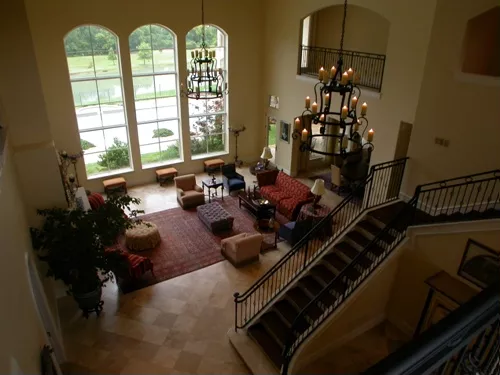

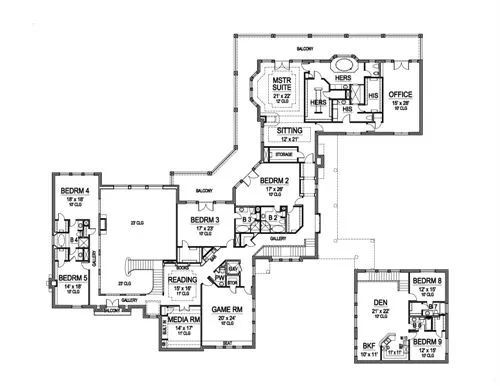

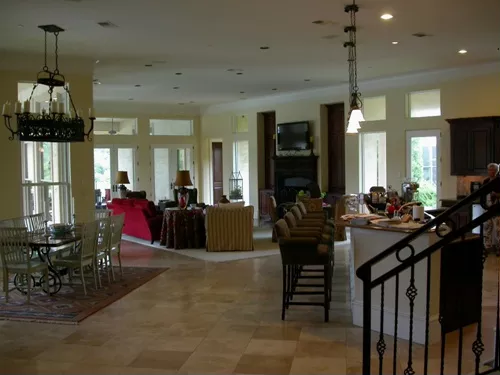

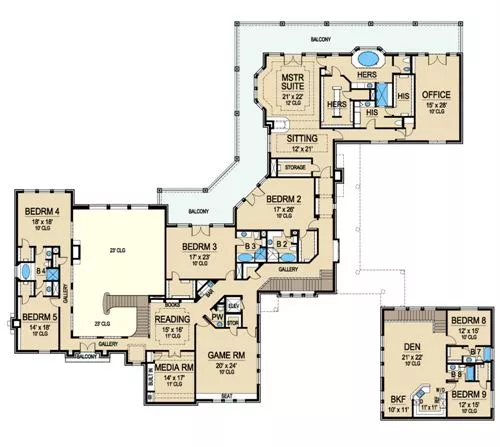

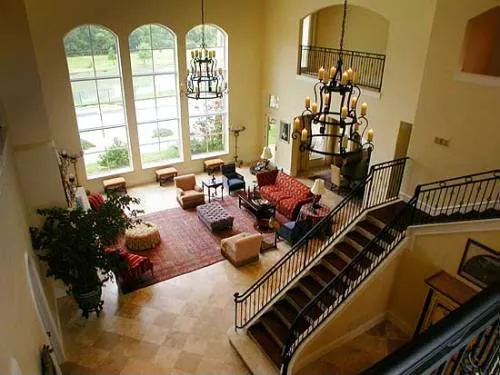

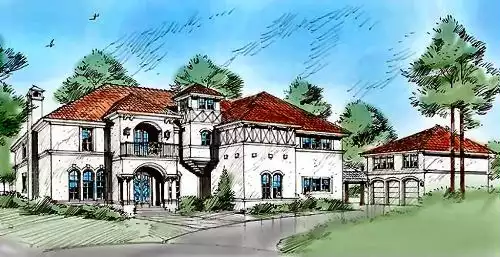

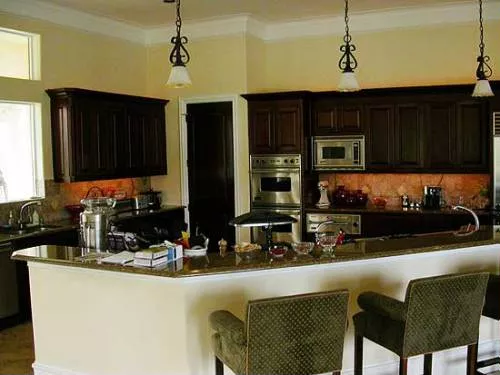

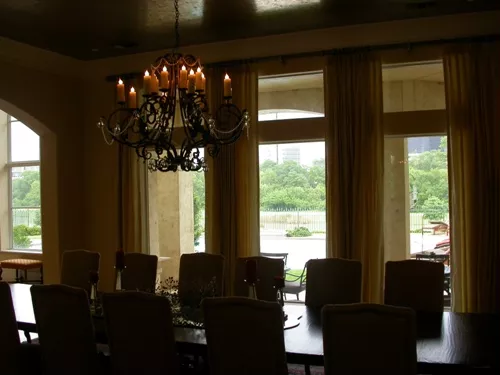

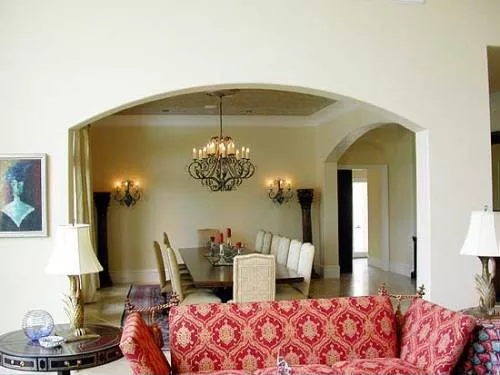

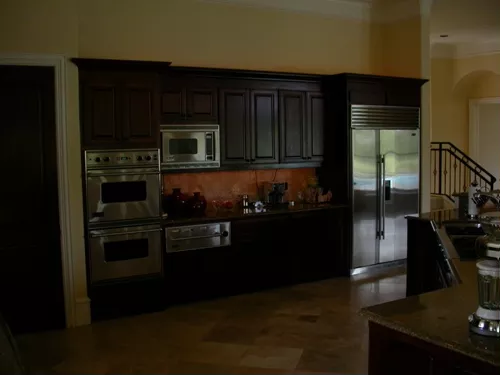

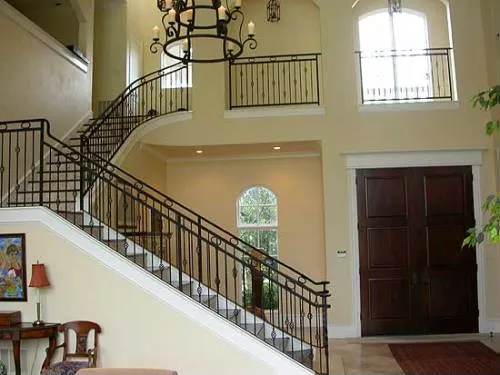

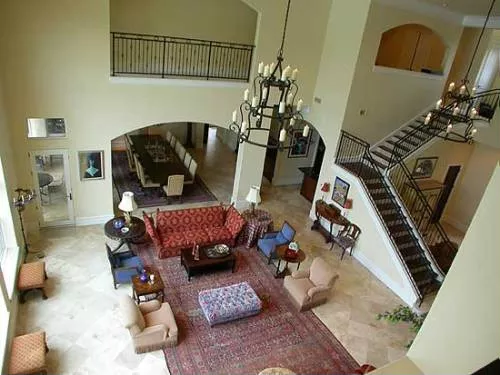

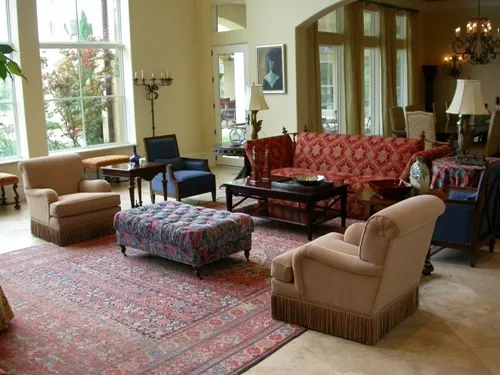

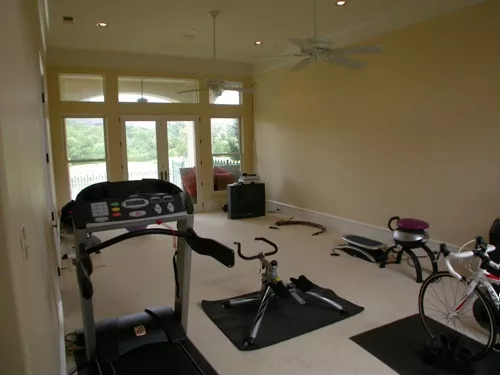

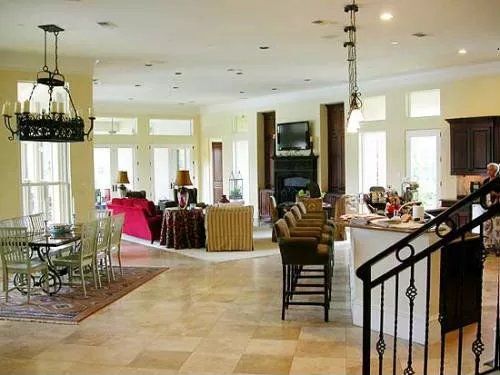

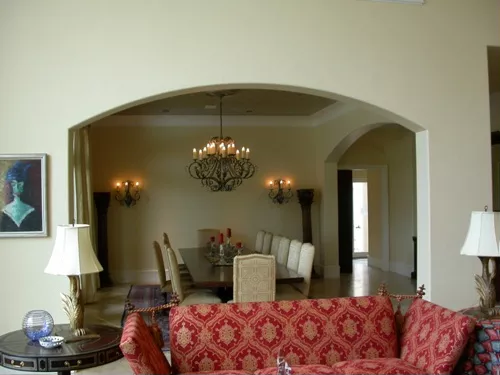

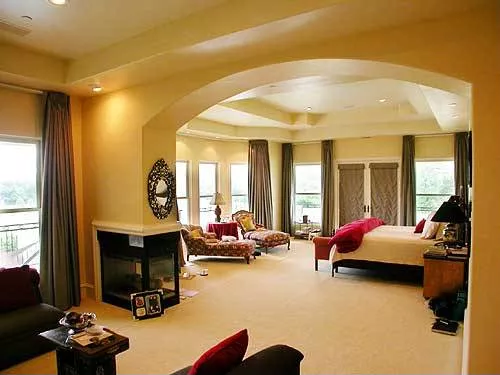

This Mediterranean luxury mansion house plan offers nine bedrooms! The motor court is flanked by two courtyard-entry garages; a four-car and a six-car. The two-story foyer is surrounded by the wine/bar room, stunning staircase to the second floor and a quiet study with warming fireplace and storage room. A family bedroom with walk-in closet, his and hers vanities, separate shower and tub sits in the rear of this plan. The living room and dining room are open to one another, and will both be warmed by the living room's fireplace and large bank of windows allowing the sun to stream through. The kitchen provides a free-standing breakfast bar to share with the breakfast area and family room. There area plenty of built-ins in the kitchen, as well as a large pantry. Three sets of double doors in the family room lead to the outdoor lounge with fireplace, surrounded by large decorative pillars that define the entire patio, lounge and verandas outside. A family bedroom with walk-in closet, storage and exercise room could double as an in-law suite. Upstairs, four bedrooms with walk-in closets and full baths share space with the game room, media room, reading room, storage spaces, and luxurious master suite. The master suite boasts a large sitting area, lavish bath with his and hers vanities, separate shower, garden tub, an office, his and hers wardrobes, and balcony access. Over the six-car garage is a two-bedroom apartment with two bedrooms, walk-in closets, two full baths, kitchen, breakfast area, den and laundry room, completing this Mediterranean luxury mansion house plan.


FEATURES & DETAILS

Kitchen features
Country Kitchen
Nook / Breakfast Area
Bedroom features
Double Vanity Sink
His and Hers Primary Closets
Primary Bdrm Upstairs
Separate Tub and Shower
Sitting Area
Exterior features
Courtyard
Covered Front Porch
Covered Rear Porch
Deck
Front Porch
Rear Porch
Foundation Options
Slab
Additional features
2 Story Volume
Arches
Dining Room
Family Room
Fireplace
Formal LR
Foyer
Home Office
Laundry 1st Fl
Library/Media Rm
Open Floor Plan
Vaulted Ceilings
Garage Location
Front
Garage Options
Attached
Detached
Side-entry
With Living Space
21,054 Ft
2
Total Structure
14,736 Ft
2
Total Heated
6,696 Ft
2
1st Floor
8,040 Ft
2
2nd Floor
9
Bedrooms
8
Bathrooms
5
Garage
2
Stories
162' 0"
Width
134' 0"
Depth
40' 0"
Height
12' 0"
Main Floor Ceiling
10' 0"
Upper Floor Ceiling
2x6
Framing
Stick
Roof Framing
6
Primary Roof Pitch
6
Secondary Roof Pitch
Single
Dwelling Number

Unheated Living Space
2,271 Ft
2
Garage
647 Ft
2
Porch
3,724 Ft
2
Deck


Plan Package Options

 Select Plan Package
$8,995
PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$8,995
$9,175
5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$9,175
$9,175
CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$9,175
 Need To Reverse Plan? (Optional)
$400
Readable Reverse

Reverse house plans with readable text and dimensions

$400
  Select Foundation Option
  Add-Ons (Optional)

Ground shipping within the Continental U.S.

FREE

Design consultation with the architect or designer to discuss your house plan

Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total
$0
Free Shipping
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
