Sq Ft
2,789 FT²

Beds
4

Baths
3.5

Stories
1

Garage
3

Depth
63' 2"

Width
84'

From
$1,570.00

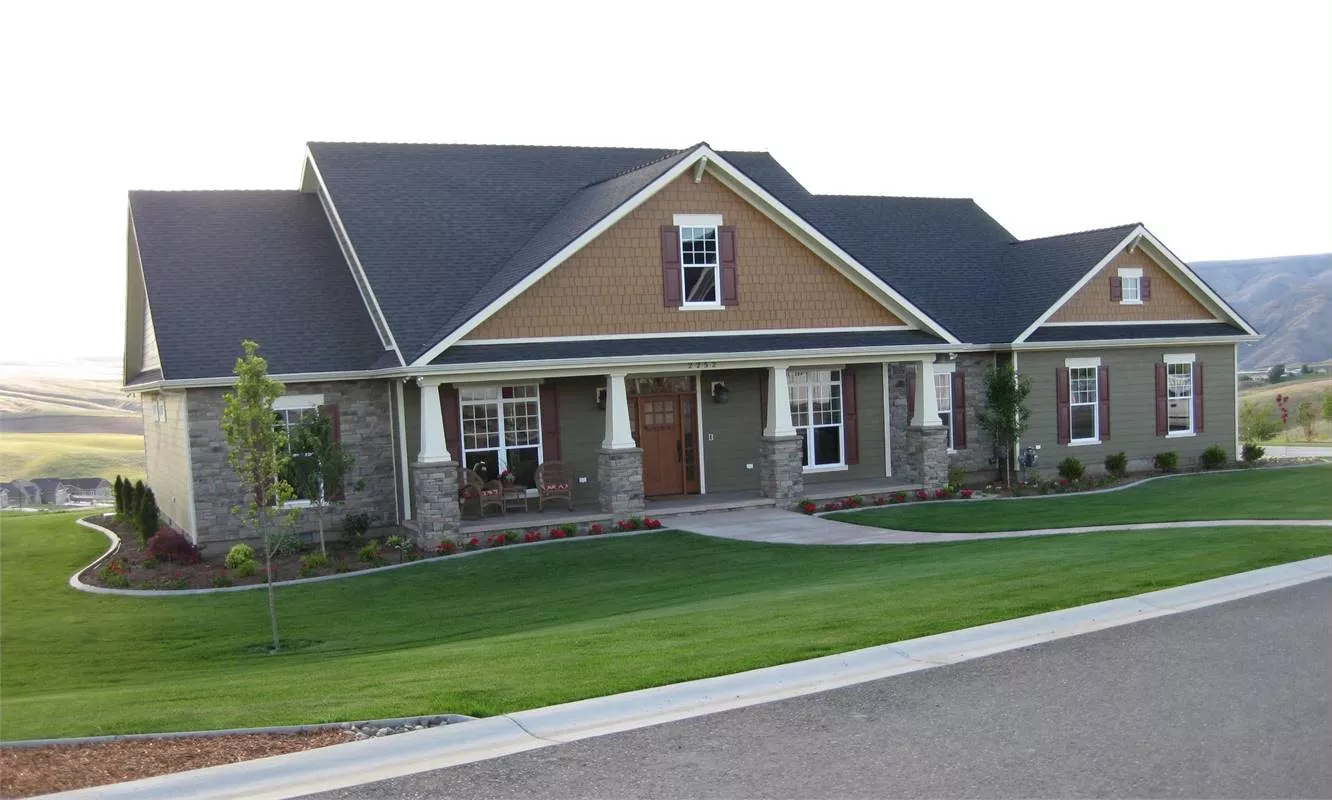

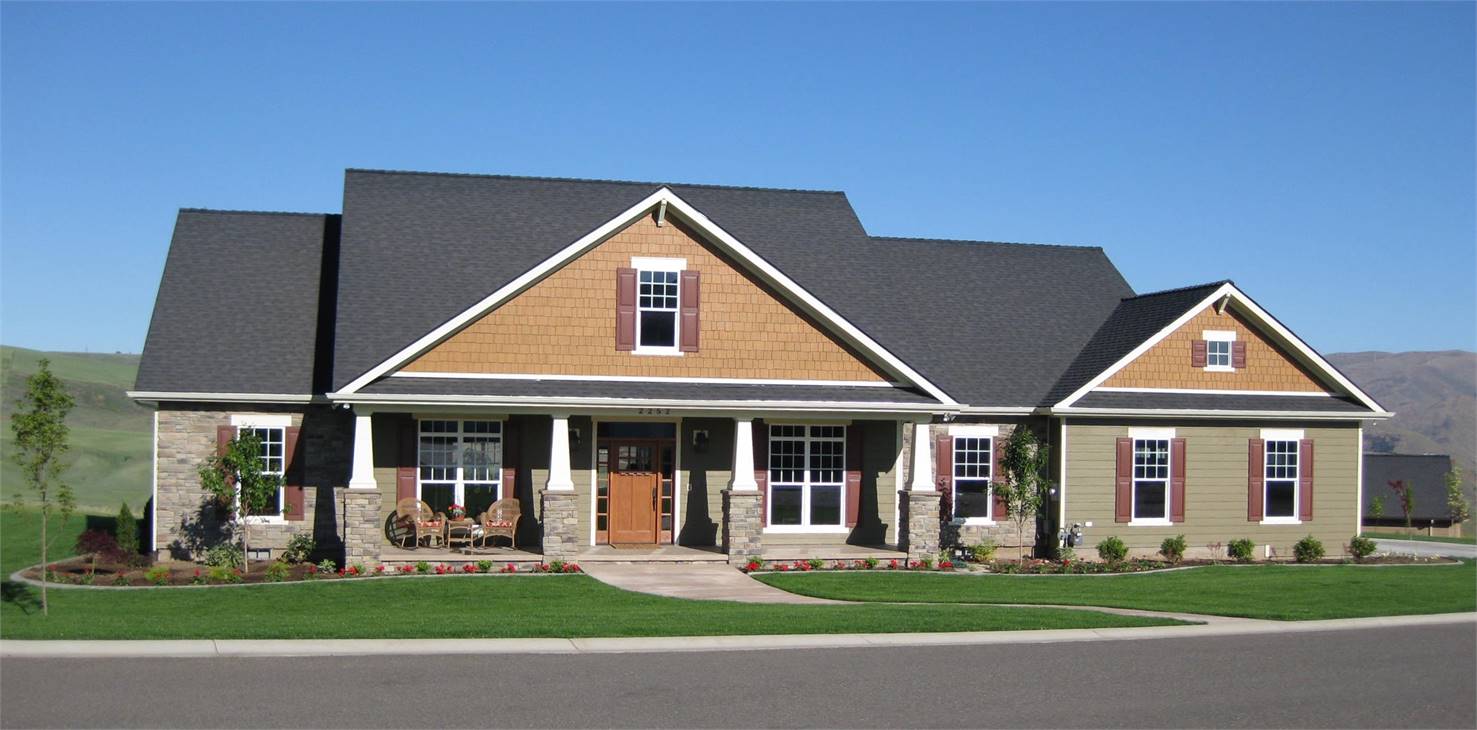

Front View

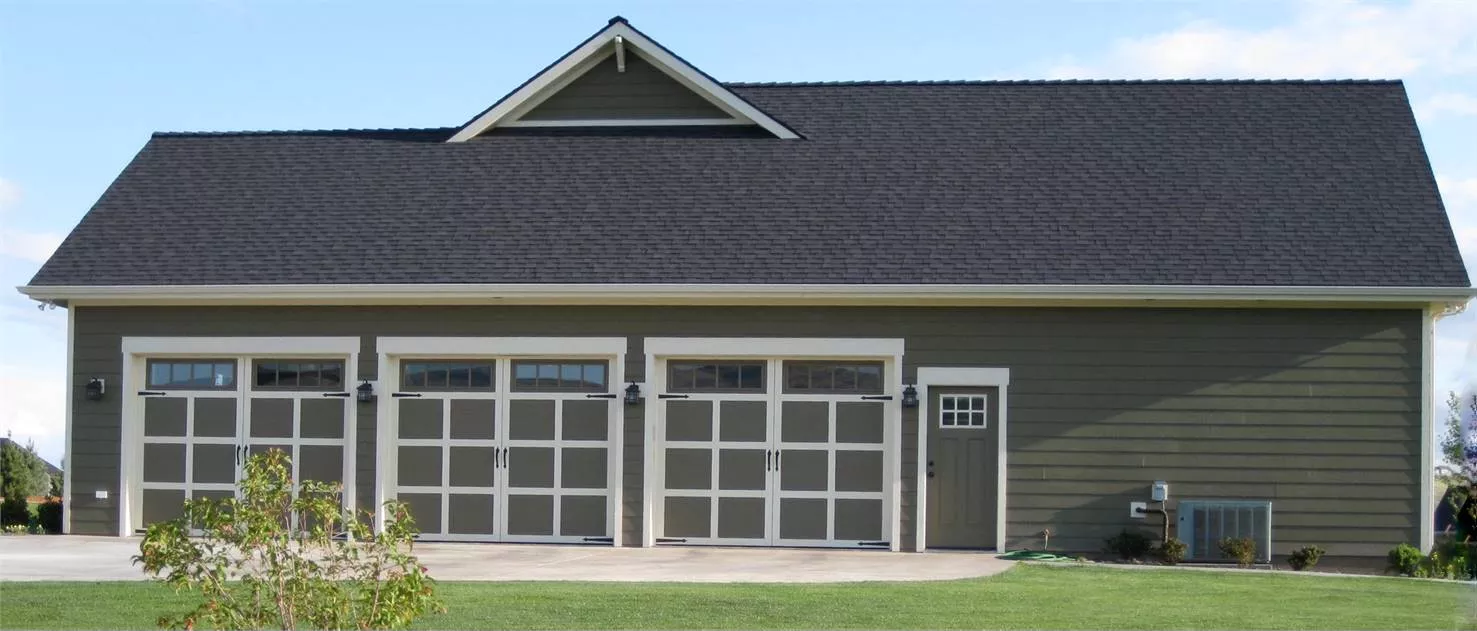

Side View

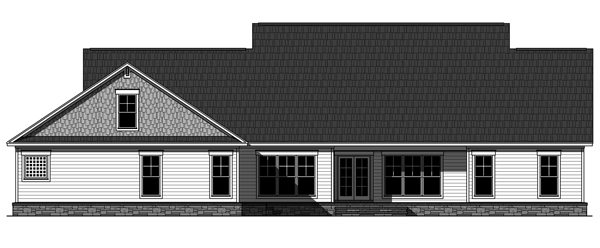

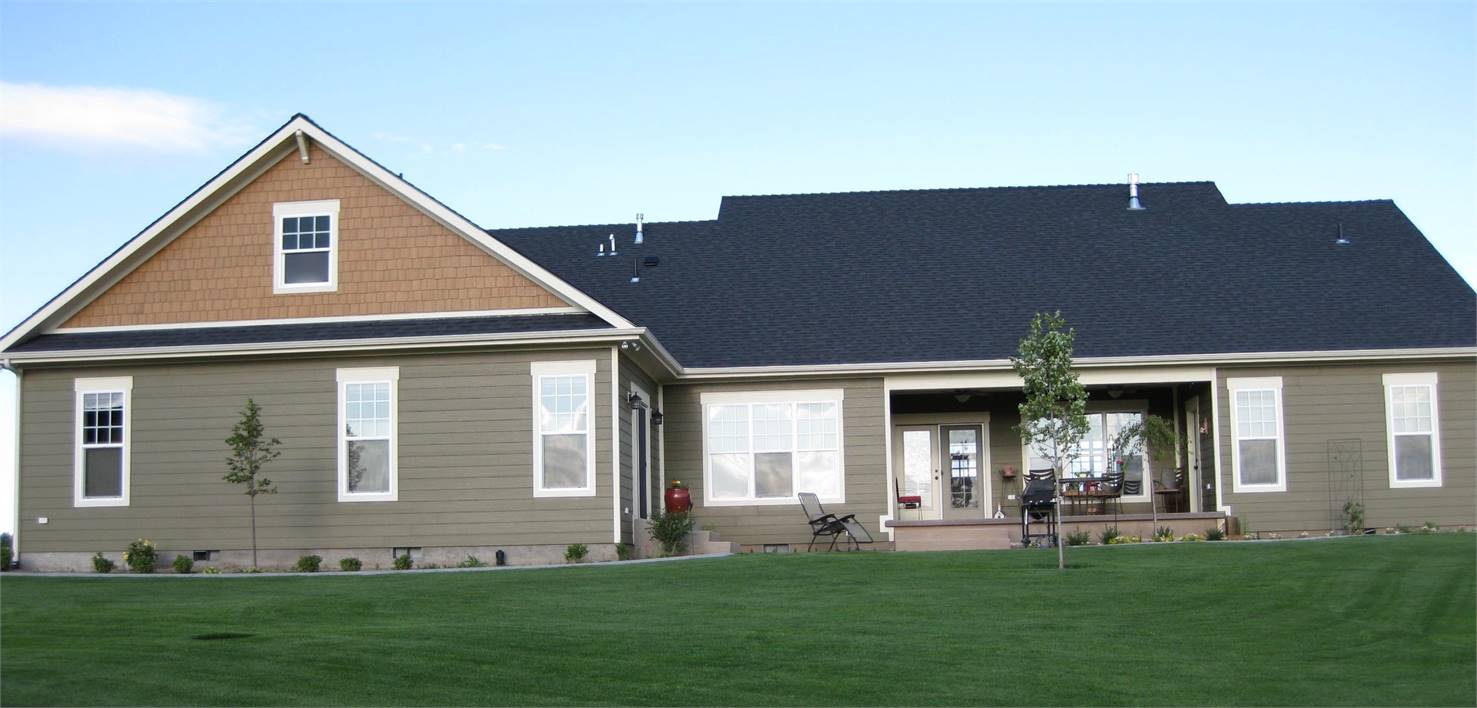

Rear View

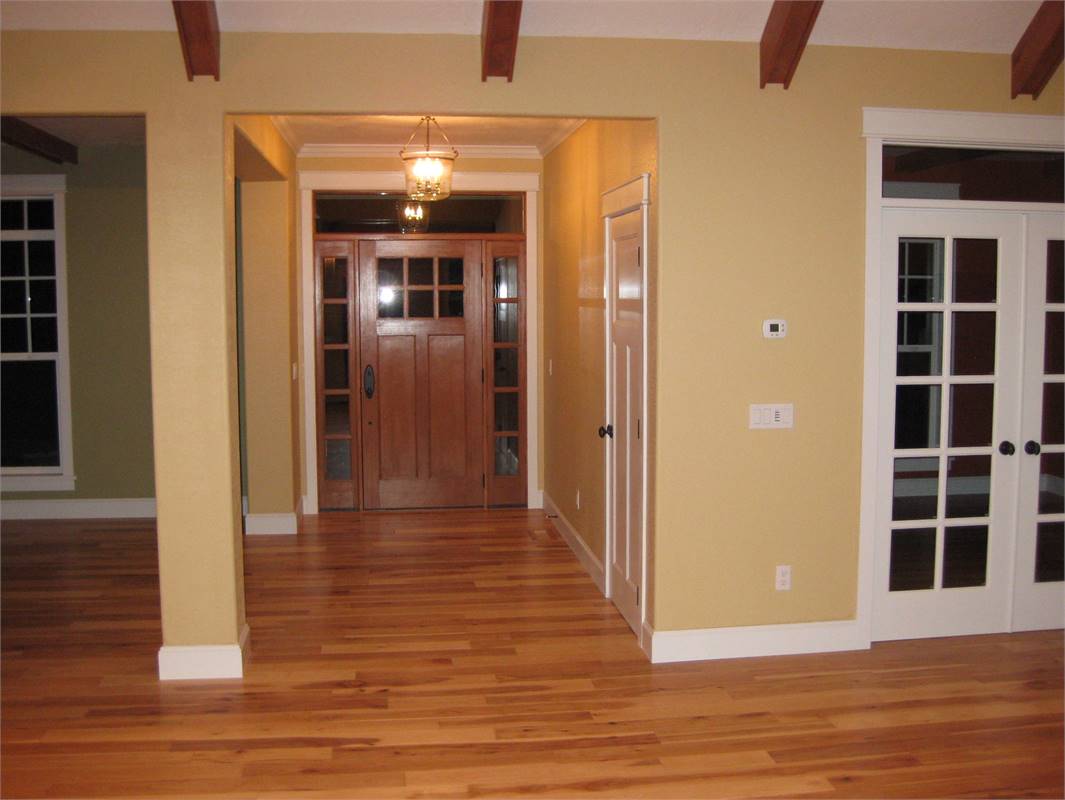

Foyer

Living Room

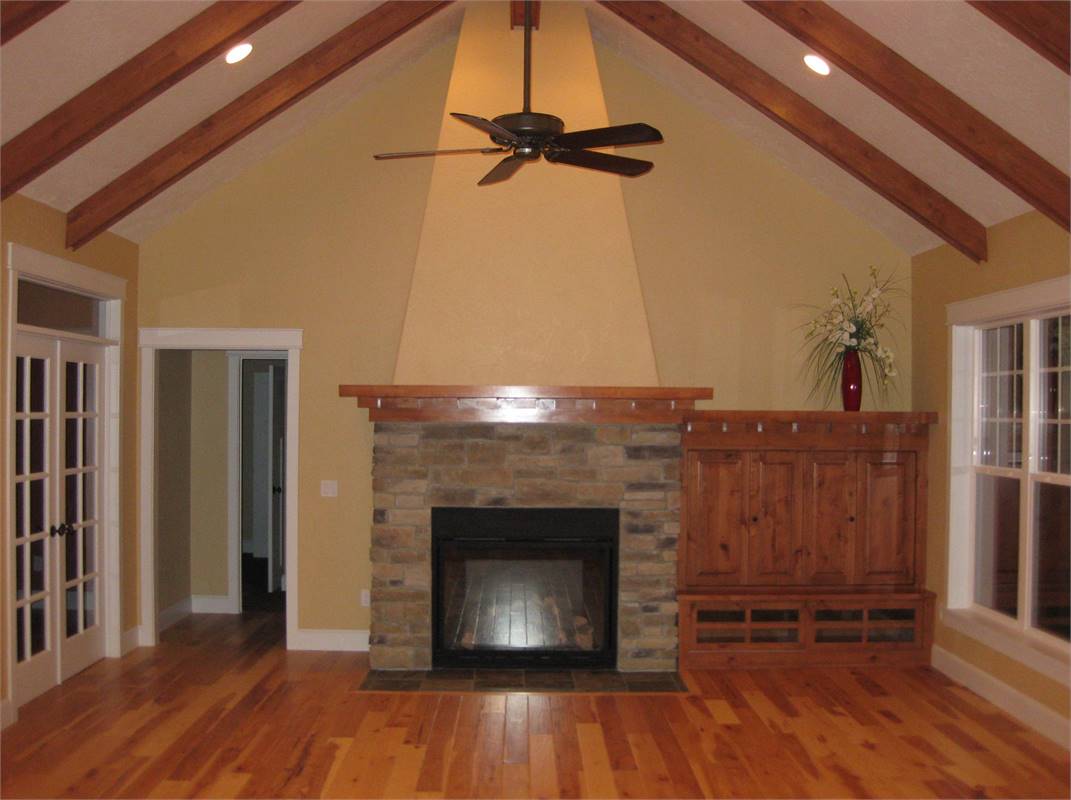

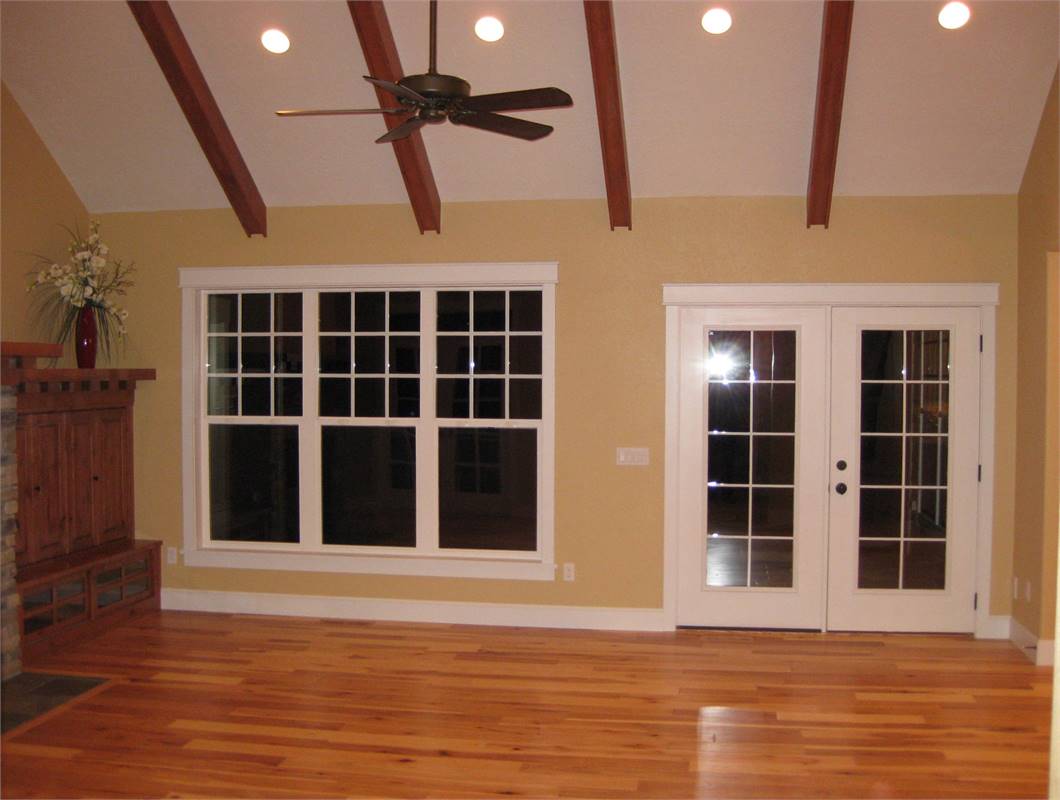

Great Room

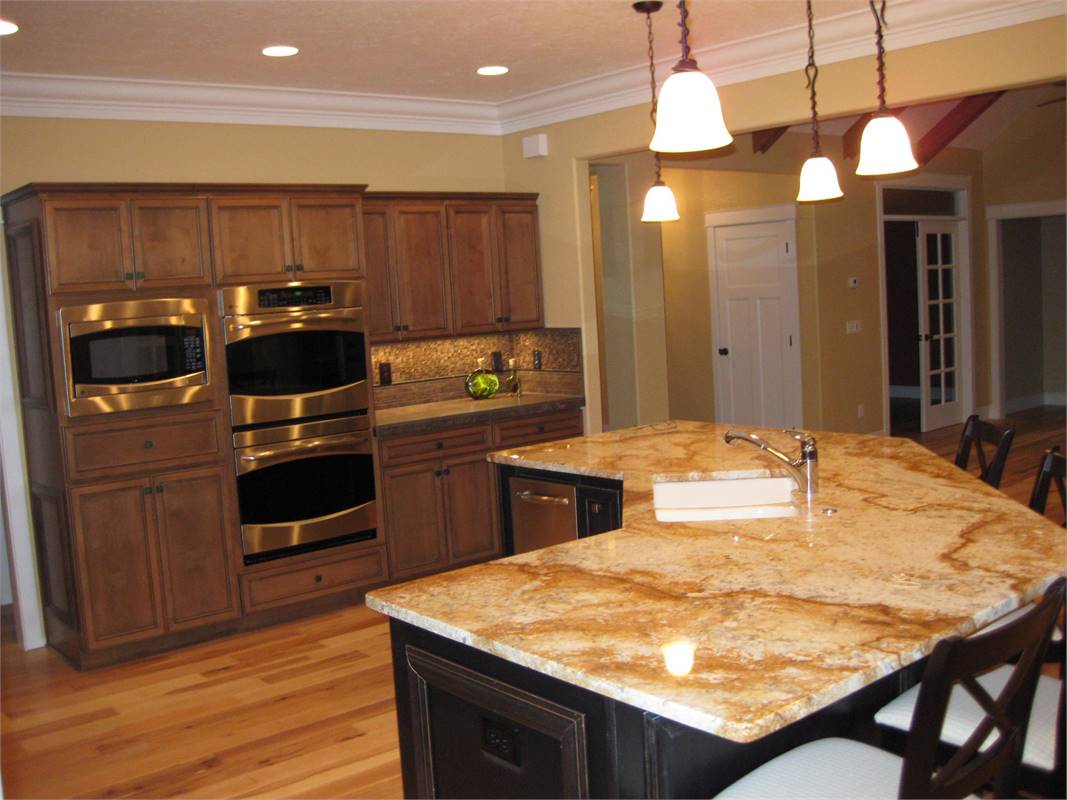

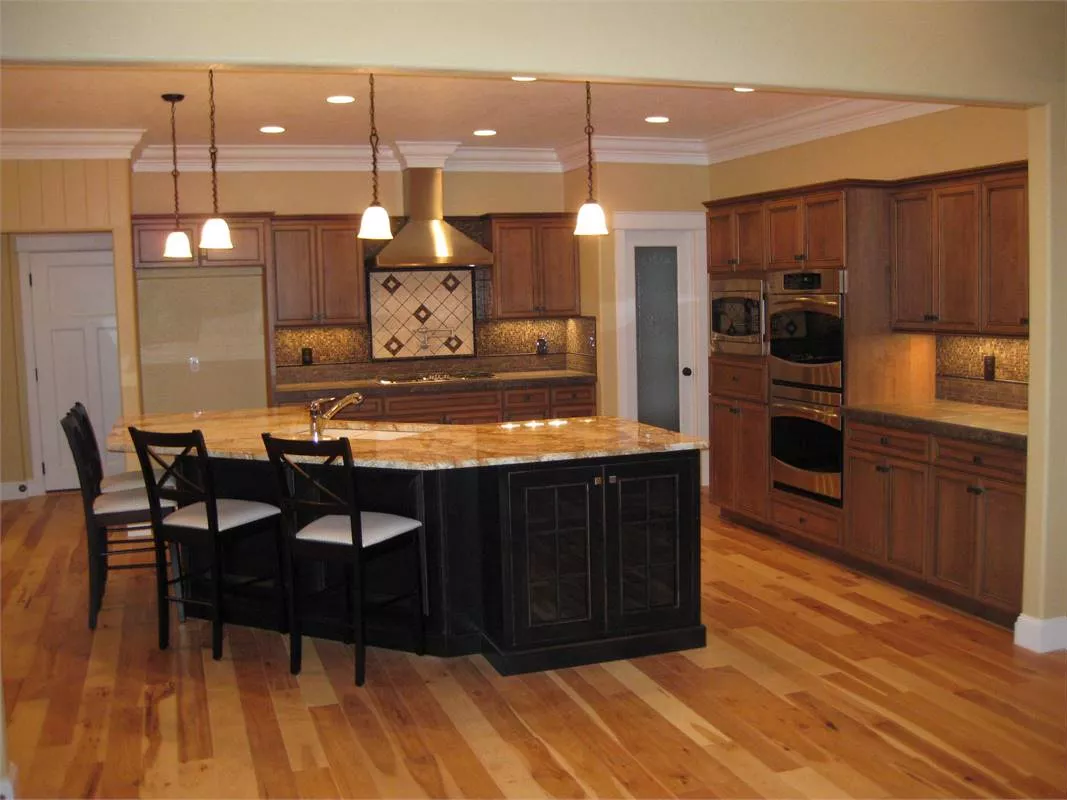

Kitchen

View All 9 Images | Photographs may reflect modified home

Sq Ft

2,789 FT²

From

$1,570.00

Beds

Baths

3.5

Stories

Garage

Depth

63' 2"

Width

84'

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

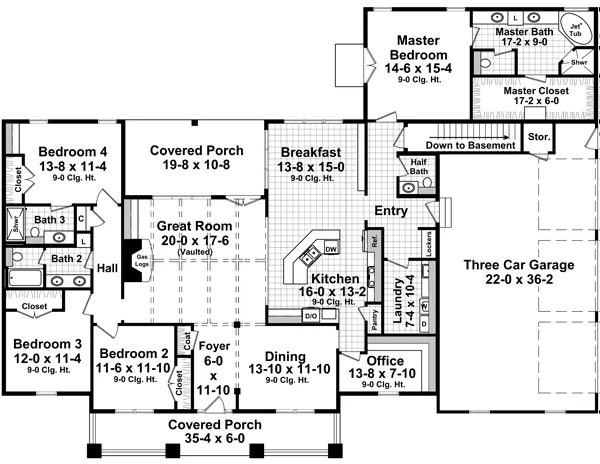

Floorplan

Rear

Floorplan

Rear

About This Plan

This home features the newly revived Craftsman exterior. With a split-bedroom layout, this plan is perfect for a growing family. It features 3 1/2 large bathrooms. The Master Bath includes a large jet tub and a custom built shower. The kitchen is fully equipped with a wrap-around raised bar and a large pantry. Bedroom 4 may be used as a family member suite. Expansive great room features a vaulted ceiling and a gas log fireplace. Large front and rear covered porches compliment the livability of this home. An oversized three car garage is provided for real-sized vehicles. Room spaces are designed large enough to have added space for a comfortable lifestyle!

FEATURES & DETAILS

Kitchen features

Country Kitchen
Kitchen Island
Nook / Breakfast Area
Peninsula / Eating Bar

Bedroom features

Primary Bdrm Main Floor
Nursery Room
Separate Tub and Shower
Split Bedrooms
Walk-in Closet

Exterior features

Covered Front Porch
Covered Rear Porch
Deck

Foundation Options

Basement
Crawlspace
Walkout Basement

Lot Options

Suited for corner lot
Suited for narrow lot
Suited for sloping lot
Suited for view lot

Additional features

Dining Room
Exercise Room
Fireplace
Foyer
Great Room
Home Office
Laundry 1st Fl
Library/Media Rm
Open Floor Plan
Rec Room
Storage Space
Unfinished Space
Vaulted Ceilings

Garage Location

Side

Garage Options

Attached
Oversized

4,142 Ft

Total Structure

2,789 Ft

Total Heated

Bedrooms

3.5

Bathrooms

Garage

Stories

84' 0"

Width

63' 2"

Depth

26' 2"

Height

9' 0"

Main Floor Ceiling

2x6

Framing

Stick

Roof Framing

8/12

Primary Roof Pitch

None

Secondary Roof Pitch

Single

Dwelling Number

None

Bonus Access

Unheated Living Space

842 Ft

Garage

20 Ft

Storage

422 Ft

Porch

Exterior Styles

Cottage

Country

Craftsman

Collections

Plan Package Options

Important info before you buy

Select Plan Package

$1,455

Study Set - Printed

One printed set of house plans stamped NOT FOR CONSTRUCTION". This set is intended for review purposes and are mailed to you. To build from the plans, you need to upgrade to a licensed set.

$1,455

$1,570

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,570

$1,680

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,680

$1,790

5 Printed Sets + PDF

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

$1,790

$2,325

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$2,325

Need To Reverse Plan? (Optional)

$150

Readable Reverse

Reverse house plans with readable text and dimensions

$150

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping in the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
