Sq Ft
7,823 FT²
Bed
5
Bath
5.5
Stories
2
Garage
4
Depth
122' 4"
Width
102' 4"
On Sale
$2,800.75
$2,800.75
© copyright by designer
View All 39 Images | Photographs may reflect modified home
Sq Ft
7,823 FT²
From
$2,800.75
Bed
5
Bath
5.5
Stories
2
Garage
4
Depth
122' 4"
Width
102' 4"

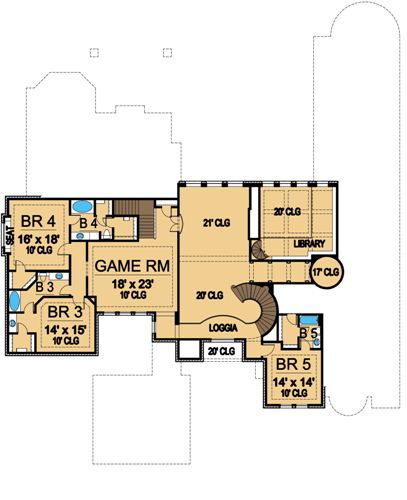

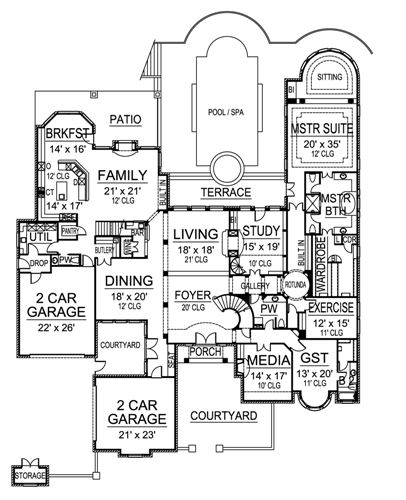

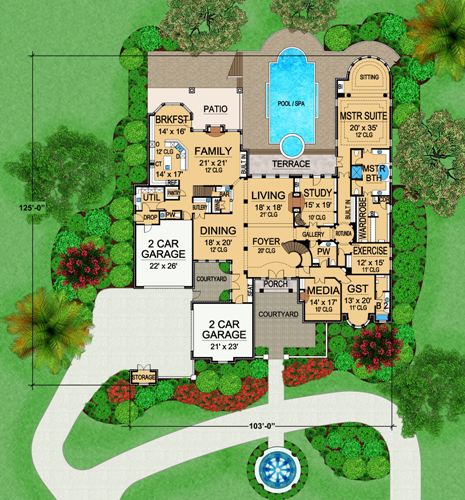

Click to Zoom In on Floor Plan
© copyright by designer



About This Plan

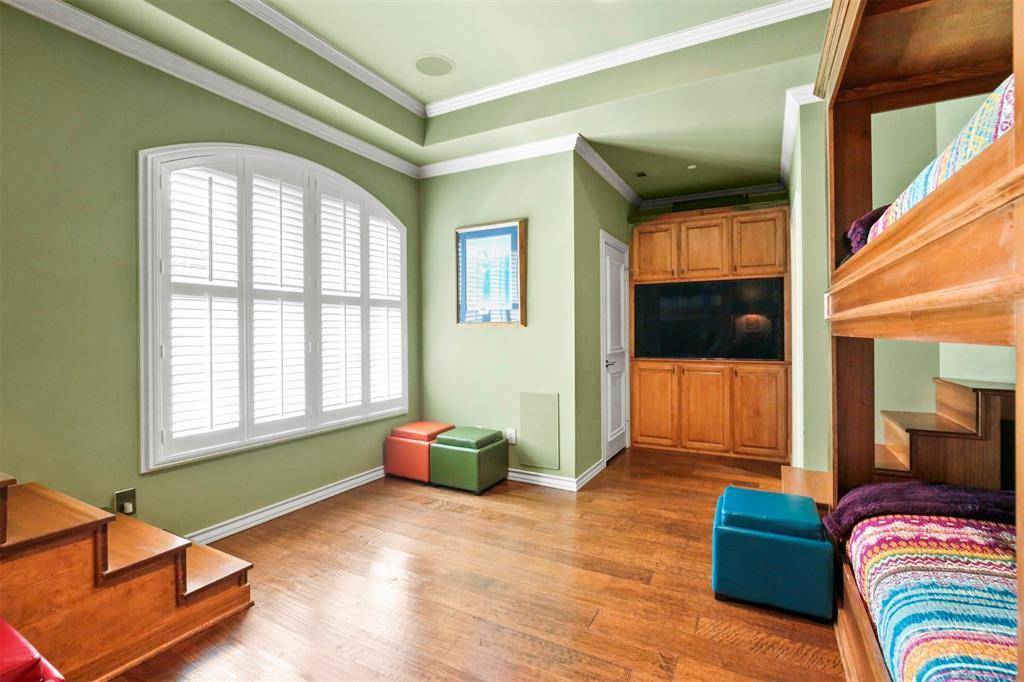

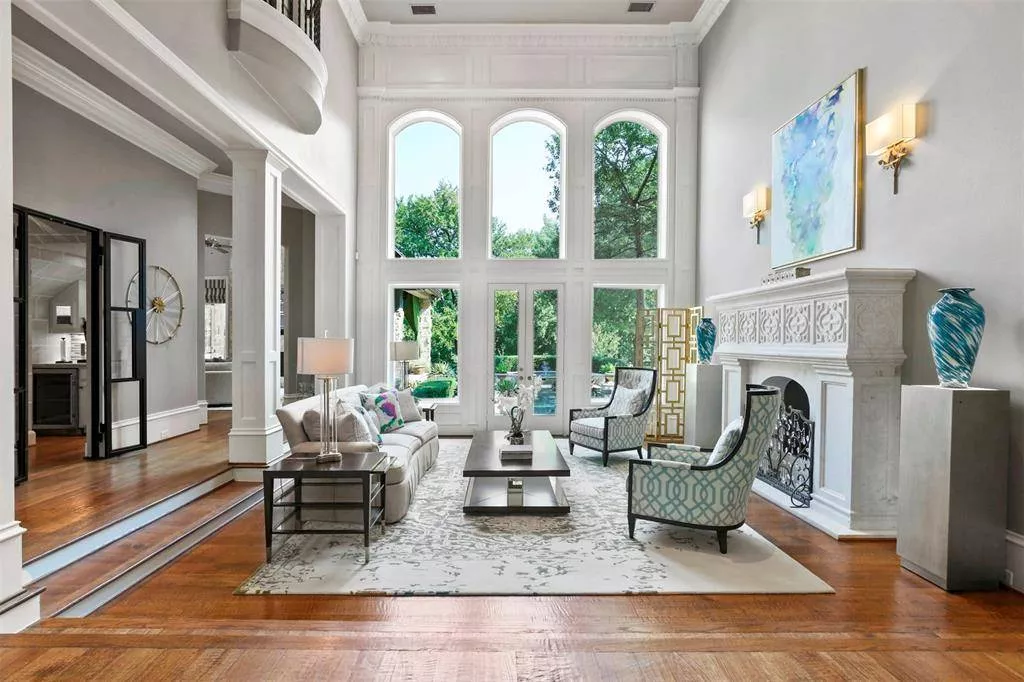

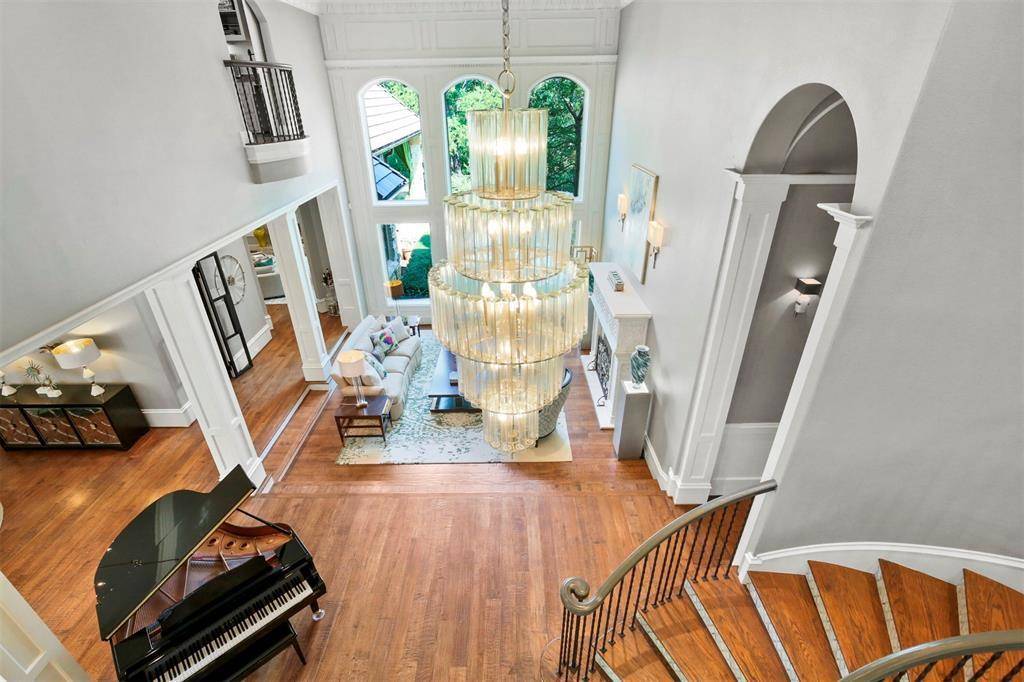

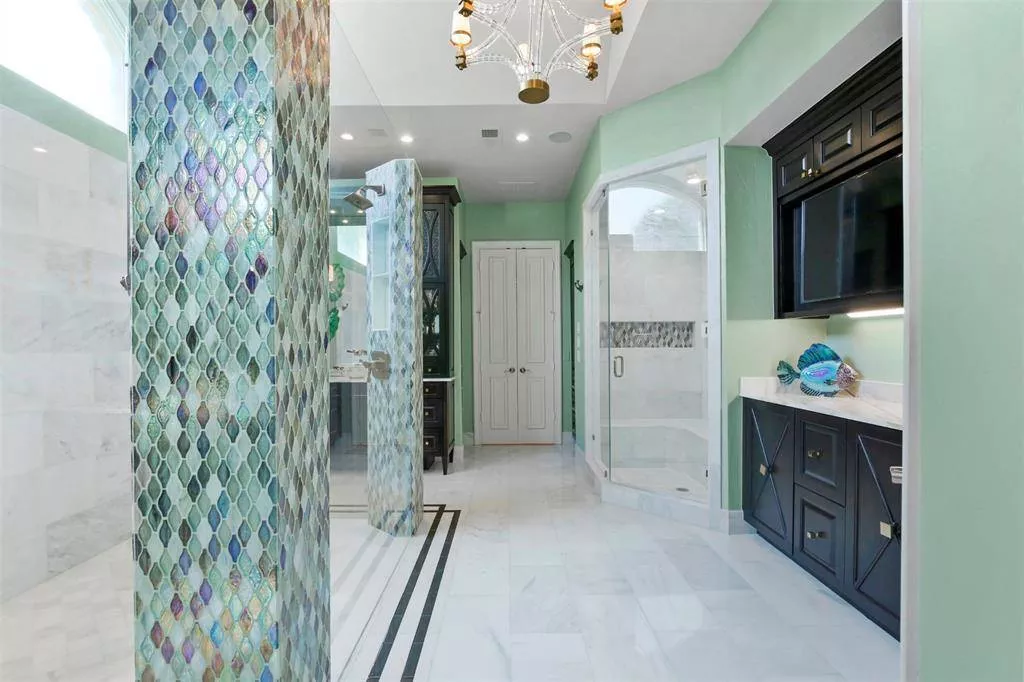

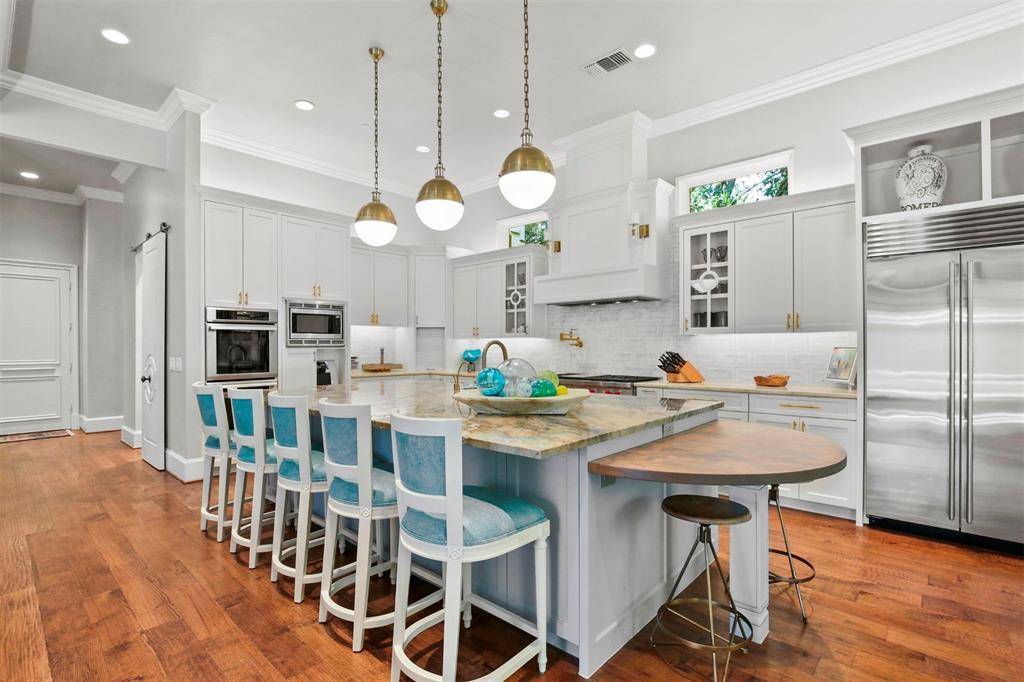

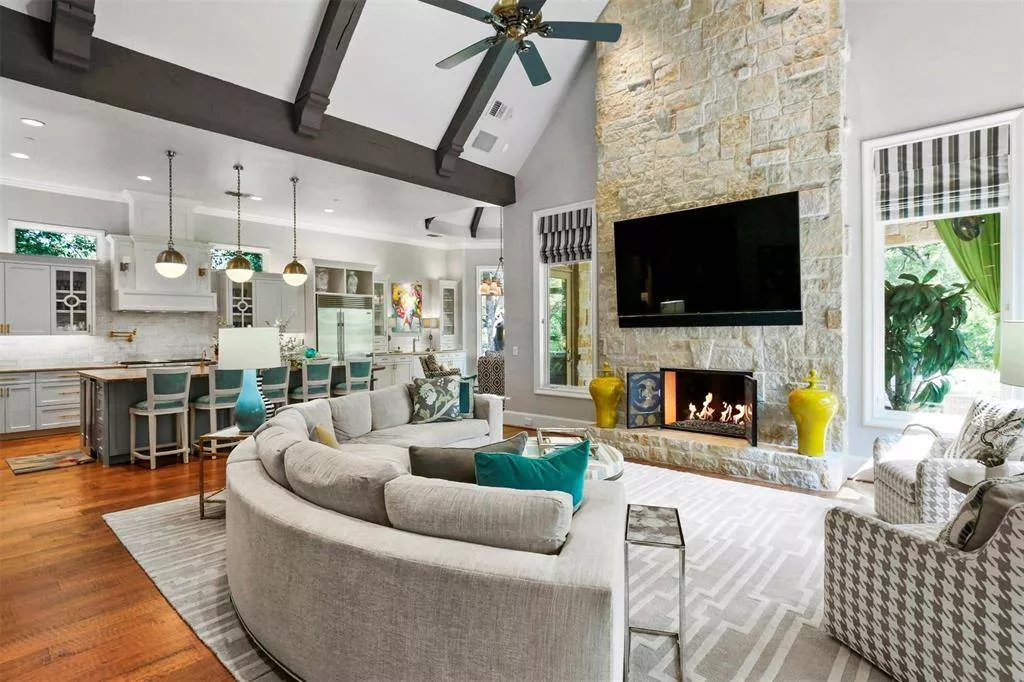

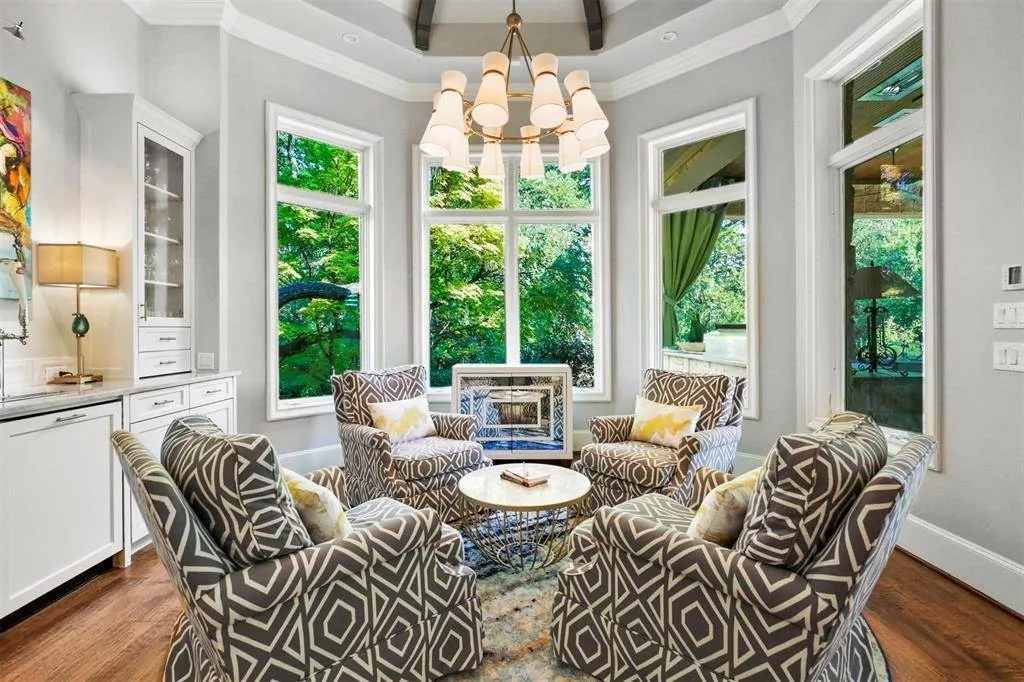

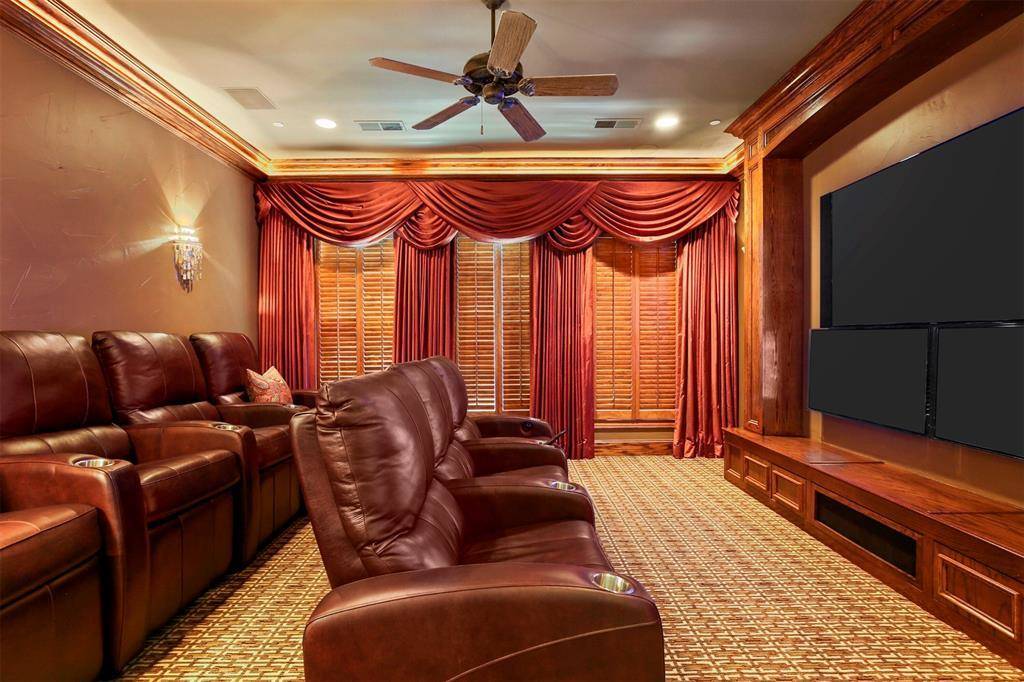

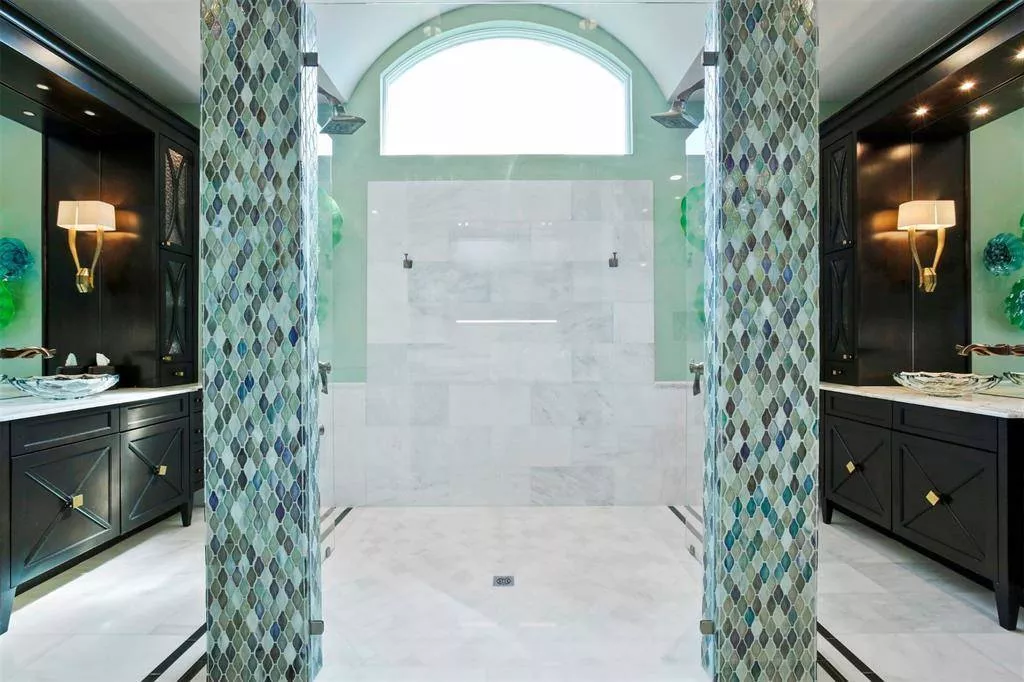

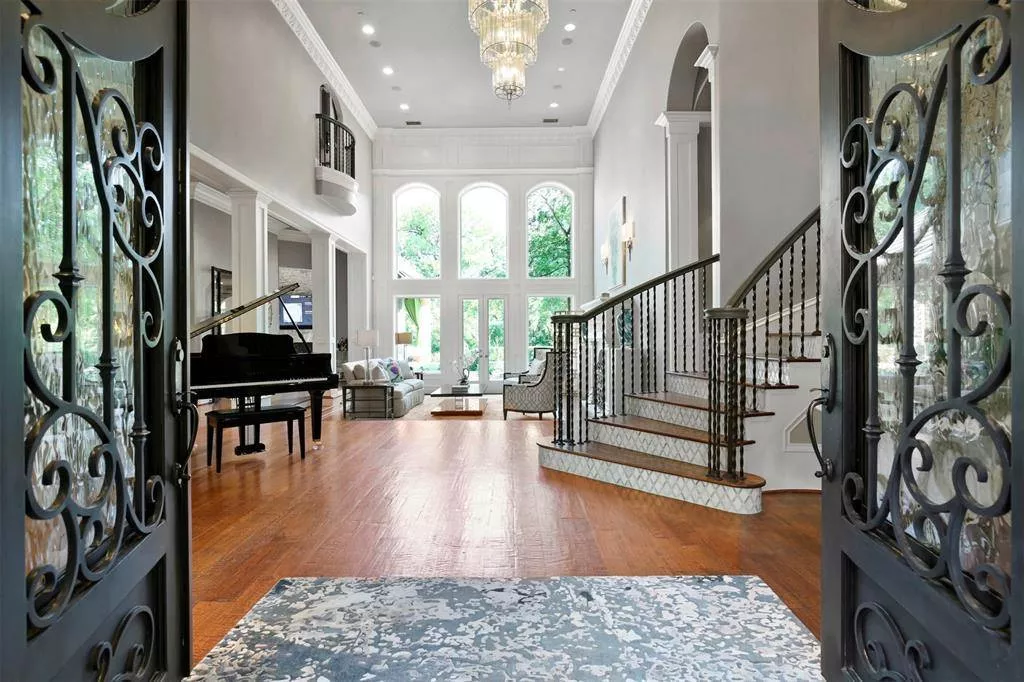

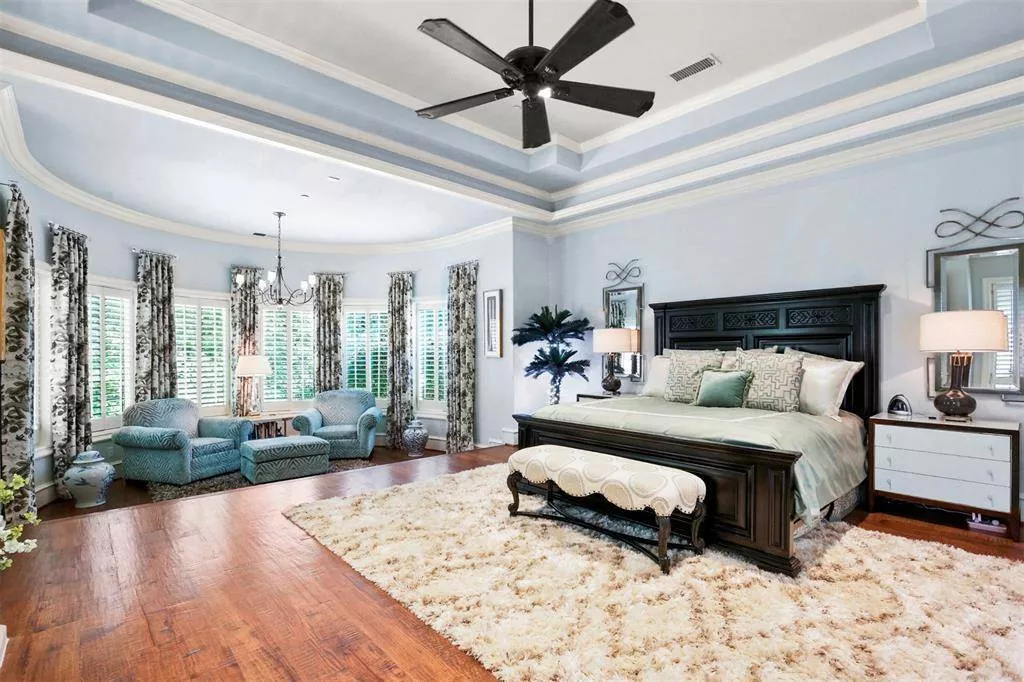

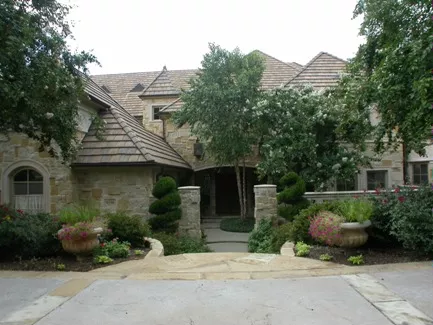

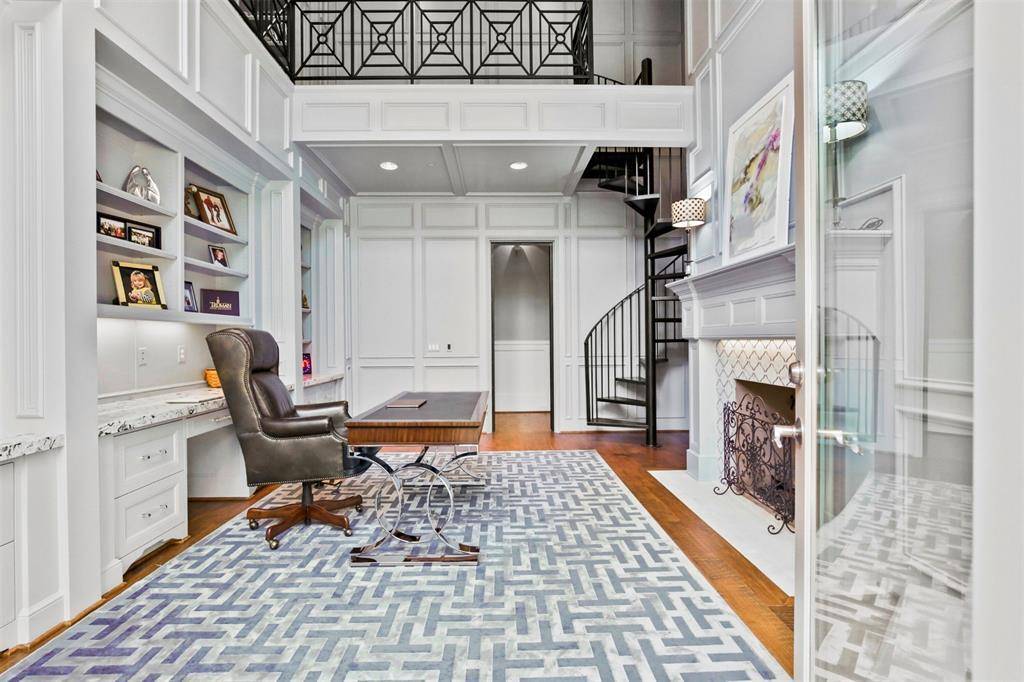

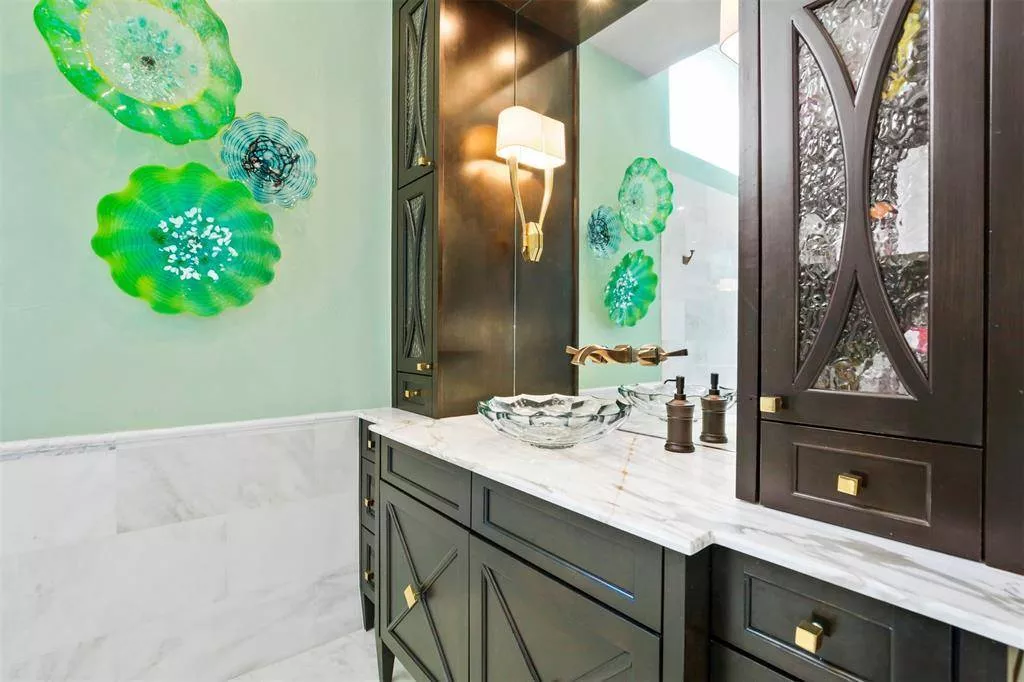

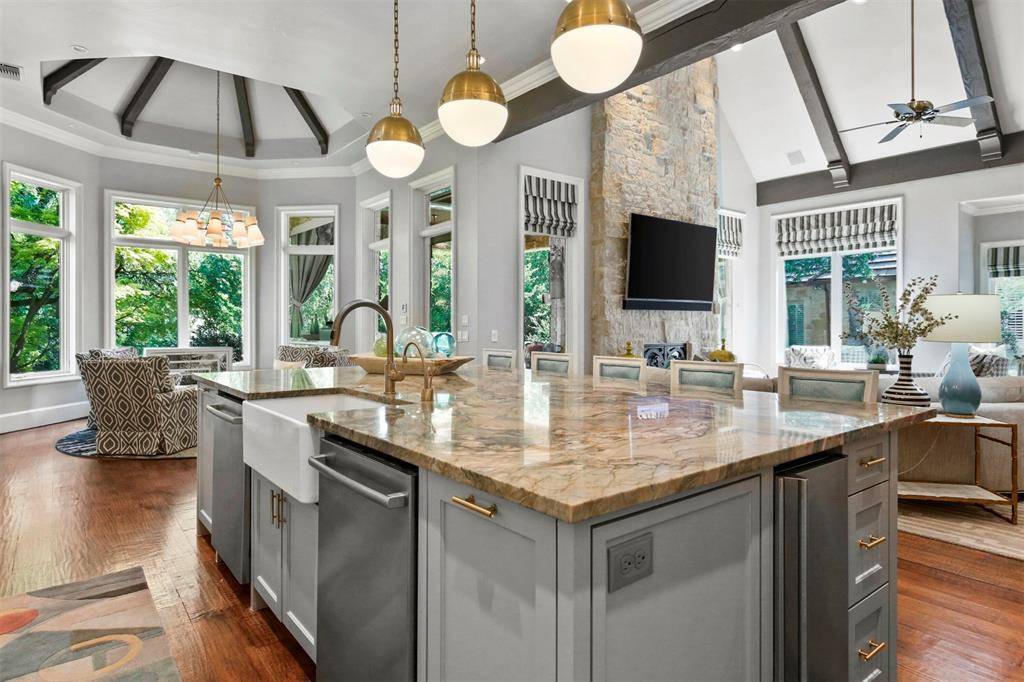

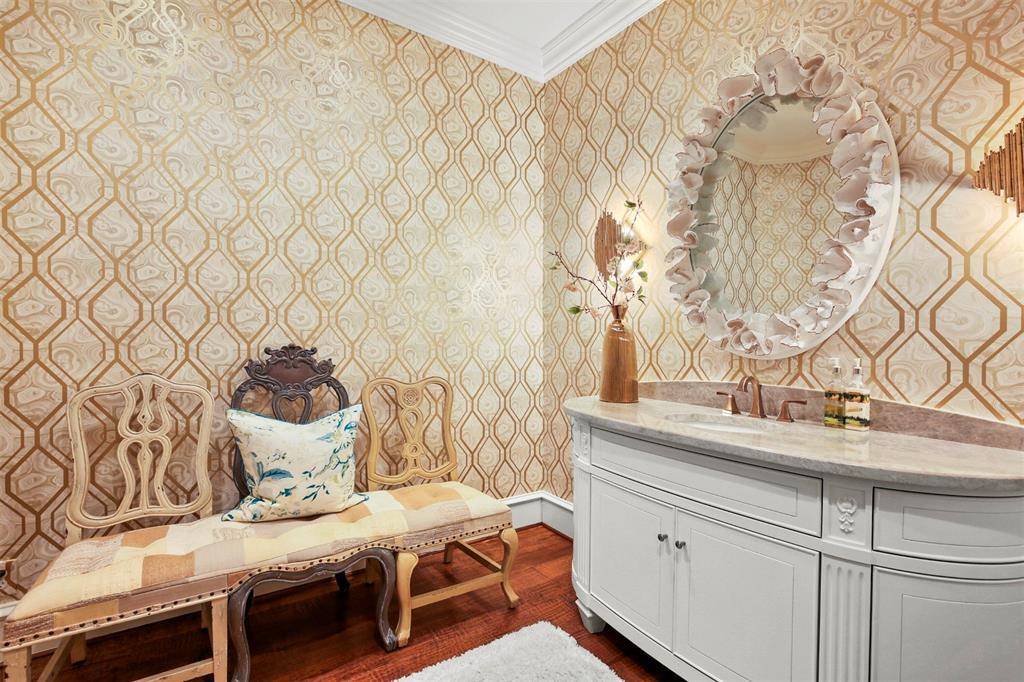

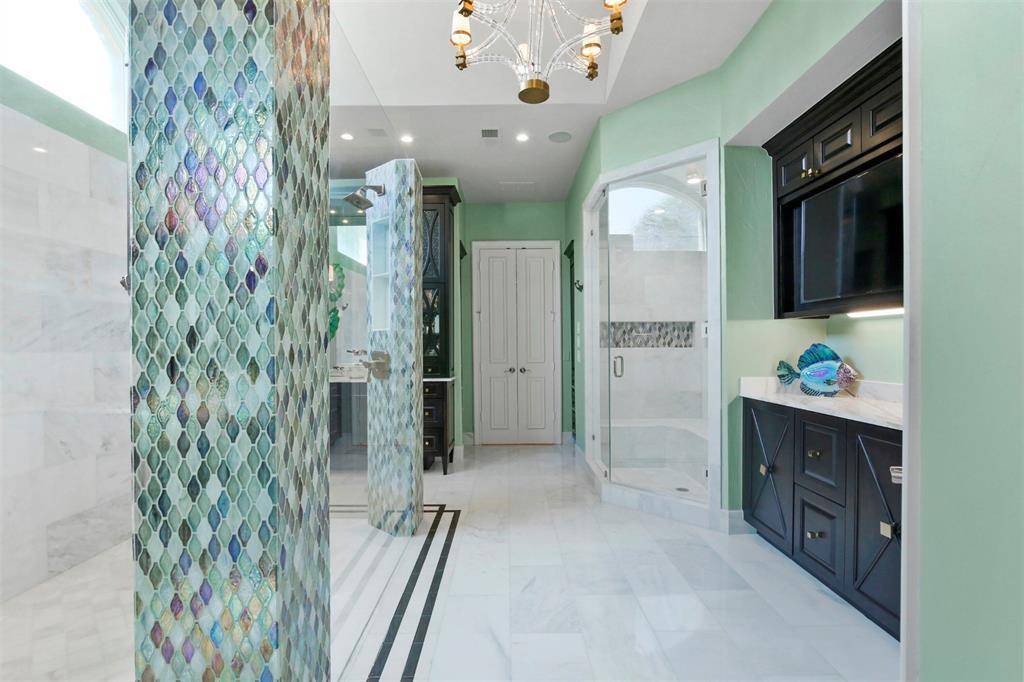

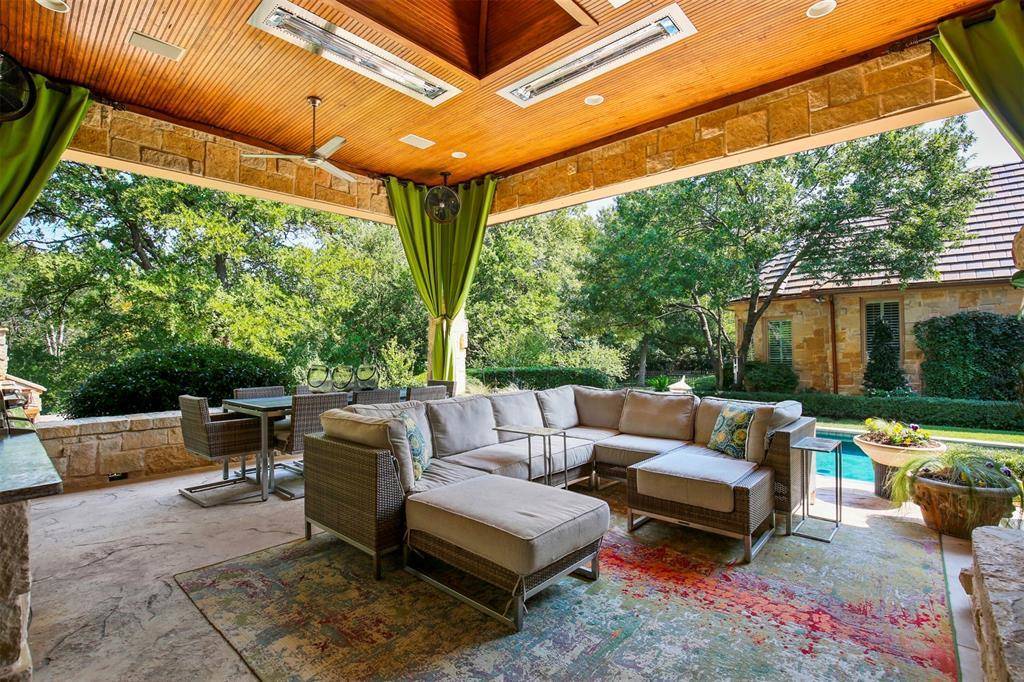

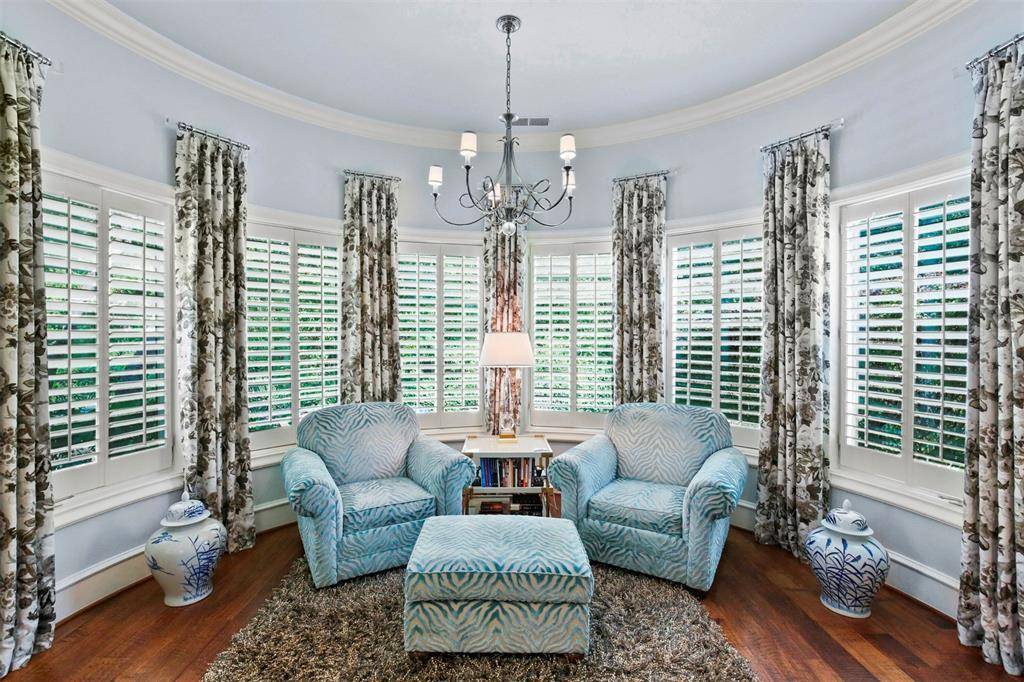

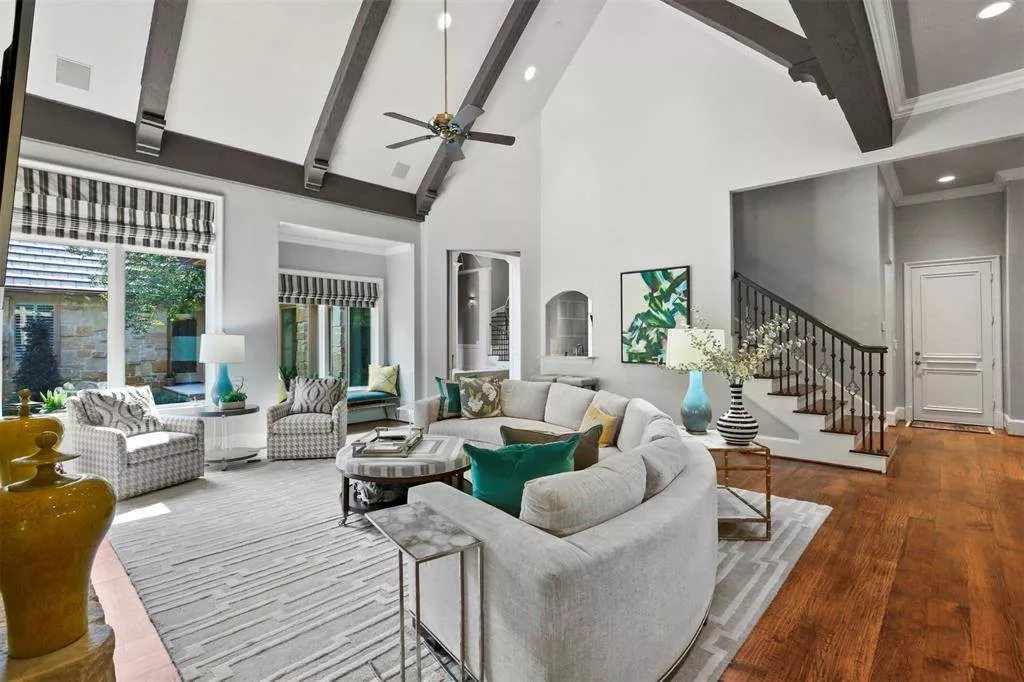

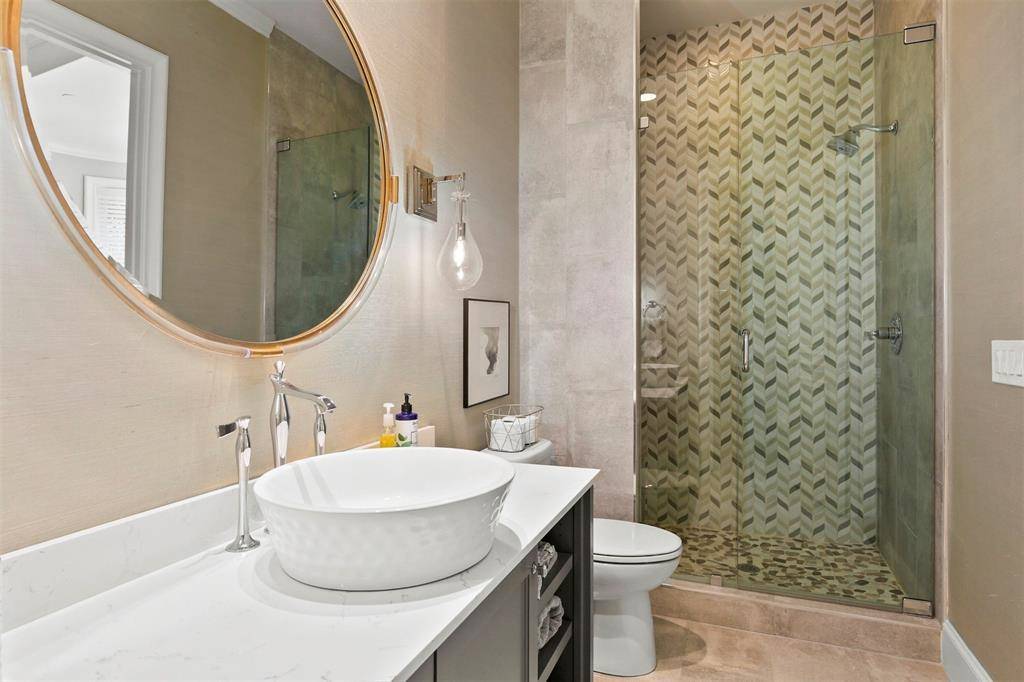

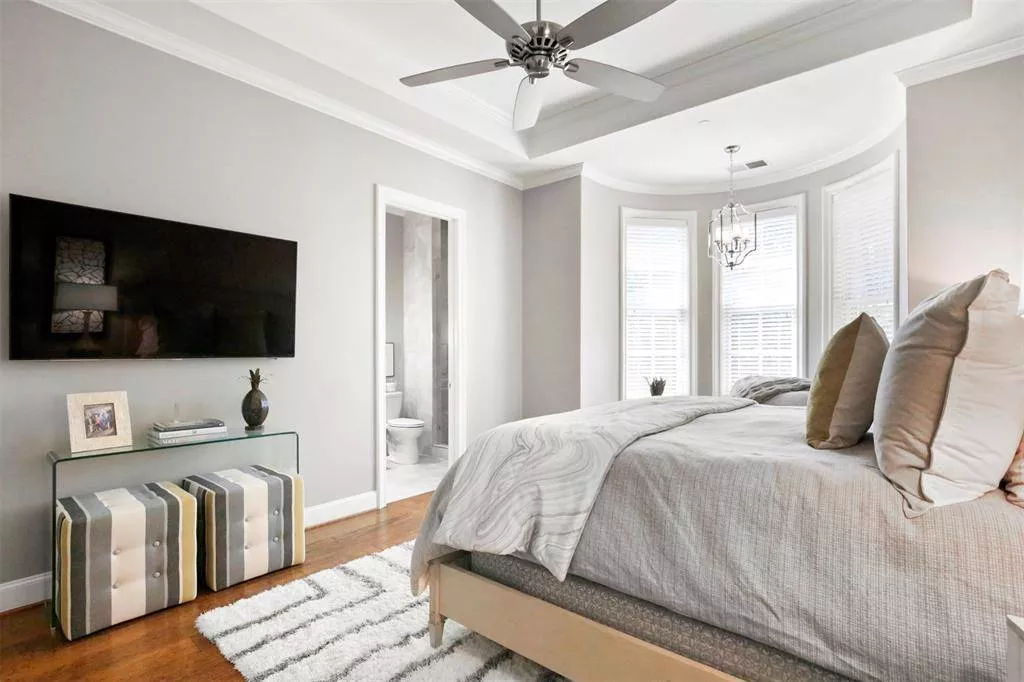

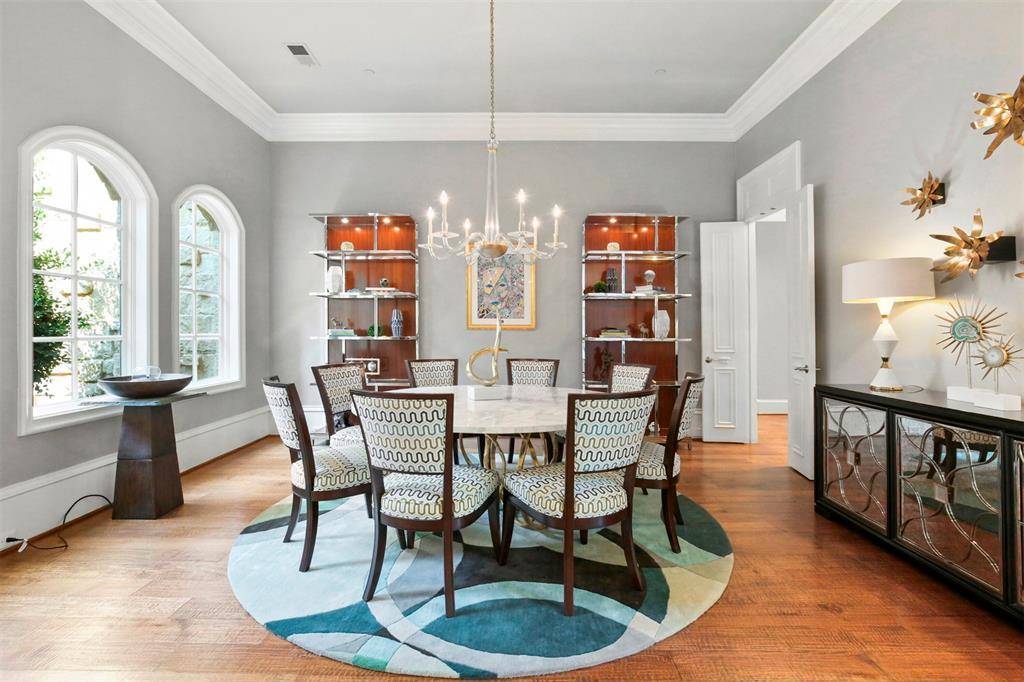

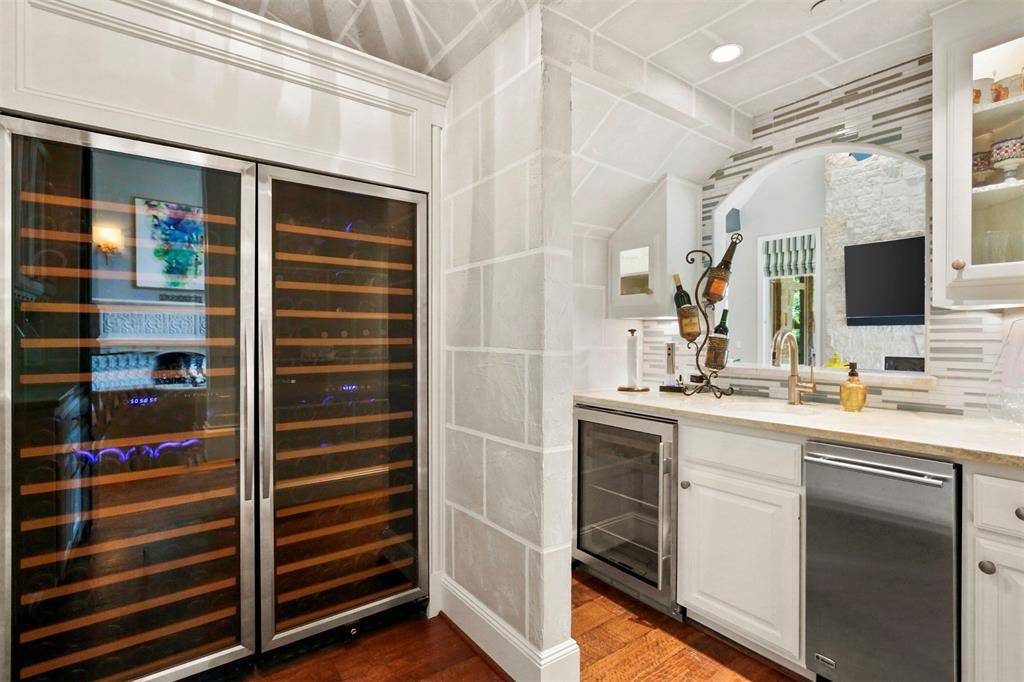

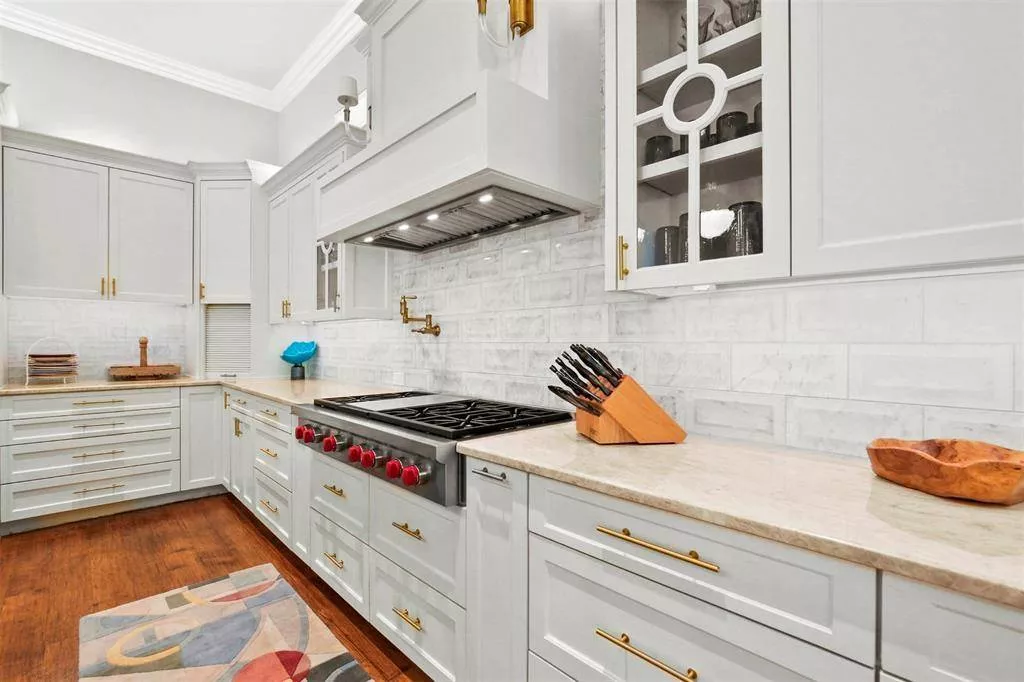

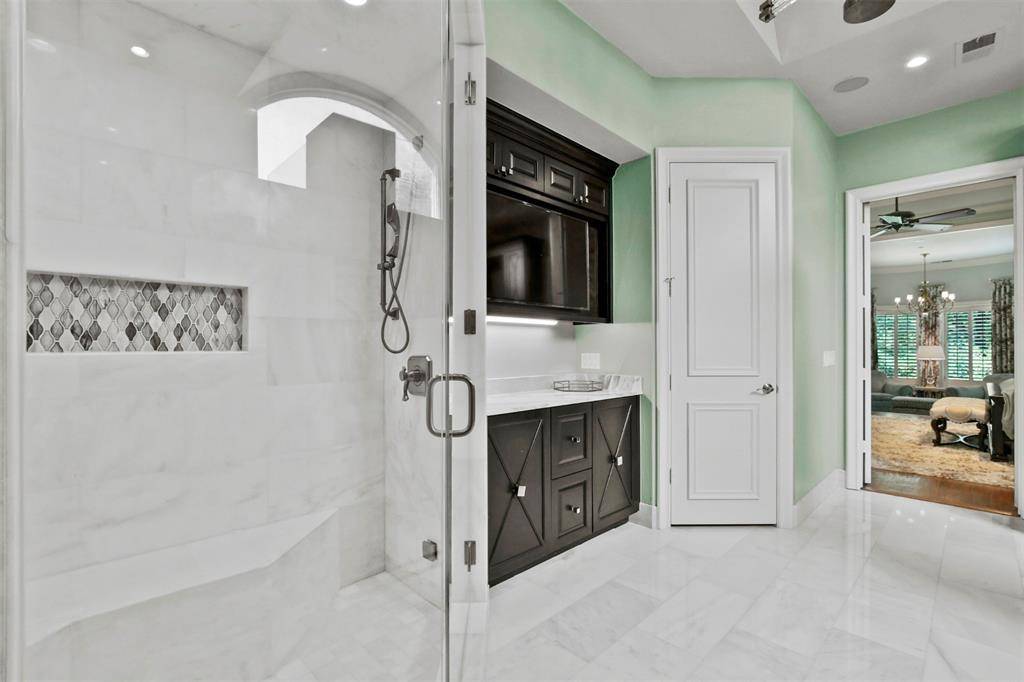

This luxury chateau offers varied ceiling treatments throughout. Through the courtyard, you will enter into the two-story foyer with five large decorative pillars that lead to the back of the house, and define the perimeters of the foyer, living room and dining room. A curved stairway, powder room and gallery lead to the quiet study with access to the terrace and a spiral staircase to the library on the second level. A warming two-way fireplace between the living room and study is so cozy. The dining room sits adjacent to the butlery, bar/wine area and kitchen for ease in serving. The kitchen, breakfast area, and family room are very open to one another, separated only by the free-standing breakfast bar. A free-standing island in the kitchen provides more counter space. The family room provides a warming fireplace to keep the area cozy. Enjoy an early morning cup of coffee on your patio. The luxurious master suite boasts a curved window sitting area with decorative pillars. The lavish bath includes his and hers private toilets, separate shower, whirlpool tub, his and hers vanities, and a large exercise area. In the front of the luxury chateau are the media room and guest room with walk-in closet and private bath. Upstairs, three family bedrooms with tray ceilings, walk-in closets, and full baths share space with a loggia, game room and library. Views from above to the main level below are stunning.



FEATURES & DETAILS

Kitchen features
Kitchen Island
Nook / Breakfast Area
Peninsula / Eating Bar
Walk-in Pantry
Bedroom features
Double Vanity Sink
Guest Suite
Master Bdrm Main Floor
Separate Tub and Shower
Sitting Area
Split Bedrooms
Walk-in Closet
Exterior features
Covered Front Porch
Covered Rear Porch
Front Porch
Rear Porch
Foundation Options
Slab
Lot Options
Suited for corner lot
Suited for view lot
Additional features
Arches
Dining Room
Exercise Room
Family Room
Fireplace
Formal LR
Foyer
Home Office
Library/Media Rm
Mud Room
Rec Room
Vaulted Ceilings
Garage Location
Front
Garage Options
Attached
Front-entry
Side-entry
9,543 Ft
2
Total Structure
7,823 Ft
2
Total Heated
5,926 Ft
2
1st Floor
1,897 Ft
2
2nd Floor
5
Bedrooms
5.5
Bathrooms
4
Garage
2
Stories
102' 4"
Width
122' 4"
Depth
40' 3"
Height
12' 0"
Main Floor Ceiling
9' 0"
Upper Floor Ceiling
2x4 or 2x6
Framing
Stick
Roof Framing
12
Primary Roof Pitch
20
Dormer Roof Pitch
Single
Dwelling Number

Unheated Living Space
1,163 Ft
2
Garage
83 Ft
2
Porch
474 Ft
2
Patio


Plan Package Options

 Select Plan Package
$3,365
PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$3,365
$3,545
5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$3,545
$5,050
CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$5,050
 Need To Reverse Plan? (Optional)
$300
Readable Reverse

Reverse house plans with readable text and dimensions

$300
  Select Foundation Option
  Add-Ons (Optional)

Ground shipping within the Continental U.S.

FREE

Design consultation with the architect or designer to discuss your house plan

Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total
$0
Free Shipping
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
