House Plan 5840: Rosemary

The craftsman detailing add charm to this narrow plan. The front porch projecting beyond the garage wall helps minimize the impact of a front entry. Upon entering the house, ceilings soar to 14' high carrying the vault through the entire house.  Read more >

House Plan Details

Sq. Ft.
1,514
Beds
3
Baths
2.0
Stories
1
Garages
2
Width
37' 0"
Depth
61' 0"
1st Floor
1,514
Lower
1,514
Garage
420
Porch
85
Select Plan Package
PDF THD Exclusive Product
$975
Select Foundation Options
$0
WALK OUT BASEMENT
$0
Optional Add-Ons
Subtotal: $625

PLAN IMAGES

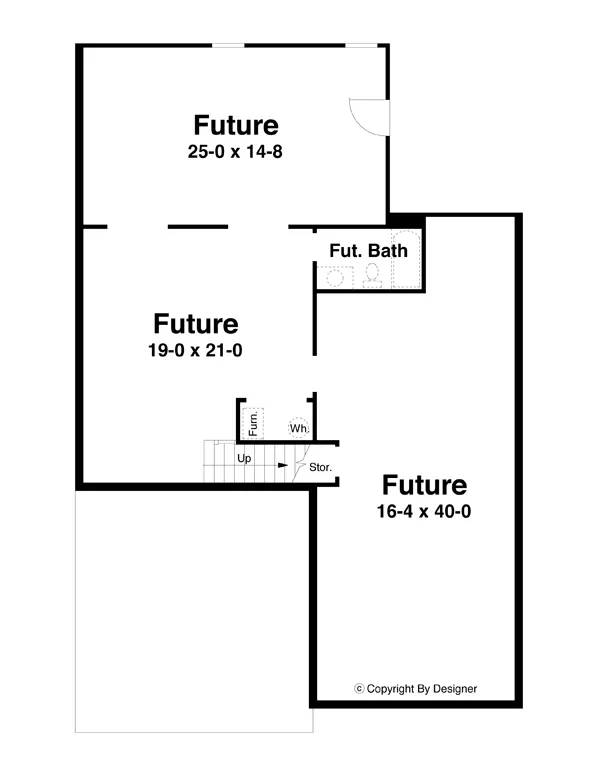

Basement Option

Basement Option
© copyright by designer

Plan Details

Basic Information
Bedrooms: 3
Bathrooms: 2.0
Garage: 2
Stories: 1
Exterior Style
Bungalow
Cottage
Craftsman
Dimensions
Width: 37' 0"
Height: 25' 0"
Depth: 61' 0"
Heated Living Space
Total Sq. Ft: 1,514
1st Floor: 1,514
Lower: 1,514
Unheated Living Space
Garage: 420
Porch: 85
Patio: 110
Ceiling
Upper Ceiling Ft:
Main Ceiling Ft: 8
Framing Information
Framing: 2x4
Roof Framing: Truss
Bedroom Features
Double Vanity Sink
Master Bdrm Main Floor
Separate Tub and Shower
Split Bedrooms
Walk-in Closet
Kitchen Features
Nook / Breakfast Area
Peninsula / Eating Bar
Additional Room Features
Dining Room
Great Room
Laundry 1st Fl
Open Floor Plan
Storage Space
Unfinished Space
Vaulted Ceilings
Garage Location
Front
Garage Features
Attached
Lot Features
Suited for narrow lot
Suited for sloping lot
Roof Pitch
Primary: 7/12
