HOUSE PLANS
START AT $1,250
SQ FT
3,774
BEDS
4
BATHS
4
STORIES
1
CARS
3
WIDTH
89' 10"
DEPTH
77'
© copyright by designer
Photographs may reflect modified homes.
SQ FT
3,774
BEDS
4
BATHS
4
STORIES
1
CARS
3

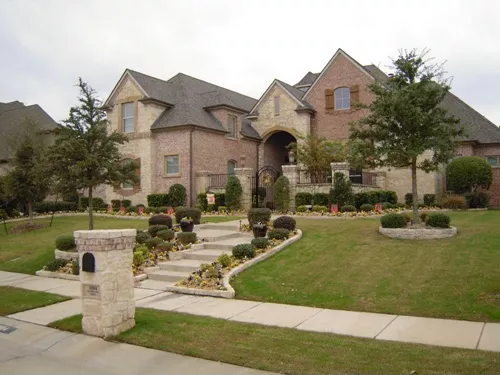

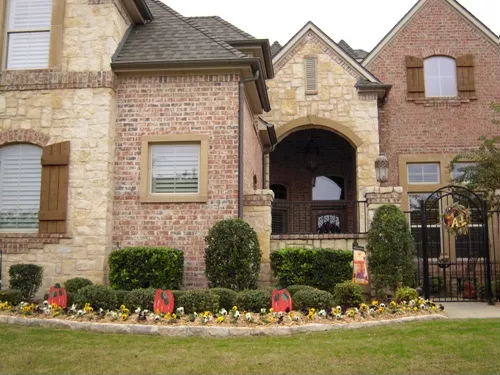

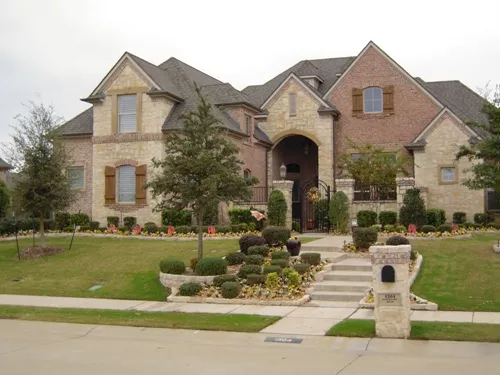

House Plan 5117: RIDGEVIEW RANCH

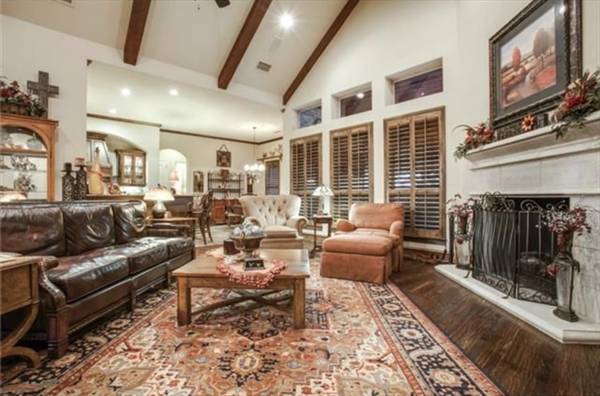

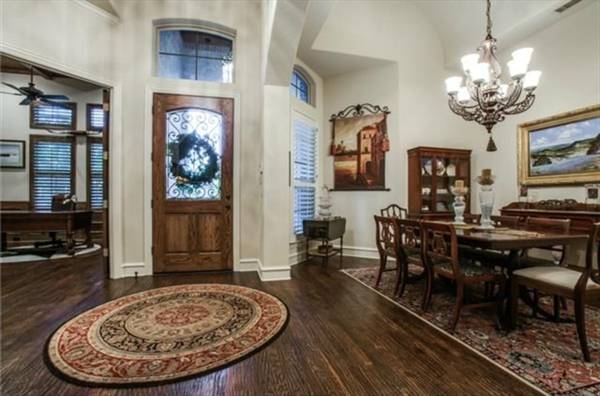

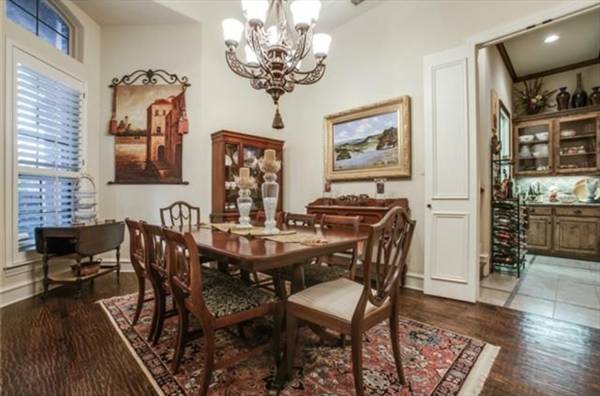

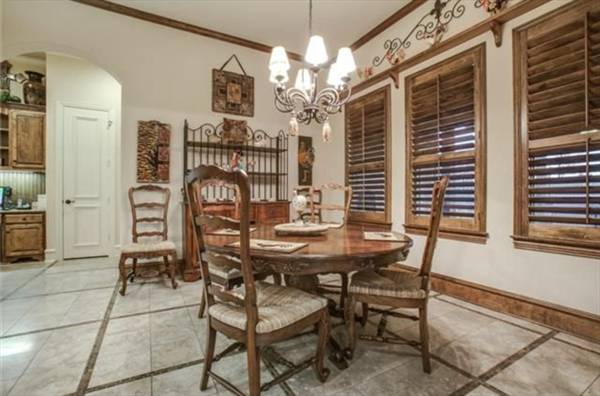

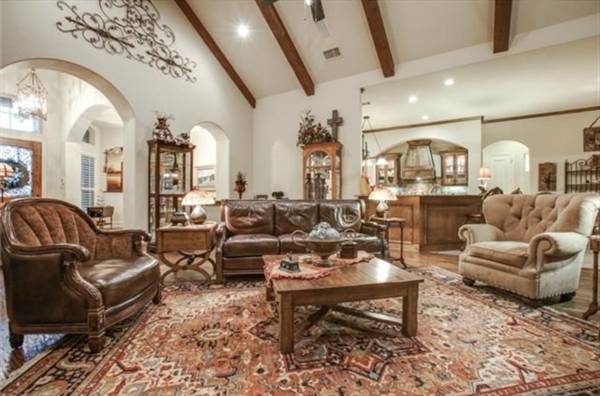

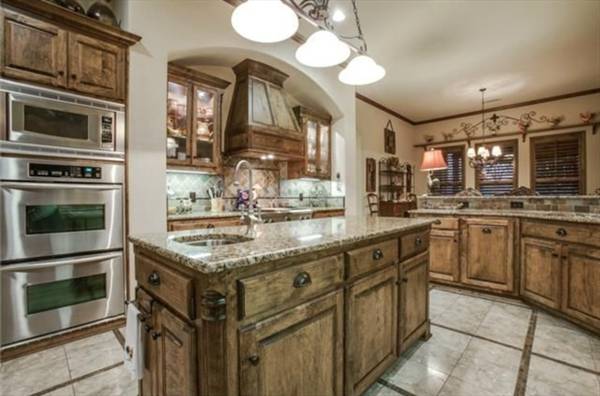

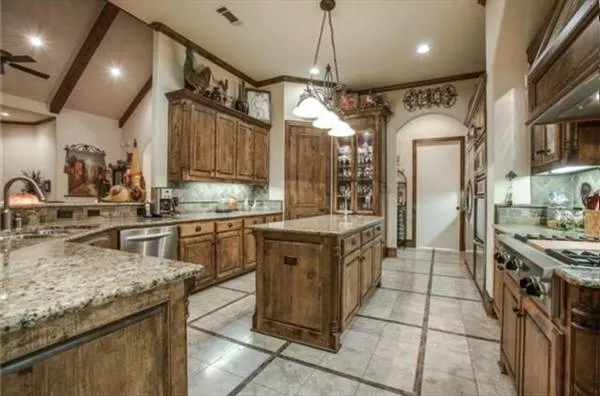

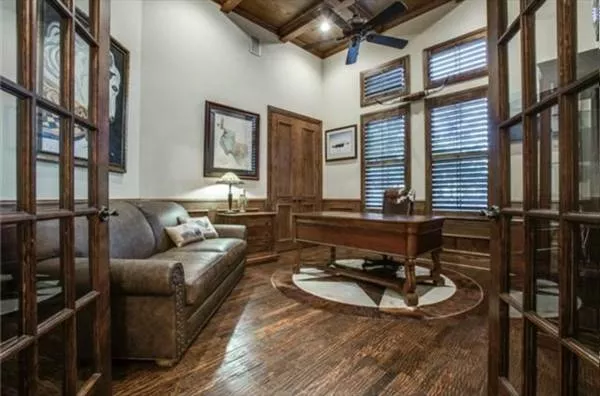

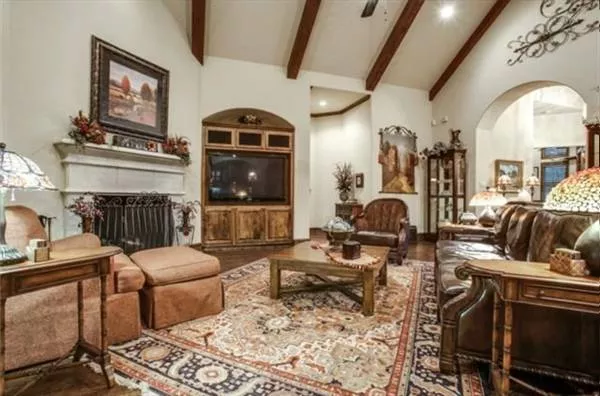

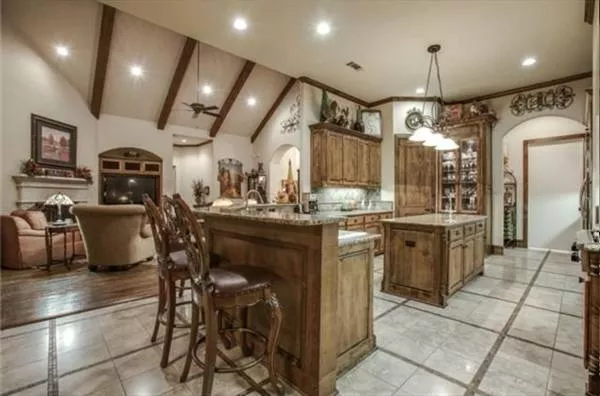

This luxury Tuscan house plan offers different ceiling treatments throughout. The two story foyer is flanked by the quiet study and elegant dining room. The dining room has direct access to the utility room, pantry and butlery for ease in serving. The kitchen, family room, and breakfast area are open to one another, divided only by the breakfast bar. The kitchen also offers a free-standing island for extra counter space.  Read more >

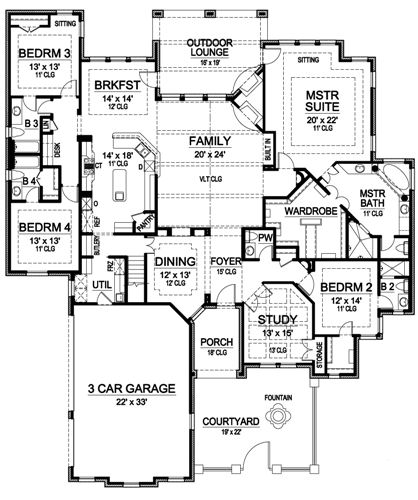

Click to Zoom In on Floor Plan
Floor Plans
© copyright by designer
Plan Packages
 Select Plan Package

PDF Single Build


Digital plans emailed to you in PDF format allowing minor changes, printing copies, and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build
Most recommended package
$1,250

5 Printed Sets


Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets
Five printed sets of house plans
$1,450

CAD Single Use


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Use
2D electronic editable computer files
$1,875
 Need To Reverse This Plan? (Optional)

Readable Reverse


Reverse house plans with readable text and dimensions

Readable Reverse
Reverses house plans with readable text and dimensions
$150
 Select Foundation Option
 Add-Ons (Optional)
Subtotal:
$0
Free Shipping
If a foundation or optional add-on is not listed, please live chat, email or call for availability.
Features:
View All Plan Features
Kitchen features
Kitchen Island
Nook / Breakfast Area
Bedroom features
Double Vanity Sink
Master Bdrm Main Floor

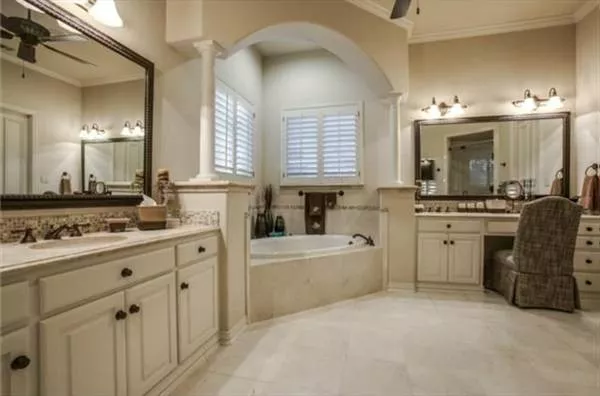

Separate Tub and Shower
Sitting Area
Additional features
Arches

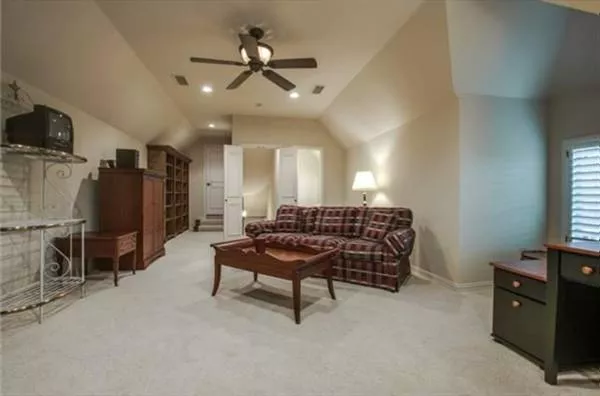

Bonus Room
Dining Room
Family Room
Fireplace
Foyer
Home Office
Laundry 1st Fl
Open Floor Plan
Garage Location
Side
Garage Features
Attached
Side-entry

Hide Plan Features
Details:
View All Plan Details
5,481 Ft
2
Total Structure:
3,774 Ft
2
Total Heated:
4
Bedrooms:
4
Bathrooms:
3
Garage:
1
Stories:
89' 10"
Width:
77' 0"
Depth:
34' 0"
Height:
11
Main Floor Ceiling:
2x4
Framing:
Stick
Roof Framing:
12
Primary Roof Pitch:
10
Secondary Roof Pitch:
Single
Dwelling Number:
Unheated Living Space
789 Ft
2
Garage:
112 Ft
2
Porch:
323 Ft
2

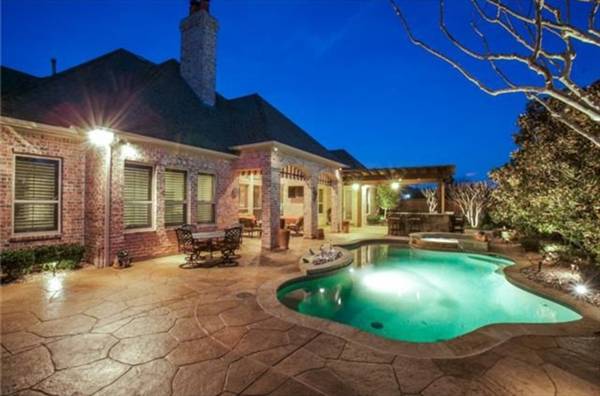

Patio:
483 Ft
2
Bonus Room:
Exterior Styles
European
Traditional
Tuscan

Hide Plan Details
