HOUSE PLANS SALE
START AT $1,062.50
SQ FT
3,671
BEDS
4
BATHS
4.5
STORIES
2
CARS
3
WIDTH
78' 9"
DEPTH
63' 8"
© copyright by designer
Photographs may reflect modified home | View all 5 images
SQ FT
3,671
BEDS
4
BATHS
4.5
STORIES
2
CARS
3

House Plan 4903: RIALTO

Entry to this Mediterranean luxury house plan is through the motor court. Entry to the center of the home is through the family room. The two-story family room with warming fireplace, the breakfast area and the kitchen are open to one another, separated only by the kitchen's handy snack bar. A free-standing island offers more counter space. The elegant dining room is conveniently located near the kitchen and pantry for ease in serving. The master suite boasts a curved sitting area viewing the (concept) pool, plus a tray ceiling, and a lavish bath with his and hers vanities, separate shower, tub with dome ceiling overhead, and large wardrobe. The porch and (concept) pool can be accessed from the master bath, family room or quiet study with coffered ceiling. Two garages, a one-car and a two-car, flank the motor court. Upstairs, you'll find two family bedrooms with tray ceilings, shared balcony, walk-in closets, and full baths. A guest suite with sitting room, walk-in closet and full bath gives visitors the privacy they desire. A game room with wet bar flows into a railed loggia with desk. You'll enjoy the view of the lush yard from the balcony off the loggia, completing this Mediterranean luxury house plan.

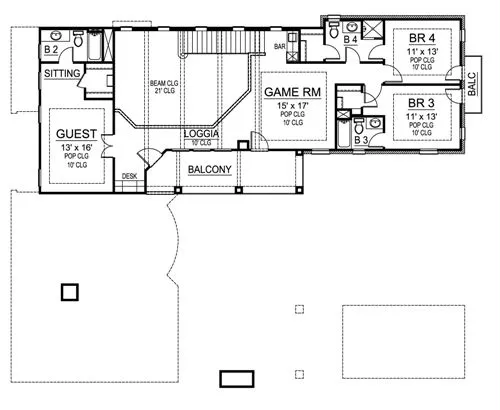

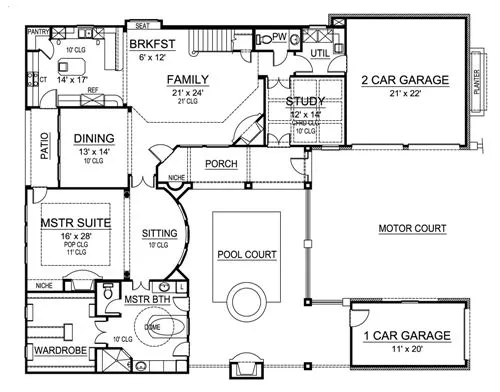

Click to Zoom In on Floor Plan
Floor Plans
© copyright by designer
Plan Packages
 Select Plan Package
PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build
Most recommended package
$1,250
5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets
Five printed sets of house plans
$1,450
CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Build
2D electronic editable computer files
$1,875
 Need To Reverse Plan? (Optional)

Readable Reverse


Reverse house plans with readable text and dimensions

Readable Reverse
Reverses house plans with readable text and dimensions
$150
 Select Foundation Option
 Add-Ons (Optional)
Subtotal:
$0
Free Shipping
Features:
View All Plan Features
Kitchen features
Country Kitchen
Kitchen Island
Nook / Breakfast Area
Bedroom features
Double Vanity Sink
Guest Suite
Master Bdrm Main Floor
Separate Tub and Shower
Sitting Area
Additional features
Arches
Dining Room
Family Room
Fireplace
Home Office
Laundry 1st Fl
Library/Media Rm
Open Floor Plan
Exterior features
Courtyard
Covered Front Porch
Covered Rear Porch
Front Porch
Rear Porch
Garage Location
Side
Garage Options
Attached
Side-entry
Foundation Options
Slab

Hide Plan Features
Details:
View All Plan Details
4,966 Ft
2
Total Structure:
3,671 Ft
2
Total Heated:
2,257 Ft
2
1st Floor:
1,414 Ft
2
2nd Floor:
4
Bedrooms:
4.5
Bathrooms:
3
Garage:
2
Stories:
78' 9"
Width:
63' 8"
Depth:
28' 0"
Height:
10' 0"
Main Floor Ceiling:
9' 0"
Upper Floor Ceiling:
2x4
Framing:
Stick
Roof Framing:
Single
Dwelling Number:
Unheated Living Space
783 Ft
2
Garage:
202 Ft
2
Porch:
228 Ft
2
Deck:
82 Ft
2
Patio:
Exterior Styles
Mediterranean
Traditional
Tuscan
Collections
Luxury
Old House Classics
Open Floor Plan
Outdoor Living

Hide Plan Details
