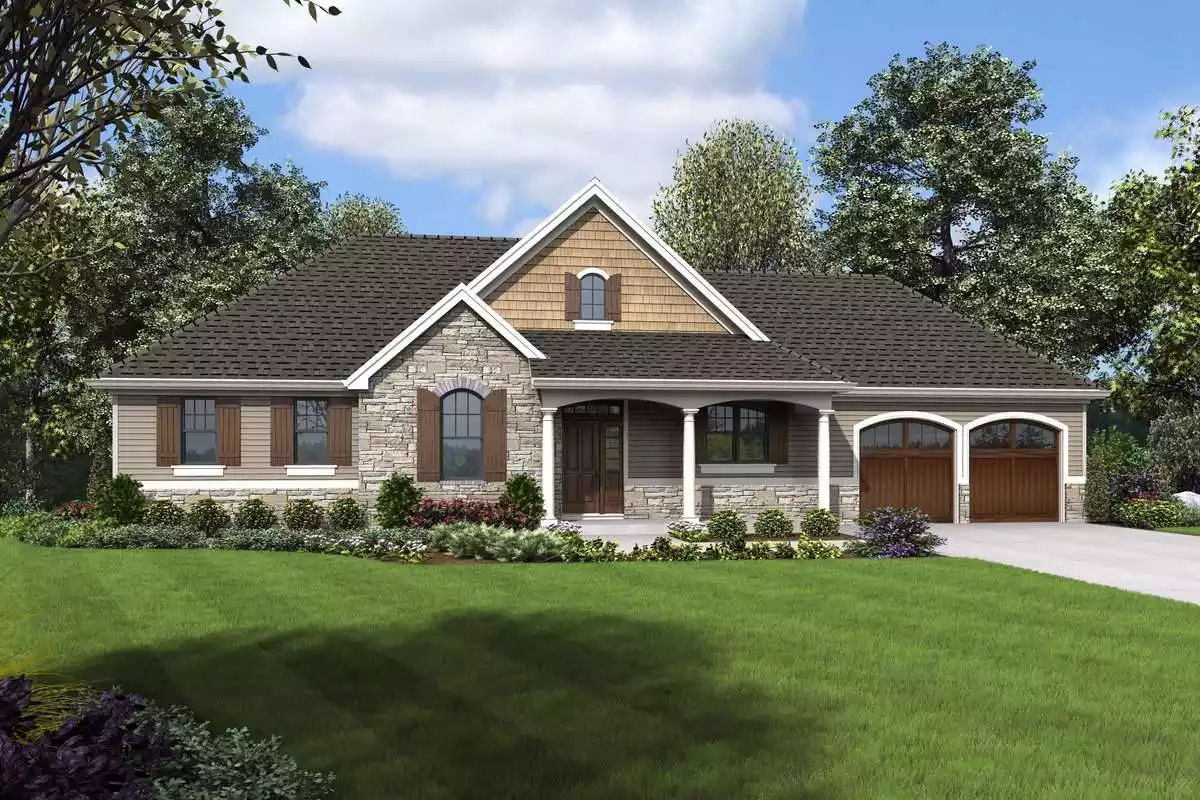

Plan 5584 - Front Rendering
Front Rendering

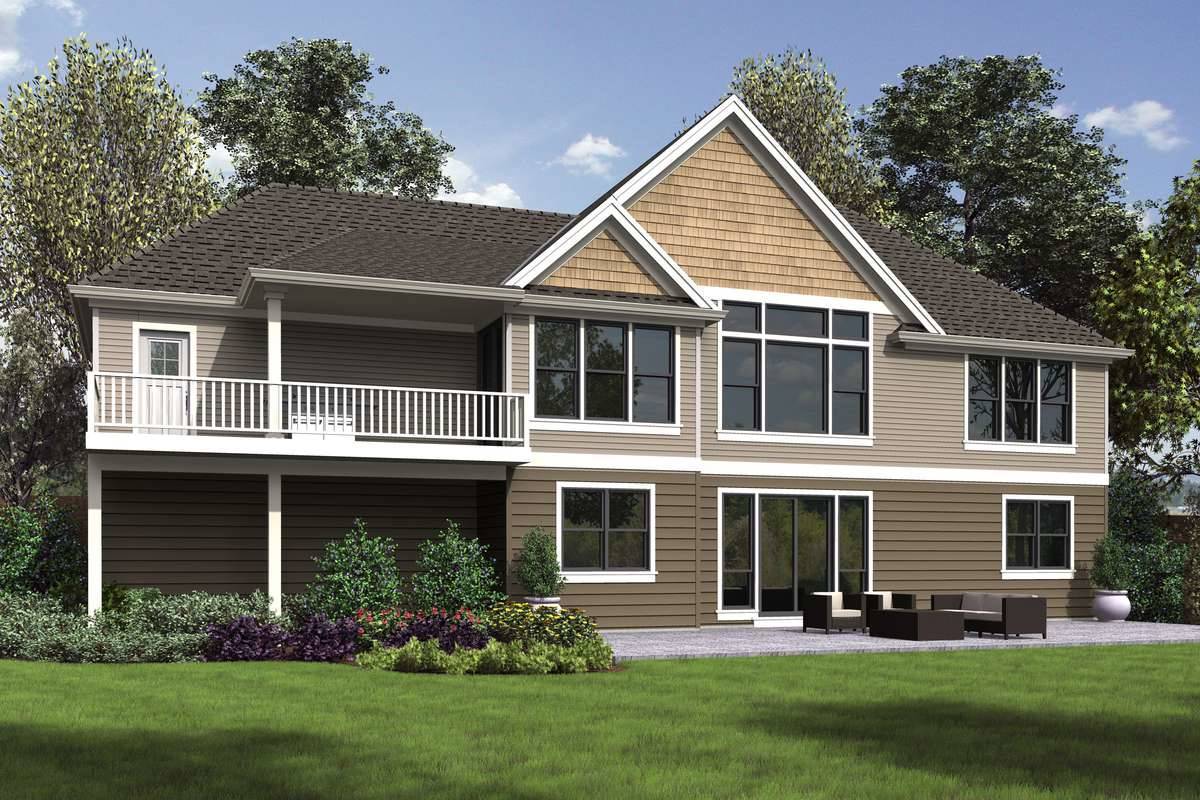

Plan 5584 - Rear Rendering
Rear Rendering

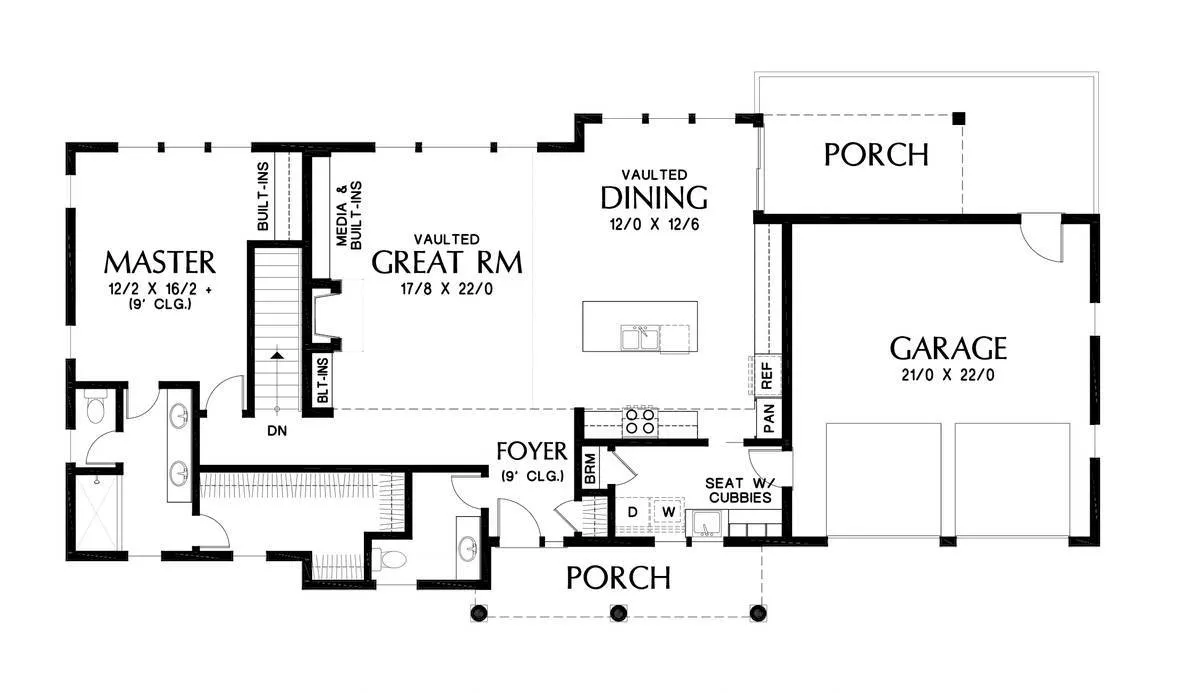

Main Floor Plan

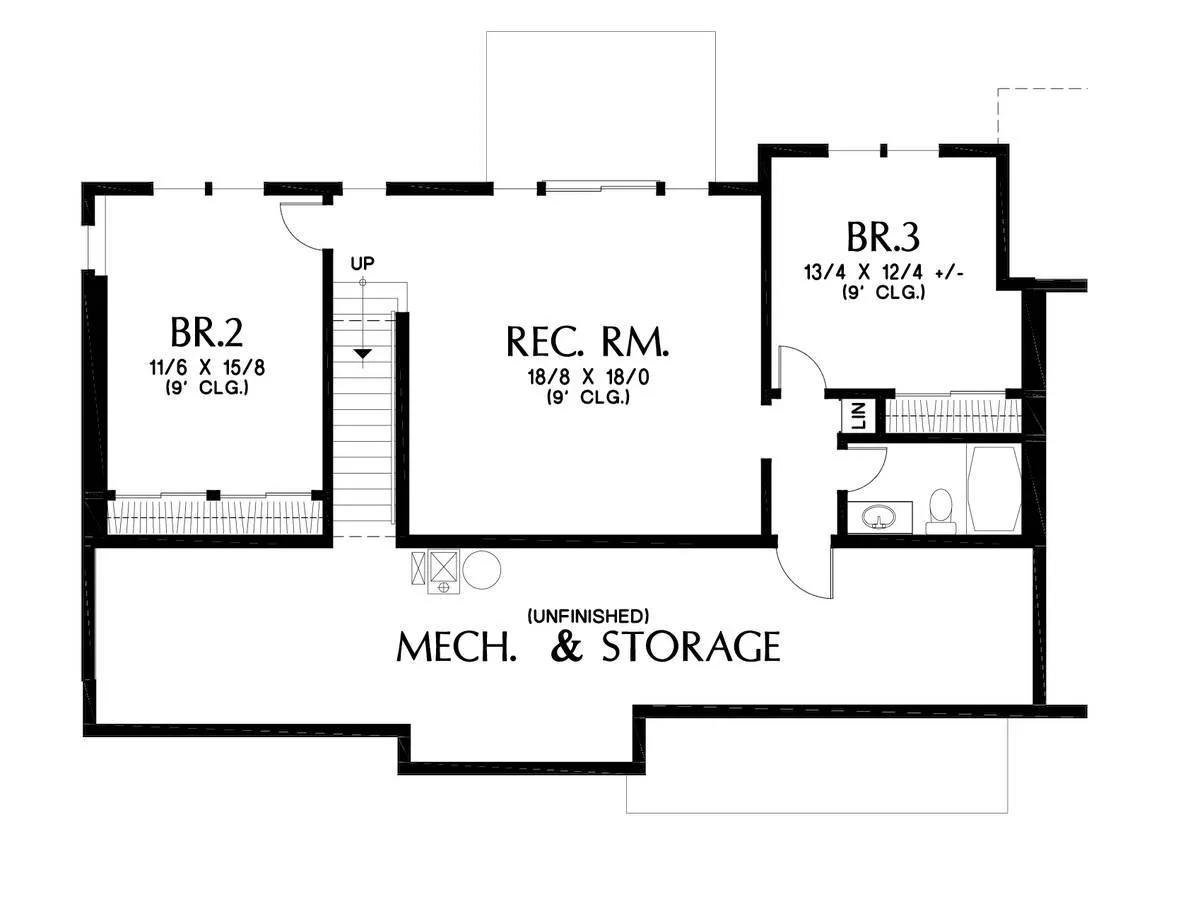

Lower Floor Plan
© copyright by designer
Mouse over photo to pause

Raymond Beautiful Craftsman Style House Plan 5584

This beautiful Craftsman style plan packs a bit of traditional southern charm within its walls. Great for a sloped lot, this 3 bedroom, 2.5 bathroom home offers 2,400 square feet of living space, as well as a bonus walk-out basement.  Read more >

House Plan Details

Sq. Ft.
2,400
Beds
3
Baths
2.5
Stories
1
Garages
2
Width
72' 0"
Depth
35' 0"
Select Plan Package
PDF Files - Single Build
$1420
Select Foundation Options
$0
Daylight Basement-Include...
$0
Optional Add-Ons
Subtotal: $0
If a foundation or optional add-on is not listed, please live chat, email or call for availability.

PLAN IMAGES

Main Floor Plan

Main Floor Plan
© copyright by designer
DETAILS
Total SQ. FT.:
2,400
1st Floor SQ. FT.:
1,446
Lower:
954
Bedrooms:
3
Bathrooms:
2.5
Garage:
2
Stories:
1
Main Ceiling Height:
9'
Upper Ceiling Height:
'
Framing:
2x6
Roof Framing:
Truss
Roof Pitch:
Primary: 10/12
Width:
72' 0"
Depth:
35' 0"
Height:
23' 2"
Exterior Styles:
Craftsman
Ranch
Traditional
Unheated Living Space:
Garage: 495
HOME FEATURES
Bedroom Features:
Double Vanity Sink
Master Bdrm Main Floor
Walk-in Closet
Kitchen Features:
Additional Features:
Dining Room
Fireplace
Foyer
Laundry 1st Fl
Mud Room
Open Floor Plan
Storage Space
Vaulted Ceilings
Garage Features:
Front-entry
Garage Location:
Front
Lot Features:
