Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

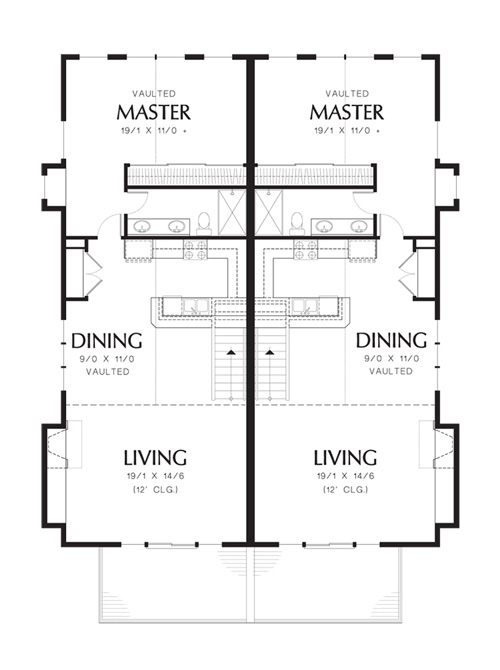

Main Floor Plan

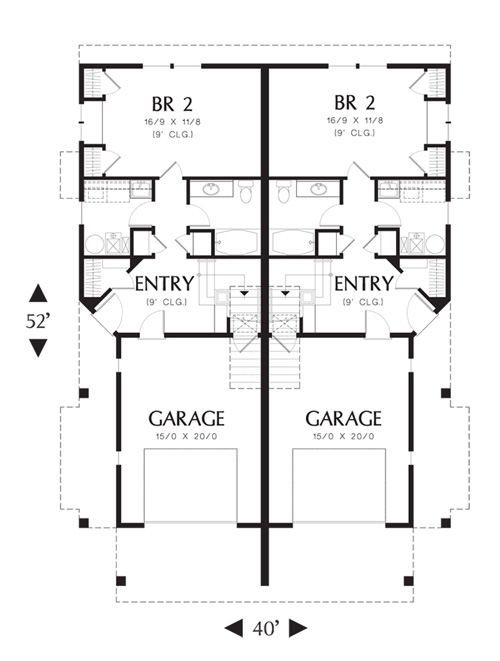

Lower Floor Plan

Main Floor Plan

Lower Floor Plan

About This Plan

This duplex features twin reverse living plans. Each home has a comfortable guest, returning college student or in-law suite on the ground floor, making this home perfect for today's multi-generational needs. The main living area of the home is found on the upper floor, so you can also take advantage of the views afforded by a higher elevation. The open floor plan features a vaulted dining area and a vaulted master bedroom round out the design.

FEATURES & DETAILS

Kitchen features

Peninsula / Eating Bar
Walk-in Pantry

Bedroom features

2 Primary Suites
Double Vanity Sink
Guest Suite
Primary Bdrm Upstairs
Split Bedrooms

Exterior features

Deck

Foundation Options

Basement
Crawlspace
Daylight Basement
Slab
Walkout Basement

Lot Options

Suited for view lot

Additional features

Fireplace
Foyer
Great Room
Inverted Living
Laundry 1st Fl
Open Floor Plan
Vaulted Ceilings

Garage Location

Under

Garage Options

Attached
Drive-under
Oversized

3,254 Ft

Total Structure

1,627 Ft

Unit Heated

1,047 Ft

1st Floor

580 Ft

2nd Floor

Bedrooms

Bathrooms

Garage

Stories

20' 0"

Width

60' 0"

Depth

28' 1"

Height

9'' 0"

Main Floor Ceiling

Varies' 0"

Upper Floor Ceiling

2x6

Framing

Truss

Roof Framing

5/12

Primary Roof Pitch

9/12

Secondary Roof Pitch

Duplex

Dwelling Number

None

Bonus Access

Unheated Living Space

326 Ft

Garage

128 Ft

Deck

Exterior Styles

Contemporary
