Sq Ft
2,230 FT²

Beds
4

Baths
3

Stories
2

Garage
2

Depth
55' 1"

Width
40'

On Sale
$892.25
$1,075.00

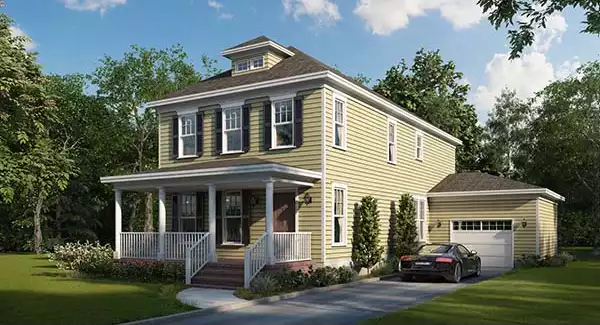

Front Photo

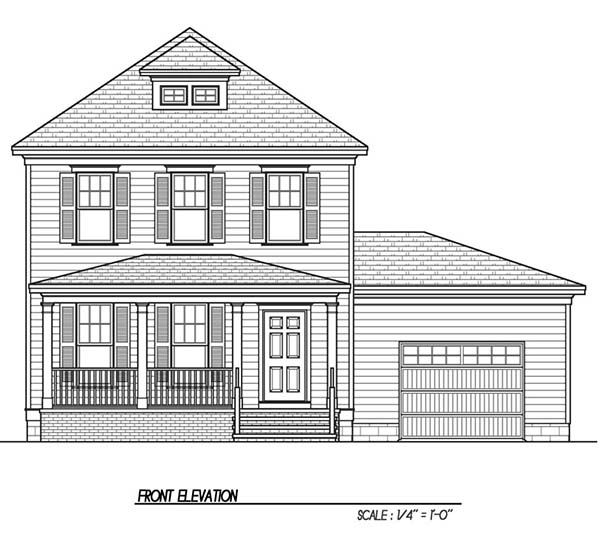

Front Elevation

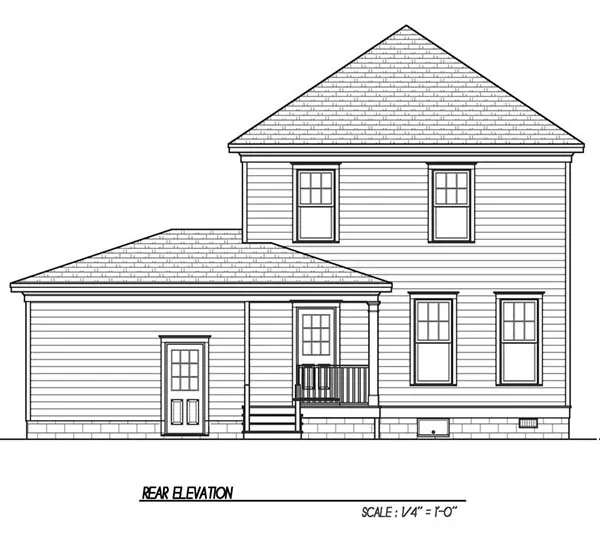

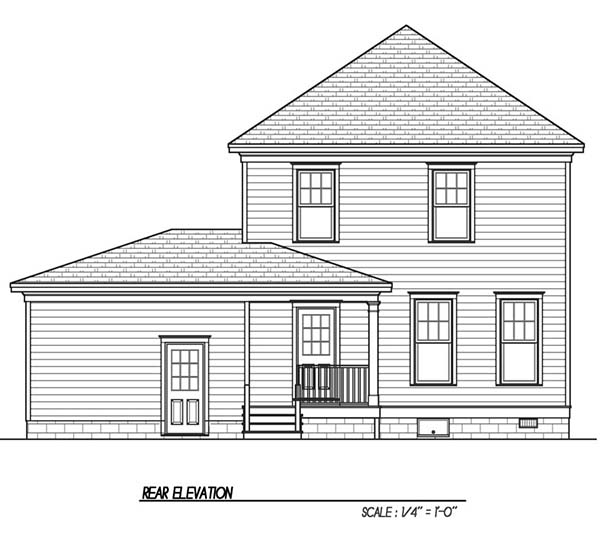

Rear Elevation

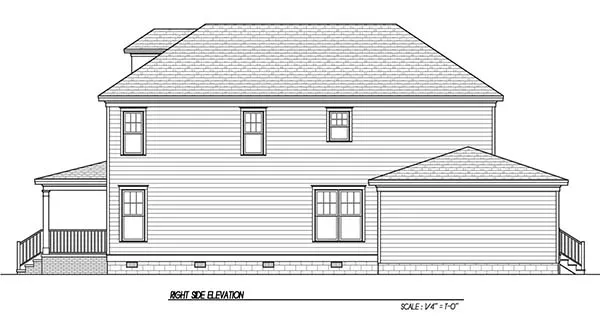

Right Side Elevation

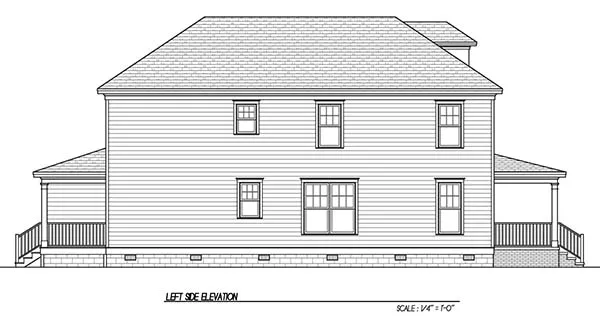

Left Side Elevation

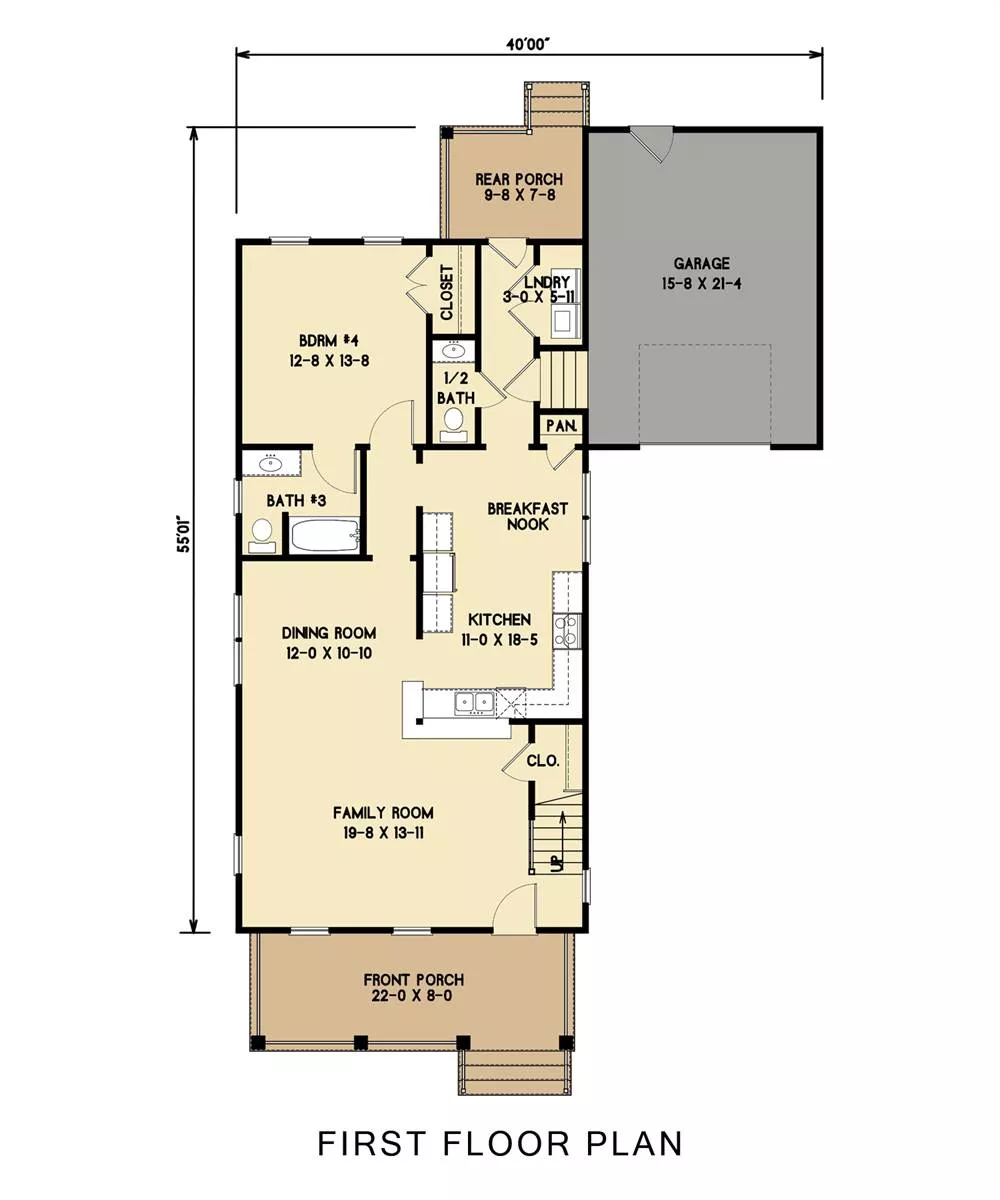

1st Floor

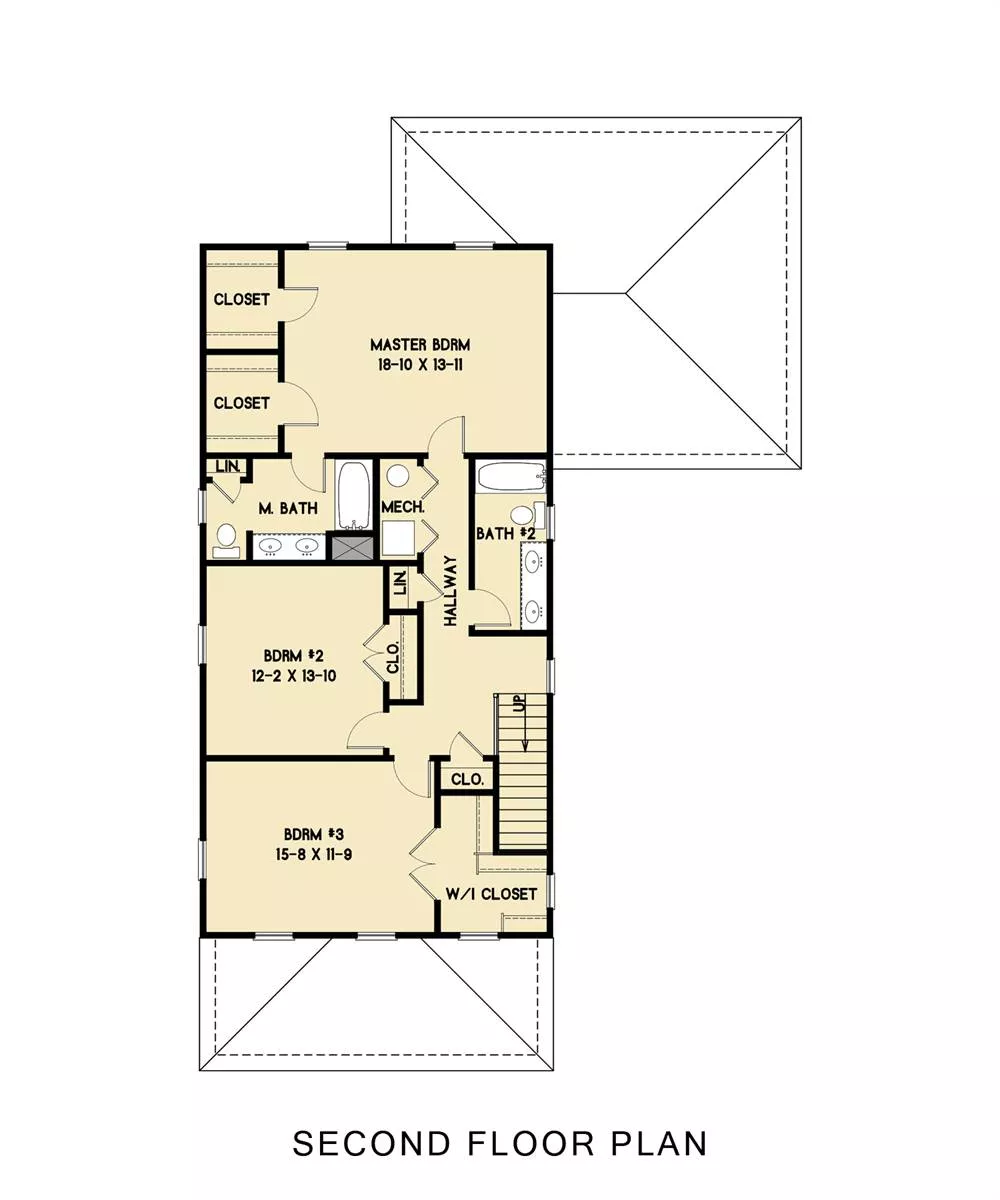

2nd Floor

View All 7 Images | Photographs may reflect modified home

Sq Ft

2,230 FT²

From

$892.25

Beds

Baths

Stories

Garage

Depth

55' 1"

Width

40'

Modify

Cost Estimator

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

1st Floor

2nd Floor

1st Floor

2nd Floor

About This Plan

This traditional two-story home shows a single car attached garage that could easily be eliminated to allow a driveway to reach a larger detached garage behind the house on the right side. Another special feature of this model is that it has two master bedrooms, one on each floor. The main house structure is just 24' feet wide, offering a lot of living space on a narrow property. The versatility of this house to fit on a variety of lot sizes has made it a popular seller not to mention its construction simplicity and affordability.

See All Plan Options

FEATURES & DETAILS

Kitchen features

Nook / Breakfast Area
Peninsula / Eating Bar
Walk-in Pantry

Bedroom features

Double Vanity Sink
His and Hers Primary Closets
Primary Bdrm Upstairs
Separate Tub and Shower
Walk-in Closet

Exterior features

Covered Front Porch
Covered Rear Porch
Front Porch
Rear Porch

Foundation Options

Crawlspace

Lot Options

Suited for corner lot
Suited for narrow lot
Suited for sloping lot

Additional features

Dining Room
Family Room
In-law Suite
Laundry 1st Fl
Open Floor Plan

Garage Options

Attached

2,486 Ft

Total Structure

2,230 Ft

Total Heated

1,136 Ft

1st Floor

1,094 Ft

2nd Floor

Bedrooms

Bathrooms

Garage

Stories

40' 0"

Width

55' 1"

Depth

30' 2"

Height

9' 0"

Main Floor Ceiling

8' 0"

Upper Floor Ceiling

2x4

Framing

Stick

Roof Framing

8/12

Primary Roof Pitch

3/12

Secondary Roof Pitch

Single

Dwelling Number

Unheated Living Space

315 Ft

Garage

256 Ft

Porch

Exterior Styles

Southern

Traditional

Collections

Plan Package Options

Important info before you buy

Select Plan Package

Sale: $208

PDF Bid Set

~~$250~~

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

Sale: $208

Sale: $892

PDF Single Build

~~$1,075~~

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

Sale: $892

Sale: $975

5 Printed Sets

~~$1,175~~

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

Sale: $975

Sale: $1,548

CAD Single Build

~~$1,865~~

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

Sale: $1,548

Need To Reverse Plan? (Optional)

$150

Readable Reverse

Reverse house plans with readable text and dimensions

$150

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping in the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
