Recently Viewed Plans | Advanced Plan Search

Sq Ft
1,802 FT²

Beds
3

Baths
2

Stories
1

Garage
2

Depth
52'

Width
50'

From
$1,423.00

Front Rendering

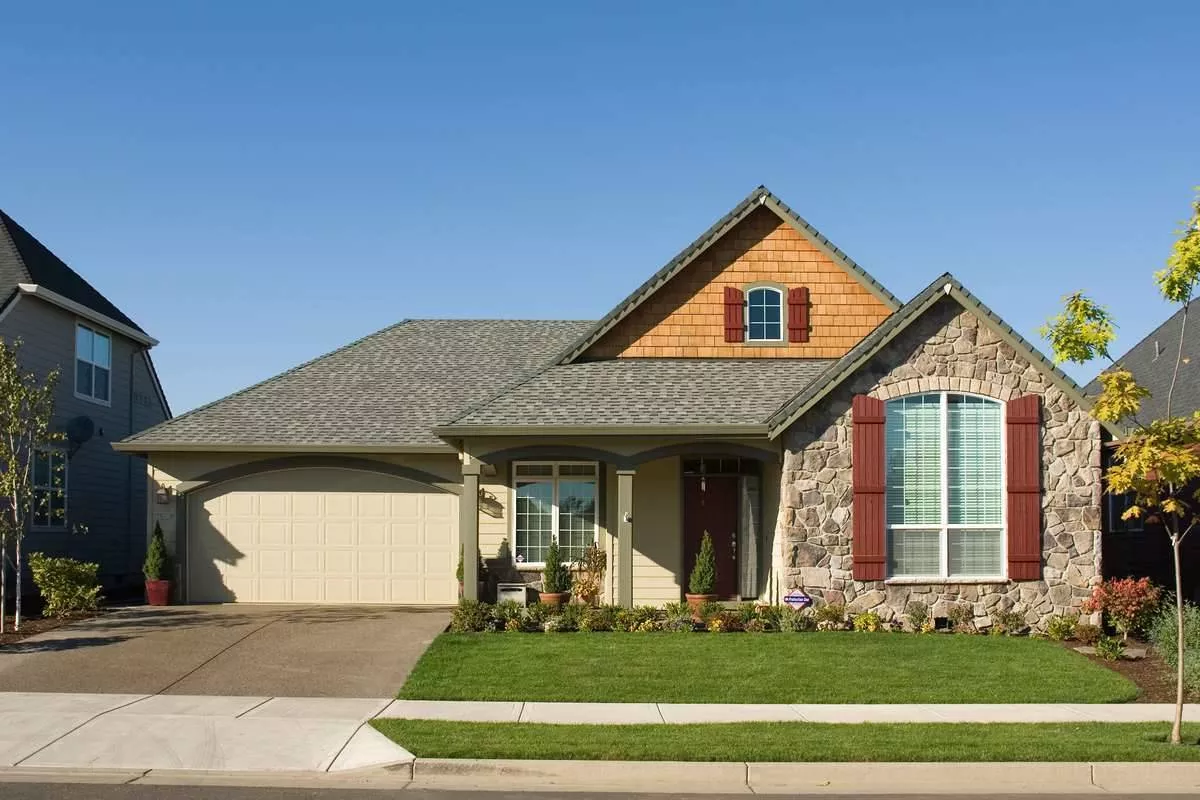

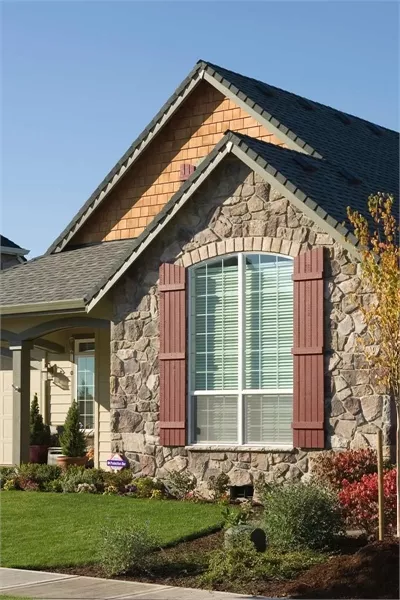

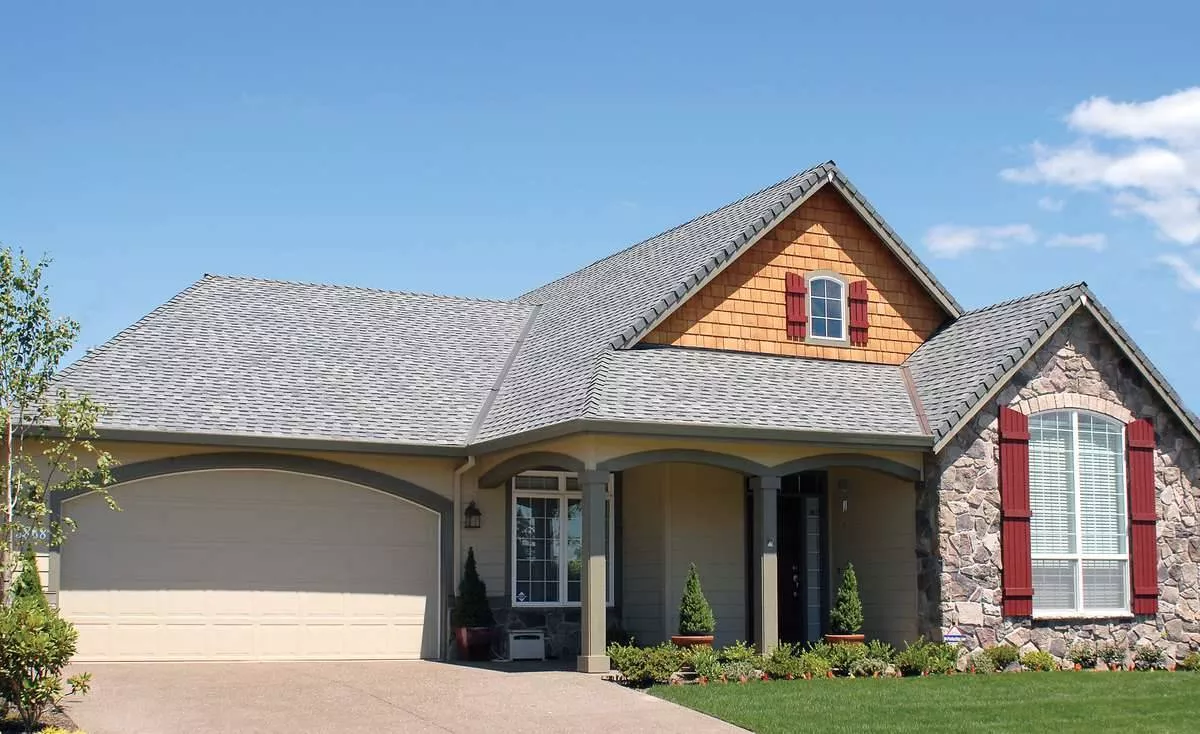

Front Exterior

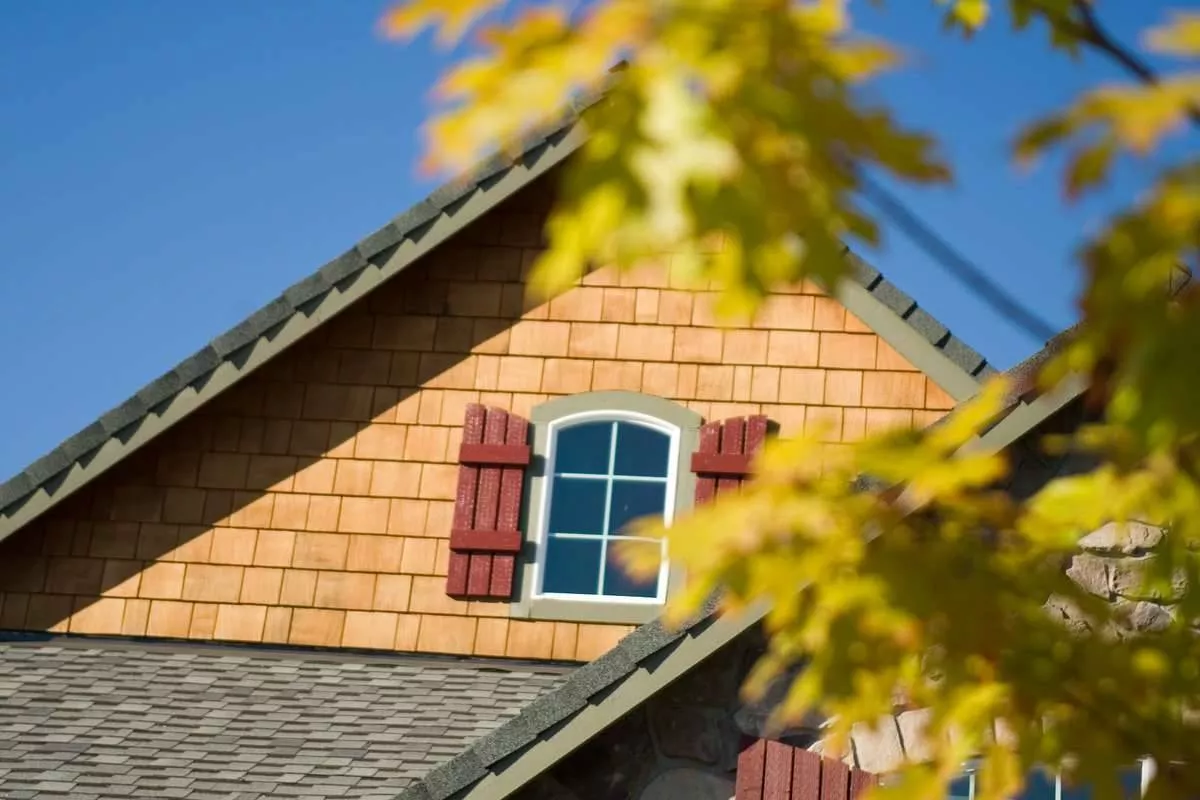

Detail Photo

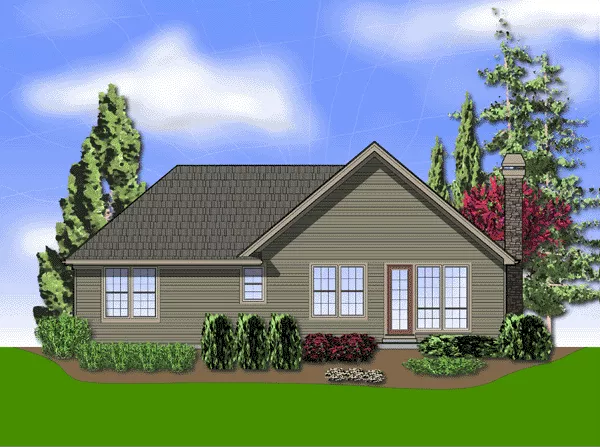

Rear Elevation

View All 7 Images | Photographs may reflect modified home

Sq Ft

1,802 FT²

From

$1,423.00

Beds

Baths

Stories

Garage

Depth

52'

Width

50'

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

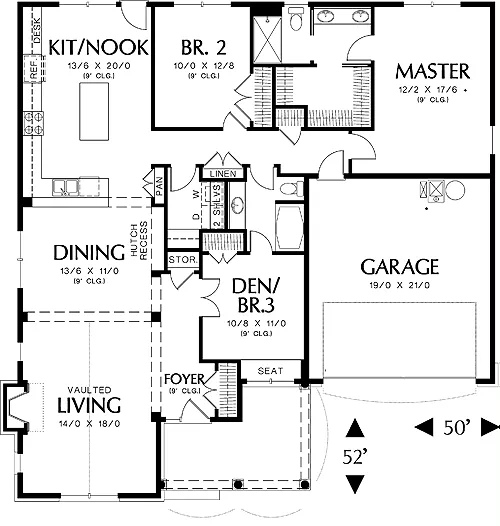

First Floor Plan

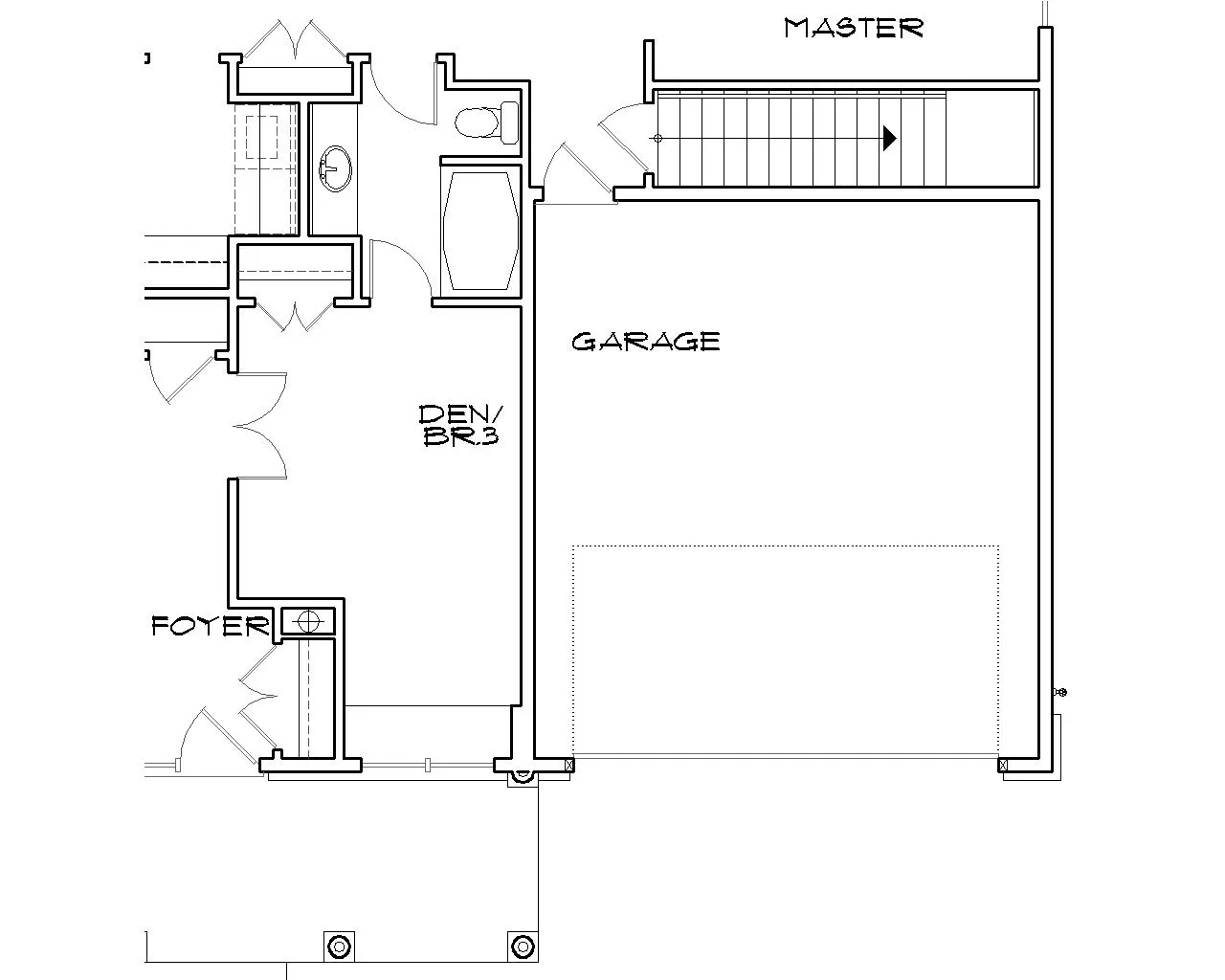

Basement Stair Location

First Floor Plan

Basement Stair Location

About This Plan

The nostalgic traditional elements of this single-level home make it a fine choice for anyone with a discriminating eye. The covered porch protects a front entry with transom window and sidelight and shades a charming double window with window seat in the den. If you prefer, the den could be easily transformed to a third bedroom, as it shares the use of a walk-through bath with Bedroom 2. The master suite is tucked away behind the two-car garage for privacy. It has a fine bath with large shower, dual lavatories and walk-in closet. A laundry alcove is thoughtfully placed in the hall near bedrooms.

The living room, dining room, kitchen and nook align along the left side of the plan. The living room is vaulted and has a toasty fireplace. A recessed area in the dining room easily accepts a hutch. The kitchen is convenient and contains an island, a pantry and built-in desk.

FEATURES & DETAILS

Kitchen features

Country Kitchen
Kitchen Island
Nook / Breakfast Area

Bedroom features

Double Vanity Sink
Primary Bdrm Main Floor
Walk-in Closet

Exterior features

Covered Front Porch
Front Porch

Foundation Options

Basement
Crawlspace
Slab

Lot Options

Suited for narrow lot

Additional features

Dining Room
Fireplace
Foyer
Great Room
Home Office
Laundry 1st Fl
Open Floor Plan
Vaulted Ceilings

Garage Location

Front

Garage Options

Attached
Front-entry

1,802 Ft

Total Heated

Bedrooms

Bathrooms

Garage

Stories

50' 0"

Width

52' 0"

Depth

22' 0"

Height

Varies' 0"

Main Floor Ceiling

2x6

Framing

Truss

Roof Framing

10/12

Primary Roof Pitch

6/12

Secondary Roof Pitch

Single

Dwelling Number

None

Bonus Access

Unheated Living Space

419 Ft

Garage

109 Ft

Porch

Exterior Styles

Country

Craftsman

Traditional

Collections

Plan Package Options

Important info before you buy

Select Plan Package

$1,423

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,423

$1,623

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,623

$1,673

5 Printed Sets + PDF

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

$1,673

$2,846

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$2,846

Need To Reverse Plan? (Optional)

$225

Readable Reverse

Reverse house plans with readable text and dimensions

$225

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping in the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.

BEST PRICE GUARANTEE

find the same house plan (modifications included!) and package for less on another site, show us the URL and we'll give you the difference plus an additional 5% back.

100% SATISFACTION GUARANTEE

We offer a one-time, 14-day exchange policy for unused, non-electronic plan packages in the event you aren't satisfied with your first selection.
