Sq Ft
6,909 FT²
Bed
5
Bath
6
Stories
2
Garage
4
Depth
70'
Width
108'
On Sale
$2,431.00
$2,860.00
© copyright by designer
View All 11 Images | Photographs may reflect modified home
Sq Ft
6,909 FT²
From
$2,431.00
Bed
5
Bath
6
Stories
2
Garage
4
Depth
70'
Width
108'

Click to Zoom In on Floor Plan
© copyright by designer



About This Plan

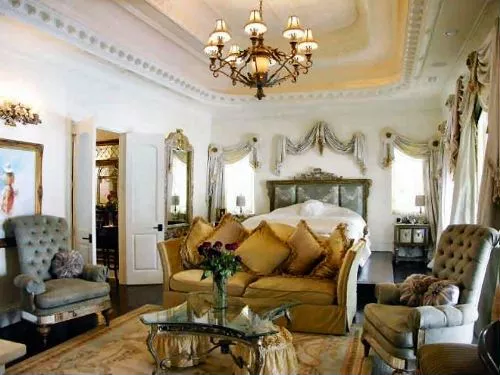

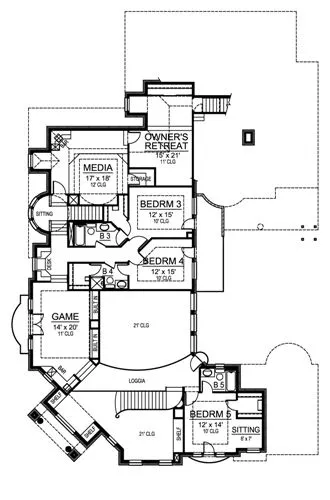

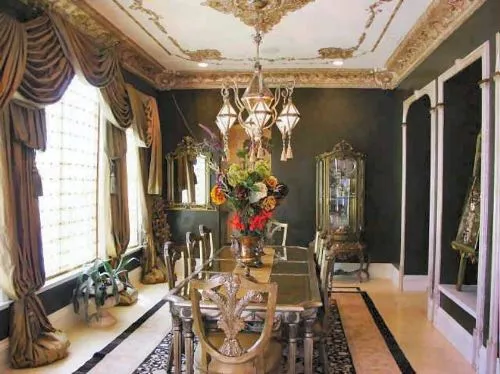

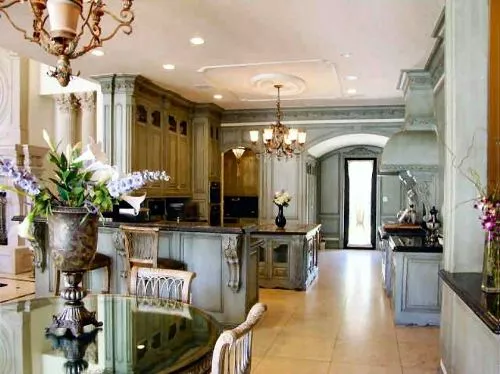

This Mediterranean luxury mansion house plan brings your dreams to reality. From the two-story foyer, step down into the elegant dining room with its bar, two-story tall bank of front windows, and private entrance to the garden. The quiet study offers a coffered ceiling, warming fireplace and large bank of windows to allow the sun to stream through. A family bedroom includes a curved sitting area, large walk-in closet, and full bath. The breakfast area has a built-in window seat, access to the patio, and warming fireplace that will also keep the kitchen cozy. The kitchen incorporates a desk, pantry, free-standing island, and breakfast bar to share with the breakfast area and family room. The spacious master bedroom offers a curved sitting area, a bar, and a see-through fireplace. The lavish master bath boasts his and hers vanities, separate shower, whirlpool tub, and large wardrobe. From the master suite, you can step out onto the patio for a spectacular view. Two two-car garages complete this level of this luxury mansion house plan. Upstairs, three family bedrooms show off tray ceilings, walk-in closets and full baths. A game room boasts built-ins and a private balcony. You'll also find a media room, an owner's retreat, a loggia, and storage space. One of the bedrooms offers a sitting area and private mini-balcony. This completes this Mediterranean luxury mansion house plan.


FEATURES & DETAILS

Kitchen features
Butler's Pantry
Country Kitchen
Kitchen Island
Nook / Breakfast Area
Bedroom features
Double Vanity Sink
Primary Bdrm Main Floor
Separate Tub and Shower
Sitting Area
Exterior features
Covered Front Porch
Covered Rear Porch
Front Porch
Rear Porch
Foundation Options
Slab
Lot Options
Suited for corner lot
Additional features
2 Story Volume
Arches
Dining Room
Family Room
Fireplace
Formal LR
Foyer
Home Office
Laundry 1st Fl
Library/Media Rm
Loft / Balcony
Open Floor Plan
Vaulted Ceilings
Garage Location
Rear
Garage Options
Attached
Rear-entry
Side-entry
8,407 Ft
2
Total Structure
6,909 Ft
2
Total Heated
4,389 Ft
2
1st Floor
2,520 Ft
2
2nd Floor
5
Bedrooms
6
Bathrooms
4
Garage
2
Stories
108' 0"
Width
70' 0"
Depth
34' 0"
Height
11' 0"
Main Floor Ceiling
9' 0"
Upper Floor Ceiling
2x6
Framing
Stick
Roof Framing
Single
Dwelling Number

Unheated Living Space
1,095 Ft
2
Garage
95 Ft
2
Porch
183 Ft
2
Deck
308 Ft
2
Patio


Plan Package Options

 Select Plan Package
$2,965
PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$2,965
$3,145
5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$3,145
$4,455
CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$4,455
 Need To Reverse Plan? (Optional)
$250
Readable Reverse

Reverse house plans with readable text and dimensions

$250
  Select Foundation Option
  Add-Ons (Optional)

Ground shipping within the Continental U.S.

FREE

Design consultation with the architect or designer to discuss your house plan

Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total
$0
Free Shipping
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
