Search Plans


Sq Ft
4,152 FT²

Beds
3

Baths
3.5

Stories
1.5

Garage
3

Depth
100' 8"

Width
71'
From
$1,600.00
© copyright by designer
View All 2 Images | Photographs may reflect modified home
Sq Ft
4,152 FT²
From
$1,600.00
Beds
3
Baths
3.5
Stories
1.5
Garage
3
Depth
100' 8"
Width
71'

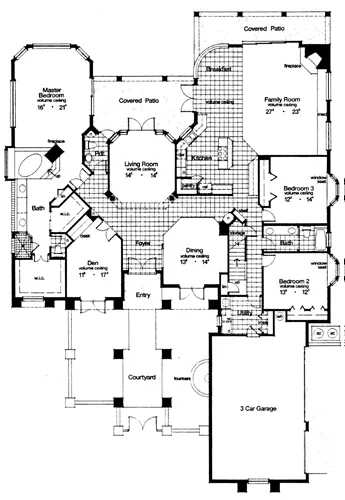

Click to Zoom In on Floor Plan
© copyright by designer



About This Plan

Entering this fabulous home is an experience in and of itself, as you walk through a courtyard, complete with gazebo, fountains and benches.

The formal living room with its 14-foot ceilings columns and glass wall look out over the splendid rear patio/pool area.

The formal dining room offers access to the front courtyard with French doors.

Niches and drywall recesses abound throughout this design.

The den/library with French doors to the courtyard and accesses the pool bath for the occasional guest.

The double door entry to the Master brings you into a world of sumptuous luxury. As you enter you find a four-sided fireplace with the flue suspended from the ceiling.

The Master suite itself has enough space for casual living, with a bay window wall which views the pool.

Passing through the formal spaces brings you into the family wing, which comes complete with huge island kitchen, which opens into an equally huge breakfast area with mitered bow glass, and family room with a corner fireplace and media wall.

The secondary bedrooms are generous and both have bay window sitting spaces, which kids will enjoy. Note the storage space under the window seat.

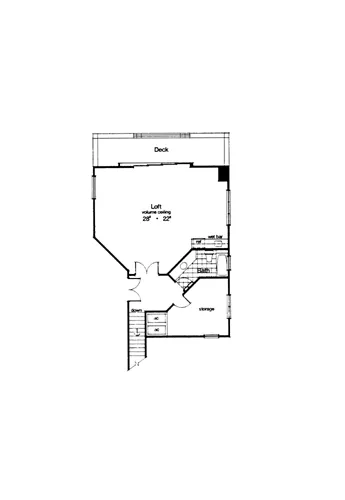

A staircase leads to the second floor area perfect for a home theater game room or bedroom areas.

A second floor balcony from the game room affords spectacular views.












FEATURES & DETAILS

Kitchen features
Kitchen Island
Nook / Breakfast Area
Walk-in Pantry
Bedroom features
His and Hers Primary Closets
Separate Tub and Shower
Foundation Options
Slab
Additional features
2 Story Volume
Arches
Fireplace
Library/Media Rm
Loft / Balcony
Vaulted Ceilings
Garage Location
Side
Garage Options
Attached
Side-entry
4,152 Ft
2
Total Heated
3,395 Ft
2
1st Floor
757 Ft
2
2nd Floor
3
Bedrooms
3.5
Bathrooms
3
Garage
1.5
Stories
71' 0"
Width
100' 8"
Depth
30' 0"
Height
10' 0"
Main Floor Ceiling
9' 0"
Upper Floor Ceiling
8" Block
Framing
Truss
Roof Framing
6/12
Primary Roof Pitch
Single
Dwelling Number

Unheated Living Space
720 Ft
2
Garage
60 Ft
2
Porch
200 Ft
2
Deck
463 Ft
2
Patio


Plan Package Options

 Select Plan Package
$800
PDF Bid Set

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

$800
$1,600
PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,600
$1,800
5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,800
$1,950
5 Printed Sets + PDF

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

$1,950
$3,200
CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$3,200
  Select Foundation Option
  Add-Ons (Optional)
INCLUDED WITH YOUR PURCHASE

Free Ground shipping in the Continental U.S.

FREE

Design consultation with the architect or designer to discuss your plan

Home Building & Product Ideas Organizer

Sub Total
$0
Free Shipping
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
