Sq Ft
2,757 FT²

Beds
4

Baths
3

Stories
1.5

Garage
2

Depth
77'

Width
84'

From
$1,295.00

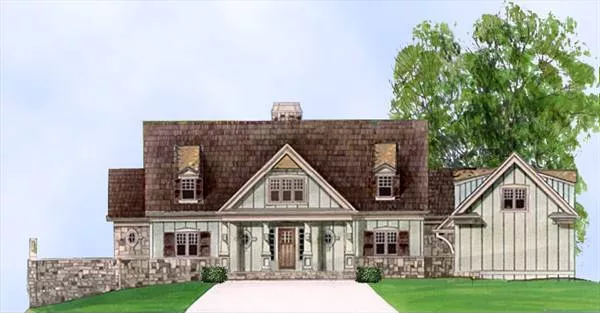

Front Rendering

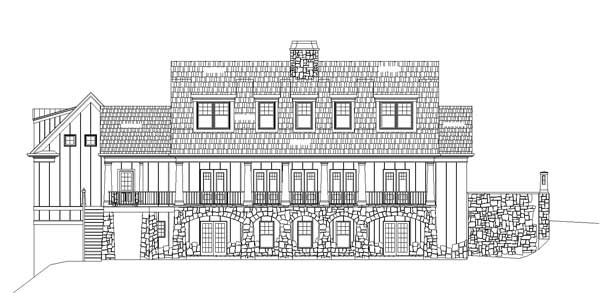

Rear Elevation

View All 2 Images | Photographs may reflect modified home

Sq Ft

2,757 FT²

From

$1,295.00

Beds

Baths

Stories

1.5

Garage

Depth

77'

Width

84'

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

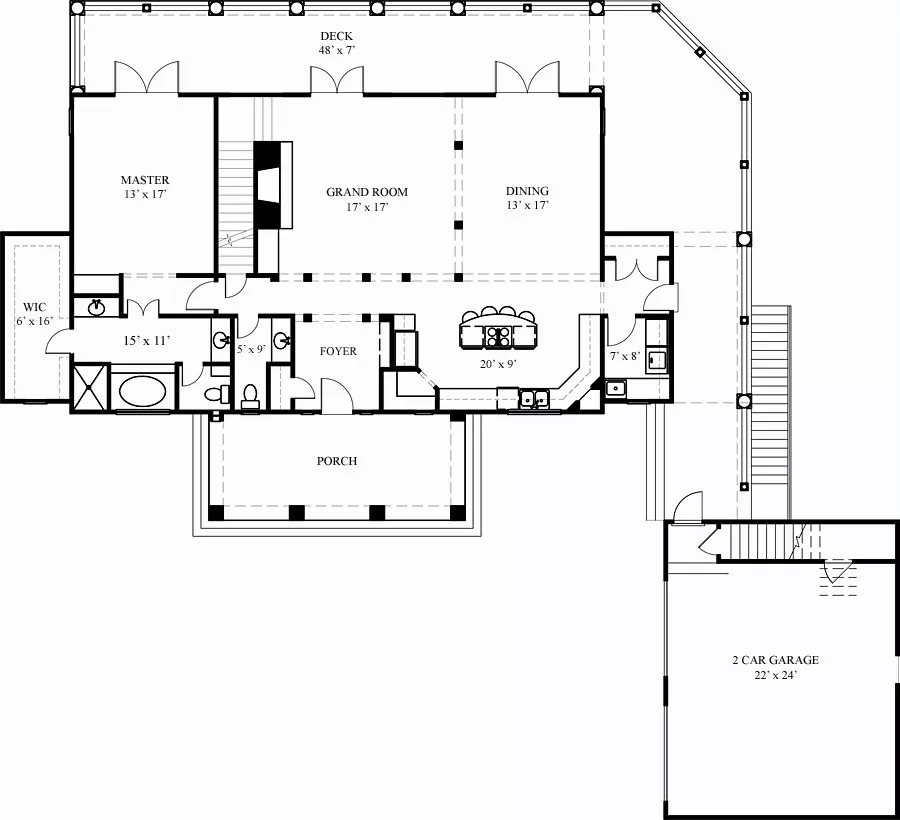

First Floor Plan

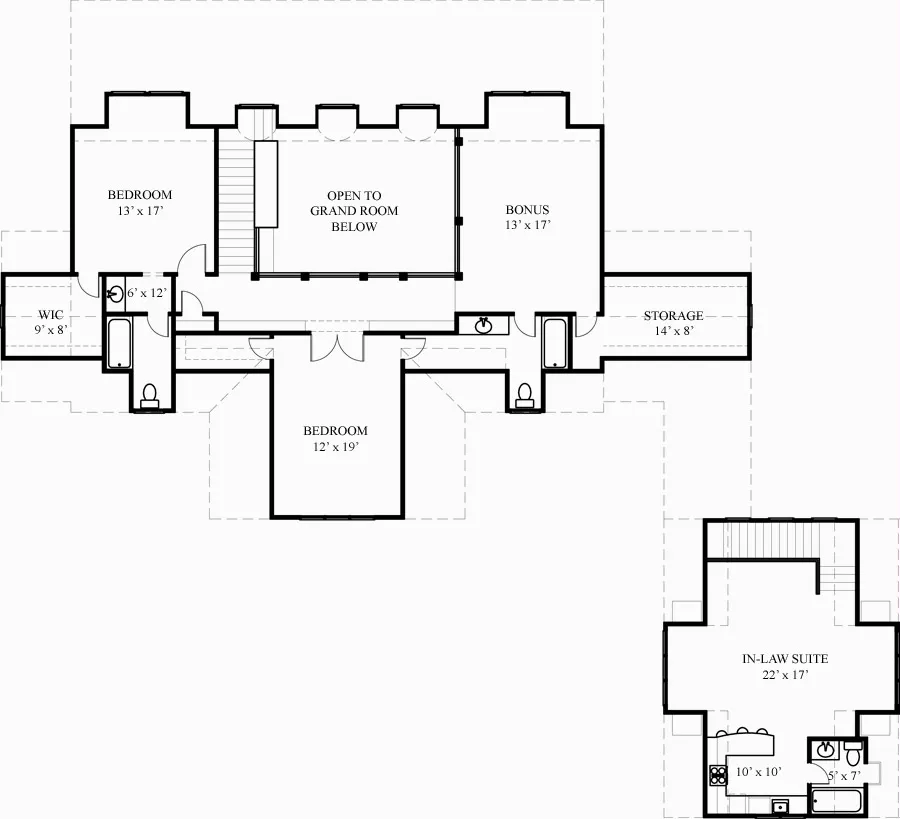

Second Floor Plan

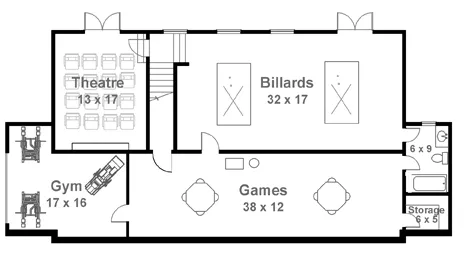

Basement Floor Plan

First Floor Plan

Second Floor Plan

Basement Floor Plan

About This Plan

This relaxing retreat focuses on outdoor views and indoor comfort zones. The entry leads to an open interior and views that extend from the foyer to the rear veranda. French doors invite gentle breezes and fresh air to mingle with the warmth of the fireplace in the heart of the home. The central gallery hall connects a spacious master suite with the casual living and dining areas. A gourmet kitchen shares interior vistas with the dining room, and boasts a cooktop island and snack counter. A walk-in pantry and planning desk provide convenience for the homeowners. Upstairs, two secondary suites share a balcony hall that leads to a bonus loft.

FEATURES & DETAILS

Kitchen features

Kitchen Island

Bedroom features

Primary Bdrm Main Floor

Exterior features

Rear Porch

Foundation Options

Basement
Daylight Basement

Additional features

Bonus Room

Garage Location

Side

Garage Options

Attached

2,757 Ft

Total Heated

1,708 Ft

1st Floor

1,049 Ft

2nd Floor

Bedrooms

Bathrooms

Garage

1.5

Stories

84' 0"

Width

77' 0"

Depth

27' 9"

Height

9' 0"

Main Floor Ceiling

8' 0"

Upper Floor Ceiling

2x4

Framing

Stick

Roof Framing

12/12

Primary Roof Pitch

Single

Dwelling Number

Unheated Living Space

208 Ft

Bonus Room

Exterior Styles

Collections

Plan Package Options

Important info before you buy

Select Plan Package

$1,295

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,295

$1,725

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,725

$1,825

5 Printed Sets + PDF

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

$1,825

$2,095

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$2,095

$2,890

CAD Unlimited Build

2D electronic computer files, completely editable, for design professional use when making extensive modifications; multi-license allows unlimited builds

$2,890

Need To Reverse Plan? (Optional)

$200

Readable Reverse

Reverse house plans with readable text and dimensions

$200

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping in the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
