House Plan 9570: Oakdale 3

Can you imagine a more charming home than this three-bedroom cottage? Inside, you'll notice that one of the bedrooms would make a great home office. The wide-open kitchen includes an island snack area for four. The vaulted dining room is a nice setting for any meal.  Read more >

House Plan Details

Sq. Ft.
1,780
Beds
3
Baths
2.0
Stories
2
Garages
2
Width
54' 0"
Depth
58' 0"
1st Floor
1,780

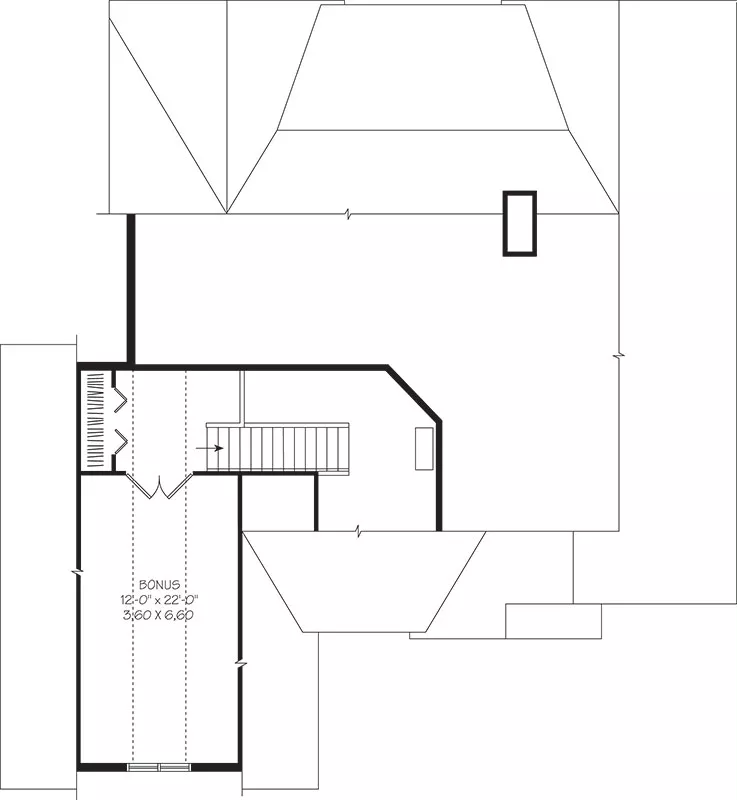

Bonus
396
Garage
557
Select Plan Package
5 sets
$1090
Select Foundation Options
$395
Crawlspace
$0
Optional Add-Ons
Subtotal: $1485

PLAN IMAGES

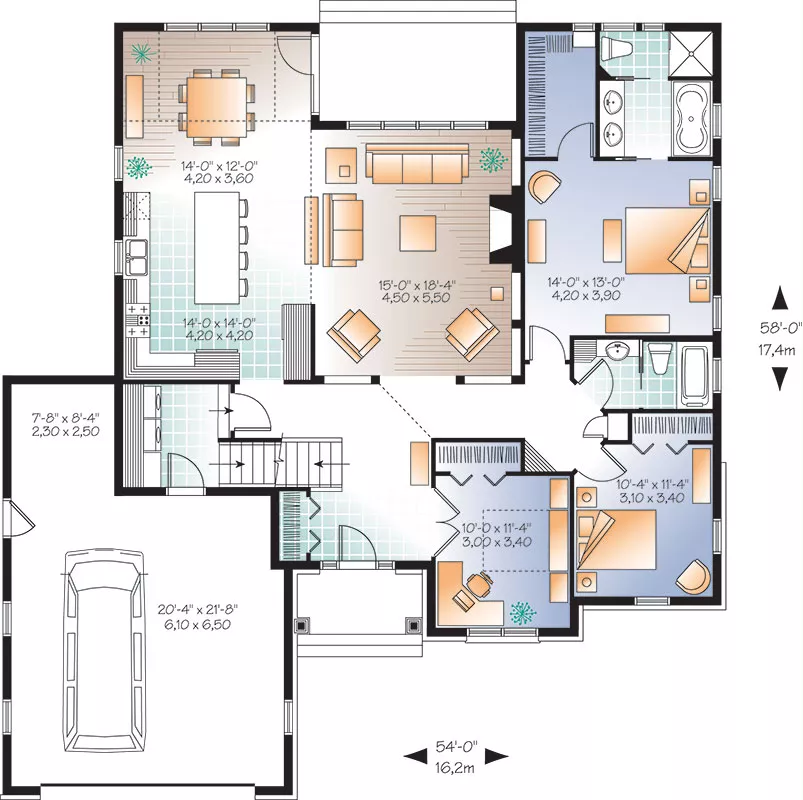

First level

First level
© copyright by designer

Plan Details

Basic Information
Bedrooms: 3
Bathrooms: 2.0
Garage: 2
Stories: 2
Exterior Style
Bungalow
Cottage
Craftsman
Dimensions
Width: 54' 0"
Height: 23' 8"
Depth: 58' 0"
Heated Living Space
Total Sq. Ft: 1,780
1st Floor: 1,780
Bonus: 396
Unheated Living Space
Garage: 557
Ceiling
Upper Ceiling Ft:
Main Ceiling Ft: 9.2
Framing Information
Framing: 2x6
Roof Framing: Truss
Bedroom Features
Double Vanity Sink
His and Hers Master Closets
Master Bdrm Main Floor
Separate Tub and Shower
Sitting Area
Split Bedrooms
Walk-in Closet
Kitchen Features
Kitchen Island
Additional Room Features
2 Story Volume
Arches
Bonus Room
Dining Room
Family Room
Fireplace
Formal LR
Foyer
Great Room
Home Office
Laundry 1st Fl
Open Floor Plan
Storage Space
Unfinished Space
Vaulted Ceilings
Workshop
Garage Location
Front
Garage Features
Attached
Lot Features
Suited for view lot
Roof Pitch
Primary: 6/12
Secondary: 10/12

Our Guarantee

  • Only the highest quality plans
  • Int’l Residential Code Compliant
  • Full structural details on all plans
  • Best plan price guarantee
  • Free modification Estimates
  • Builder-ready construction drawings
  • Expert advice from leading designers
  • PDFs NOW!™ plans delivered in minutes
  • 100% satisfaction guarantee
  • Free Home Building Organizer
