Recently Viewed Plans | Advanced Plan Search

Sq Ft
1,197 FT²

Beds
2

Baths
1.5

Stories
2

Garage
1

Depth
53'

Width
20'

On Sale
$1,595.10
$2,045.00

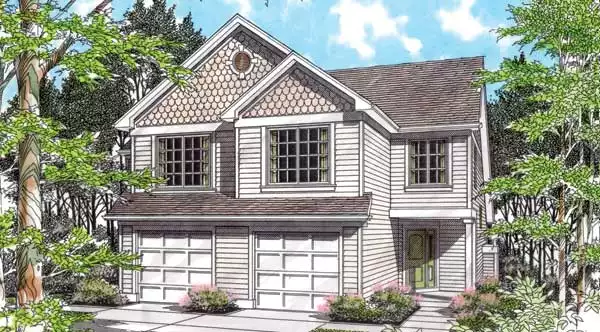

Front Rendering

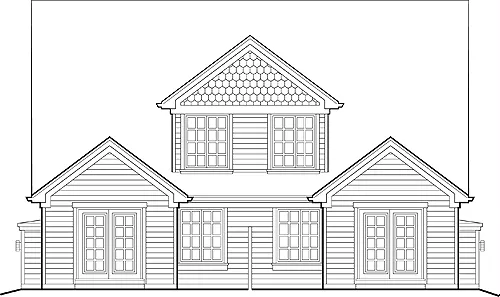

Rear Elevation

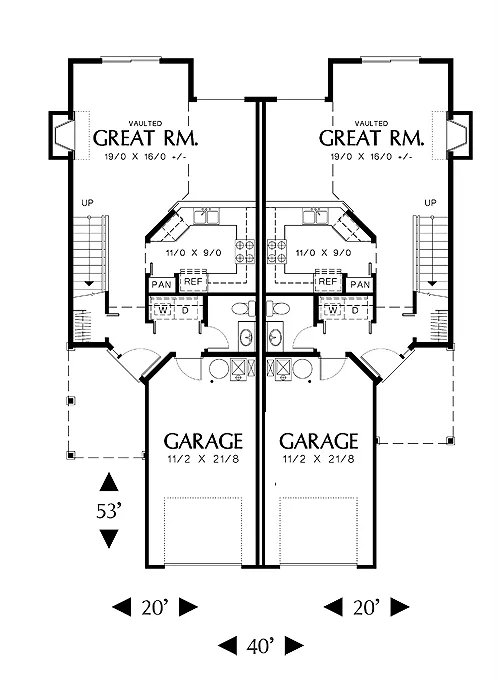

First Floor Plan

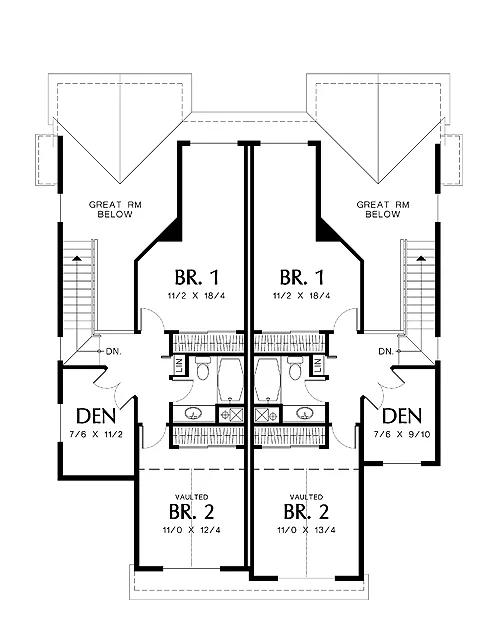

Second Floor Plan

View All 4 Images | Photographs may reflect modified home

Sq Ft

1,197 FT²

From

$1,595.10

Beds

Baths

1.5

Stories

Garage

Depth

53'

Width

20'

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

First Floor Plan

Second Floor Plan

First Floor Plan

Second Floor Plan

About This Plan

You have to look close to discern that this structure is not a single unit, but rather a duplex with nearly identical mirror-image sides. The exterior is graceful with cedar shingles, horizontal siding and multi-pane windows. Each side opens with a single-car garage and a covered front porch protecting an angled entry.
The laundry room, a half-bath and the garage access are immediately to the left of the entry; a coat closet is on the right. A vaulted great room with fireplace and eating space sits to the back of the plan--next to the modified U-shaped kitchen. A large pantry and a snack counter make the kitchen efficient. The upper level holds two bedrooms - one is vaulted - and a cozy den opening through double doors. Both bedrooms share a full bath.

See All Plan Options

FEATURES & DETAILS

Kitchen features

Peninsula / Eating Bar

Bedroom features

Primary Bdrm Upstairs

Exterior features

Front Porch

Foundation Options

Basement
Crawlspace
Slab

Lot Options

Suited for narrow lot

Additional features

Fireplace
Foyer
Great Room
Home Office
Laundry 1st Fl
Open Floor Plan
Vaulted Ceilings

Garage Location

Front

Garage Options

Attached
Front-entry

2,394 Ft

Total Structure

1,197 Ft

Unit Heated

596 Ft

1st Floor

601 Ft

2nd Floor

Bedrooms

1.5

Bathrooms

Garage

Stories

20' 0"

Width

53' 0"

Depth

28' 0"

Height

Varies' 0"

Main Floor Ceiling

Varies' 0"

Upper Floor Ceiling

2x6

Framing

Truss

Roof Framing

9/12

Primary Roof Pitch

Duplex

Dwelling Number

None

Bonus Access

Unheated Living Space

273 Ft

Garage

73 Ft

Porch

Exterior Styles

Traditional

Collections

Affordable

First Home

PDFs Fast!

Plan Package Options

Important info before you buy

Select Plan Package

Sale: $1,595

PDF Single Build

~~$2,045~~

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

Sale: $1,595

Sale: $1,829

5 Printed Sets + PDF

~~$2,345~~

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

Sale: $1,829

Sale: $3,190

CAD + PDF Single Build

~~$4,090~~

CAD files are a complete set of construction drawings delivered electronically. They can be used for any type of modification—including major design changes and engineering—and include a release granting permission to modify the plan. Most CAD plan orders are emailed the same or next business day.

This package also comes with a PDF set of plans and a copyright release for making modifications and printing unlimited copies.

CAD files are provided in .dwg format. For details on the specific CAD program used, please refer to the PLAN DETAILS section located above the floor plan on each plan’s page.

Sale: $3,190

Need To Reverse Plan? (Optional)

$250

Readable Reverse

Reverse house plans with readable text and dimensions

$250

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping in the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractors, and/or local engineers.
