HOUSE PLANS
START AT $1,416
SQ FT
2,383
BEDS
4
BATHS
2.5
STORIES
2
CARS
2
WIDTH
47'
DEPTH
48'
© copyright by designer
Photographs may reflect modified homes.   View all 2 photos
SQ FT
2,383
BEDS
4
BATHS
2.5
STORIES
2
CARS
2



House Plan 4737: Northborough

With a classic center-hall floor plan, and an exterior brightened by Craftsman details, this home appeals to the traditionalist in us all. From a covered porch entry, the plan opens to a foyer with living room on the right. To the left are a coat closet, half-bath, laundry room and access to the family room and nook. An island kitchen, with a built-in desk and a pantry, separates the nook from the formal dining room.  Read more >
Click to Zoom In on Floor Plan

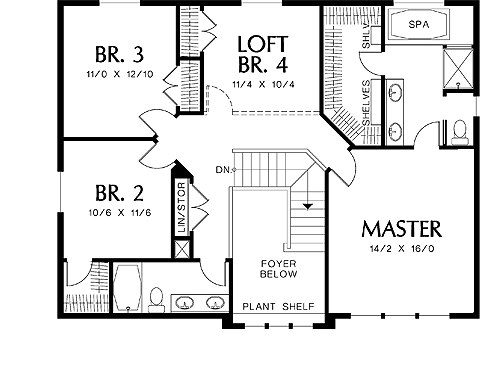

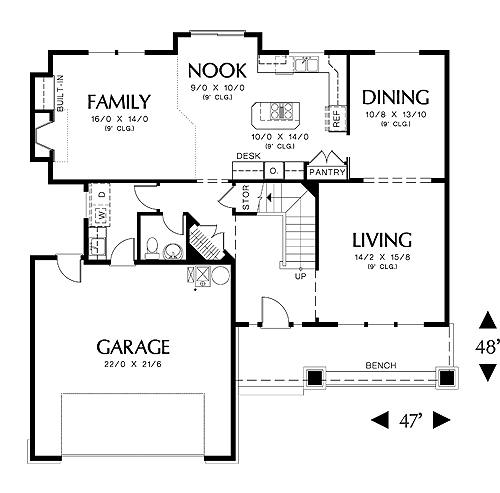

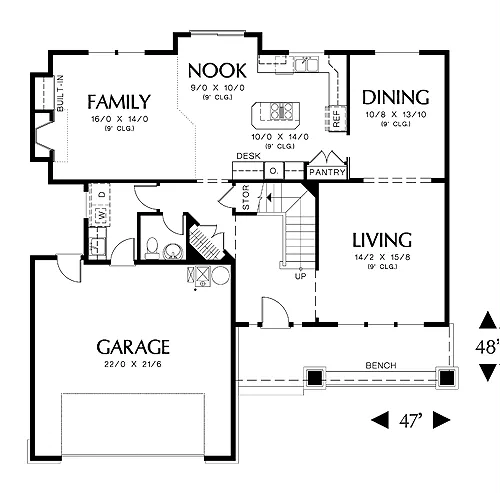

Floor Plans
© copyright by designer
Plan Packages
 Select Plan Package

PDF Bid Set


Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

PDF Bid Set
Digital set of plans for bidding purposes only
$1,066

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build
Most recommended package
$1,416

5 Printed Sets


Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets
Five printed sets of house plans
$1,591

5 Printed Sets + PDF


Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

5 Printed Sets + PDF
Digital plans plus 5 printed sets
$1,641

CAD Single Use


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Use
2D electronic editable computer files
$2,832
 Need To Reverse This Plan? (Optional)

Readable Reverse


Reverse house plans with readable text and dimensions

Readable Reverse
Reverses house plans with readable text and dimensions
$175
 Select Foundation Option
 Add-Ons (Optional)
Subtotal:
$0
Free Shipping
Features:
View All Plan Features
Kitchen features
Country Kitchen
Kitchen Island
Nook / Breakfast Area
Bedroom features
Double Vanity Sink
Master Bdrm Upstairs
Separate Tub and Shower
Walk-in Closet
Lot features
Suited for narrow lot
Additional features
2 Story Volume
Dining Room
Family Room
Fireplace
Formal LR
Foyer
Laundry 1st Fl
Loft / Balcony
Open Floor Plan
Garage Location
Front
Garage Features
Attached
Front-entry

Hide Plan Features
Details:
View All Plan Details
2,383 Ft
2
Total Heated:
1,255 Ft
2
1st Floor:
1,128 Ft
2
2nd Floor:
4
Bedrooms:
2.5
Bathrooms:
2
Garage:
2
Stories:
47' 0"
Width:
48' 0"
Depth:
26' 3"
Height:
9' 1"
Main Floor Ceiling:
8' 1"
Upper Floor Ceiling:
2x6
Framing:
Truss
Roof Framing:
6/12
Primary Roof Pitch:
Single
Dwelling Number:
None
Bonus Access:
Unheated Living Space
509 Ft
2
Garage:
144 Ft
2
Porch:
