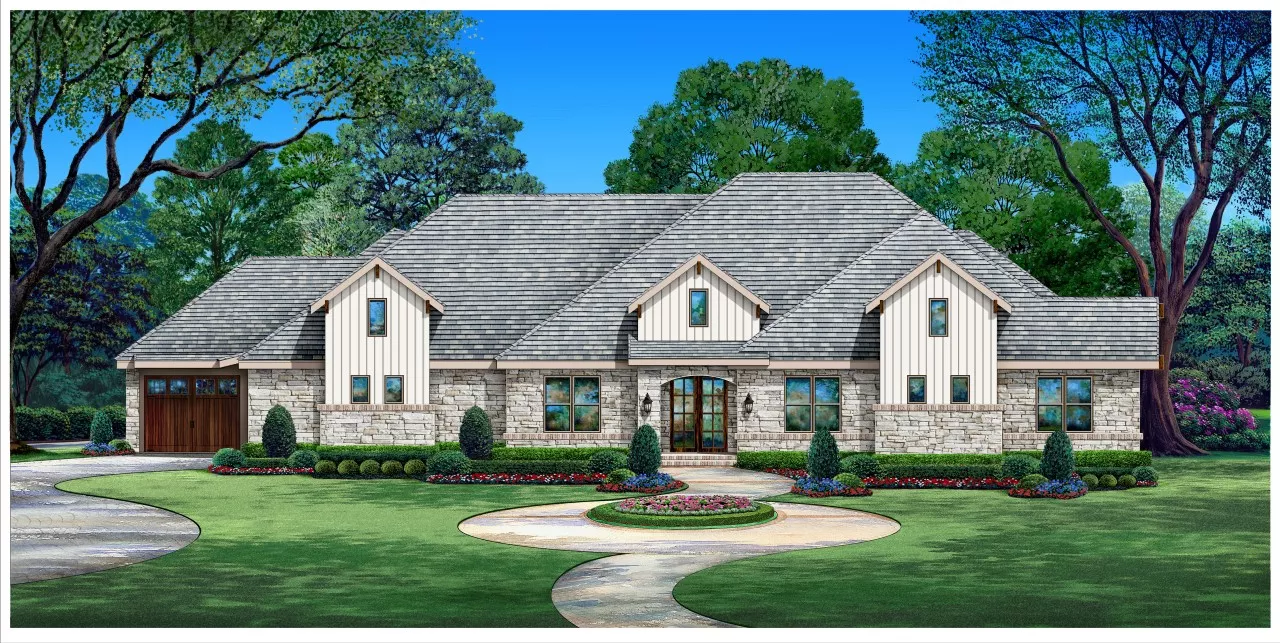

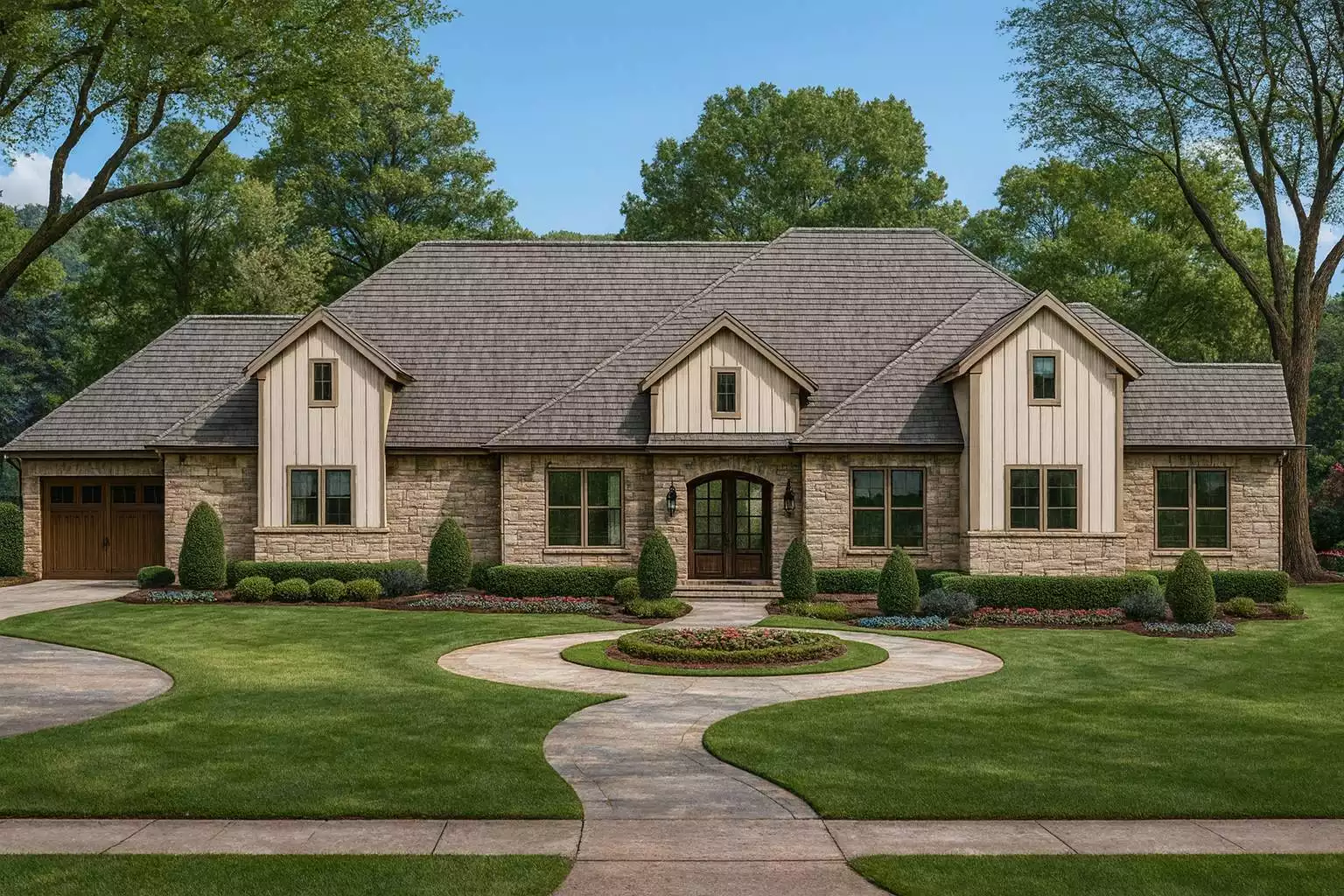

Front Render

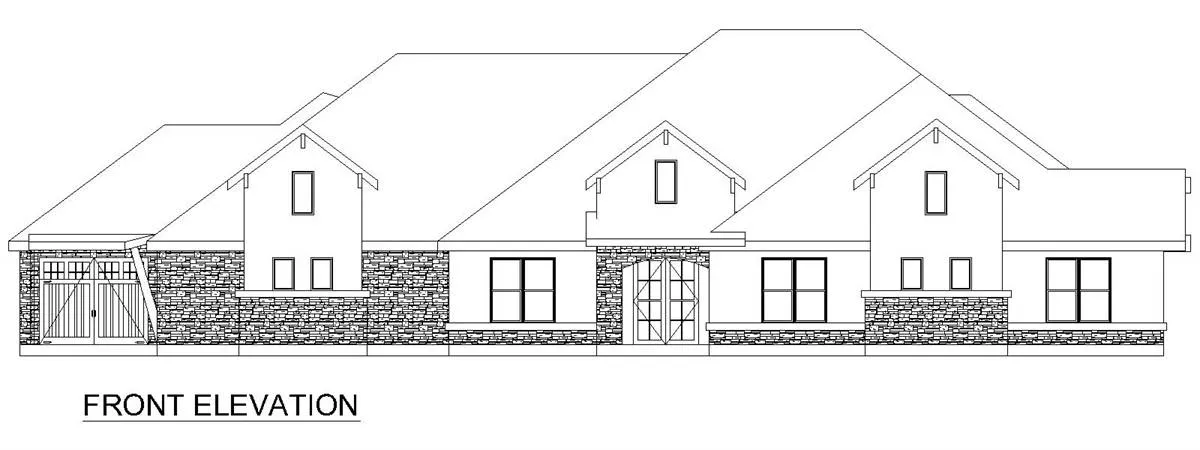

Front Elevation

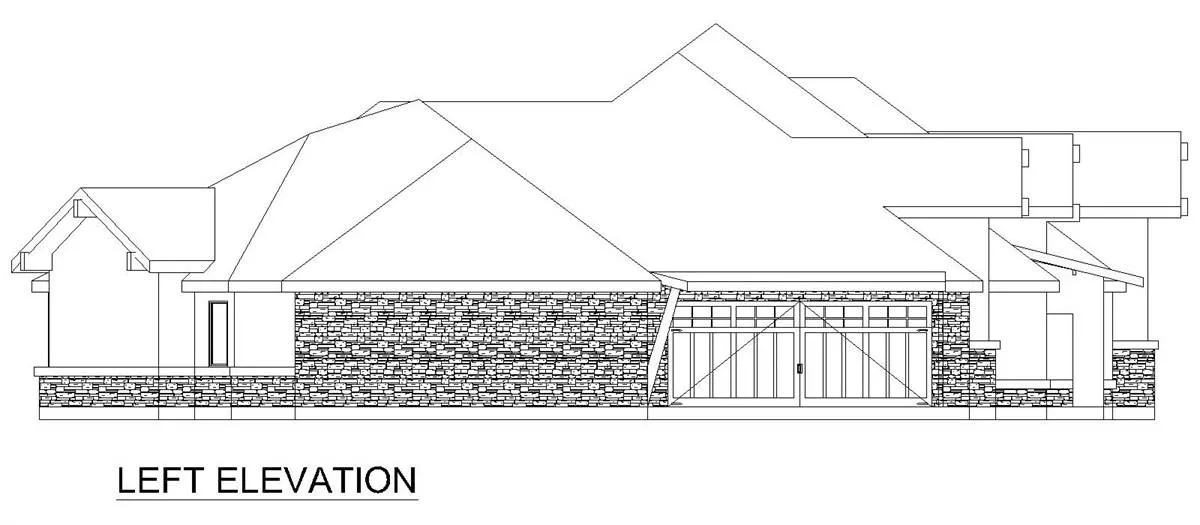

Left Elevation

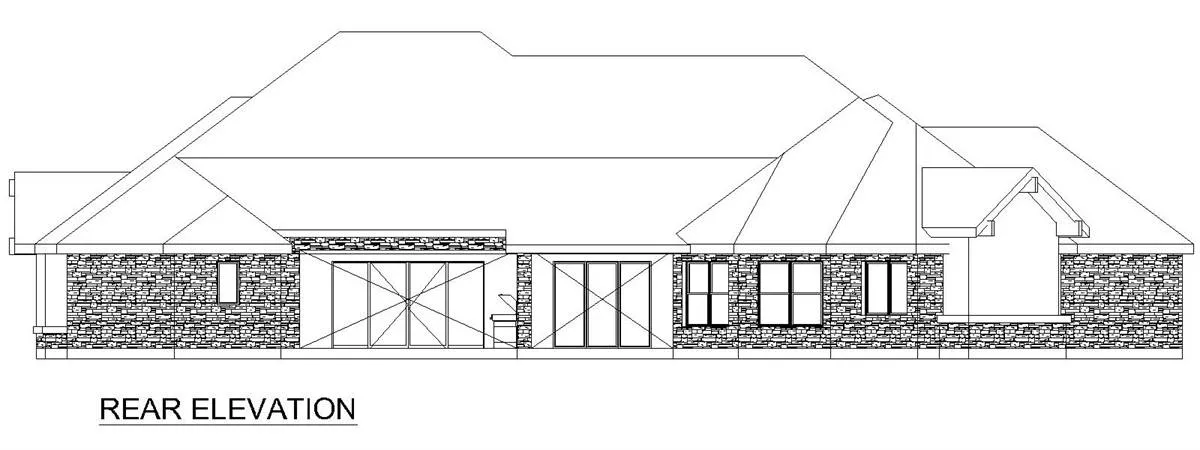

Rear Elevation

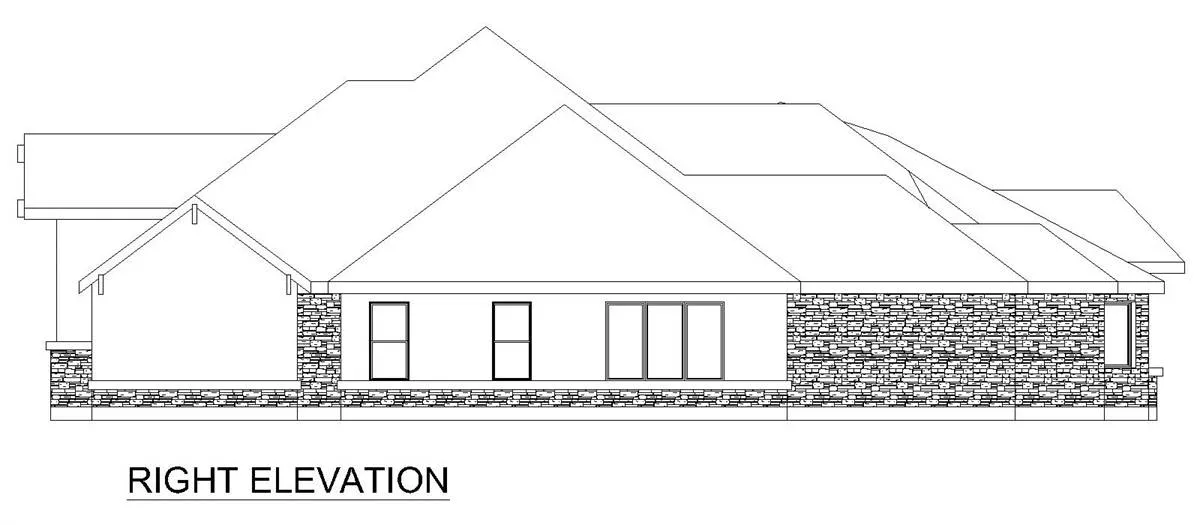

Right Elevation
1st Floor
© copyright by designer
Mouse over photo to pause

Northaven One Story Traditional Texas Style House Plan 8741

A special blend of Southern styles and refined Craftsman architecture makes this ranch home larger than life. And with a 4,440 square foot layout, there is space for everyone to enjoy. Notice the totally open layout that makes every room fully accessible.  Read more >

House Plan Details

Sq. Ft.
4,440
Beds
4
Baths
4.5
Stories
1
Garages
3
Width
105' 0"
Depth
84' 0"
Select Plan Package
Plan PDF Package
$1515
Select Foundation Options
$0
Slab
$0
Optional Add-Ons
Subtotal: $0
If a foundation or optional add-on is not listed, please live chat, email or call for availability.

PLAN IMAGES

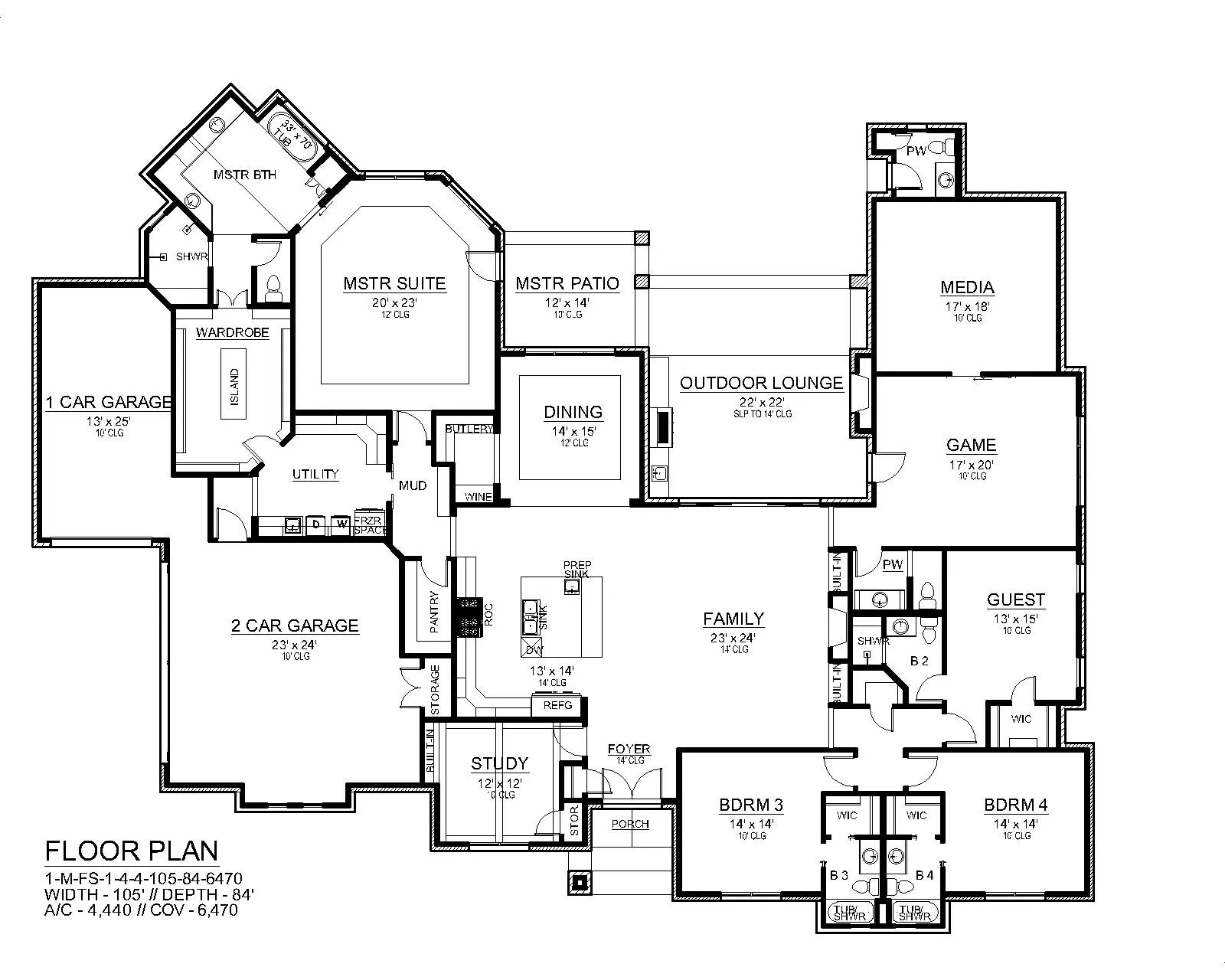

1st Floor

1st Floor
© copyright by designer
DETAILS
Total SQ. FT.:
4,440
1st Floor SQ. FT.:
4,440
Bedrooms:
4
Bathrooms:
4.5
Garage:
3
Stories:
1
Main Ceiling Height:
10'
Upper Ceiling Height:
'
Framing:
2x4
Roof Framing:
Stick
Roof Pitch:
Primary: 9
Secondary: 3
Width:
105' 0"
Depth:
84' 0"
Height:
29' 0"
Exterior Styles:
Ranch
Traditional
Unheated Living Space:
Garage: 1,022
Porch: 85
Deck: 740
HOME FEATURES
Bedroom Features:
Master Bdrm Main Floor
Separate Tub and Shower
Walk-in Closet
Kitchen Features:
Kitchen Island
L-Shaped
Pantry
Peninsula / Eating Bar
Walk-in Pantry
Additional Features:
Dining Room
Family Room
Fireplace
Foyer
Home Office
Laundry 1st Fl
Library/Media Rm
Mud Room
Garage Features:
Attached
Front-entry
Side-entry
Garage Location:
Side
Lot Features:
