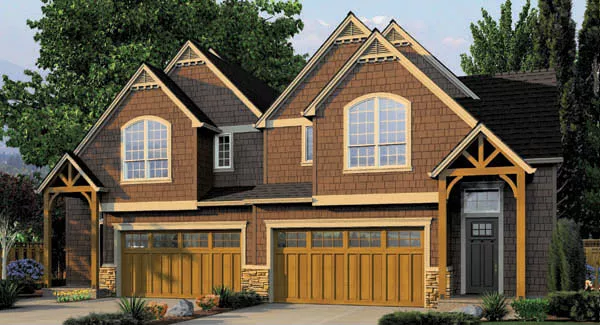

House Plan 8286: North Haven

Large windows, beautifully shingled exteriors, attractive porticos and steeply pitched rooflines create depth and beauty along the faades of these captivating row houses. Compact enough for one, yet with enough space for an entire family, these flexible three bedroom homes come complete with unexpected built-ins (including benches, storage, media units, pantries and more).  Read more >

House Plan Details

Sq. Ft.
3,324
Beds
3
Baths
2.1
Stories
2
Garages
2
Width
30' 0"
Depth
55' 0"
Per Unit
1,662
1st Floor
688
2nd Floor
974
Garage
427
Select Plan Package
PDF Files - Single Build
$1685
Select Foundation Options
$0
Crawlspace
$0
Optional Add-Ons
Subtotal: $1685

PLAN IMAGES

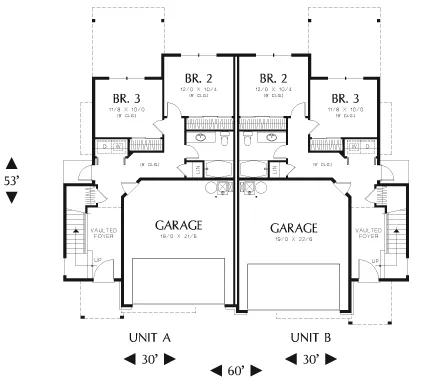

First Floor Plan

First Floor Plan
© copyright by designer

Plan Details

Basic Information
Bedrooms: 3
Bathrooms: 2.1
Garage: 2
Stories: 2
Exterior Style
Craftsman
European
Traditional
Dimensions
Width: 30' 0"
Height: 32' 0"
Depth: 55' 0"
Heated Living Space
Total Sq. Ft: 1,662
1st Floor: 688
2nd Floor: 974
Unheated Living Space
Garage: 427
Deck: 148
Patio: 120
Ceiling
Upper Ceiling Ft: varires
Main Ceiling Ft: 9
Framing Information
Framing: 2x6
Roof Framing: Truss
Bedroom Features
Master Bdrm Upstairs
Split Bedrooms
Walk-in Closet
Kitchen Features
Country Kitchen
Kitchen Island
Additional Room Features
Fireplace
Foyer
Great Room
Inverted Living
Laundry 1st Fl
Open Floor Plan
Vaulted Ceilings
Garage Location
Front
Garage Features
Attached
Lot Features
Suited for narrow lot
Roof Pitch
Primary: 12/12
