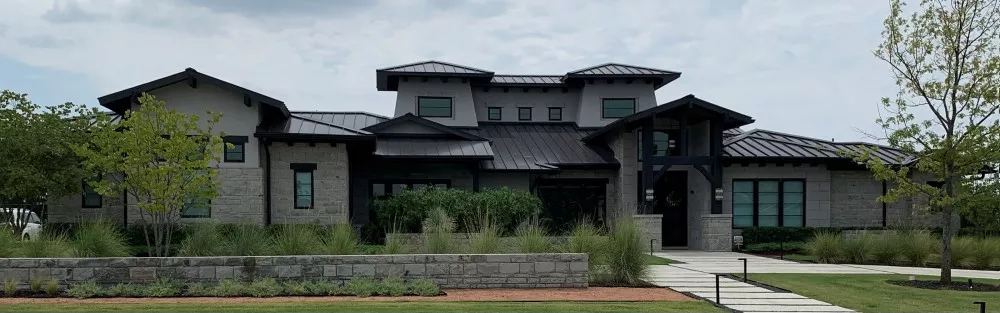

Newport Beach Luxury Ranch Style House, Plan 8666


Sq Ft
6,083 FT²

Beds
4

Baths
5

Stories
1

Garage
4

Depth
135'

Width
107'
From
$2,860.00
© copyright by designer
View All 7 Images | Photographs may reflect modified home
Sq Ft
6,083 FT²
From
$2,860.00
Beds
4
Baths
5
Stories
1
Garage
4
Depth
135'
Width
107'

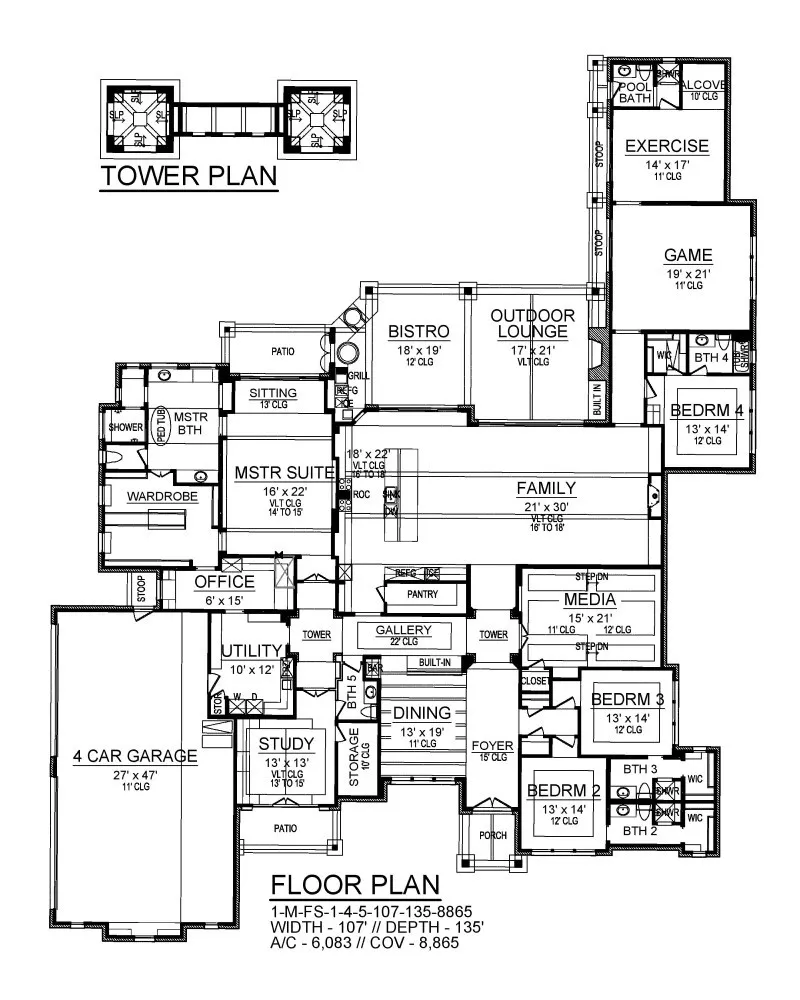

Click to Zoom In on Floor Plan
© copyright by designer



About This Plan

An astonishing amount of detail and care has been poured into every bit of this luxurious modern Craftsman. Brought to you in a single floor ranch-style layout, this plan offers an impressive 6,083 square feet of space. What this means is that every one of the unique rooms and amazing spaces is totally accessible and enjoyable for people of all ages and abilities! Beginning with its 4 bedrooms and 5 bathrooms, you and the kids and guests will all be comfortable. While you have your spacious master suite, complete with its resort-style dual vanity bath and massive wardrobe area, everyone else gets their own bedroom, complete with their own walk-in closets and private en-suite baths. Speaking of the kids, they will certainly love the movie room and the separate games room! And for a focus on health, this home also has a private gym, complete with a full bath. If you like to entertain, then this home has you covered there too. Check out just how big and open that family room is, as well as the nearby island kitchen. And did you notice the expansive covered outdoor living space that comes with a covered lounge and even a cooking station and bar? Finally, don't forget to explore the other features such as the 4-car side-entry garage with tons of storage, and the private office that is perfect for getting work done.


FEATURES & DETAILS

Kitchen features
Kitchen Island
Pantry
Peninsula / Eating Bar
Walk-in Pantry
Bedroom features
Double Vanity Sink
Primary Bdrm Main Floor
Separate Tub and Shower
Sitting Area
Walk-in Closet
Exterior features
Covered Front Porch
Outdoor Kitchen
Outdoor Living Space
Additional features
2 Story Volume
Dining Room
Exercise Room
Family Room
Fireplace
Foyer
Home Office
Laundry 1st Fl
Library/Media Rm
Garage Location
Front
Garage Options
Attached
Front-entry
Side-entry
8,865 Ft
2
Total Structure
6,083 Ft
2
Total Heated
4
Bedrooms
5
Bathrooms
4
Garage
1
Stories
107' 0"
Width
135' 0"
Depth
28' 0"
Height
11' 0"
Main Floor Ceiling
2x4
Framing
Stick
Roof Framing
4
Primary Roof Pitch
Single
Dwelling Number

Unheated Living Space
1,282 Ft
2
Garage


Plan Package Options

 Select Plan Package
$2,965
PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$2,965
$3,145
5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$3,145
$4,455
CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$4,455
 Need To Reverse Plan? (Optional)
$250
Readable Reverse

Reverse house plans with readable text and dimensions

$250
  Select Foundation Option
  Add-Ons (Optional)
INCLUDED WITH YOUR PURCHASE

Free Ground shipping in the Continental U.S.

FREE

Design consultation with the architect or designer to discuss your plan

Home Building & Product Ideas Organizer

Sub Total
$0
Free Shipping
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
