HOUSE PLANS
START AT $1,426
SQ FT
3,423
BEDS
3
BATHS
2.5
STORIES
1
CARS
3
WIDTH
83'
DEPTH
56' 6"
© copyright by designer
SQ FT
3,423
BEDS
3
BATHS
2.5
STORIES
1
CARS
3



House Plan 5884: New Ashford

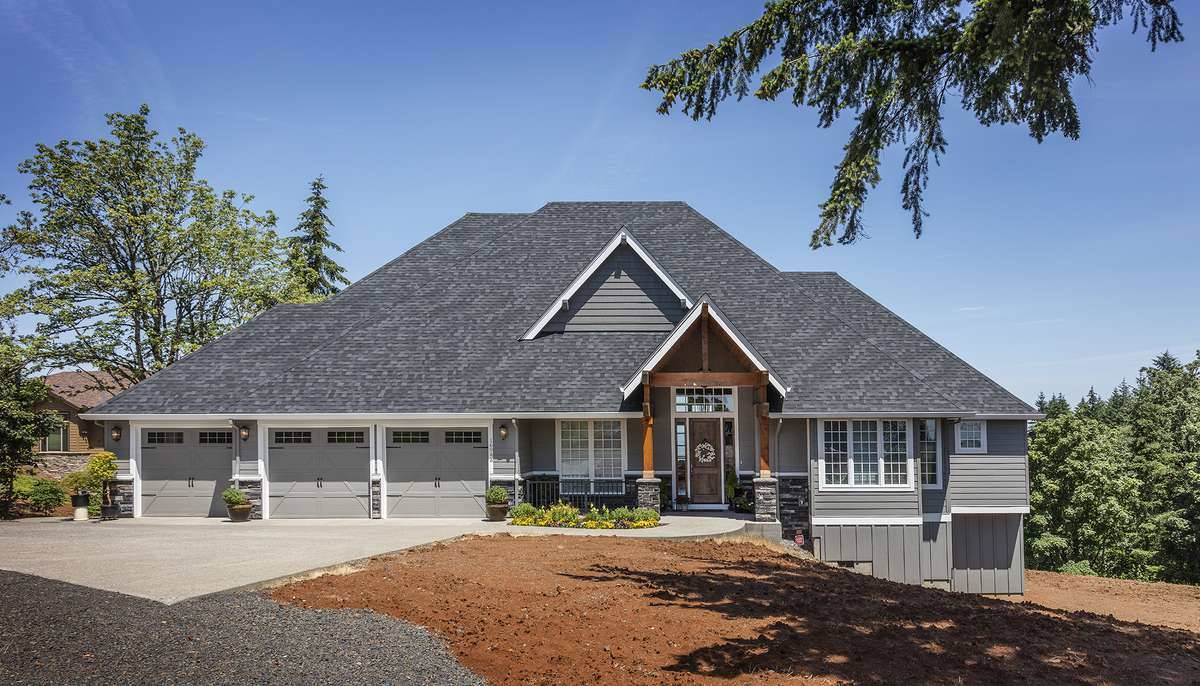

Perched majestically on a hillside, this breathtaking one-story Craftsman-inspired home melds with nature from the outside in. A steep, hip roofline juts skyward, outlining the skyline with the appearance of a mountain that naturally steps down, wide and low before anchoring itself to the hillside. Natural exterior materials befit the imposing exterior. Ledgestone cladding for the foundation and p...  Read more >
Click to Zoom In on Floor Plan

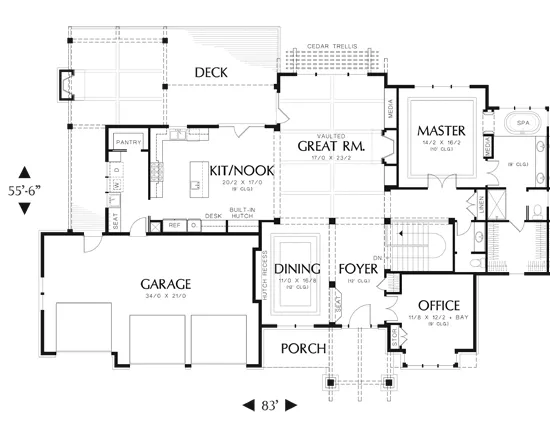

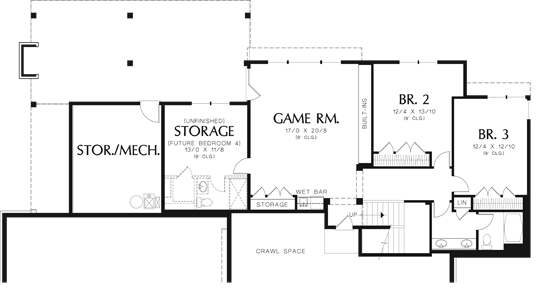

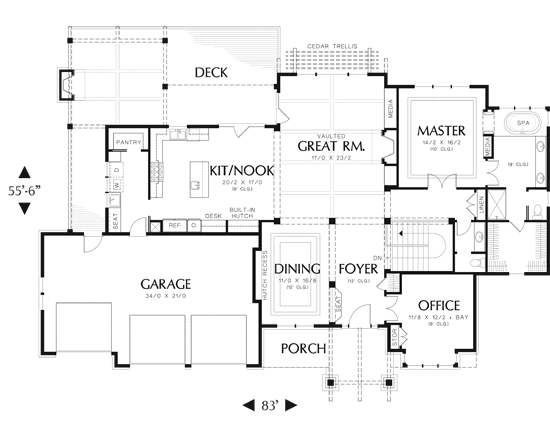

Floor Plans
© copyright by designer
Plan Packages
Select Plan Package

Study Set


An electronic set consisting of floor plan and elevation pages for design review, bidding and viability studies. Not a legal set for construction or permit acquisition.
Study Set
Electronic Study Set for Design Review
$1,426

PDF Single Build


Digital plans emailed to you in PDF format allows making minor changes and printing copies on home printer or local print shop and sharing with contractors, subs, decorators and more Digital plans emailed to you in PDF format allows making minor changes and printing copies on home printer or local print shop and sharing with contractors, subs, decorators and more.

PDF Single Build
Most recommended package
$1,776

5 Printed Sets


Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets
Five printed sets of house plans
$1,951

5 Printed Sets + PDF


Digital plan emailed to you in PDF format, allows making minor changes and printing copies on home printer or local print shop and sharing with contractors, subs, decorators and more PLUS five printed sets shipped and delivered 3-5 business days.

5 Printed Sets + PDF
Digital plans plus 5 printed sets
$2,001

CAD Single Use


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Use
2D electronic editable computer files
$3,552
Standard or Readable Reverse?
Standard $0

Readable Reverse


Reverse house plans with readable text and dimensions

Readable Reverse
Reverses house plans with readable text and dimensions
$175
Select Foundation Option
Optional Add-Ons
Subtotal:
$0
Free Shipping
If a foundation or optional add-on is not listed, please live chat, email or call for availability.
Features:
View All Plan Features
Kitchen features
Kitchen Island
Nook / Breakfast Area
Walk-in Pantry
Bedroom features
Double Vanity Sink
Master Bdrm Main Floor
Separate Tub and Shower
Lot features
Suited for sloping lot
Suited for view lot
Additional features
Dining Room
Fireplace
Foyer
Great Room
Home Office
Laundry 1st Fl
Open Floor Plan
Rec Room
Storage Space
Vaulted Ceilings
Garage Location
Front
Garage Features
Attached
Front-entry
Details:
View All Plan Details
3,423
Total Sq. Ft.:
2,210
1st Floor Sq. Ft.:
1,213
Lower Floor Sq. Ft.:
3
Bedrooms:
2.5
Bathrooms:
3
Garage:
1
Stories:
83' 0"
Width:
56' 6"
Depth:
33' 0"
Height:
Varies
Main Floor Ceiling:
2x6
Framing:
Truss
Roof Framing:
12/12
Primary Roof Pitch:
Single
Dwelling Number:
None
Bonus Access:
Unheated Living Space
741 Ft
2
Garage:
652 Ft
2
Deck:
Exterior Styles
Craftsman
Traditional
