Sq Ft
5,297 FT²
Bed
5
Bath
5
Stories
2
Garage
3
Depth
75'
Width
60'
On Sale
$2,057.00
$2,420.00
© copyright by designer
View All 5 Images | Photographs may reflect modified home
Sq Ft
5,297 FT²
From
$2,057.00
Bed
5
Bath
5
Stories
2
Garage
3
Depth
75'
Width
60'

Click to Zoom In on Floor Plan
© copyright by designer



About This Plan

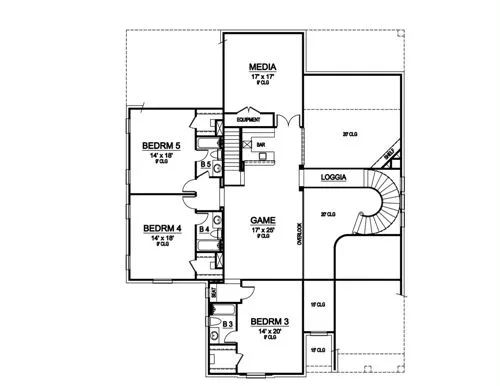

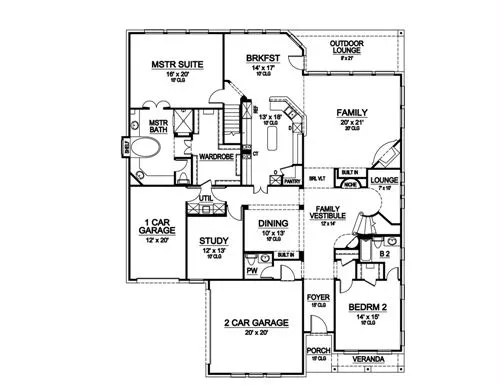

Feel right at home as you walk into this stunning European luxury mansion. The two-story foyer opens to a family vestibule with corner lounge, niche, and stairs to the second level. The large decorative pillars define the elegant dining room. Access to the pantry and kitchen offers ease in serving meals to family and guests. Through the barrel vault off the family vestibule, the family room with corner warming fireplace and built-ins offers streaming sunlight through its bank of rear windows. The breakfast area leads to the outdoor lounge and is part of the kitchen and family room. A free-standing island and breakfast bar add counter space to this gourmet kitchen. The spacious master suite boasts a lavish master bath with his and hers vanities, separate shower, tub and large wardrobe. A door from the wardrobe leads to the utility room, study and the one-car garage. A front family bedroom with large walk-in closet, private full bath, and veranda views, can be converted to an in-law suite. A two-car garage completes this level of this mansion house plan. Upstairs, three family bedrooms offer walk-in closets and private, full baths. They share space on the second level of this European luxury mansion house plan with a bar, equipment room, game room, media room, and loggia for overlook views to below.


FEATURES & DETAILS

Kitchen features
Country Kitchen
Kitchen Island
Nook / Breakfast Area
Bedroom features
Double Vanity Sink
Master Bdrm Main Floor
Separate Tub and Shower
Exterior features
Covered Front Porch
Covered Rear Porch
Front Porch
Rear Porch
Foundation Options
Slab
Additional features
Arches
Dining Room
Family Room
Fireplace
Foyer
Home Office
Laundry 1st Fl
Library/Media Rm
Open Floor Plan
Garage Location
Front
Garage Options
Attached
Front-entry
Side-entry
6,312 Ft
2
Total Structure
5,297 Ft
2
Total Heated
3,116 Ft
2
1st Floor
2,181 Ft
2
2nd Floor
5
Bedrooms
5
Bathrooms
3
Garage
2
Stories
60' 0"
Width
75' 0"
Depth
35' 0"
Height
10' 0"
Main Floor Ceiling
9' 0"
Upper Floor Ceiling
2x4
Framing
Stick
Roof Framing
12
Primary Roof Pitch
20
Secondary Roof Pitch
Single
Dwelling Number

Unheated Living Space
709 Ft
2
Garage
96 Ft
2
Porch
199 Ft
2
Patio


Plan Package Options

 Select Plan Package
$2,180
PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$2,180
$2,360
5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$2,360
$3,270
CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$3,270
 Need To Reverse Plan? (Optional)
$200
Readable Reverse

Reverse house plans with readable text and dimensions

$200
  Select Foundation Option
  Add-Ons (Optional)

Ground shipping within the Continental U.S.

FREE

Design consultation with the architect or designer to discuss your house plan

Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total
$0
Free Shipping
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
