HOUSE PLANS
START AT $1,314
SQ FT
2,079
BEDS
3
BATHS
2.5
STORIES
2
CARS
3
WIDTH
45'
DEPTH
52'
© copyright by designer
Photographs may reflect modified homes.
SQ FT
2,079
BEDS
3
BATHS
2.5
STORIES
2
CARS
3



House Plan 5156: Melrose

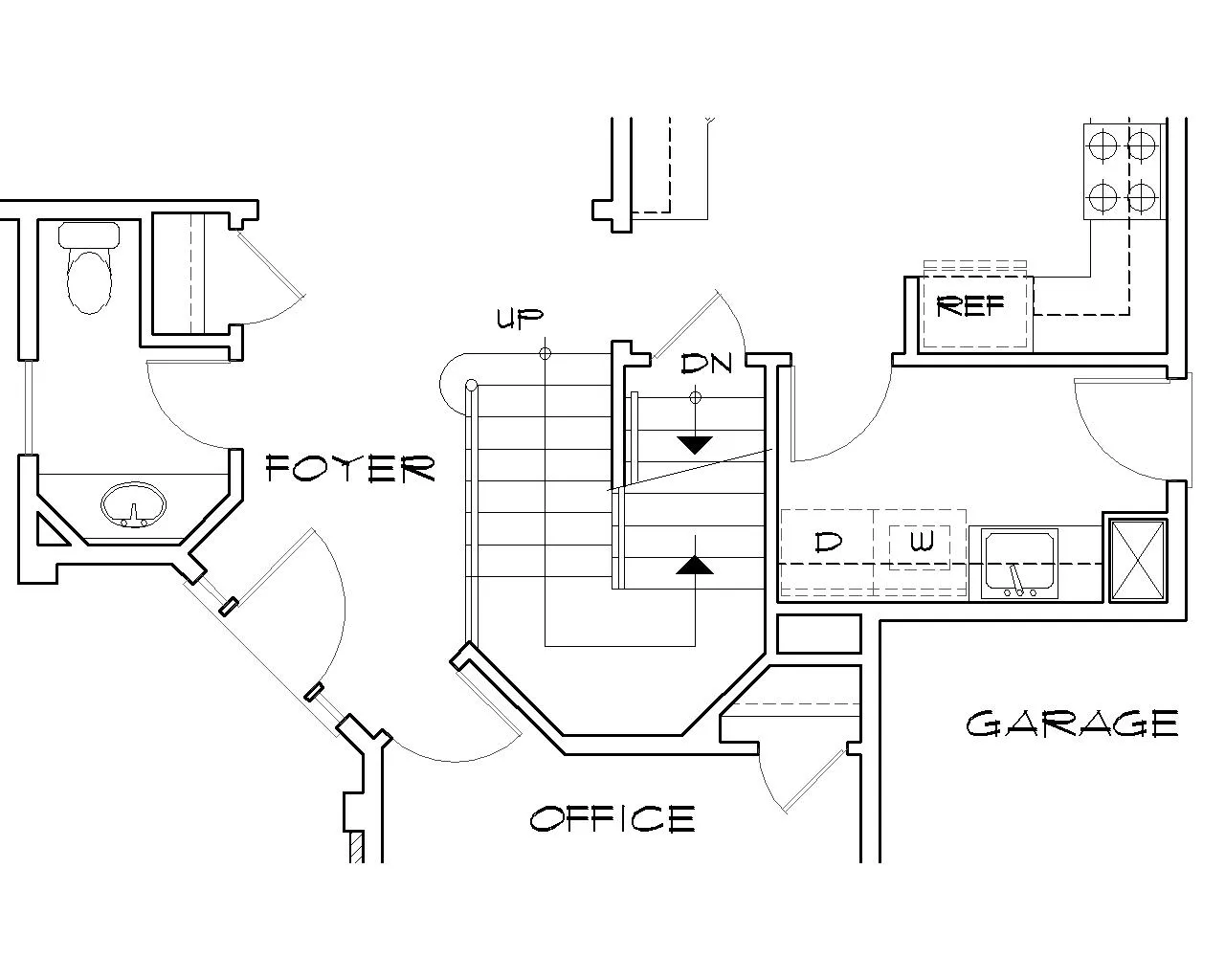

Two-story homes truly maximize usable space on a lot - essentially, you get twice as much home with the same amount of lot space as a one-story home. But that's not the only - or even best reason - to build this one. Its merit is decided by an enchanting exterior and an expertly executed floor plan. An angled entry opens to a foyer that contains a half-bath, coat closet and the stairway to the upper level.  Read more >

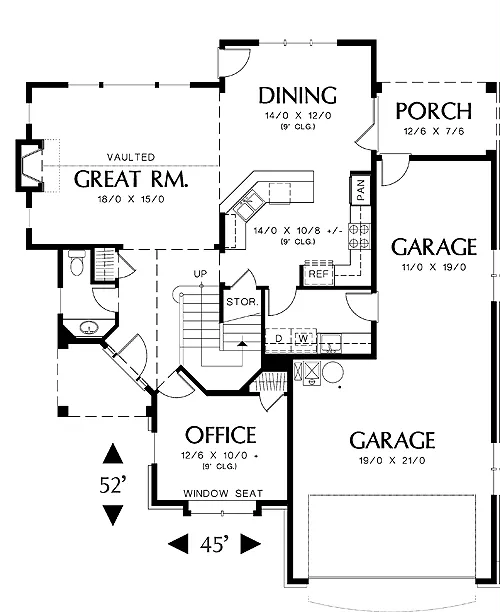

Click to Zoom In on Floor Plan
Floor Plans
© copyright by designer
Plan Packages
 Select Plan Package

PDF Bid Set


Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

PDF Bid Set
Digital set of plans for bidding purposes only
$964

PDF Single Build


Digital plans emailed to you in PDF format allowing minor changes, printing copies, and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build
Most recommended package
$1,314

5 Printed Sets


Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets
Five printed sets of house plans
$1,489

5 Printed Sets + PDF


Digital plan emailed to you in PDF format allows making minor changes and printing copies on home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

5 Printed Sets + PDF
Digital plans plus 5 printed sets
$1,539

CAD Single Use


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Use
2D electronic editable computer files
$2,628
 Need To Reverse This Plan? (Optional)

Readable Reverse


Reverse house plans with readable text and dimensions

Readable Reverse
Reverses house plans with readable text and dimensions
$175
 Select Foundation Option
 Add-Ons (Optional)
Subtotal:
$0
Free Shipping
Features:
View All Plan Features
Kitchen features
Country Kitchen
Peninsula / Eating Bar
Bedroom features
Double Vanity Sink
Master Bdrm Upstairs
Separate Tub and Shower
Walk-in Closet
Lot features
Suited for narrow lot
Additional features
2 Story Volume
Fireplace
Foyer
Great Room
Home Office
Laundry 1st Fl
Open Floor Plan
Storage Space
Vaulted Ceilings
Workshop
Garage Location
Front
Garage Features
Attached
Front-entry
Oversized
Tandem

Hide Plan Features
Details:
View All Plan Details
2,079 Ft
2
Total Heated:
1,109 Ft
2
1st Floor:
970 Ft
2
2nd Floor:
3
Bedrooms:
2.5
Bathrooms:
3
Garage:
2
Stories:
45' 0"
Width:
52' 0"
Depth:
28' 0"
Height:
9' 1"
Main Floor Ceiling:
8' 1"
Upper Floor Ceiling:
2x6
Framing:
Truss
Roof Framing:
10/12
Primary Roof Pitch:
8/12
Secondary Roof Pitch:
5/12
Porch Roof Pitch:
Single
Dwelling Number:
None
Bonus Access:
Unheated Living Space
647 Ft
2
Garage:
Exterior Styles
Cottage
Craftsman
Traditional
