Sq Ft
3,002 FT²
Bed
4
Bath
3.5
Stories
1
Garage
2
Depth
67' 6"
Width
74' 8"
On Sale
$1,024.25
$1,205.00
EXCLUSIVE PLAN
© copyright by designer

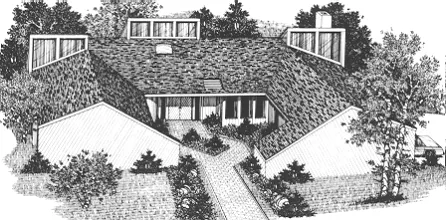

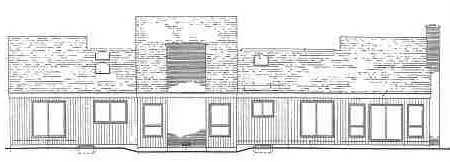

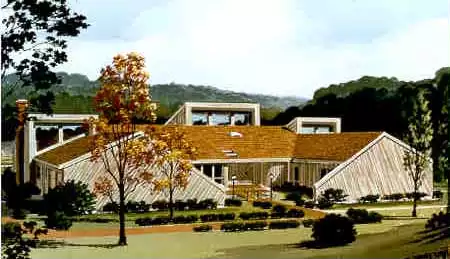

View All 4 Images | Photographs may reflect modified home
Sq Ft
3,002 FT²
From
$1,024.25
Bed
4
Bath
3.5
Stories
1
Garage
2
Depth
67' 6"
Width
74' 8"

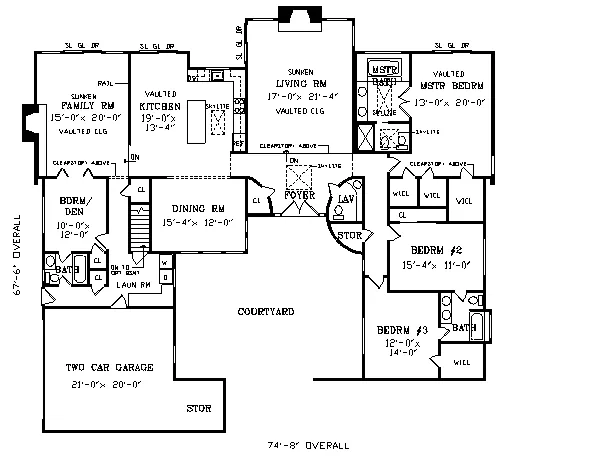

Click to Zoom In on Floor Plan
© copyright by designer



About This Plan

This fabulous contemporary ranch home exudes luxury, from the private atrium courtyard to the spacious rooms within. Entry into the skylit foyer provides an open vista of the magnificent sunken living room with its vaulted ceiling, clerestory window, and fireplace. I designed the exciting country kitchen off the hall, to the left, to feature a center island serving bar, plus a beamed vaulted skydome ceiling, and a spacious adjoining breakfast area. Large expanses of glass bathe the formal dining room in light, and its openness to the kitchen creates another large, open vista. A glass-walled, sunken family room, located adjacent to the breakfast area, features a beamed vaulted ceiling, enhanced by clerestory windows, a fireplace, and wood bin. Adjoining is a flexible room that can serve as a maid's sewing, or guest room, plus a full bath, laundry, and spacious service area. The bedroom wing, located to the right of the foyer, includes three large bedrooms, an abundance of closet space, two full baths and a powder room located just off the foyer. The dramatic, vaulted-ceilinged master bedroom is also enhanced by a clerestory and includes three walk-in closets and a sumptuous private bath with a raised tub plus a separate shower.


FEATURES & DETAILS

Kitchen features
Country Kitchen
Kitchen Island
Bedroom features
Double Vanity Sink
Guest Suite
His and Hers Master Closets
Master Bdrm Main Floor
Separate Tub and Shower
Walk-in Closet
Exterior features
Courtyard
Foundation Options
Basement
Crawlspace
Additional features
2 Story Volume
Dining Room
Family Room
Fireplace
Formal LR
In-law Suite
Laundry 1st Fl
Mud Room
Storage Space
Vaulted Ceilings
Garage Location
Side
Garage Options
Attached
3,002 Ft
2
Total Heated
4
Bedrooms
3.5
Bathrooms
2
Garage
1
Stories
74' 8"
Width
67' 6"
Depth
23' 10"
Height
8'-1"' 0"
Main Floor Ceiling
2x4
Framing
Stick
Roof Framing
8-1/2: 12
Primary Roof Pitch
Single
Dwelling Number

Unheated Living Space
511 Ft
2
Garage
Collections


Plan Package Options

 Select Plan Package
$955
PDF Bid Set
PDFs NOW!™

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

$955
$1,205
PDF Single Build
PDFs NOW!™

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,205
$1,315
5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,315
$1,390
8 Printed Sets

Eight Printed Sets of Construction Drawings, typically 24” x 36” documents, with a license to construct a single residence shipped to your physical address. PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, bank/mortgage reps, material stores, decorators and more.

$1,390
  Select Foundation Option
  Add-Ons (Optional)

Ground shipping within the Continental U.S.

FREE

Design consultation with the architect or designer to discuss your house plan

Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total
$0
Free Shipping
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
