Sq Ft
2,066 FT²

Beds
3

Baths
2.5

Stories
1.5

Garage
2

Depth
52'

Width
70'

From
$1,100.00

Front Exterior

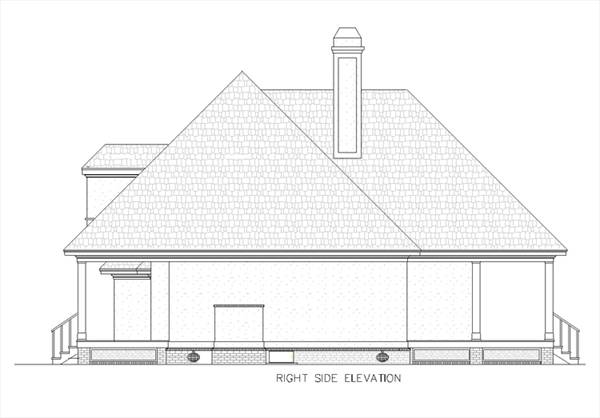

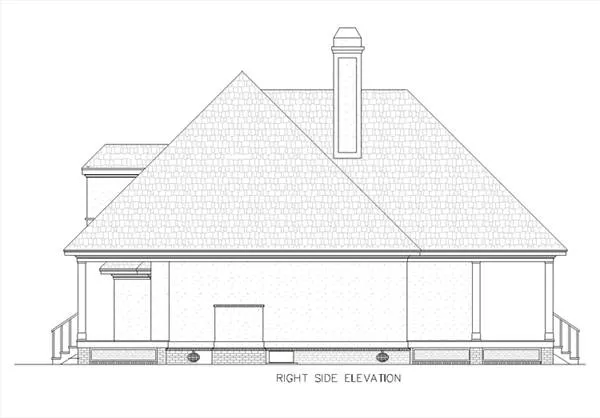

Right Side Elevation

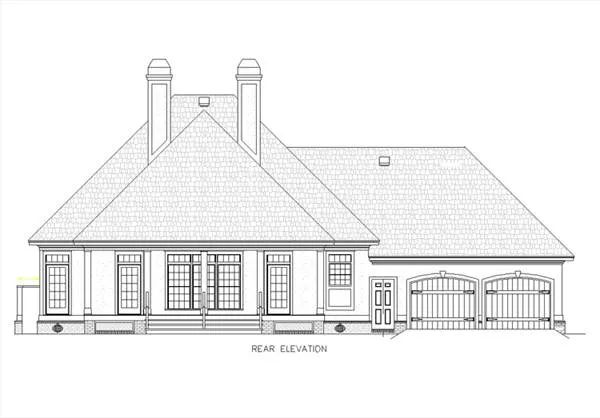

Rear Exterior

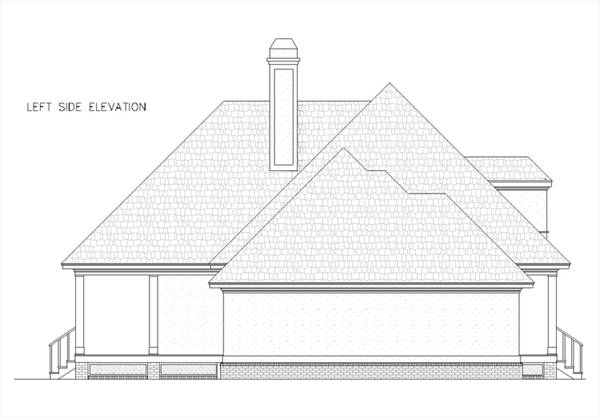

Left side elevation

View All 4 Images | Photographs may reflect modified home

Sq Ft

2,066 FT²

From

$1,100.00

Beds

Baths

2.5

Stories

1.5

Garage

Depth

52'

Width

70'

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

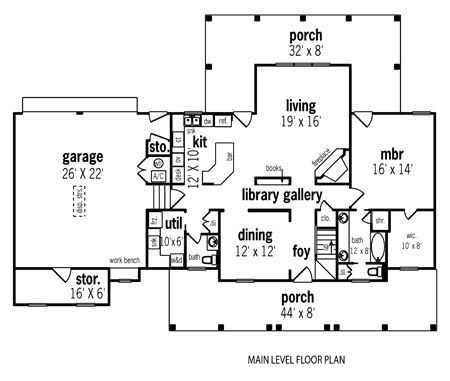

First Floor Plan

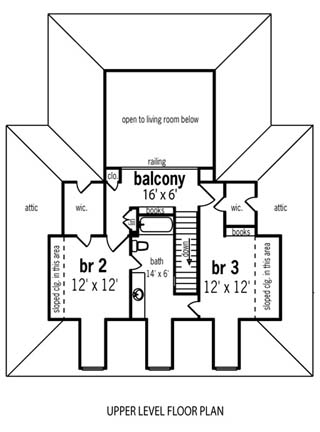

Second Floor Plan

First Floor Plan

Second Floor Plan

About This Plan

For those that want to spend lazy afternoons rocking on the porch, this is the perfect plan. With grand wrap-a-round verandas on the front and back, there is always a great spot to get away from lifes hectic pace. The living room has an overlooking balcony on the upper level and a large corner, wood burning fireplace. There is a commanding view of the rear veranda from the living room via a window wall. Access to the rear porch is conveniently located between the kitchen and living making it easy to serve afternoon tea. There is also access from the master suite for owner access.

The master bath is sensible but spacious and features a separate shower, spacious linen storage, twin vanity, private toilet and a soaking tub. The master walk-in closet is huge and has natural light provided by a front porch window.

Other design features include a built-in work bench in the garage and easy access to the mechanical equipment. The hallway has a built in library with an abundance of book shelves. The upper level has two large bed rooms, spacious walk-in closets, a shared bath and a balcony overlooking the living room below. There are built in book shelves so the balcony can be used as a study area for the kids.

FEATURES & DETAILS

Foundation Options

Crawlspace

Lot Options

Suited for corner lot
Suited for view lot

Garage Location

Rear

Garage Options

Attached

2,066 Ft

Total Heated

1,368 Ft

1st Floor

698 Ft

2nd Floor

Bedrooms

2.5

Bathrooms

Garage

1.5

Stories

70' 0"

Width

52' 0"

Depth

29' 0"

Height

10' 0"

Main Floor Ceiling

8' 0"

Upper Floor Ceiling

2x4

Framing

Stick

Roof Framing

12/12

Primary Roof Pitch

12:12

Dormer Roof Pitch

Single

Dwelling Number

Unheated Living Space

572 Ft

Garage

170 Ft

Storage

768 Ft

Porch

Exterior Styles

Collections

Old House Classics

Open Floor Plan

Outdoor Living

Plan Package Options

Important info before you buy

Select Plan Package

$900

PDF Bid Set
PDFs NOW!™

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

$900

$1,100

PDF Single Build
PDFs NOW!™

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,100

$1,185

4 Printed Sets

Four printed sets of construction drawings shipped and received in 3-5 business days

$1,185

$1,230

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,230

$1,340

8 Printed Sets + PDF
PDFs NOW!™

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS eight printed sets shipped and delivered 3-5 business days.

$1,340

8 Printed Sets

Eight Printed Sets of Construction Drawings, typically 24” x 36” documents, with a license to construct a single residence shipped to your physical address. PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, bank/mortgage reps, material stores, decorators and more.

$1,340

$2,100

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$2,100

Need To Reverse Plan? (Optional)

$125

Readable Reverse

Reverse house plans with readable text and dimensions

$125

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping in the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
