HOUSE PLANS
START AT $2,000
SQ FT
3,575
BEDS
4
BATHS
2.5
STORIES
2
CARS
3
WIDTH
64'
DEPTH
52'
© copyright by designer

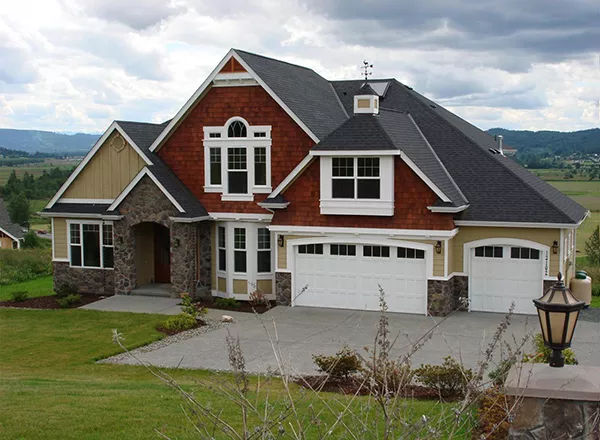

Photographs may reflect modified homes.   View all 6 photos
SQ FT
3,575
BEDS
4
BATHS
2.5
STORIES
2
CARS
3



House Plan 5717: Madrona

Stone accents and repeated gables enhance this traditional two-story house plan, with four bedrooms, 2.5 baths and a luxurious 3,575 square feet of living space. Converse with friends in the spacious living room in this home plan, warmed by a fireplace. Serve a stylish meal in the bayed dining room. A breakfast nook and a handy pantry are featured in the open kitchen, and a butler's pantry is just steps away.  Read more >
Click to Zoom In on Floor Plan

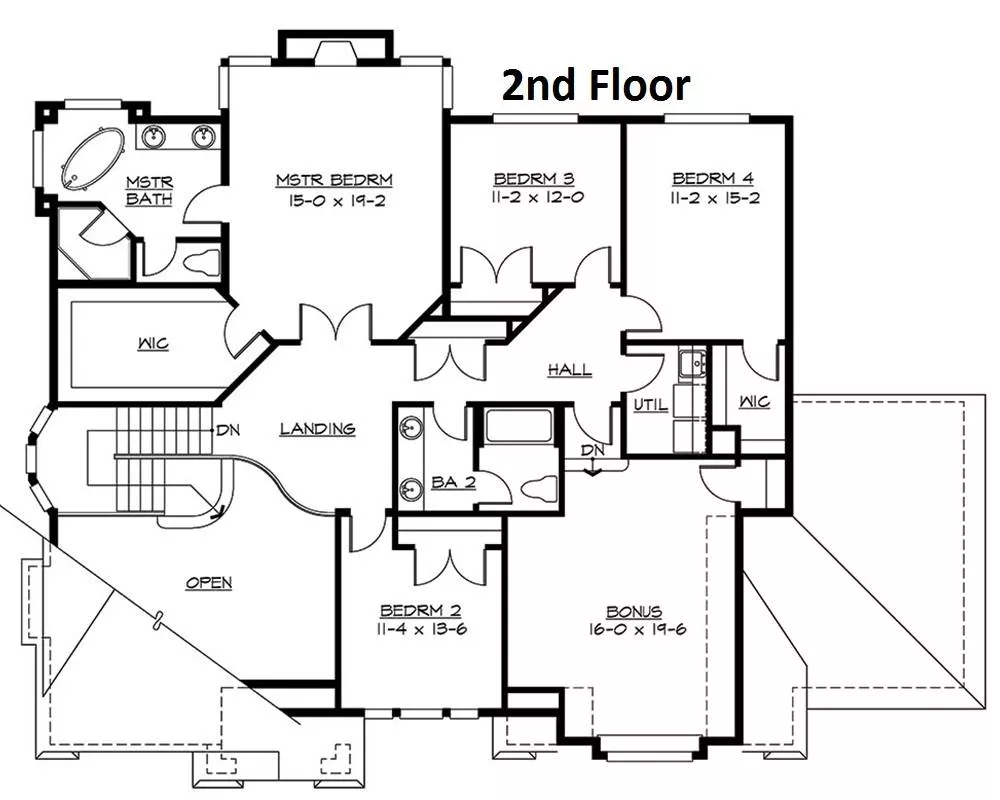

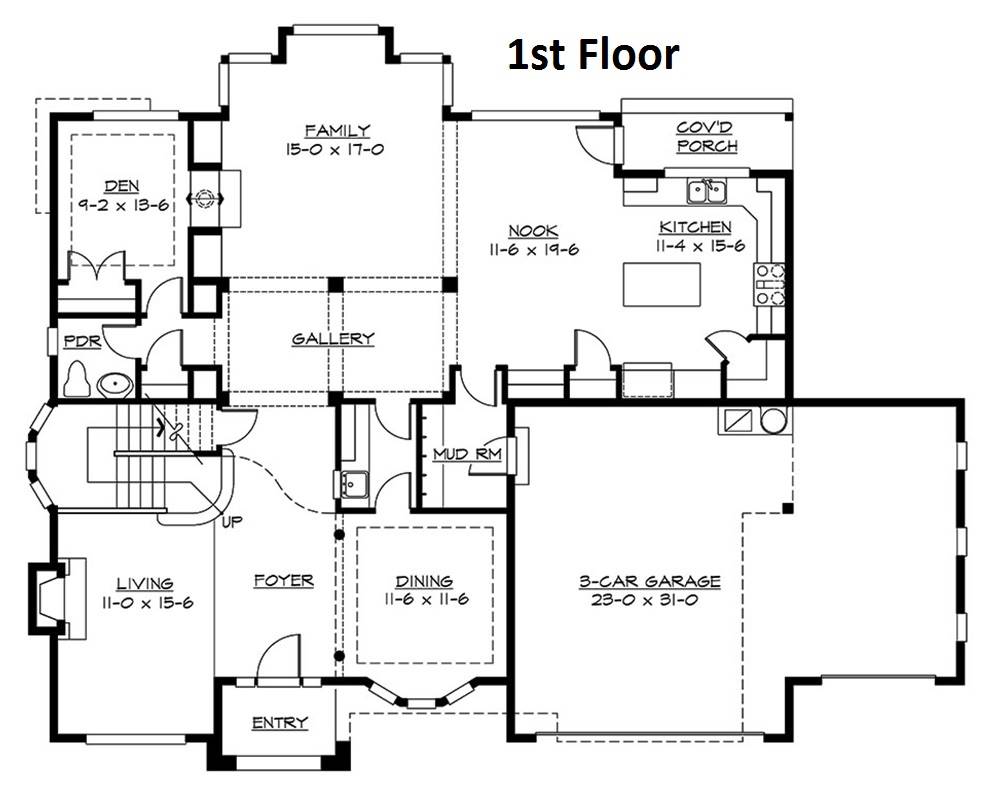

Floor Plans
© copyright by designer
Plan Packages
 Select Plan Package

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build
Most recommended package
$2,000

CAD Single Use


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Use
2D electronic editable computer files
$3,300
 Need To Reverse This Plan? (Optional)

Readable Reverse


Reverse house plans with readable text and dimensions

Readable Reverse
Reverses house plans with readable text and dimensions
$250
 Select Foundation Option
 Add-Ons (Optional)
Subtotal:
$0
Free Shipping
IMPORTANT NOTE: Due to state regulations, this home is not available for purchase in the State of Washington. Contact us for more information.

Note: This plan cannot be purchased for construction in Washington State.
Features:
View All Plan Features
Kitchen features
Butler's Pantry
Kitchen Island
Nook / Breakfast Area
Walk-in Pantry
Bedroom features
Double Vanity Sink
Master Bdrm Upstairs
Separate Tub and Shower
Walk-in Closet
Additional features
2 Story Volume
Arches
Bonus Room
Dining Room
Family Room
Fireplace
Formal LR
Foyer
Home Office
Laundry 2nd Fl
Mud Room
Open Floor Plan
Garage Location
Front
Garage Features
Attached
Front-entry

Hide Plan Features
Details:
View All Plan Details
3,575 Ft
2
Total Heated:
1,745 Ft
2
1st Floor:
1,830 Ft
2
2nd Floor:
4
Bedrooms:
2.5
Bathrooms:
3
Garage:
2
Stories:
64' 0"
Width:
52' 0"
Depth:
29' 6"
Height:
9
Main Floor Ceiling:
8
Upper Floor Ceiling:
2x6
Framing:
Truss
Roof Framing:
8
Primary Roof Pitch:
12
Secondary Roof Pitch:
Single
Dwelling Number:
2nd Floor
Bonus Access:
Unheated Living Space
912 Ft
2
Garage:
Exterior Styles
Craftsman
French Country
Traditional
Collections
Kitchens
Master Suites
Open Floor Plan
Outdoor Living

Hide Plan Details
