Sq Ft
4,082 FT²

Beds
4

Baths
4.5

Stories
2

Garage
3

Depth
94'

Width
72'

From
$2,690.00

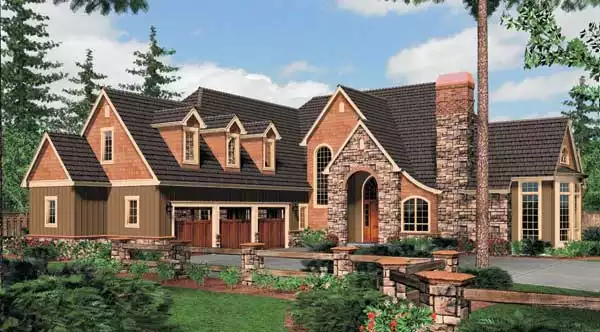

Front Rendering

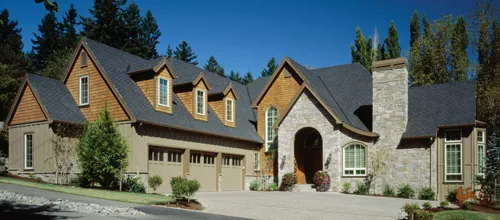

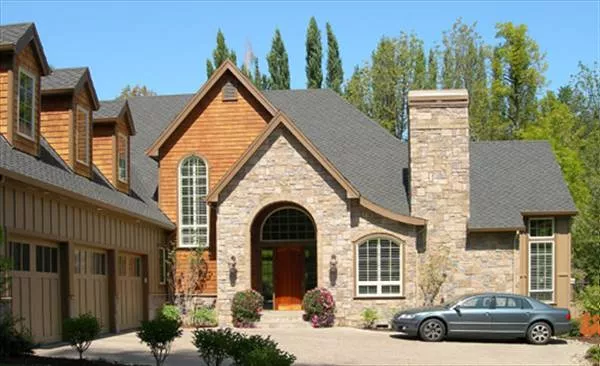

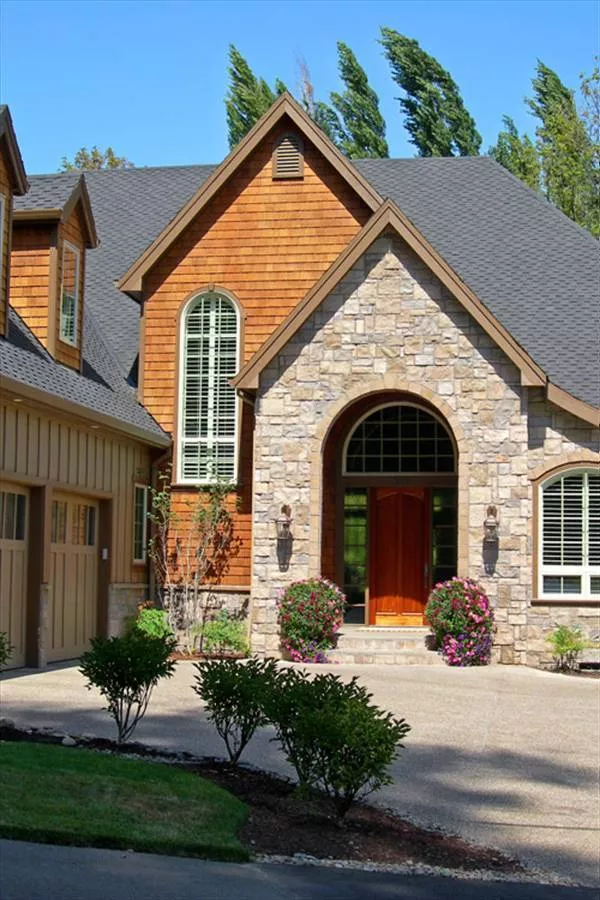

Front Exterior

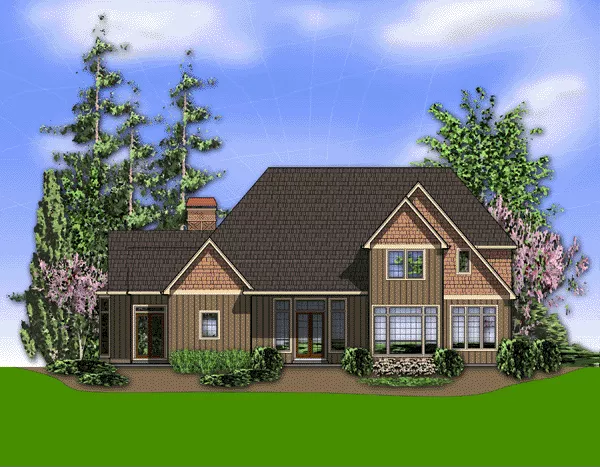

Rear Elevation

View All 5 Images | Photographs may reflect modified home

Sq Ft

4,082 FT²

From

$2,690.00

Beds

Baths

4.5

Stories

Garage

Depth

94'

Width

72'

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

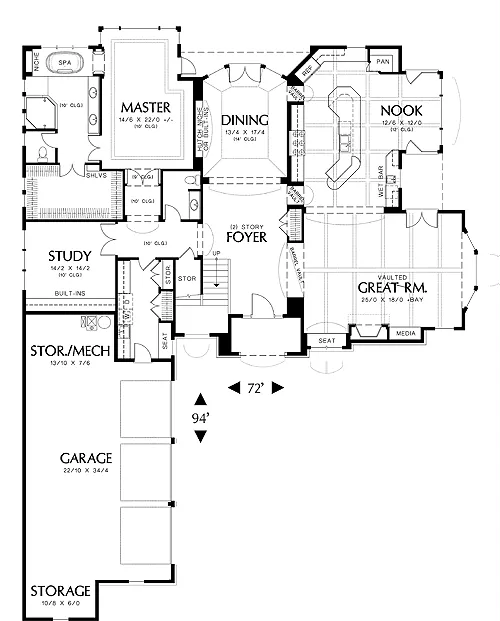

First Floor Plan

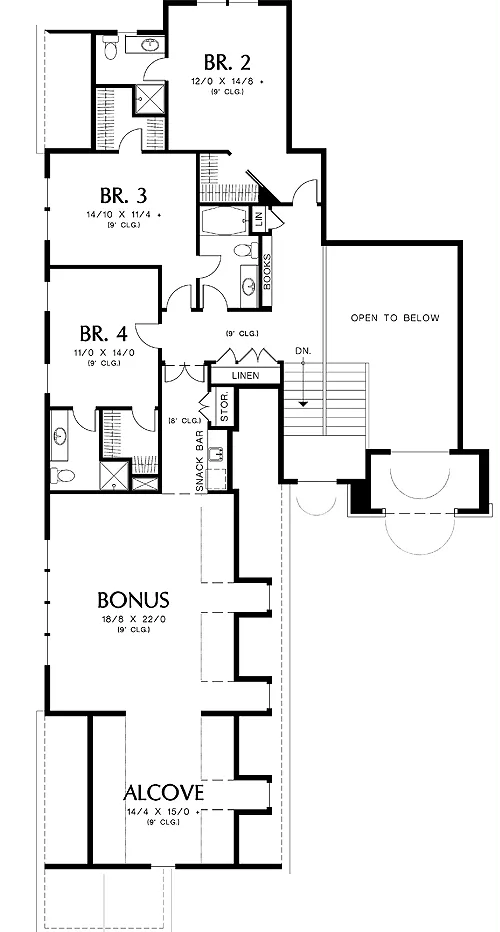

Second Floor Plan

First Floor Plan

Second Floor Plan

About This Plan

It starts with a dream of luxury and is realized by careful design and special details. This home borrows from Tudor elements to achieve its unique exterior appearance, incorporating a swoop roofline over the entry and mixing cedar shingles, stone and battens to good effect. The interior holds everything your heart can desire. A wide entry foyer opens to a vaulted great room on the right and the formal dining room to the back. The great room, kitchen and casual dining nook have exposed-beam ceilings. A fireplace, media center and bay window are noted extras in the great room. Doors in the nook lead to the back yard and to a small porch that is also accessed from the great room. The dining room has double doors out to the back.

The far left side of plan holds a master suite and private study with built-ins. A through-fireplace warms both the master salon and the spa tub in the master bath. Three additional bedrooms (each with a private bath) are on the upper level. Each bedroom has a walk-in closet. Bonus space and an alcove on the upper level have dormer windows. A handy snack bar sits in the upper-level hallway.

FEATURES & DETAILS

Kitchen features

Kitchen Island
Nook / Breakfast Area
Walk-in Pantry

Bedroom features

Double Vanity Sink
Split Bedrooms

Exterior features

Covered Rear Porch

Foundation Options

Basement
Crawlspace
Slab

Lot Options

Suited for view lot

Additional features

2 Story Volume
Arches
Bonus Room
Dining Room
Fireplace
Foyer
Great Room
Home Office
Laundry 1st Fl
Library/Media Rm
Mud Room
Open Floor Plan
Storage Space
Vaulted Ceilings

Garage Location

Side

Garage Options

Attached
Oversized
Side-entry

4,082 Ft

Total Heated

3,003 Ft

1st Floor

1,079 Ft

2nd Floor

Bedrooms

4.5

Bathrooms

Garage

Stories

72' 0"

Width

94' 0"

Depth

35' 0"

Height

Varies' 0"

Main Floor Ceiling

9' 0"

Upper Floor Ceiling

2x6

Framing

Stick

Roof Framing

12/12

Primary Roof Pitch

14/12

Gable Roof Pitch

12/12

Dormer Roof Pitch

6/12

Porch Roof Pitch

Single

Dwelling Number

2nd Floor

Bonus Access

Unheated Living Space

1,021 Ft

Garage

125 Ft

Porch

812 Ft

Bonus Room

Exterior Styles

Craftsman

European

Traditional

Collections

Plan Package Options

Important info before you buy

Select Plan Package

$2,690

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$2,690

$2,890

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$2,890

$2,940

5 Printed Sets + PDF

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

$2,940

$5,380

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$5,380

Need To Reverse Plan? (Optional)

$225

Readable Reverse

Reverse house plans with readable text and dimensions

$225

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping in the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
