First Floor
© copyright by designer
Mouse over photo to pause

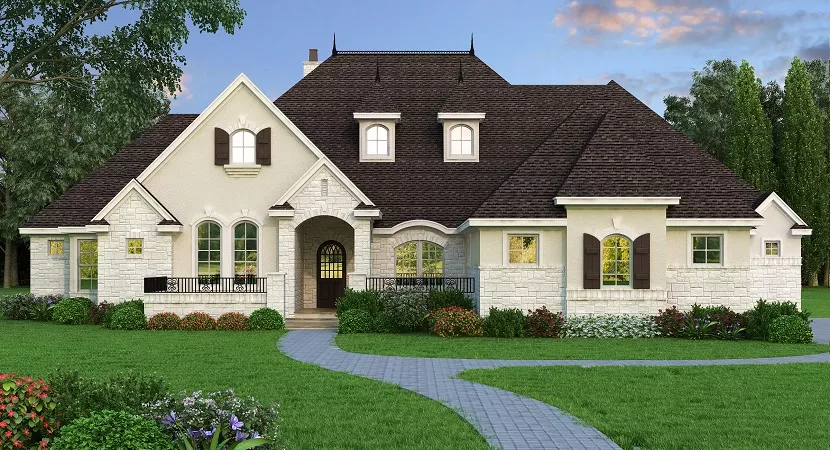

Legacy Luxury Traditional Ranch Style House Plan 8502

A distinctive, regal flair is abundant throughout this luxurious European style home. Offered to you in a convenient and accessible ranch layout, this single floor design provides an impressive 4,018 square feet of space. This includes 4 beds and 4.  Read more >

House Plan Details

Sq. Ft.
4,018
Beds
4
Baths
4.5
Stories
1
Garages
3
Width
94' 0"
Depth
87' 0"
Select Plan Package
Plan PDF Package
$1515
Select Foundation Options
$0
Slab
$0
Optional Add-Ons
Subtotal: $0
If a foundation or optional add-on is not listed, please live chat, email or call for availability.

PLAN IMAGES

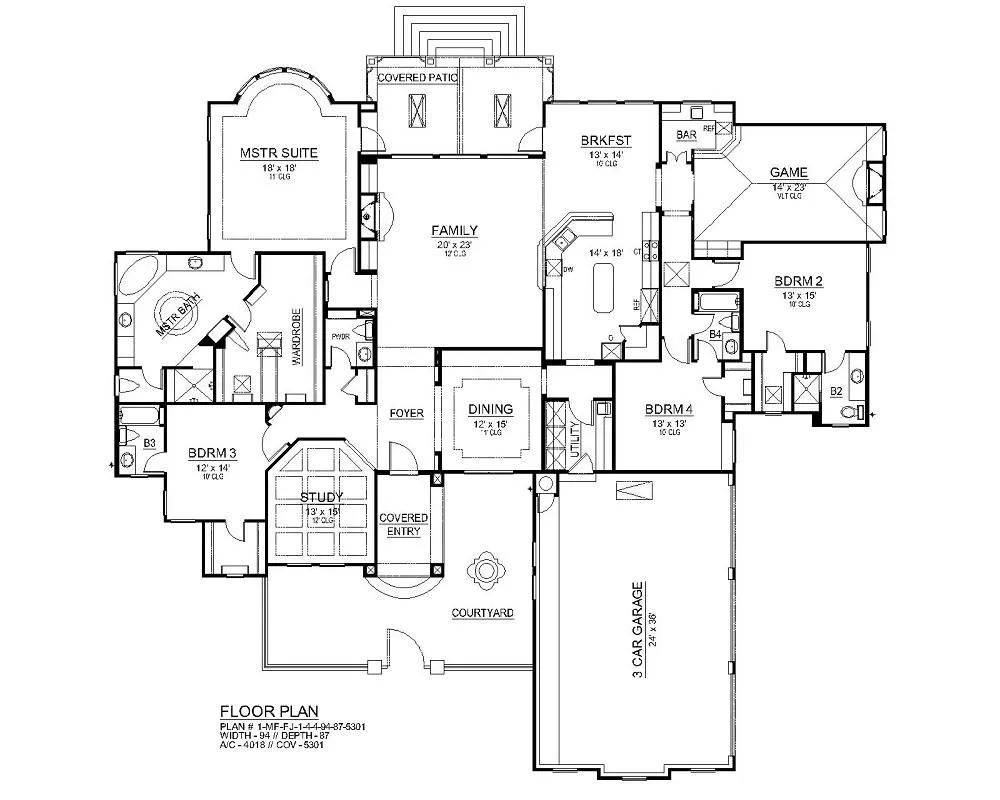

First Floor

First Floor
© copyright by designer
DETAILS
Total SQ. FT.:
4,018
1st Floor SQ. FT.:
4,018
Bedrooms:
4
Bathrooms:
4.5
Garage:
3
Stories:
1
Main Ceiling Height:
10'
Upper Ceiling Height:
'
Framing:
2x4
Roof Framing:
Truss
Roof Pitch:
Primary: 12
Secondary: 18
Width:
94' 0"
Depth:
87' 0"
Height:
38' 0"
Exterior Styles:
European
Ranch
Traditional
Unheated Living Space:
HOME FEATURES
Bedroom Features:
Double Vanity Sink
Master Bdrm Main Floor
Separate Tub and Shower
Sitting Area
Walk-in Closet
Kitchen Features:
Kitchen Island
Nook / Breakfast Area
Peninsula / Eating Bar
Additional Features:
Dining Room
Family Room
Fireplace
Foyer
Laundry 1st Fl
Garage Features:
Attached
Side-entry
Garage Location:
Front
Lot Features:

Our Guarantee

  • Only the highest quality plans
  • Int’l Residential Code Compliant
  • Full structural details on all plans
  • Best plan price guarantee
  • Free modification Estimates
  • Builder-ready construction drawings
  • Expert advice from leading designers
  • PDFs NOW!™ plans delivered in minutes
  • 100% satisfaction guarantee
  • Free Home Building Organizer
