Recently Viewed Plans | Advanced Plan Search

Sq Ft
3,984 FT²

Bed
3

Bath
4.5

Stories
2

Garage
3

Depth
98'

Width
56'

On Sale
$1,062.50
$1,250.00

View All 34 Images | Photographs may reflect modified home

Sq Ft

3,984 FT²

From

$1,062.50

Bed

Bath

4.5

Stories

Garage

Depth

98'

Width

56'

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

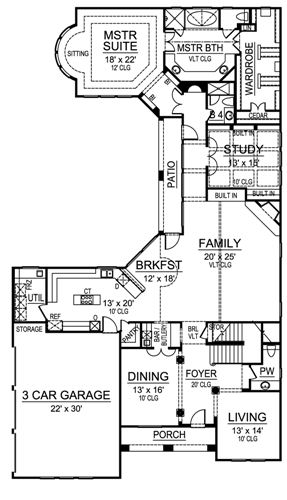

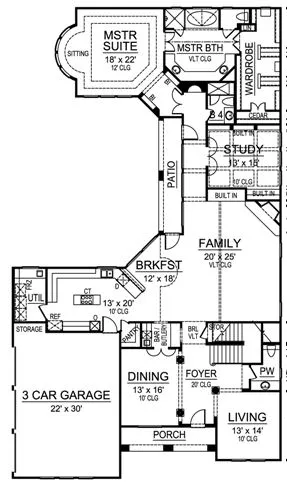

First Floor

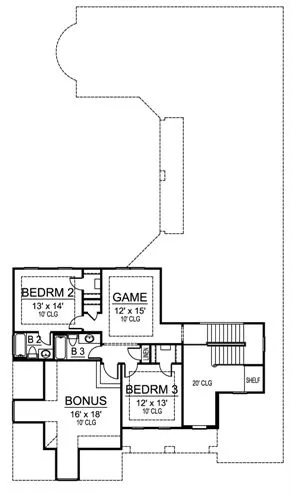

Second Floor

First Floor

Second Floor

About This Plan

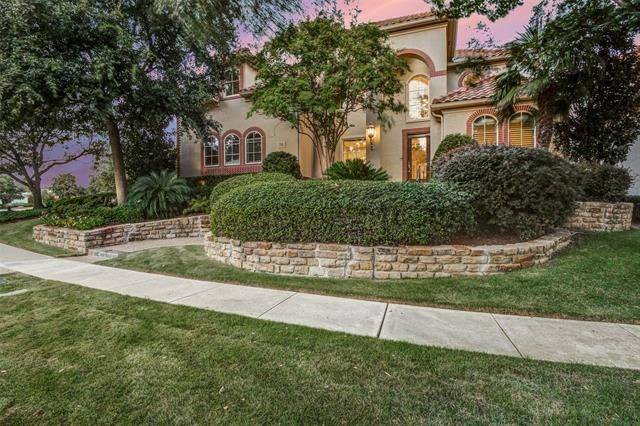

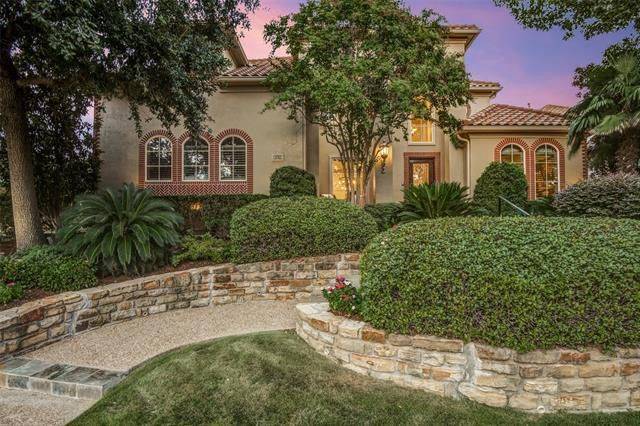

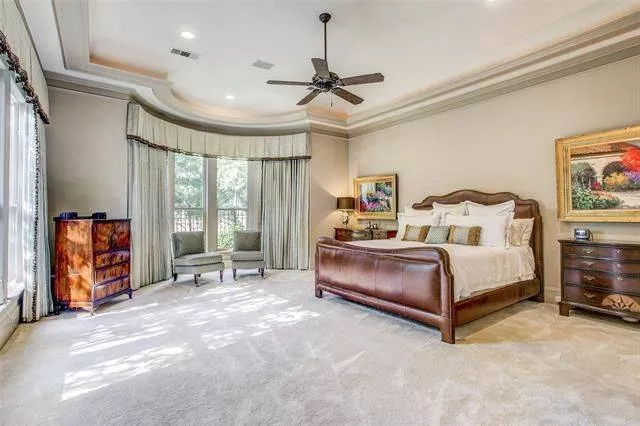

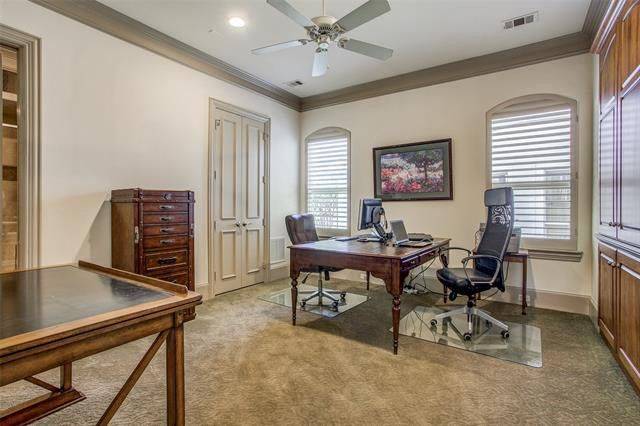

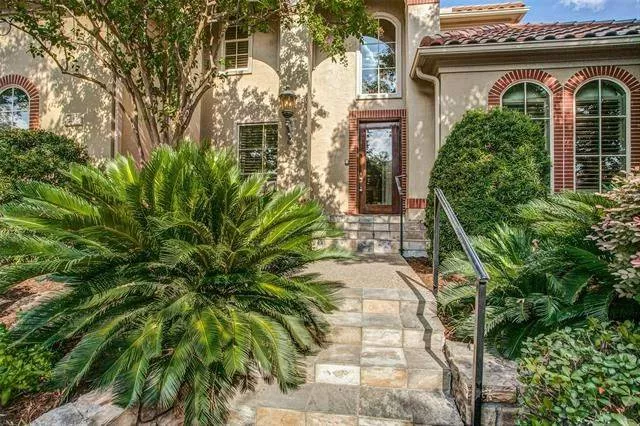

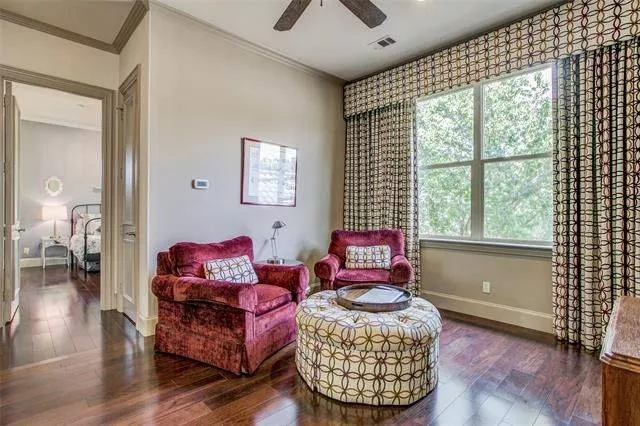

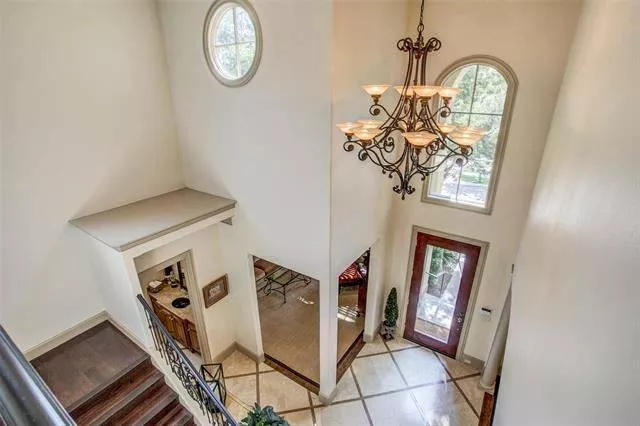

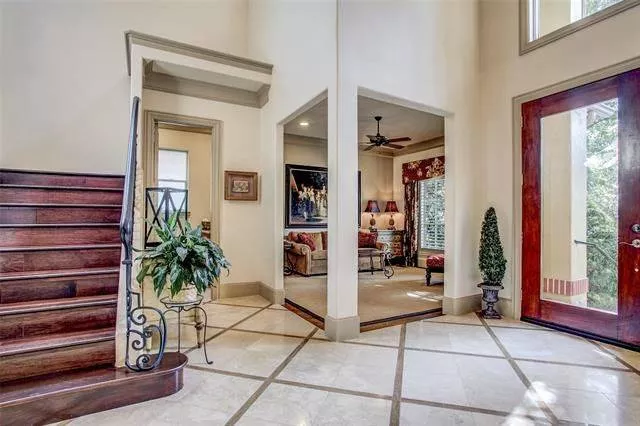

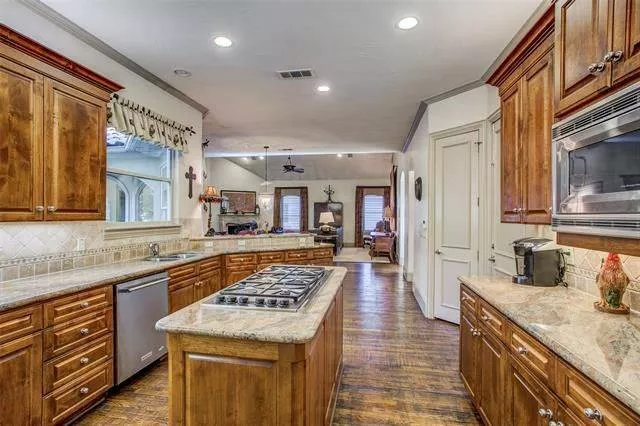

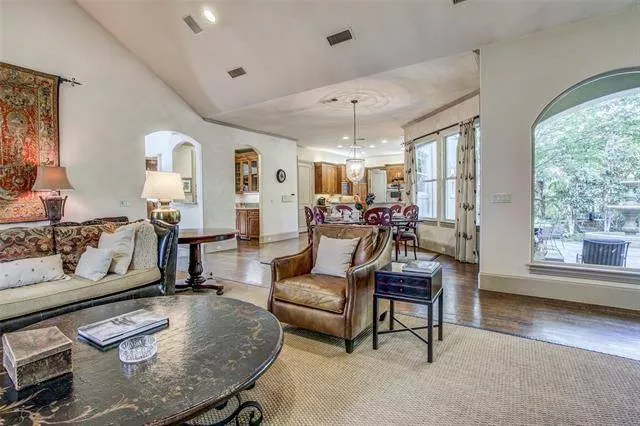

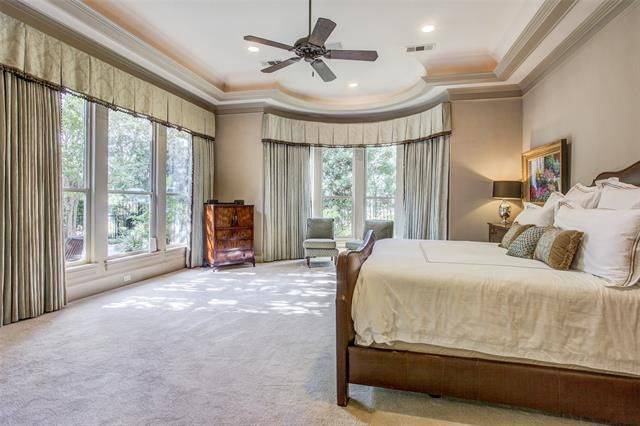

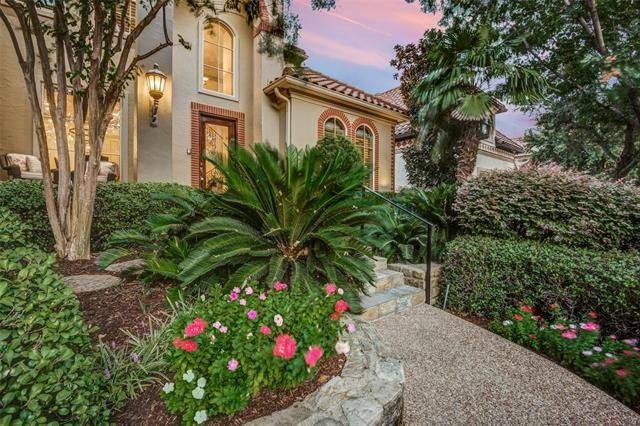

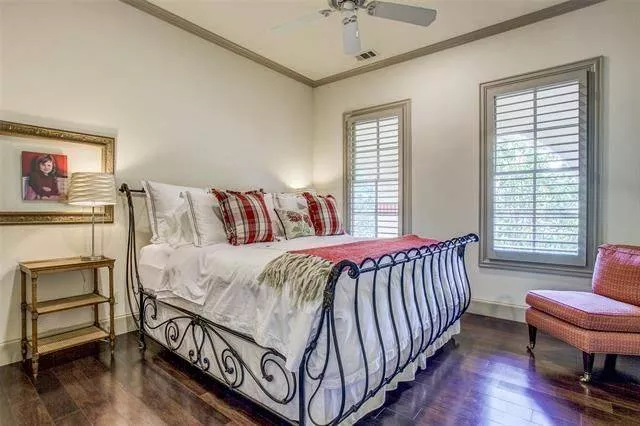

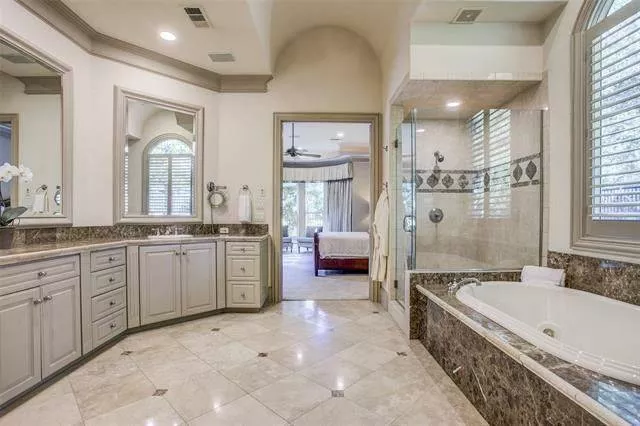

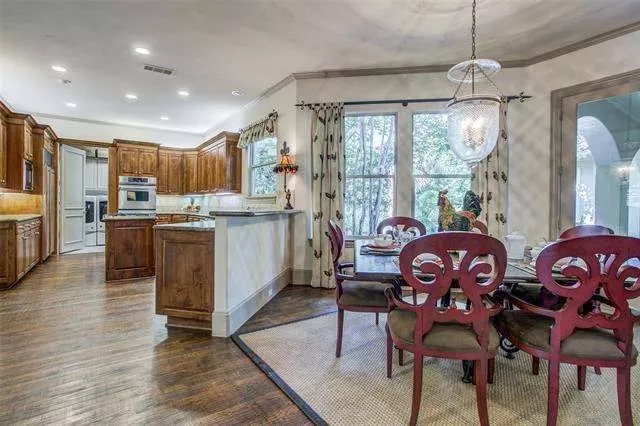

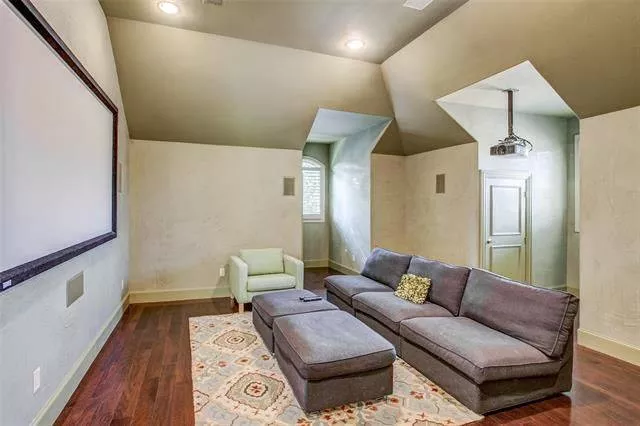

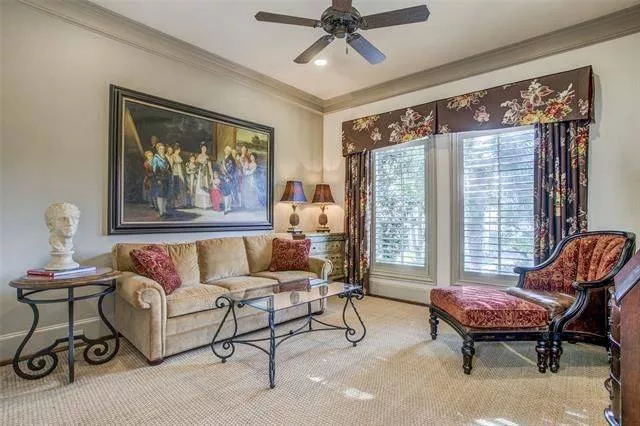

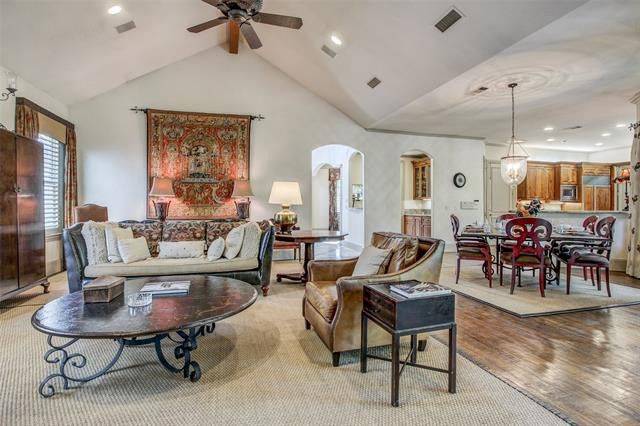

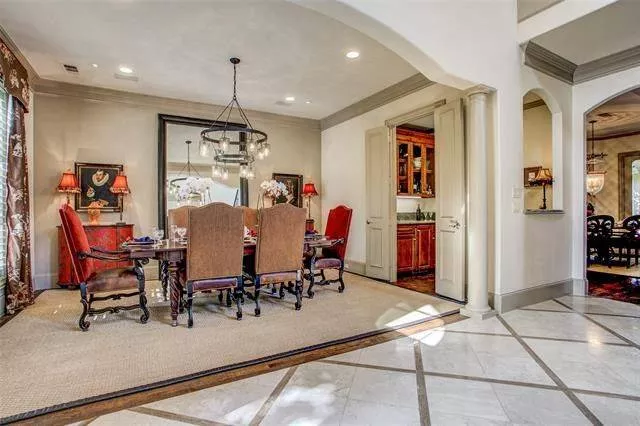

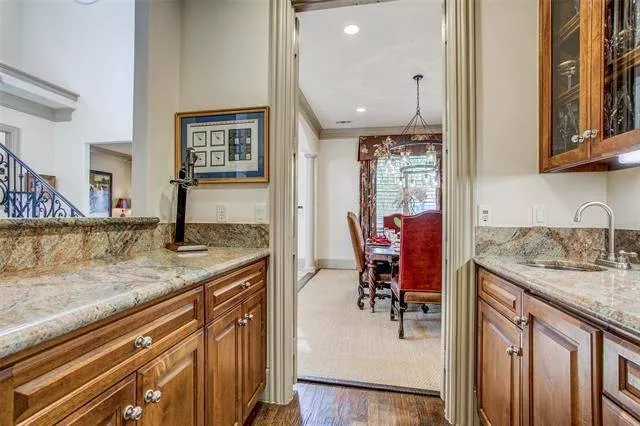

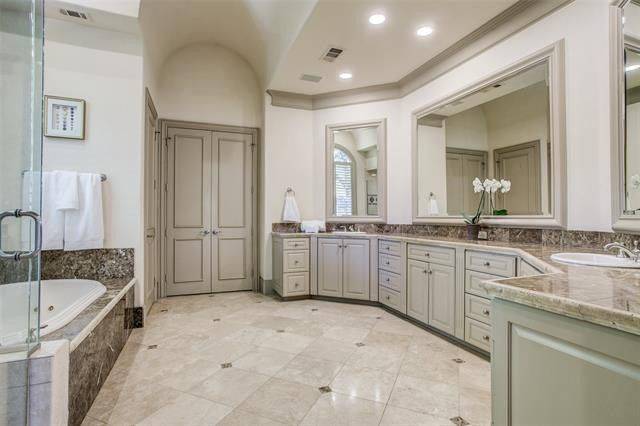

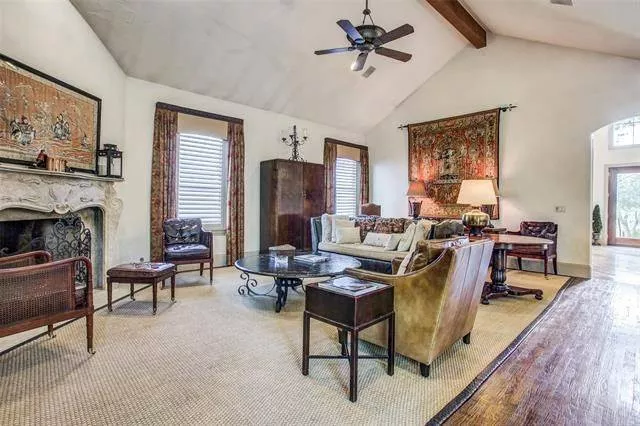

With the requisite clay-tile roof and bold arches, this marvelous three-bedroom house plan has the feel of a Mediterranean villa. Off the foyer, enjoy conversation with guests in the intimate living room. The island kitchen serves a proper feast to your visitors in the formal dining room, thanks to the wet bar/butlery. A barrel-vaulted ceiling introduces the vaulted family room, complete with a corner fireplace. A coffered ceiling presides over a quiet study, which would make a great home office or extra bedroom. You'll find luxurious relaxation in the master suite, with its curved sitting area. A garden tub anchors the private bath. Two more bedrooms and two full baths are found upstairs, along with a fun game room and a versatile bonus room.

FEATURES & DETAILS

Foundation Options

Slab

Garage Location

Front

Garage Options

Attached
Side-entry

5,259 Ft

Total Structure

3,984 Ft

Total Heated

3,156 Ft

1st Floor

828 Ft

2nd Floor

Bedrooms

4.5

Bathrooms

Garage

Stories

56' 0"

Width

98' 0"

Depth

31' 0"

Height

10' 0"

Main Floor Ceiling

9' 0"

Upper Floor Ceiling

2x4

Framing

Stick

Roof Framing

Single

Dwelling Number

Unheated Living Space

702 Ft

Garage

98 Ft

Porch

116 Ft

Patio

359 Ft

Bonus Room

Exterior Styles

Mediterranean

Traditional

Tuscan

Collections

Plan Package Options

Important info before you buy

Select Plan Package

$1,125

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,125

$1,305

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,305

$1,670

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$1,670

Need To Reverse Plan? (Optional)

$150

Readable Reverse

Reverse house plans with readable text and dimensions

$150

Select Foundation Option

Add-Ons (Optional)

	Ground shipping within the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your house plan
	Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
