Sq Ft
4,697 FT²
Bed
4
Bath
6
Stories
2
Garage
3
Depth
89'
Width
127'
On Sale
$1,402.50
$1,650.00
© copyright by designer
View All 12 Images | Photographs may reflect modified home
Sq Ft
4,697 FT²
From
$1,402.50
Bed
4
Bath
6
Stories
2
Garage
3
Depth
89'
Width
127'

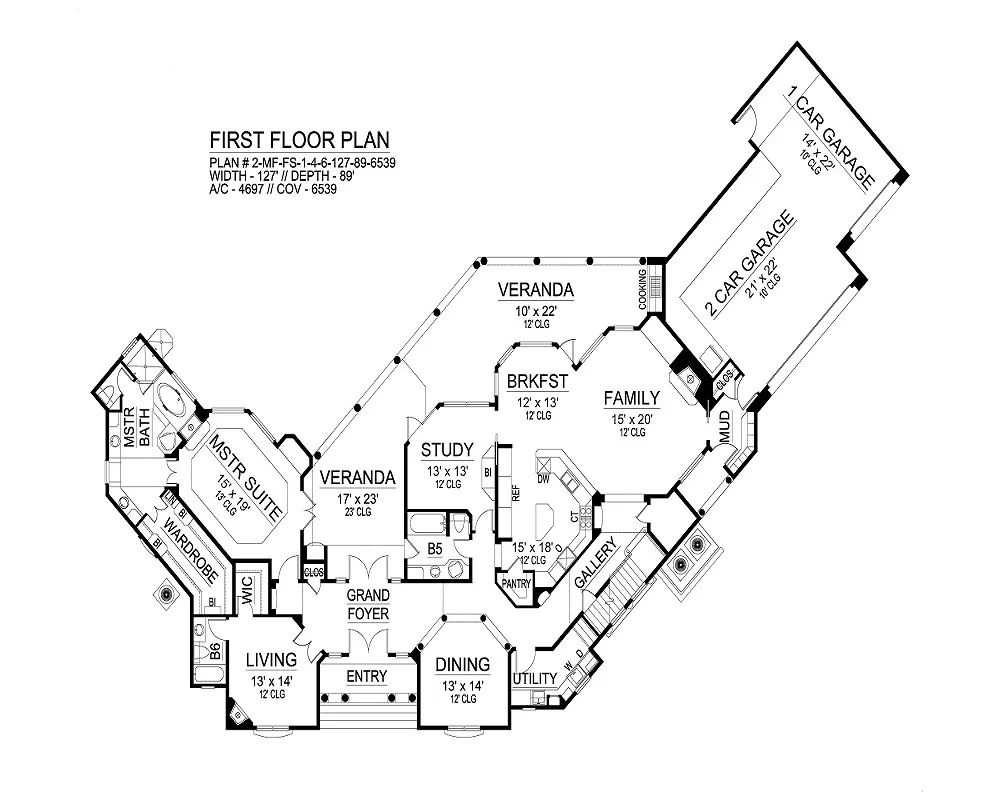

Click to Zoom In on Floor Plan
© copyright by designer



About This Plan

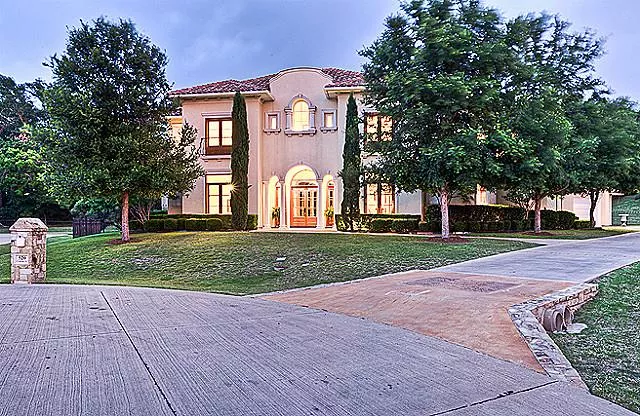

This elegant Mediterranean mansion is the epitome of luxury. The exterior has a traditional Tuscan
roof, arched windows and transoms, stucco facade, a rear covered veranda with archways supported by
massive decorative pillars, outdoor seating areas, southern fans, recessed and pendant lighting, a

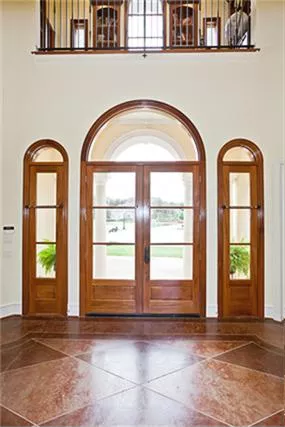

cooking grille, and floor-to-ceiling windows that bring the outdoors inside. Surrounded by arched
sidelites and a transom, walking through the double front doors of the covered entry delivers you
into a two-story grand foyer. As you enter the stunning foyer of this luxurious home, you
immediately have a view of the overwhelming ceiling styles that lead to the veranda. The grand foyer
is flanked to the left by a formal living room with corner fireplace, bathroom, and walk-in closet,
and to the right, an elegant dining room with large decorative pillars that define the parameters of
the dining room from the gallery. Adjacent to the dining room is the utility room and kitchen with

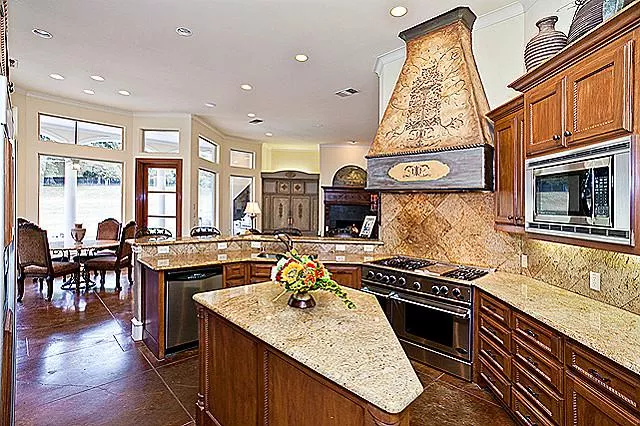

pantry, making serving family and guests an ease. An open design and state-of-the-art appliances
paired with traditional cabinetry and lodge-inspired appointments prove a winning combination in
this hard-working gourmet kitchen. A free-standing center island and eating bar with built-ins offer
extra counter space that any chef can appreciate. The eating bar separates the kitchen from the

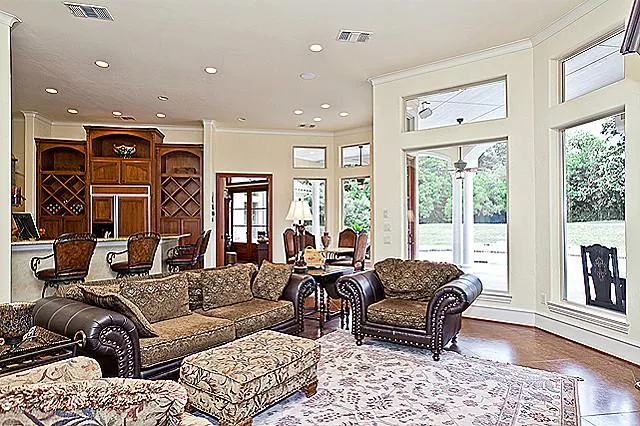

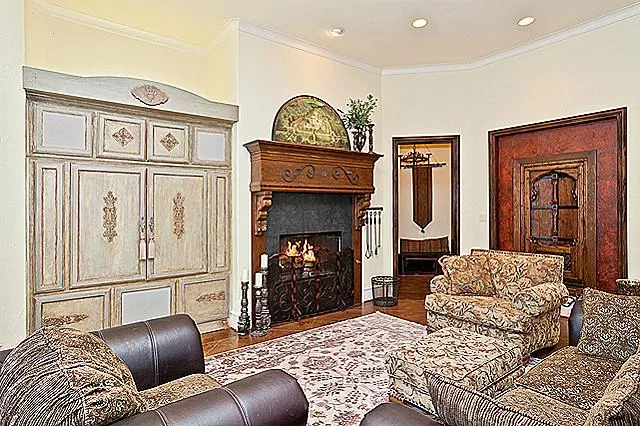

breakfast and family rooms with a continuous feel that seamlessly integrates these rooms. The family
room offers a warming fireplace and access to the mud room with a coat closet, a perfect stop

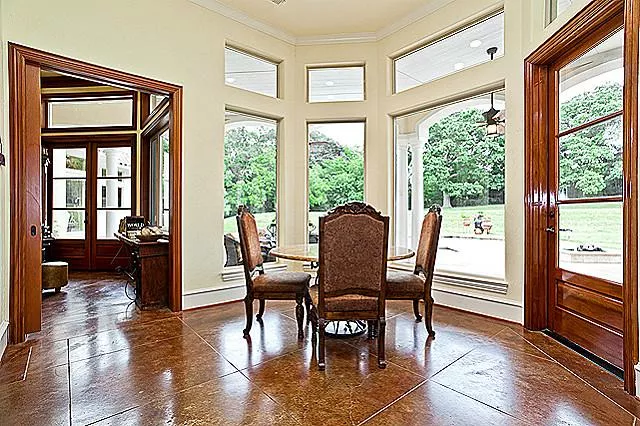

between the one and two-car garages and the family room. Adjacent to the breakfast room is the quiet
study with built-ins and a bathroom. These rooms offer a sunlight-filled space grounded by wood
flooring, crown molding and recessed lighting, accommodating both casual gatherings and dining. A
wall of floor-to-ceiling windows blurs the lines between indoors and out. At the left wing of this

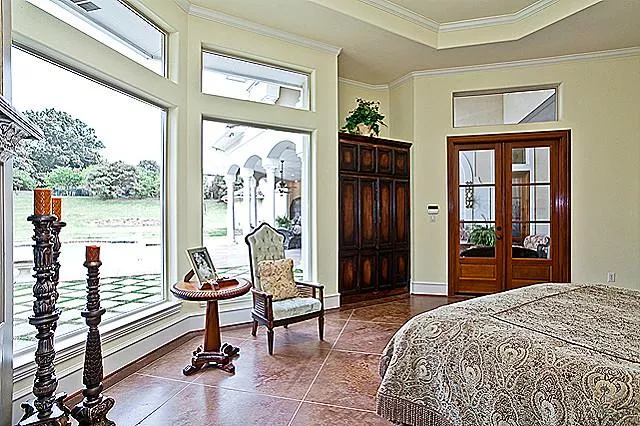

stunning house plan sits the master suite with an octagonal-shaped trey ceiling, sitting area where

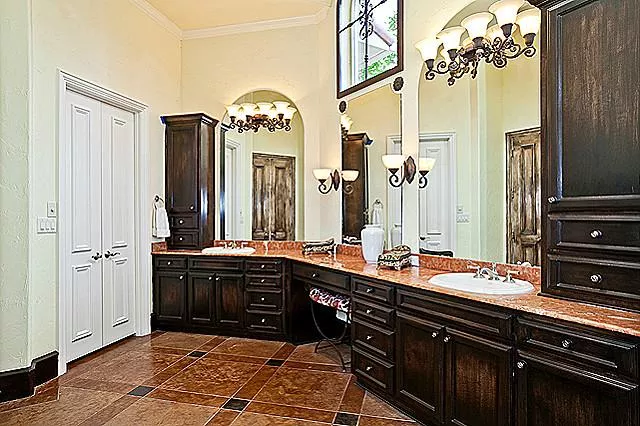

the windows peer out, a luxurious master bath with his and hers vanities, separate shower and

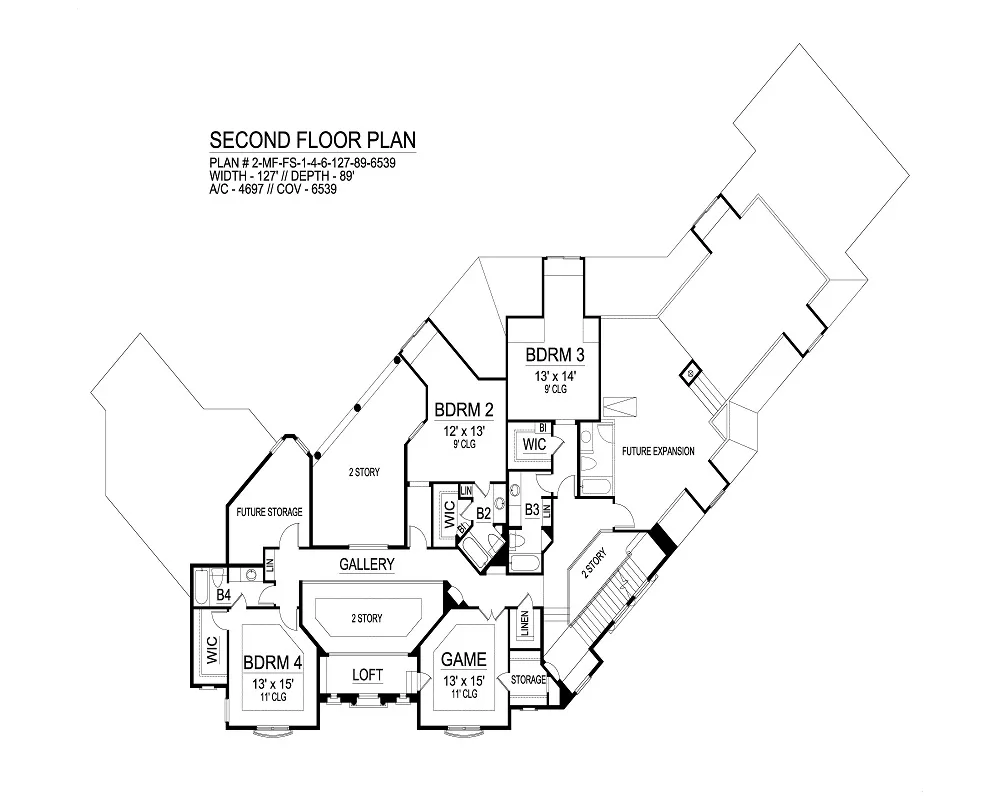

Jacuzzi tub, bidet, linen closet, and wardrobe with built-ins. Upstairs, three family bedrooms with
full baths and walk-in closets share space with a loft and game room. Future storage and expansion

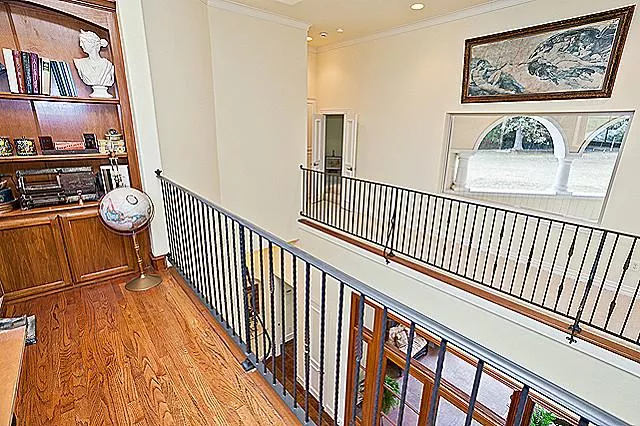

that could be a gym, theatre, or bonus room are also on the second story of this luxury mansion. The
gallery has a railed catwalk with views to the awesome two-story grand foyer and veranda below. This
luxury Mediterranean mansion has so many embellishments, boasting many windows, crown molding,
recessed lighting, wood trim, and archways.


FEATURES & DETAILS

Kitchen features
Kitchen Island
Nook / Breakfast Area
Bedroom features
Master Bdrm Main Floor
Separate Tub and Shower
Foundation Options
Slab
Additional features
Dining Room
Family Room
Formal LR
Foyer
Mud Room
Garage Location
Side
Garage Options
Attached
6,539 Ft
2
Total Structure
4,697 Ft
2
Total Heated
3,041 Ft
2
1st Floor
1,656 Ft
2
2nd Floor
4
Bedrooms
6
Bathrooms
3
Garage
2
Stories
127' 0"
Width
89' 0"
Depth
36' 0"
Height
12' 0"
Main Floor Ceiling
9' 0"
Upper Floor Ceiling
2x6
Framing
Stick
Roof Framing
6
Primary Roof Pitch
Single
Dwelling Number

Unheated Living Space
895 Ft
2
Garage
Exterior Styles
Collections


Plan Package Options

 Select Plan Package
$1,485
PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,485
$1,665
5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,665
$2,230
CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$2,230
 Need To Reverse Plan? (Optional)
$175
Readable Reverse

Reverse house plans with readable text and dimensions

$175
  Select Foundation Option
  Add-Ons (Optional)

Ground shipping within the Continental U.S.

FREE

Design consultation with the architect or designer to discuss your house plan

Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total
$0
Free Shipping
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
