HOUSE PLANS
START AT $1,650
SQ FT
4,532
BEDS
3
BATHS
4.5
STORIES
2
CARS
3
WIDTH
120'
DEPTH
77'
© copyright by designer

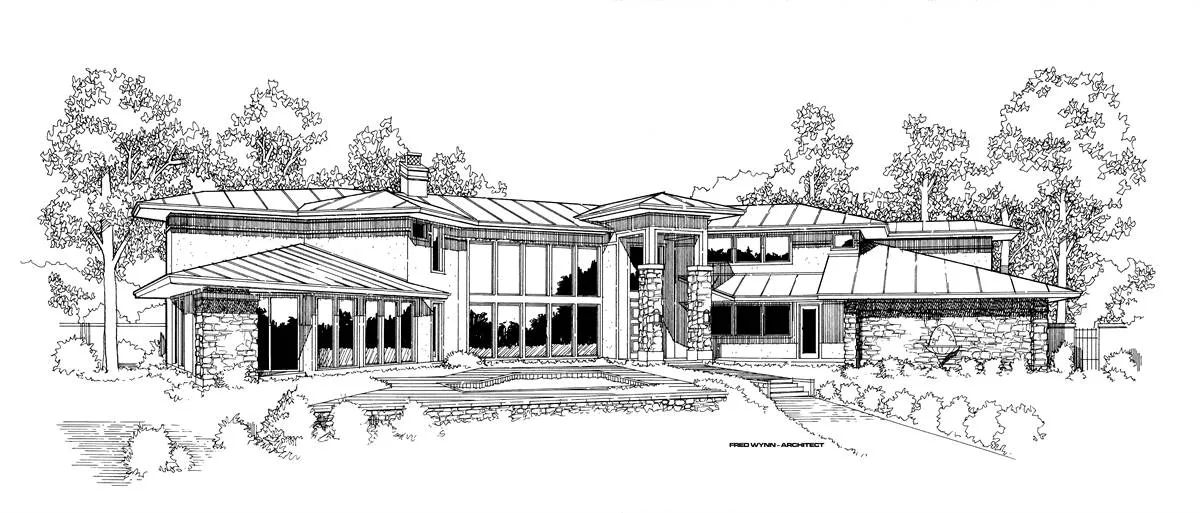

Photographs may reflect modified homes.   View all 6 photos
SQ FT
4,532
BEDS
3
BATHS
4.5
STORIES
2
CARS
3



House Plan 4864: LAFAYETTE

In this contemporary luxury house plan, warmth and beauty will surround you. The stunning two-story entry opens into the large living room with warming fireplace and built-ins, and the dining room with two story windows that allow the bright, natural light in. The wine room off the family room offers an area to store all those great vintages. The kitchen has a free-standing island and eating bar, ...  Read more >
Click to Zoom In on Floor Plan

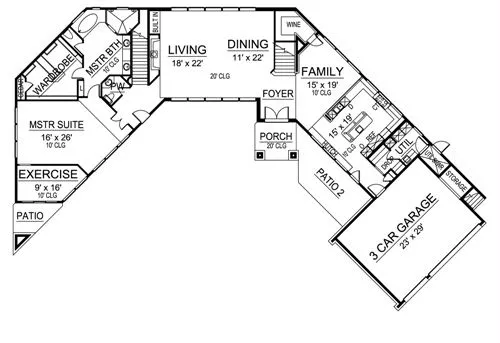

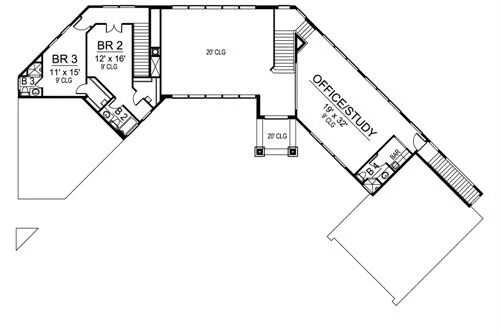

Floor Plans
© copyright by designer
Plan Packages
 Select Plan Package

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build
Most recommended package
$1,650

5 Printed Sets


Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets
Five printed sets of house plans
$1,850

CAD Single Use


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Use
2D electronic editable computer files
$2,475
 Need To Reverse This Plan? (Optional)

Readable Reverse


Reverse house plans with readable text and dimensions

Readable Reverse
Reverses house plans with readable text and dimensions
$175
 Select Foundation Option
 Add-Ons (Optional)
Subtotal:
$0
Free Shipping
Features:
View All Plan Features
Kitchen features
Kitchen Island
Bedroom features
Double Vanity Sink
Master Bdrm Main Floor
Separate Tub and Shower
Additional features
2 Story Volume
Arches
Dining Room
Exercise Room
Family Room
Fireplace
Foyer
Home Office
Laundry 1st Fl
Open Floor Plan
Vaulted Ceilings
Garage Location
Side
Garage Features
Attached
Side-entry

Hide Plan Features
Details:
View All Plan Details
5,824 Ft
2
Total Structure:
4,532 Ft
2
Total Heated:
3,036 Ft
2
1st Floor:
1,496 Ft
2
2nd Floor:
3
Bedrooms:
4.5
Bathrooms:
3
Garage:
2
Stories:
120' 0"
Width:
77' 0"
Depth:
26' 0"
Height:
10
Main Floor Ceiling:
9
Upper Floor Ceiling:
2x6
Framing:
Stick
Roof Framing:
Single
Dwelling Number:
Unheated Living Space
782 Ft
2
Garage:
Exterior Styles
Contemporary
Traditional
Collections
Open Floor Plan
Outdoor Living

Hide Plan Details
