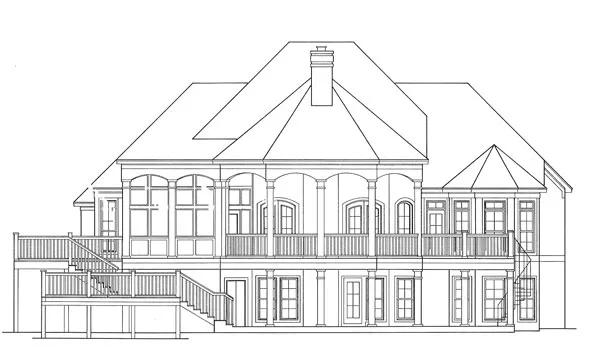

See all 2 photos (photographs may reflect modified homes)
© copyright by designer

Mouse over photo to pause

House Plan 8430: Kingsgate

An understated stucco facade designed for a sloping lot with rear views to a golf course or lake. The Grand Foyer featues a barrell ceiling which ties into the arched opening leading to the enormous Great Room with fourteen foot ceilings.  Read more >
See Architect Preferred Products For This Plan >

House Plan Details

Sq. Ft.
3,987
Beds
3
Baths
3.1
Stories
2
Garages
2
Width
70' 8"
Depth
91' 2"
1st Floor
2,773

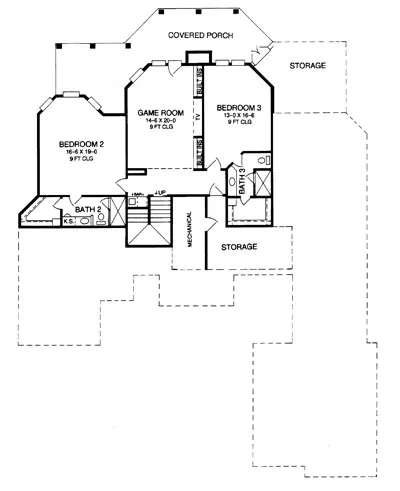

Lower
1,214
Garage
673
Porch
998
Customize this Home Plan
Estimate Cost to Build
Free Cost Estimator >
For assistance, email, live chat, or call us at 866-214-2242
Select Plan Package
Vellum
$1000
Select Foundation Options
$375
Basement Foundation
$0
Optional Add-Ons
Subtotal: $1375
SEE DETAILED PLAN OPTIONS
What You Should Know Before Buying! >

PLAN IMAGES

Add to Favorites   Save

First Floor Plan

First Floor Plan
© copyright by designer

Plan Details

Basic Information
Bedrooms: 3
Bathrooms: 3.1
Garage: 2
Stories: 2
Exterior Style
Mediterranean
Dimensions
Width: 70' 8"
Height: 30' 6"
Depth: 91' 2"
Heated Living Space
Total Sq. Ft: 3,987
1st Floor: 2,773
Lower: 1,214
Unheated Living Space
Garage: 673
Porch: 998
Ceiling
Upper Ceiling Ft: 9
Main Ceiling Ft: 10
Framing Information
Framing: 2x4
Roof Framing: Stick
Bedroom Features
Guest Suite
Guest Suite
Master Bdrm Main Floor
Master Bdrm Main Floor
Walk-in Closet
Walk-in Closet
Kitchen Features
Kitchen Island
Kitchen Island
Walk-in Pantry
Walk-in Pantry
Additional Room Features
Arches
Arches
Dining Room
Dining Room
Fireplace
Fireplace
Great Room
Great Room
Laundry 1st Fl
Laundry 1st Fl
Open Floor Plan
Open Floor Plan
Garage Location
Side
Garage Features
Attached
Attached
Lot Features
Roof Pitch
Primary: 10/12
Secondary: 12/12
