Sq Ft
2,470 FT²

Bed
3

Bath
2.5

Stories
1

Garage
2

Depth
72'

Width
60' 8"

On Sale
$892.50
$1,050.00

Front Rendering

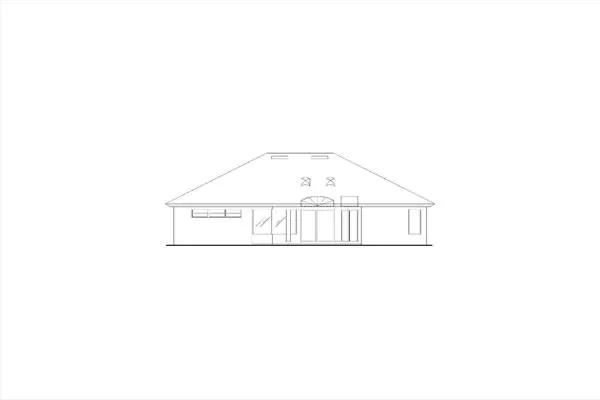

Rear Elevation

View All 2 Images | Photographs may reflect modified home

Sq Ft

2,470 FT²

From

$892.50

Bed

Bath

2.5

Stories

Garage

Depth

72'

Width

60' 8"

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

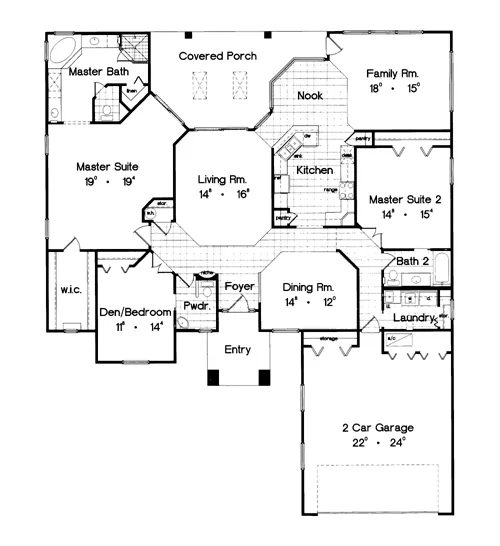

First Floor Plan

About This Plan

The foyer greets you into the formal spaces of this lovely home. A wall of glass in the living room allows exciting views of the covered patio and pool area. The generous size of the formal dining room allows for large dinner parties. The master wing of this home is just past th den/bedroom, which accesses a well appointed poder room. The unique design of the master suite takes advantage of a split dressing design, allowing for better use of space. The master bath at the rear of the suite allows for privacy and convenience with a door to the patio if desirable. Views of the patio are also available through the sitting area of the suite as well. A huge walk-in closet complete the design. An additional master suite is found on the family wing making this design unique. With family room enjoying full rear yard views it compliments the large walls of glass in the dook through the gourmet kitchen. Note the extensive use of tile runways to cut down traffic carpet wear. A two car garage with loads of closet area completes the design.

FEATURES & DETAILS

Kitchen features

Nook / Breakfast Area
Walk-in Pantry

Bedroom features

Separate Tub and Shower
Walk-in Closet

Exterior features

Rear Porch

Foundation Options

Basement
Crawlspace
Slab

Additional features

2 Story Volume
Arches
Vaulted Ceilings

Garage Location

Front

Garage Options

Attached
Front-entry

2,470 Ft

Total Heated

Bedrooms

2.5

Bathrooms

Garage

Stories

60' 8"

Width

72' 0"

Depth

21' 6"

Height

10' 0"

Main Floor Ceiling

2x4

Framing

Truss

Roof Framing

6/12

Primary Roof Pitch

Single

Dwelling Number

None

Bonus Access

Unheated Living Space

664 Ft

Garage

98 Ft

Porch

278 Ft

Patio

Exterior Styles

Beach

Contemporary

Mediterranean

Collections

Florida

Plan Package Options

Important info before you buy

Select Plan Package

$600

PDF Bid Set

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

$600

$1,050

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,050

$1,250

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,250

$1,400

5 Printed Sets + PDF

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

$1,400

$2,100

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$2,100

Select Foundation Option

Add-Ons (Optional)

	Ground shipping within the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your house plan
	Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
