Sq Ft
4,969 FT²

Beds
4

Baths
4.5

Stories
3

Garage
3

Depth
98'

Width
75'

From
$1,695.00

Front Rendering

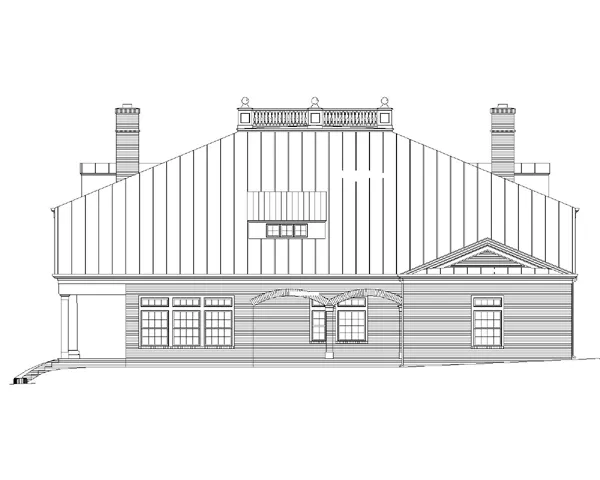

Rear Elevation

View All 2 Images | Photographs may reflect modified home

Sq Ft

4,969 FT²

From

$1,695.00

Beds

Baths

4.5

Stories

Garage

Depth

98'

Width

75'

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

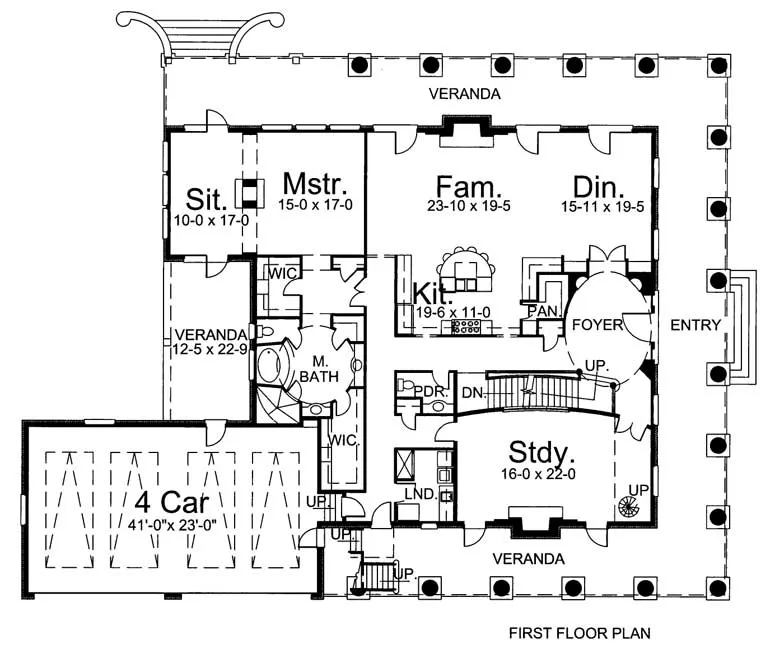

1st Floor Plan

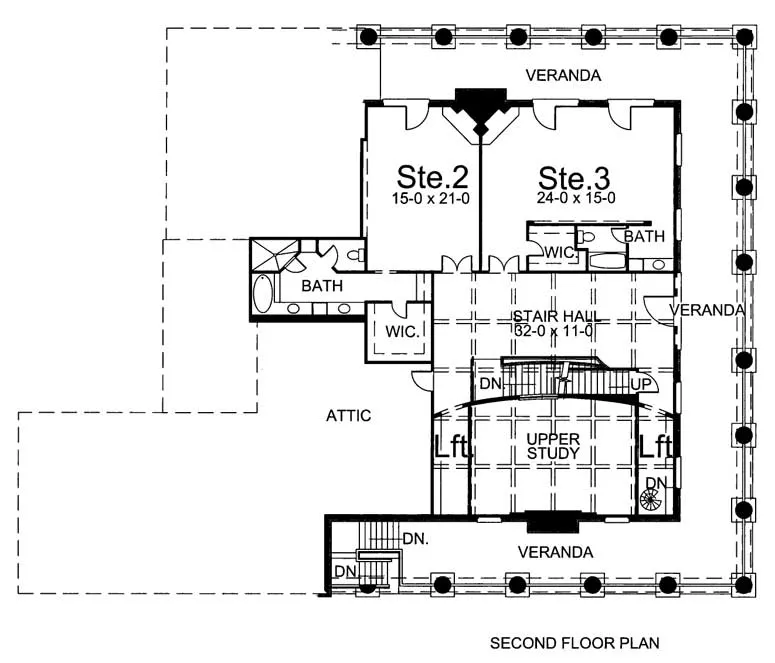

2nd Floor Plan

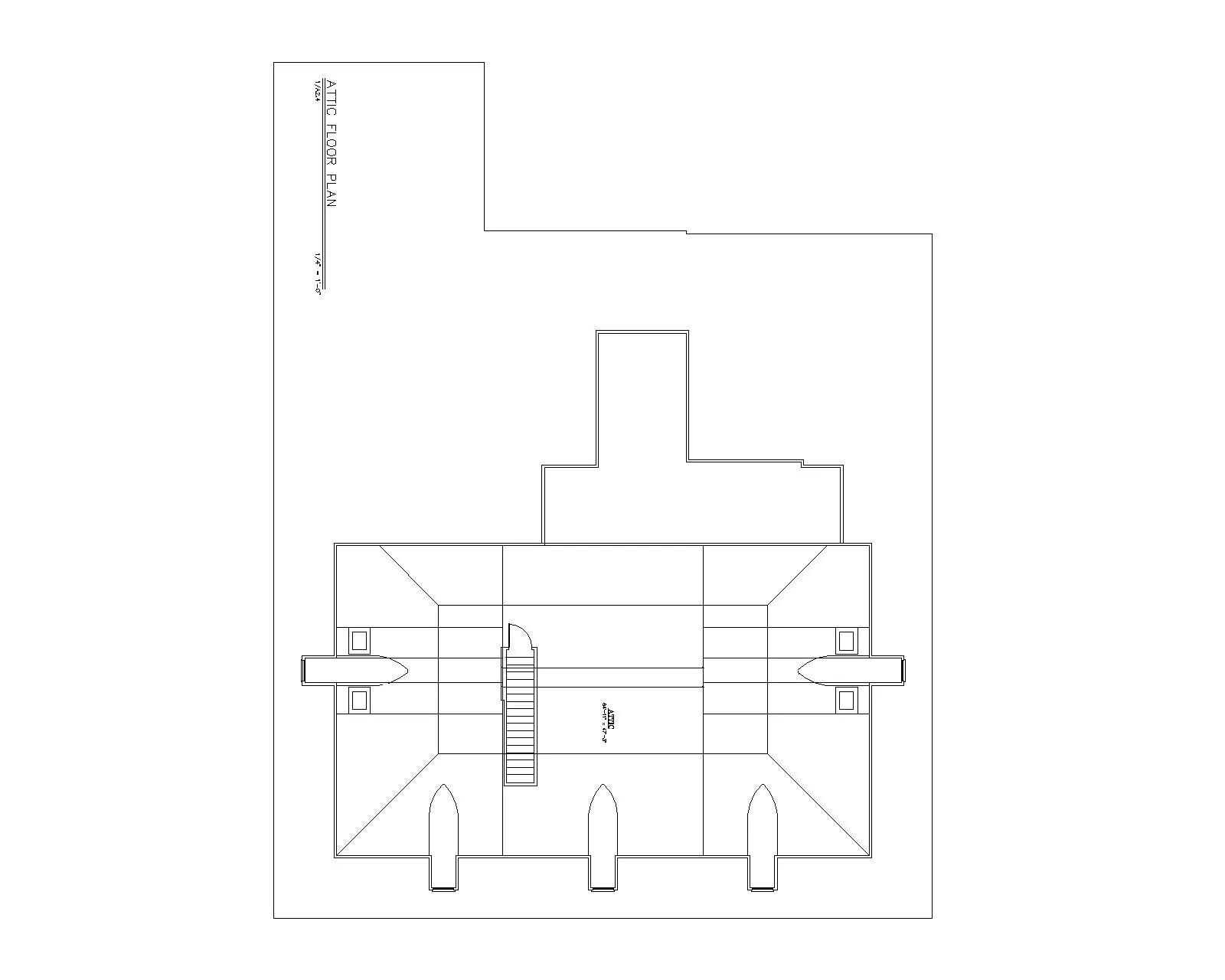

3rd Floor

1st Floor Plan

2nd Floor Plan

3rd Floor

About This Plan

A symmetrical exterior surrounded by imposing two-story pillars and dual-level wraparound balconies is awe-inspiring. The lush first-floor master suite opens to verandas from two sides and enjoys a sitting area washed by sunlight. A mammoth two-story study with its own spiral staircase to a loft where bookshelves can be placed will have special appeal. A semicircular bar-counter separates the kitchen from the family area and promises to be the place where family members hang out for snacks, light meals, and conversation. A fireplace in the family room adds warmth and comfort. Two suites with full baths, walk-in closets, and access to the upper-level balcony are located upstairs. The plan also includes a carport with space for four vehicles.

FEATURES & DETAILS

Exterior features

Front Porch

Foundation Options

Daylight Basement
Walkout Basement

Garage Location

Side

Garage Options

Attached

4,969 Ft

Total Heated

3,103 Ft

1st Floor

1,866 Ft

2nd Floor

Bedrooms

4.5

Bathrooms

Garage

Stories

75' 0"

Width

98' 0"

Depth

33' 3"

Height

9' 0"

Main Floor Ceiling

8' 0"

Upper Floor Ceiling

2x4 or 2x6

Framing

Stick

Roof Framing

12/5

Primary Roof Pitch

Single

Dwelling Number

2nd Floor

Bonus Access

Unheated Living Space

Exterior Styles

European

Southern

Traditional

Collections

Plan Package Options

Important info before you buy

Select Plan Package

$1,695

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,695

$2,125

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$2,125

$2,225

5 Printed Sets + PDF

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

$2,225

$2,495

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$2,495

$3,290

CAD Unlimited Build

2D electronic computer files, completely editable, for design professional use when making extensive modifications; multi-license allows unlimited builds

$3,290

Need To Reverse Plan? (Optional)

$200

Readable Reverse

Reverse house plans with readable text and dimensions

$200

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping in the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
