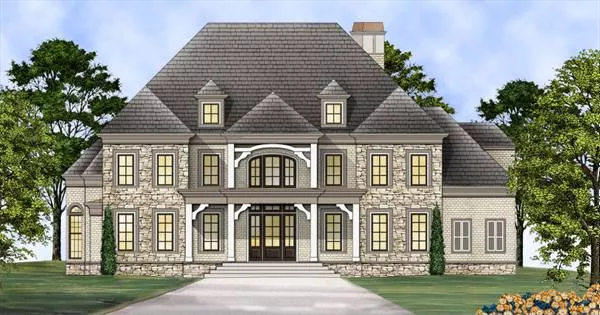

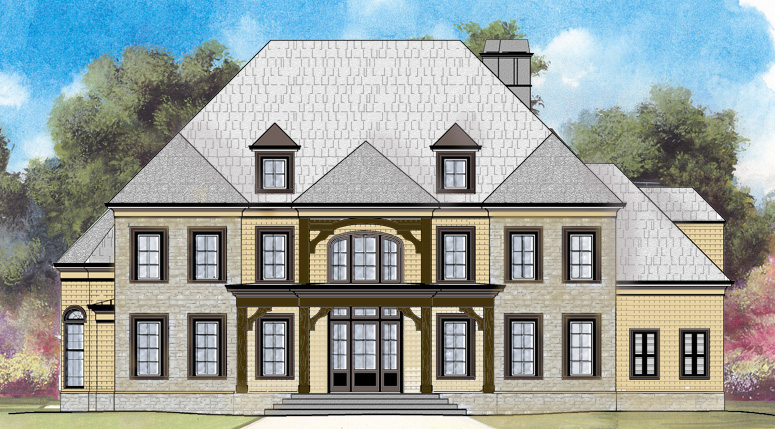

Front Rendering

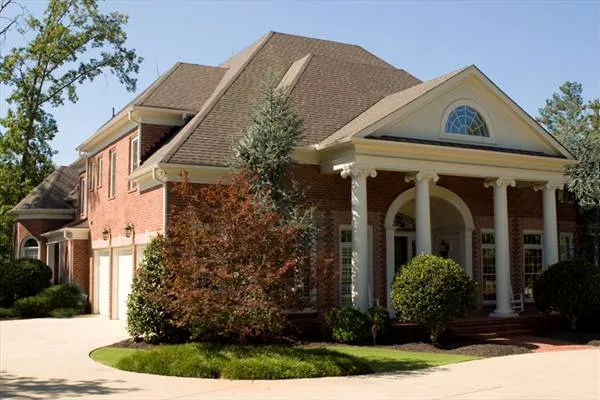

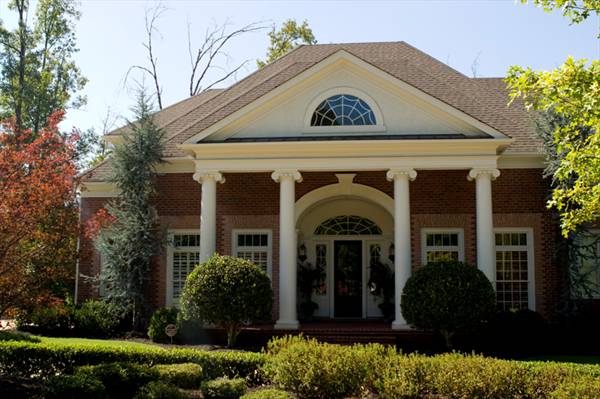

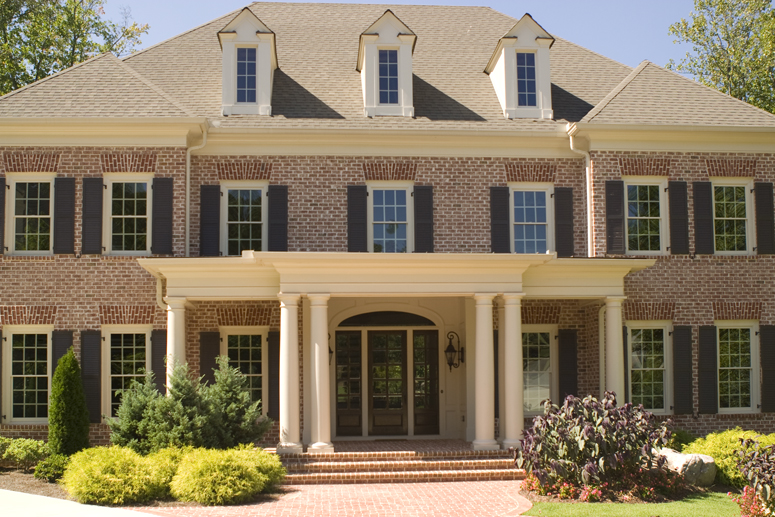

Front Exterior Photo
Front Exterior Photo

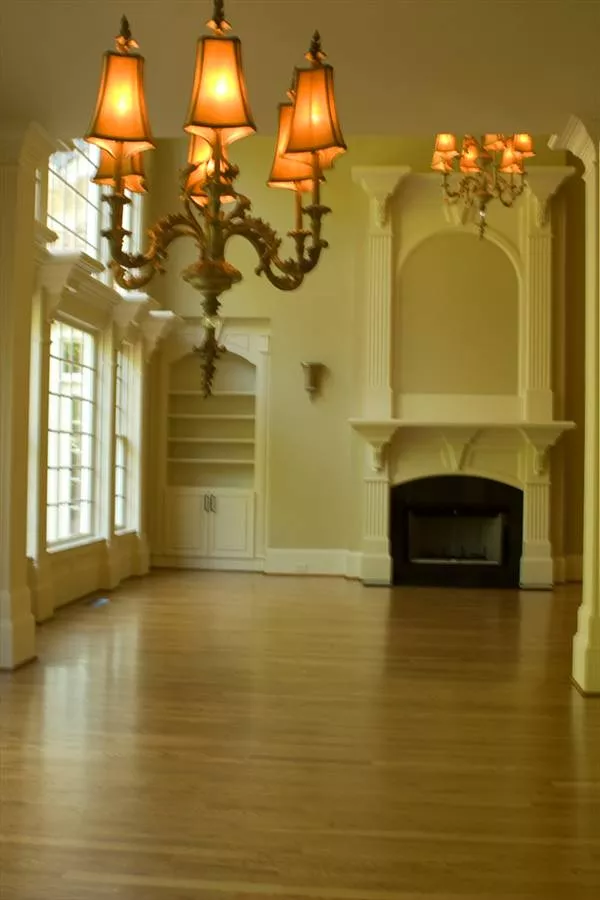

Grand Room

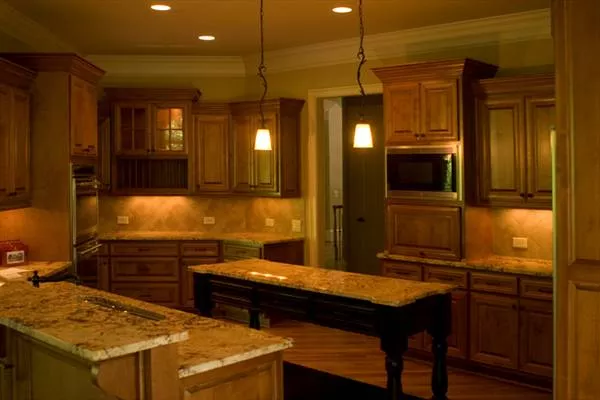

Kitchen

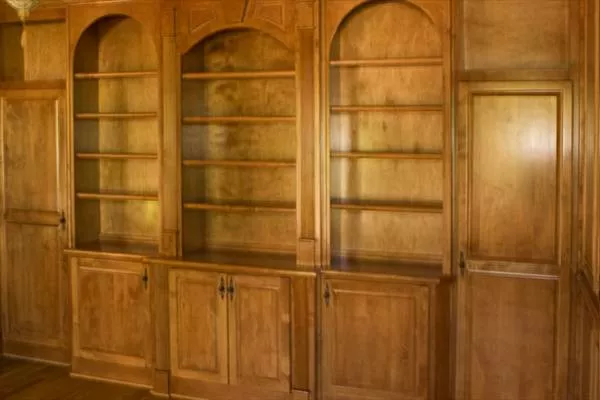

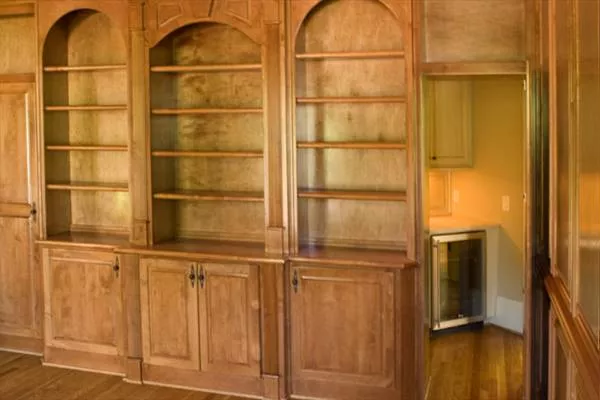

Secret Doors
Secret Door Disguised

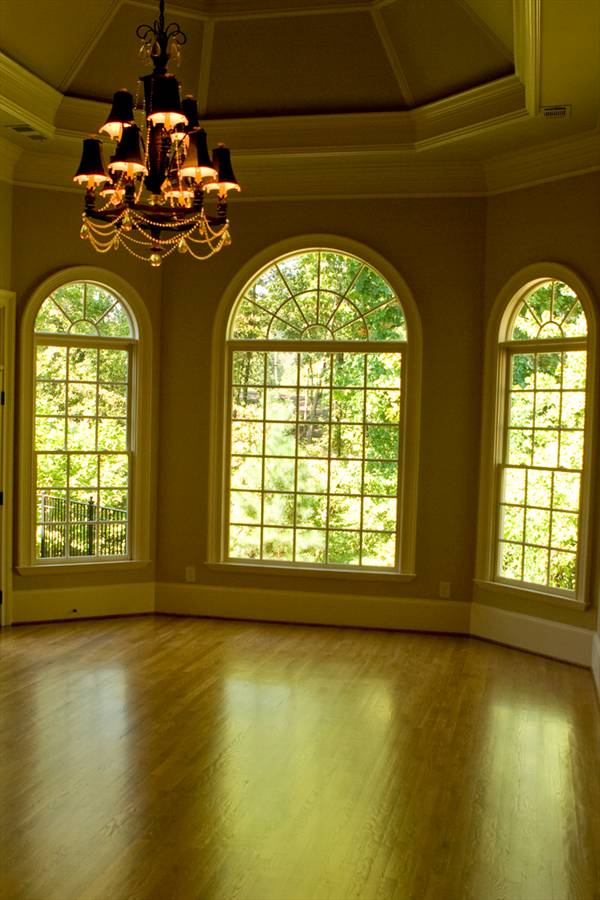

Master Bedroom

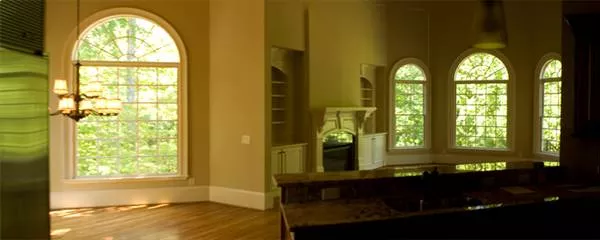

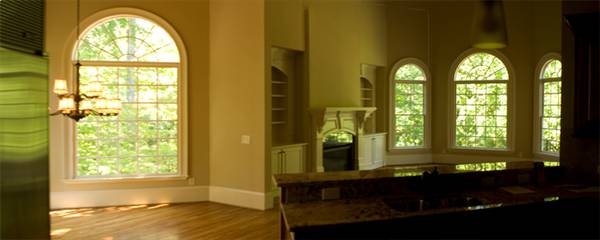

Panoramic View

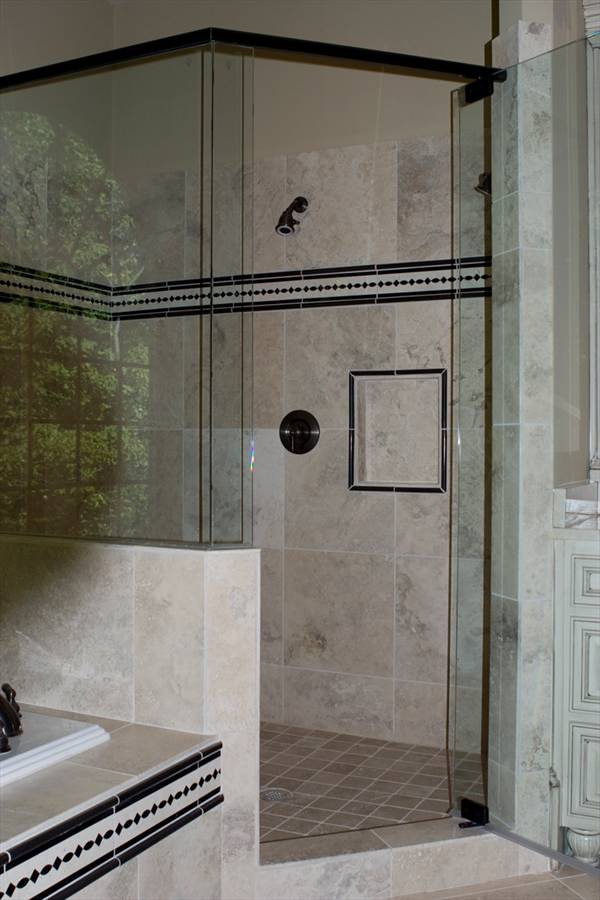

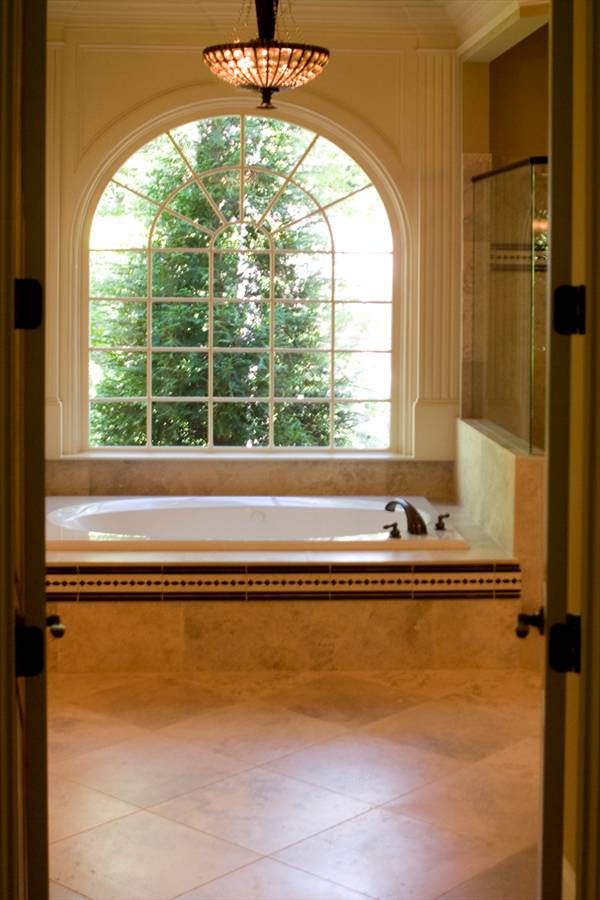

Master Bath

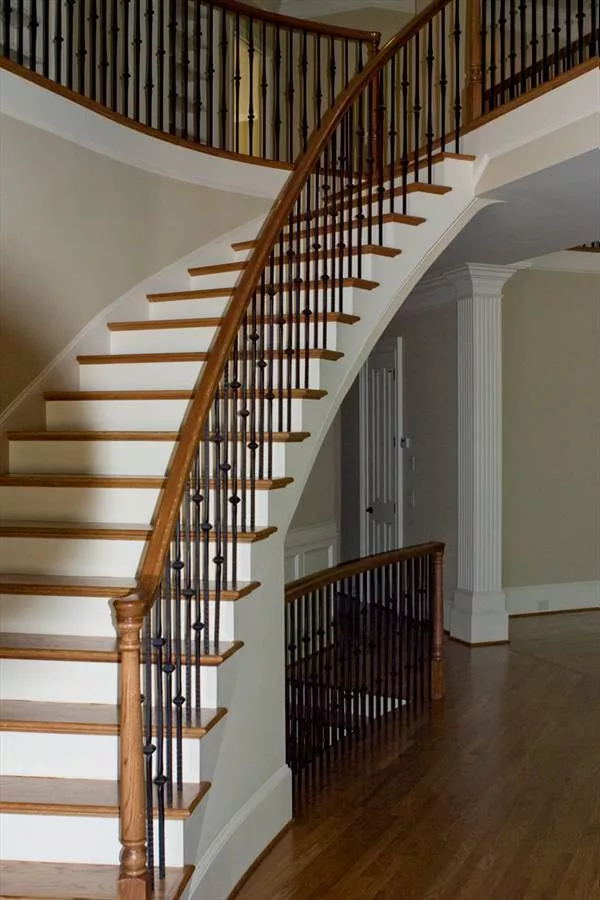

Stairs

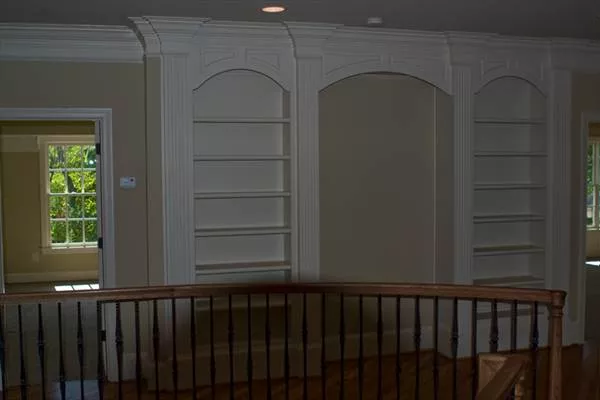

Hall
Master Bath
Master Bath

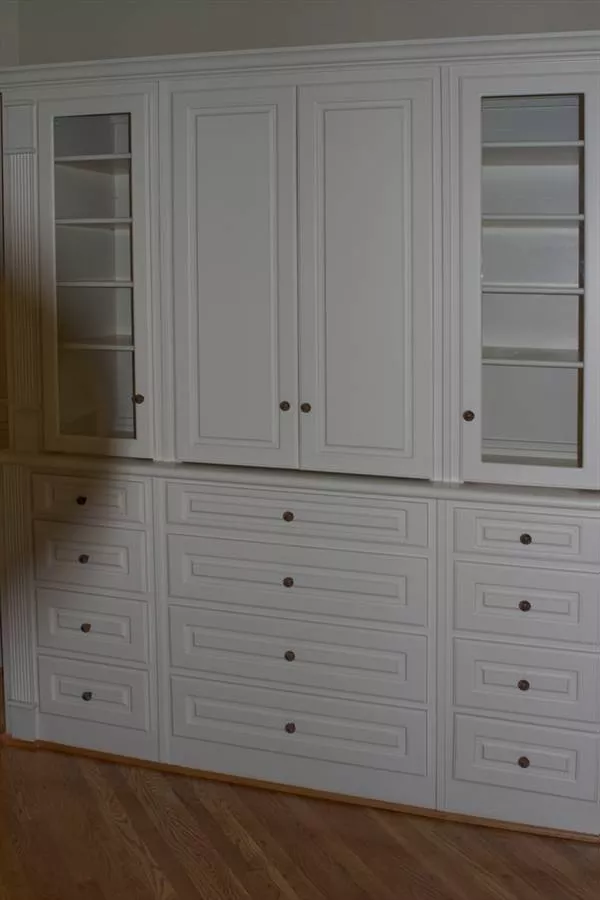

Closet

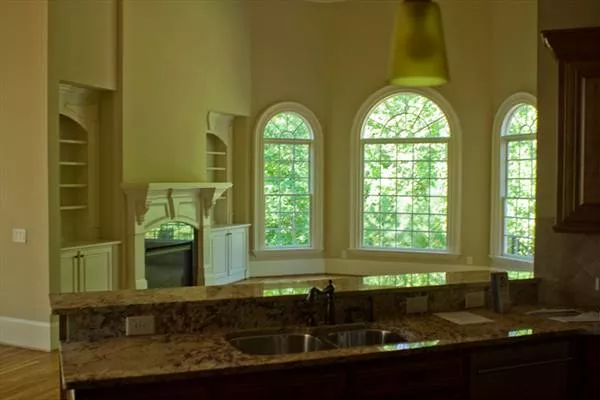

Family Room

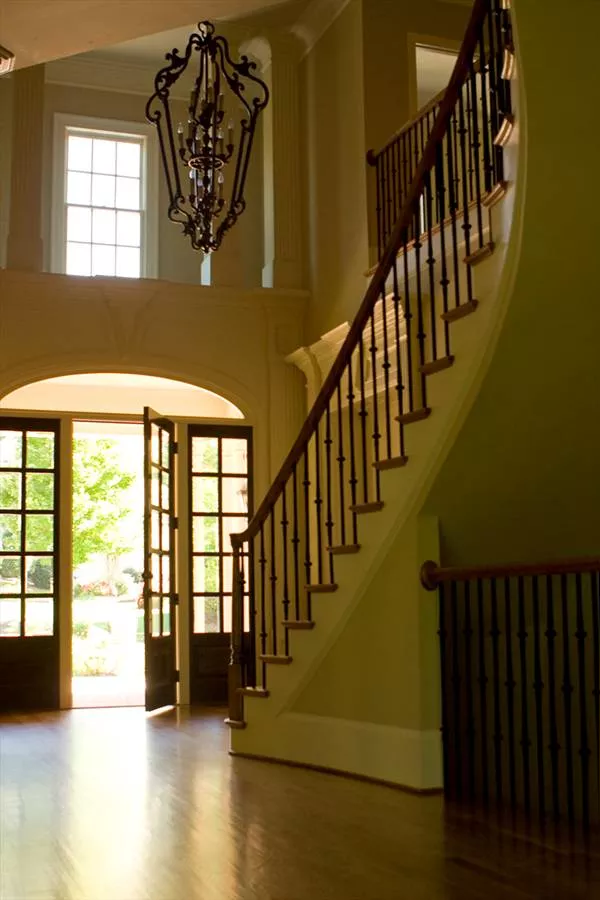

Foyer

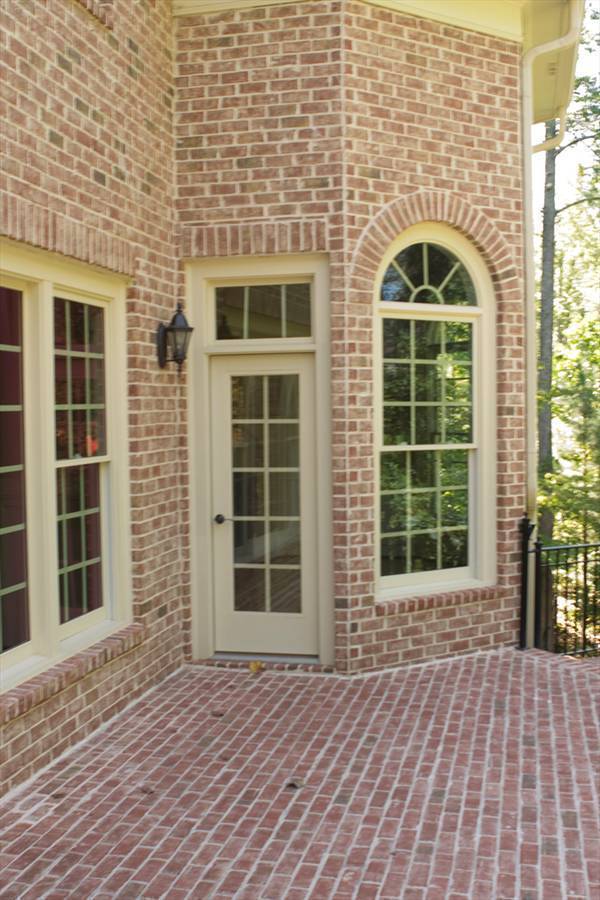

Rear Exterior Photo

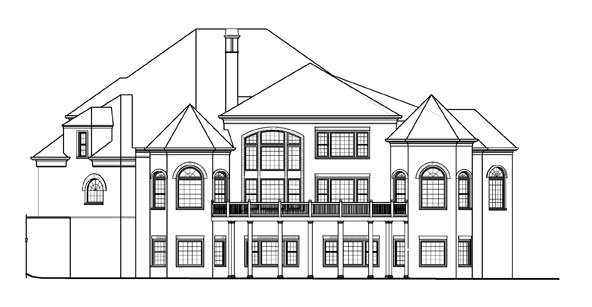

Rear Elevation
First Floor Plan

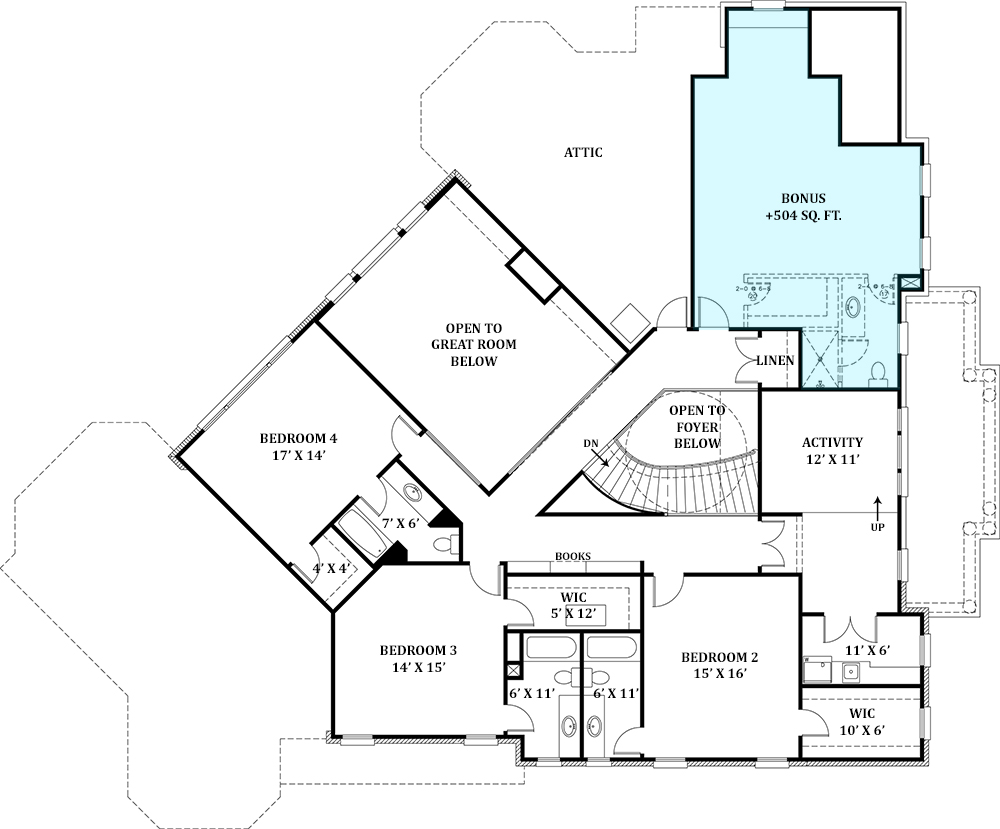

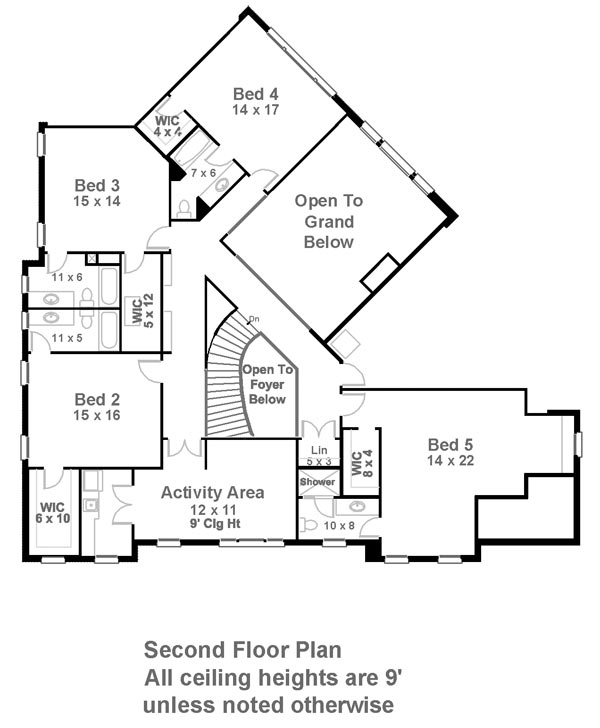

Second Floor Plan
Basement
© copyright by designer
Mouse over photo to pause

House Plan 8229: Delano

Incredible views from this home ideally situated where your setting may be a lake, river, mountains, golf course or formal gardens. The Delano offers many vantage points within its elegant interior. The Delano is a masterpiece unto itself with a massive Kitchen, Family Room, towering two-story ceilings in the Grand Salon and Dining Hall.  Read more >

House Plan Details

Sq. Ft.
4,958
Beds
4
Baths
4.5
Stories
2
Garages
3
Width
73' 0"
Depth
89' 0"
Select Plan Package
PDF
$1695
Select Foundation Options
$0
Walk-out Basement
$0
Optional Add-Ons
Subtotal: $0
If a foundation or optional add-on is not listed, please live chat, email or call for availability.

PLAN IMAGES

First Floor Plan

First Floor Plan
© copyright by designer
DETAILS
Total SQ. FT.:
4,958
1st Floor SQ. FT.:
3,246
2nd Floor SQ. FT.:
1,712
Lower:
3,227
Bonus:
504
Bedrooms:
4
Bathrooms:
4.5
Garage:
3
Stories:
2
Main Ceiling Height:
10'
Upper Ceiling Height:
9'
Framing:
2x4
Roof Framing:
Stick
Roof Pitch:
Primary: 12/12
Width:
73' 0"
Depth:
89' 0"
Height:
39' 0"
Exterior Styles:
European
Southern
Traditional
Unheated Living Space:
Garage: 709
HOME FEATURES
Bedroom Features:
Master Bdrm Main Floor
Walk-in Closet
Kitchen Features:
Kitchen Island
Walk-in Pantry
Additional Features:
2 Story Volume
Bonus Room
Dining Room
Family Room
Formal LR
Foyer
Great Room
Home Office
Library/Media Rm
Loft / Balcony
Mud Room
Wine Cellar
Garage Features:
Attached
Garage Location:
Side
Lot Features:
