Sq Ft
2,063 FT²
Bed
3
Bath
2
Stories
2
Garage
2
Depth
37'
Width
50'
On Sale
$884.00
$1,040.00
© copyright by designer
View All 5 Images | Photographs may reflect modified home
Sq Ft
2,063 FT²
From
$884.00
Bed
3
Bath
2
Stories
2
Garage
2
Depth
37'
Width
50'

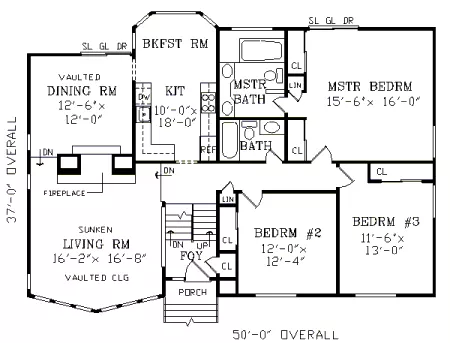

Click to Zoom In on Floor Plan
© copyright by designer



About This Plan

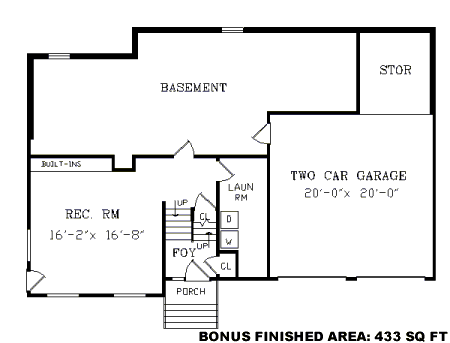

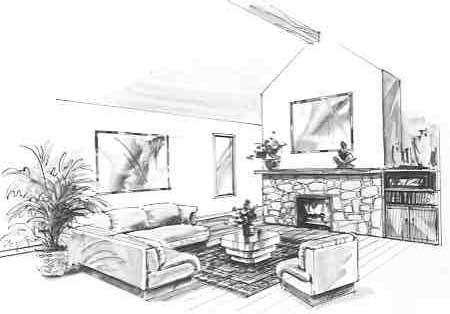

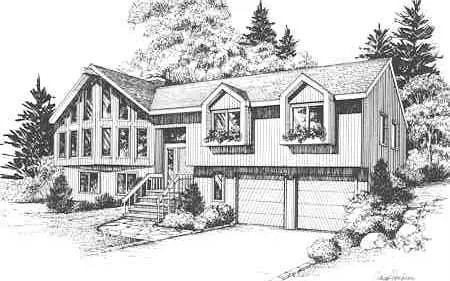

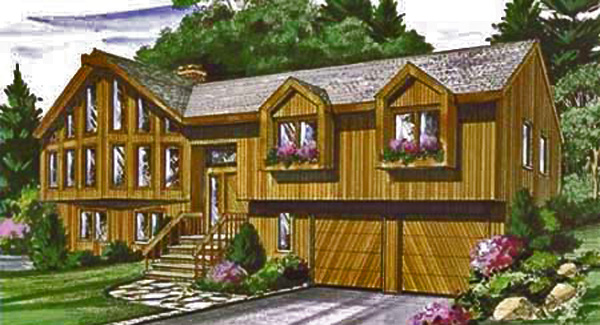

The raised main level of this exciting home offers exceptional opportunities for picture-perfect views. A see-through fireplace separates the sunken living room and the dining room, and a dramatic vaulted ceiling flows over both rooms. I designed the stunning prow-shaped front of the living room to create a highlight both in and out. The front of the lower level is shown finished and could make for an ideal small studio apartment or recreation room.


FEATURES & DETAILS

Bedroom features
Double Vanity Sink
Master Bdrm Main Floor
Exterior features
Front Porch
Foundation Options
Basement
Daylight Basement
Walkout Basement
Lot Options
Suited for narrow lot
Suited for sloping lot
Suited for view lot
Additional features
Dining Room
Fireplace
Foyer
Great Room
Laundry 1st Fl
Rec Room
Storage Space
Vaulted Ceilings
Garage Location
Under
Garage Options
Attached
Drive-under
2,063 Ft
2
Total Heated
1,630 Ft
2
1st Floor
433 Ft
2
Lower Floor
3
Bedrooms
2
Bathrooms
2
Garage
2
Stories
50' 0"
Width
37' 0"
Depth
25' 0"
Height
8'-1"' 0"
Main Floor Ceiling
2x4
Framing
Stick
Roof Framing
4: 12
Primary Roof Pitch
9: 12
Secondary Roof Pitch
Single
Dwelling Number

Unheated Living Space
510 Ft
2
Garage


Plan Package Options

 Select Plan Package
$785
PDF Bid Set
PDFs NOW!™

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

$785
$1,040
PDF Single Build
PDFs NOW!™

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,040
$1,150
5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,150
$1,225
8 Printed Sets

Eight Printed Sets of Construction Drawings, typically 24” x 36” documents, with a license to construct a single residence shipped to your physical address. PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, bank/mortgage reps, material stores, decorators and more.

$1,225
  Select Foundation Option
  Add-Ons (Optional)

Ground shipping within the Continental U.S.

FREE

Design consultation with the architect or designer to discuss your house plan

Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total
$0
Free Shipping
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
