Sq Ft
1,498 FT²

Bed
4

Bath
3

Stories
2

Garage
2

Depth
40' 8"

Width
44' 4"

On Sale
$981.75
$1,155.00

EXCLUSIVE PLAN

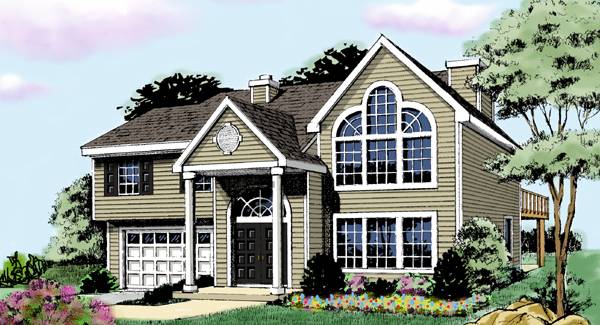

Front Rendering

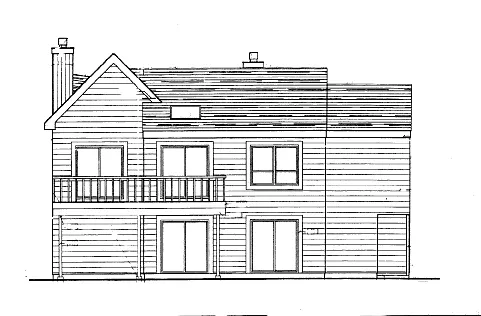

Rear Elevation

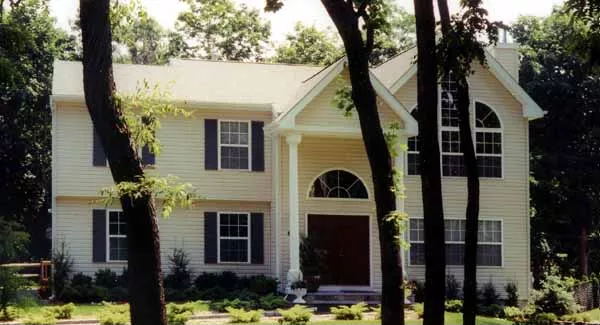

Front Photo #1

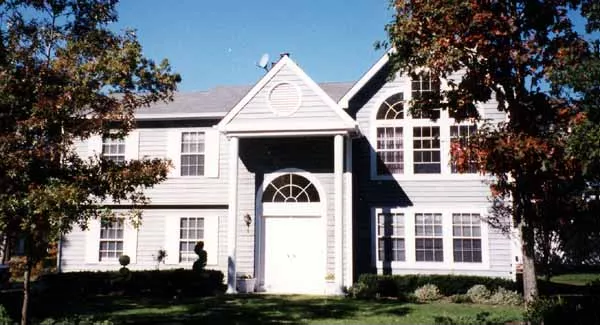

Front Photo #2

View All 5 Images | Photographs may reflect modified home

Sq Ft

1,498 FT²

From

$981.75

Bed

Bath

Stories

Garage

Depth

40' 8"

Width

44' 4"

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

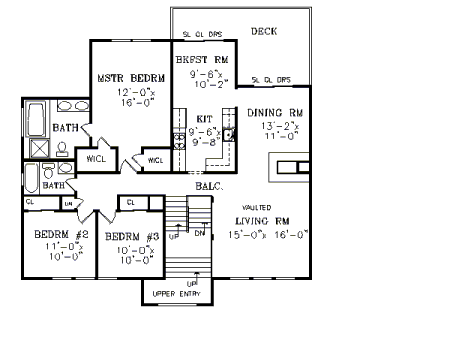

First Floor Plan

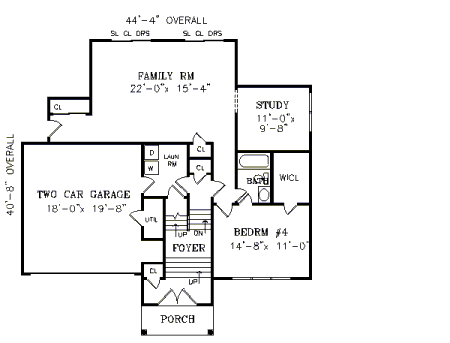

Lower Level

First Floor Plan

Lower Level

About This Plan

This unique split-entry home redesigns the entry by eliminating the typical outside stairs and puts them inside. The main or upper level houses a dramatic large living area with optional fireplace, vaulted ceiling, a formal dining area, a kitchen and breakfast nook, and three bedrooms including anice master suite. The optional lower level accommodates a study, an extra bedroom, a laundry room and a big family room. Please note: If the home is built on a slab, the maximum height is 30 feet. If the home is built with a basement, the height may exceed the allowable limit in your local area. Consult your builder.

FEATURES & DETAILS

Kitchen features

Nook / Breakfast Area

Bedroom features

Double Vanity Sink
Guest Suite
His and Hers Primary Closets
Primary Bdrm Main Floor
Separate Tub and Shower
Walk-in Closet

Exterior features

Covered Front Porch
Deck

Foundation Options

Basement
Daylight Basement
Slab
Walkout Basement

Lot Options

Suited for narrow lot

Additional features

2 Story Volume
Dining Room
Family Room
Fireplace
Formal LR
Home Office
In-law Suite
Laundry 1st Fl
Vaulted Ceilings

Garage Location

Under

Garage Options

Attached
Drive-under

1,498 Ft

Total Heated

1,498 Ft

1st Floor

1,085 Ft

Lower Floor

Bedrooms

Bathrooms

Garage

Stories

44' 4"

Width

40' 8"

Depth

28' 0"

Height

8'-1"' 0"

Main Floor Ceiling

2x4

Framing

Stick

Roof Framing

12/12

Primary Roof Pitch

Single

Dwelling Number

Unheated Living Space

373 Ft

Garage

1,085 Ft

Bonus Room

Exterior Styles

Traditional

Collections

Plan Package Options

Important info before you buy

Select Plan Package

$875

PDF Bid Set
PDFs NOW!™

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

$875

$1,155

PDF Single Build
PDFs NOW!™

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,155

$1,265

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,265

$1,340

8 Printed Sets

Eight Printed Sets of Construction Drawings, typically 24” x 36” documents, with a license to construct a single residence shipped to your physical address. PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, bank/mortgage reps, material stores, decorators and more.

$1,340

Select Foundation Option

Add-Ons (Optional)

	Ground shipping within the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your house plan
	Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
