HOUSE PLANS
START AT $3,295
SQ FT
7,529
BEDS
5
BATHS
5.5
STORIES
2
CARS
3
WIDTH
101'
DEPTH
90' 6"

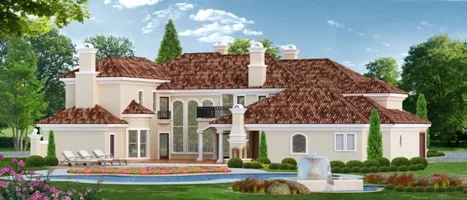

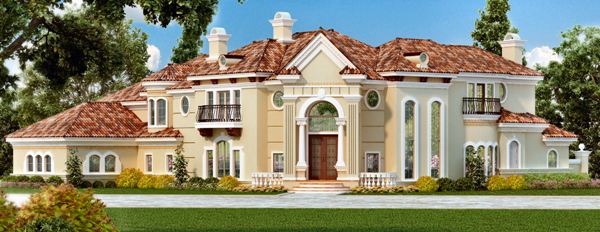

© copyright by designer
Photographs may reflect modified homes.
SQ FT
7,529
BEDS
5
BATHS
5.5
STORIES
2
CARS
3

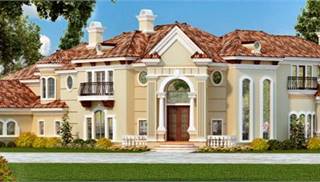

House Plan 4520: HERMAN PARK

This corner lot luxury house plan displays an awesome covered porch that leads through the huge double doors to the amazing foyer. The foyer is flanked by the formal living room and the elegant dining room with access to the butlery, kitchen and pantry for ease in serving. Centrally located are the kitchen, breakfast room and family room. Large decorative pillars between the breakfast room and fam...  Read more >
Click to Zoom In on Floor Plan

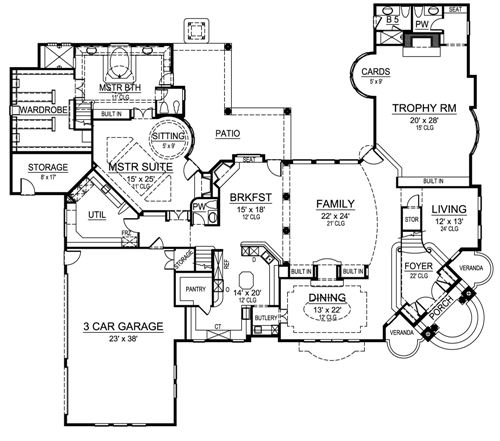

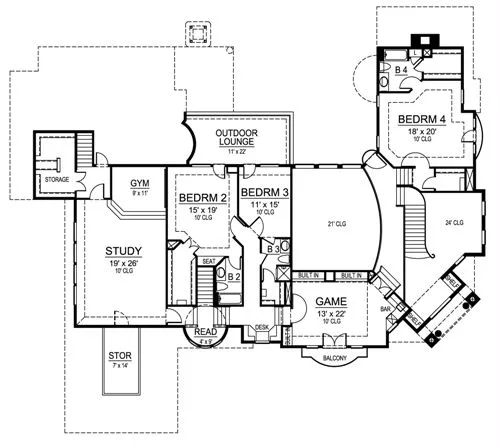

Floor Plans
© copyright by designer
Plan Packages
 Select Plan Package

PDF Single Build


Digital plans emailed to you in PDF format allowing minor changes, printing copies, and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build
Most recommended package
$3,295

5 Printed Sets


Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets
Five printed sets of house plans
$3,495

CAD Single Use


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Use
2D electronic editable computer files
$4,950
 Need To Reverse This Plan? (Optional)

Readable Reverse


Reverse house plans with readable text and dimensions

Readable Reverse
Reverses house plans with readable text and dimensions
$250
 Select Foundation Option
 Add-Ons (Optional)
Subtotal:
$0
Free Shipping
If a foundation or optional add-on is not listed, please live chat, email or call for availability.
Features:
View All Plan Features
Kitchen features
Butler's Pantry
Kitchen Island
Nook / Breakfast Area
Peninsula / Eating Bar
Walk-in Pantry
Bedroom features
Double Vanity Sink
Guest Suite
Master Bdrm Main Floor
Separate Tub and Shower
Sitting Area
Split Bedrooms
Walk-in Closet
Lot features
Suited for corner lot
Additional features
2 Story Volume
Arches
Dining Room
Exercise Room
Family Room
Fireplace
Formal LR
Foyer
Laundry 1st Fl
Open Floor Plan
Rec Room
Vaulted Ceilings
Garage Location
Rear
Garage Features
Attached

Hide Plan Features
Details:
View All Plan Details
8,832 Ft
2
Total Structure:
7,529 Ft
2
Total Heated:
4,356 Ft
2
1st Floor:
2,903 Ft
2
2nd Floor:
5
Bedrooms:
5.5
Bathrooms:
3
Garage:
2
Stories:
101' 0"
Width:
90' 6"
Depth:
35' 0"
Height:
11
Main Floor Ceiling:
9
Upper Floor Ceiling:
2x6
Framing:
Stick
Roof Framing:
7
Primary Roof Pitch:
12
Secondary Roof Pitch:
12
Porch Roof Pitch:
Single
Dwelling Number:
Unheated Living Space
940 Ft
2
Garage:
90 Ft
2
Porch:
405 Ft
2
Patio:
Exterior Styles
Mediterranean
Traditional
Tuscan

Hide Plan Details
