House Plan 5950: Heath

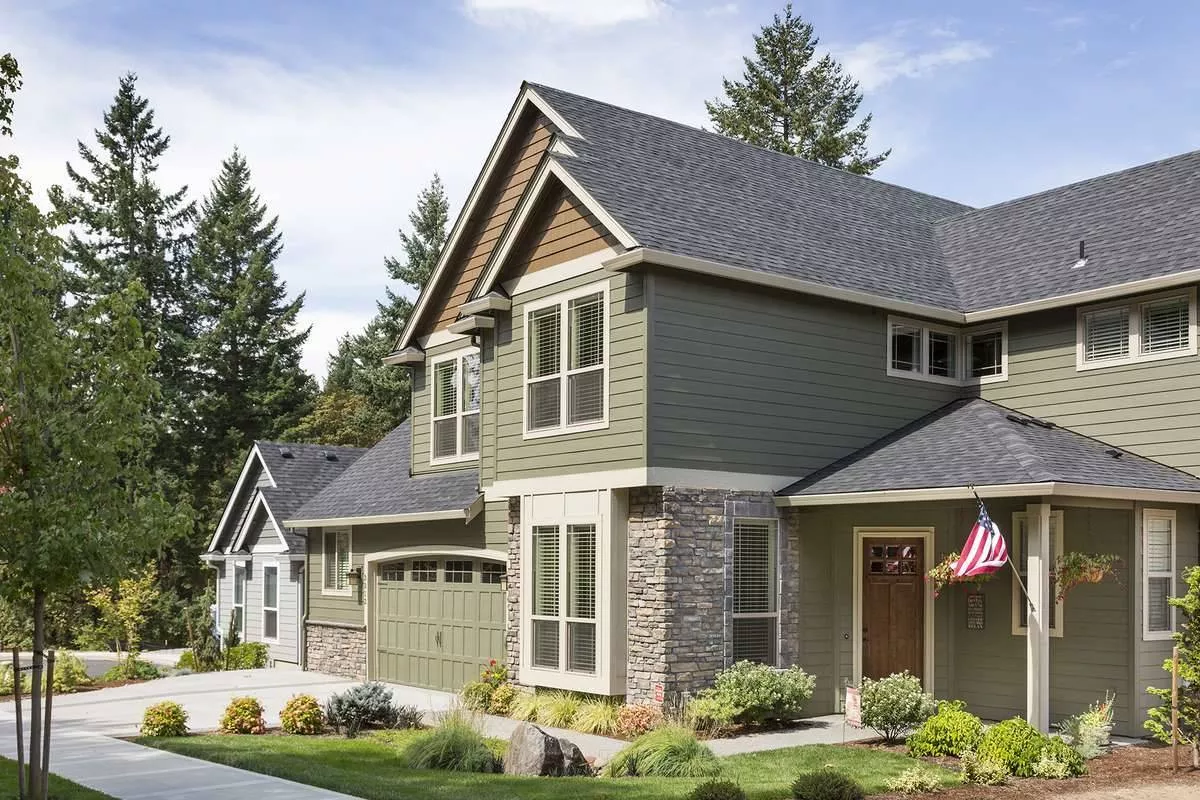

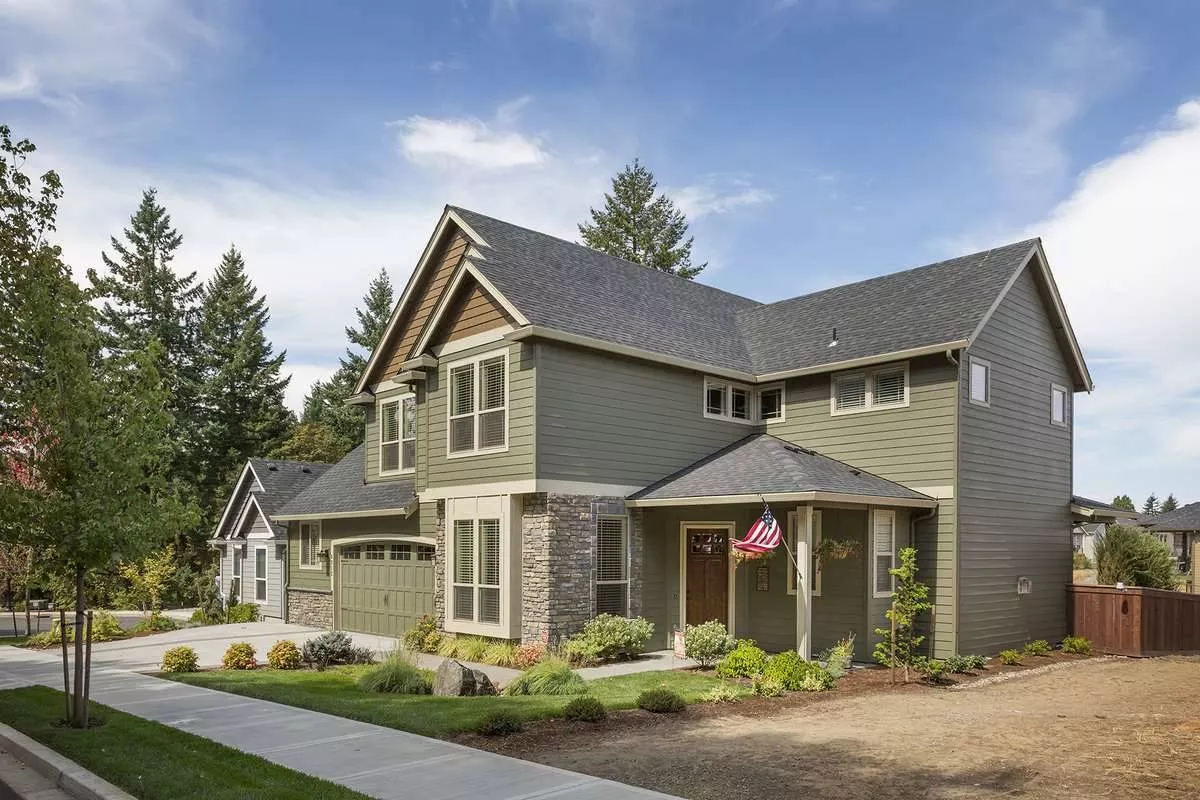

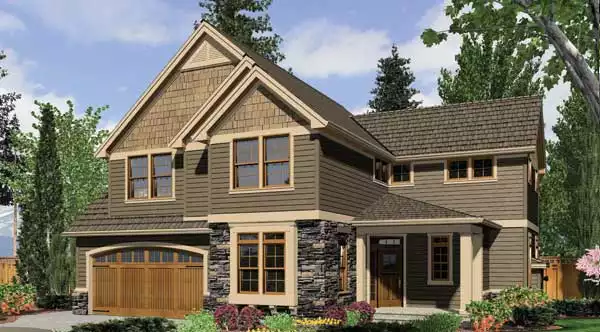

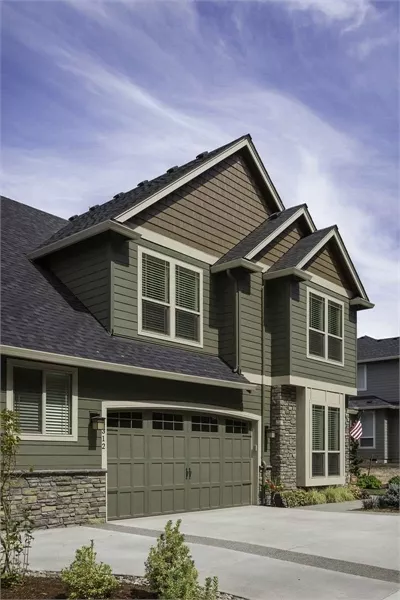

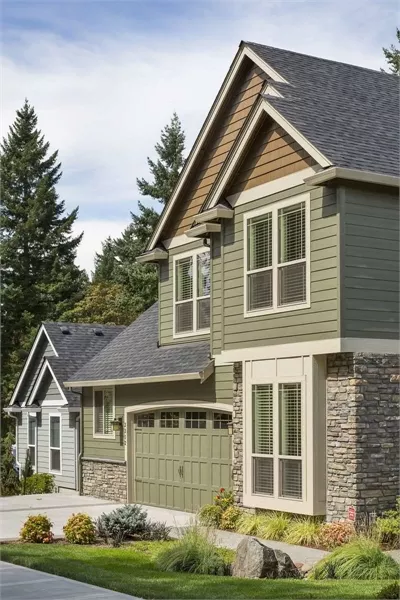

The perfect size plan and a pretty faade add up to a great home for your family. The combination of wood siding and stone complements a carriage-style garage door and cedar shingle detailing on the outside of this home. The interior opens though an angled front entry with den on the left and a half-bath on the right.  Read more >

House Plan Details

Sq. Ft.
2,453
Beds
4
Baths
2.1
Stories
2
Garages
2
Width
48' 0"
Depth
40' 0"
1st Floor
1,118
2nd Floor
1,335
Garage
430
Porch
90
Select Plan Package
PDF Files - Single Build
$1163
Select Foundation Options
$0
Crawlspace
$0
Optional Add-Ons
Subtotal: $1163

PLAN IMAGES

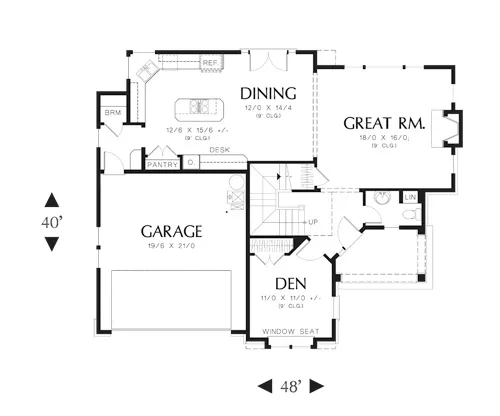

First Floor Plan

First Floor Plan
© copyright by designer

Plan Details

Basic Information
Bedrooms: 4
Bathrooms: 2.1
Garage: 2
Stories: 2
Exterior Style
Craftsman
Traditional
Dimensions
Width: 48' 0"
Height: 30' 0"
Depth: 40' 0"
Heated Living Space
Total Sq. Ft: 2,453
1st Floor: 1,118
2nd Floor: 1,335
Unheated Living Space
Garage: 430
Porch: 90
Ceiling
Upper Ceiling Ft: Varies
Main Ceiling Ft: 9
Framing Information
Framing: 2x6
Roof Framing: Truss
Bedroom Features
Double Vanity Sink
Master Bdrm Upstairs
Separate Tub and Shower
Walk-in Closet
Kitchen Features
Country Kitchen
Kitchen Island
Additional Room Features
Fireplace
Foyer
Great Room
Home Office
Laundry 2nd Fl
Mud Room
Open Floor Plan
Vaulted Ceilings
Garage Location
Front
Garage Features
Attached
Lot Features
Suited for corner lot
Suited for narrow lot
Roof Pitch
Primary: 10/12

Our Guarantee

  • Only the highest quality plans
  • International Residential Code compliant
  • Complete structural details on all plans
  • Best plan and modification price guaranteed
  • Builder-ready construction drawings
  • Expert advice from leading designers
  • House plans delivered in minutes
  • 100% satisfaction guarantee
