House Plan 4566: Haymaker Bay

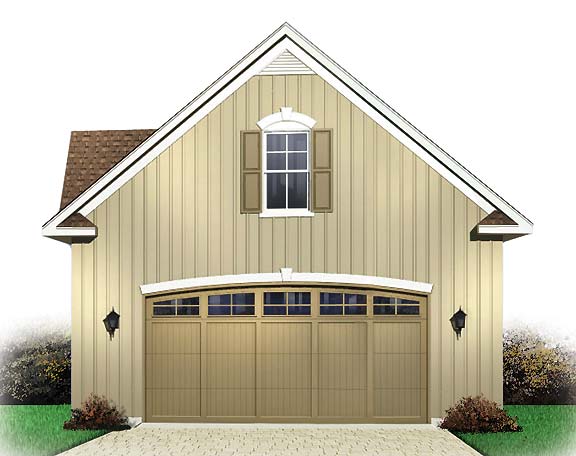

Board and batten cladding, beautiful shutters and tasteful arches ensure that this garage design will be a welcome addition to your home. A 16-ft.-wide door allows for generous clearance for parking, and you'll appreciate the stair access to the bonus storage space above! Daylight is provided by windows at both ends.  Read more >
See Architect Preferred Products For This Plan >

House Plan Details

Sq. Ft.
853
Beds
0
Baths
0.0
Stories
2
Garages
2
Width
24' 0"
Depth
24' 0"
Customize this  Home Plan
For assistance, email, live chat, or call us at 866-214-2242
Select Plan Package
3 sets
$355
Select Foundation Options
$0
Floating slab (included)
$0
Optional Add-Ons
Subtotal: $0
SEE DETAILED PLAN OPTIONS
What You Should Know Before Buying! >

PLAN IMAGES

Add to Favorites   Save

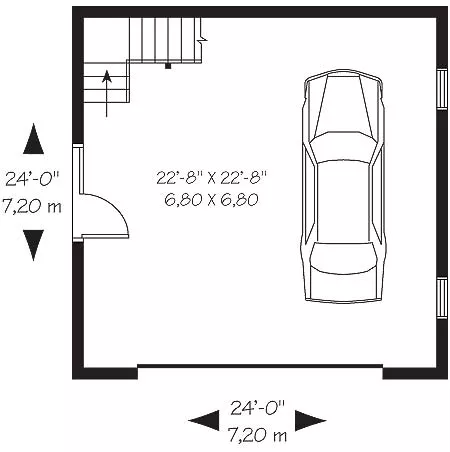

First level

First level
© copyright by designer
DETAILS
Total SQ. FT.:
853
1st Floor SQ. FT.:
576
2nd Floor SQ. FT.:
277
Bedrooms:
0
Bathrooms:
0.0
Garage:
2
Stories:
2
Main Ceiling Height:
9.6'
Upper Ceiling Height:
8.2'
Framing:
2x6
Roof Framing:
Truss
Roof Pitch:
Primary: 10/12
Width:
24' 0"
Height:
22' 2"
Depth:
24' 0"
Exterior Styles:
Country
Farm House
Traditional
Unheated Living Space:
HOME FEATURES
Bedroom Features:
Kitchen Features:
Additonal Features:
Bonus Room
Storage Space
Unfinished Space
Garage Features:
Detached
Garage Location:
Side
Lot Features:
Suited for corner lot
Suited for narrow lot
