Recently Viewed Plans | Advanced Plan Search

Sq Ft
4,002 FT²

Bed
3

Bath
3.5

Stories
2

Garage
2

Depth
101'

Width
42'

On Sale
$1,287.75
$1,515.00

View All 39 Images | Photographs may reflect modified home

Sq Ft

4,002 FT²

From

$1,287.75

Bed

Bath

3.5

Stories

Garage

Depth

101'

Width

42'

Modify

Cost Estimator

Sample Plan

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

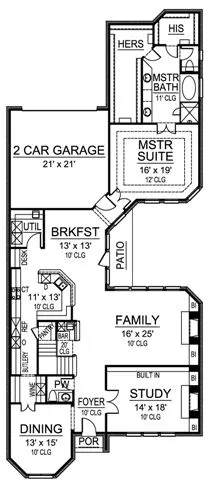

First Floor

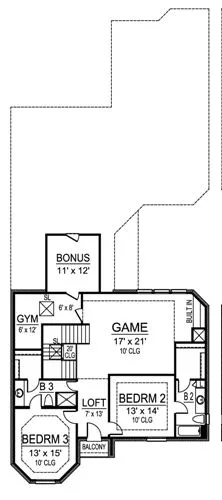

Second Floor

First Floor

Second Floor

About This Plan

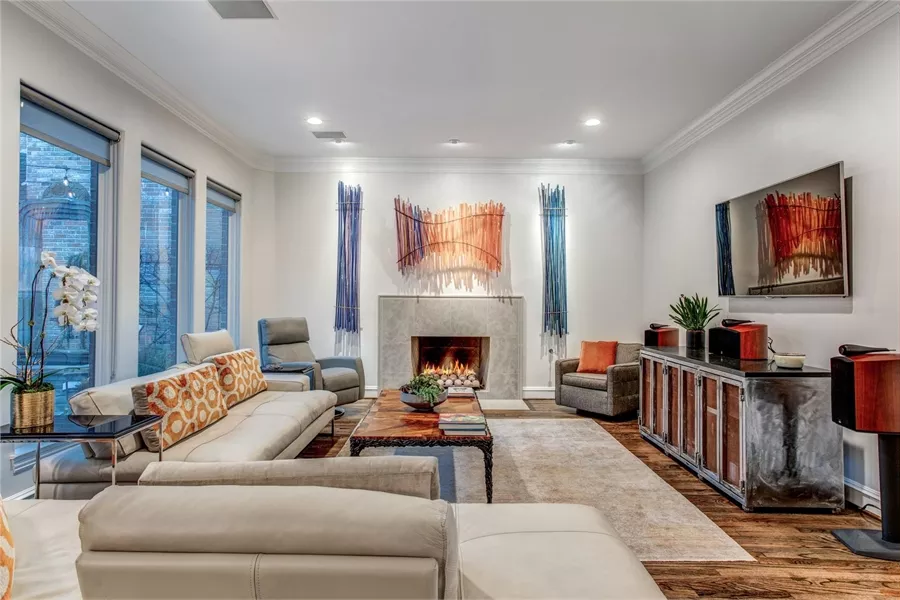

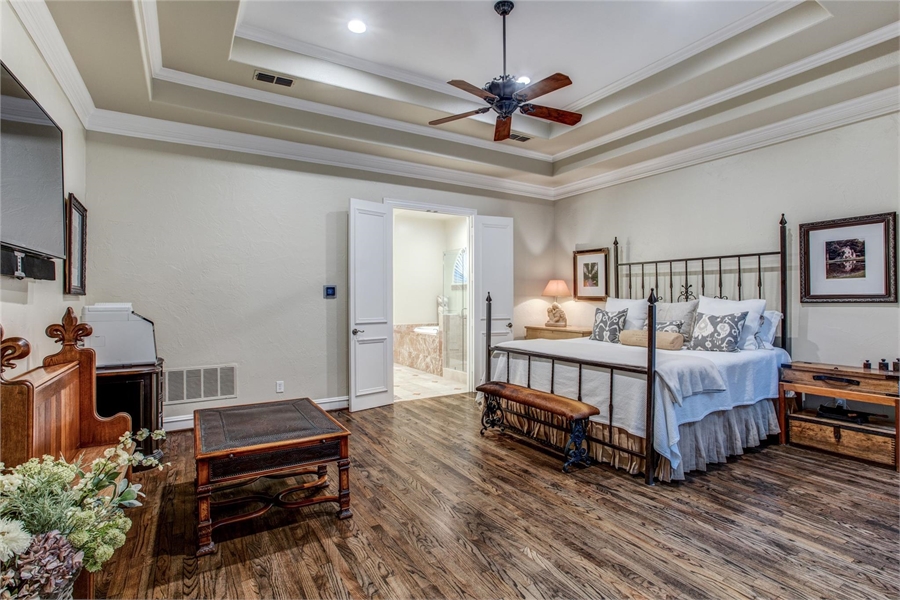

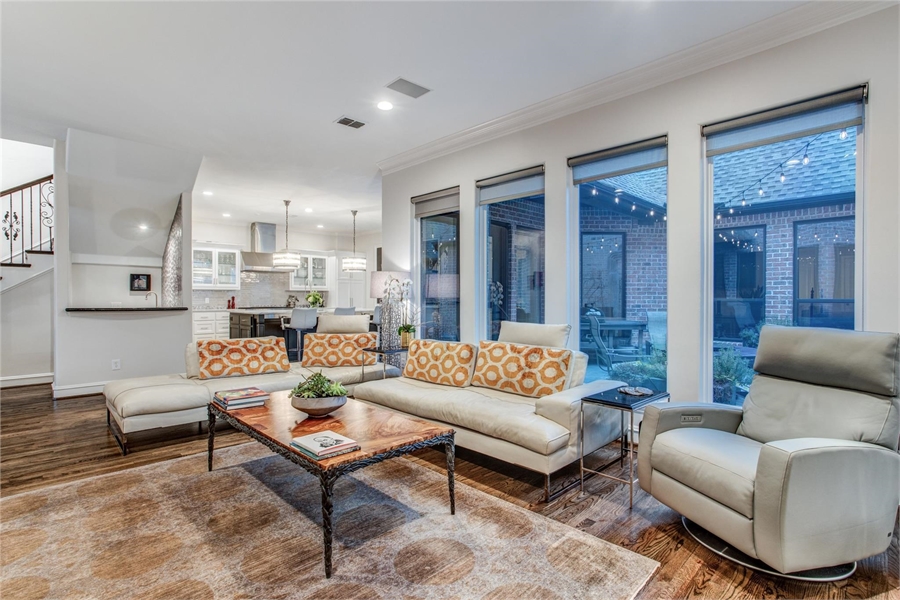

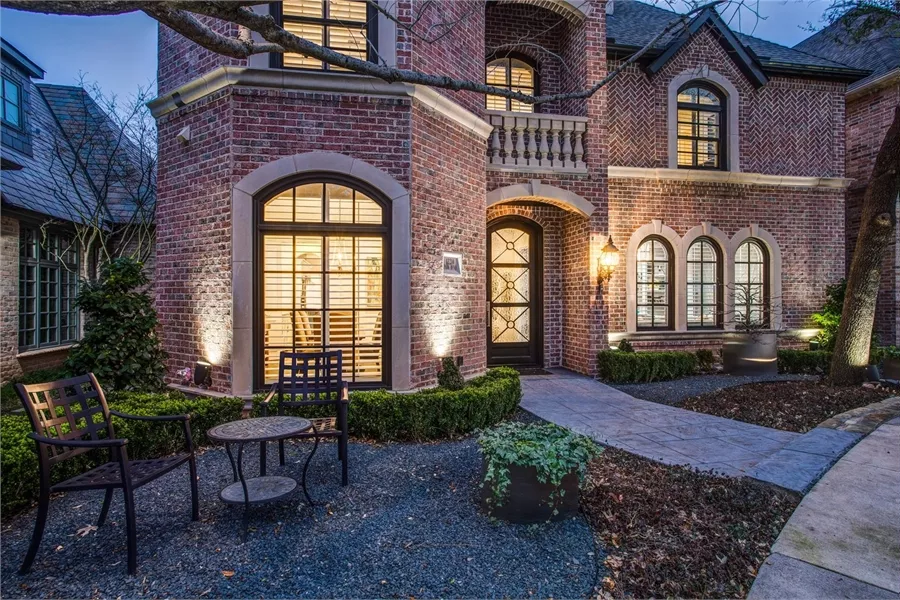

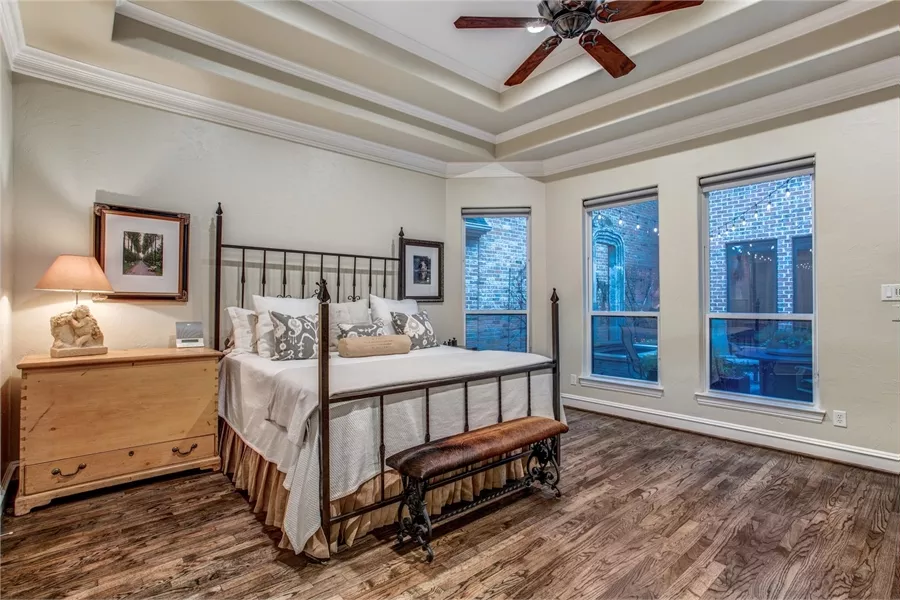

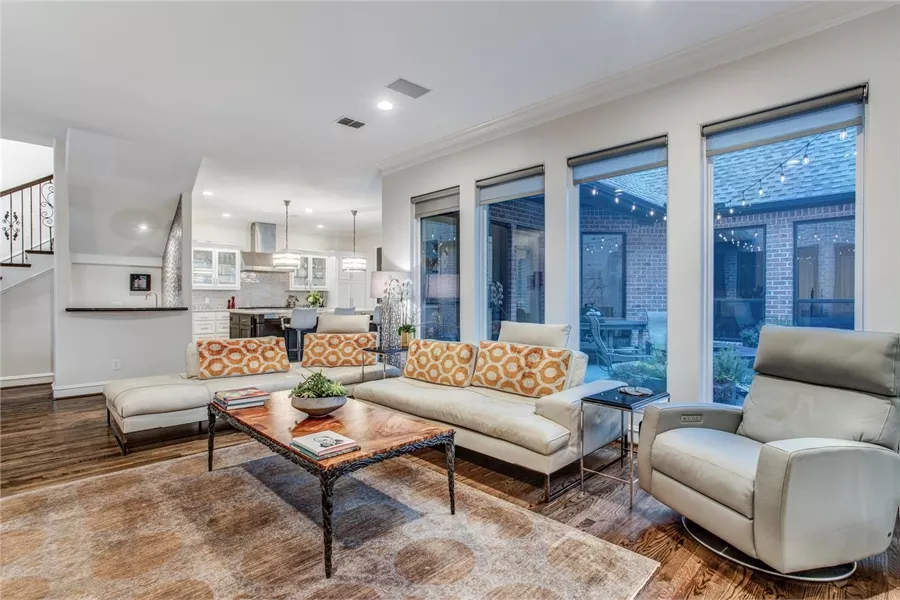

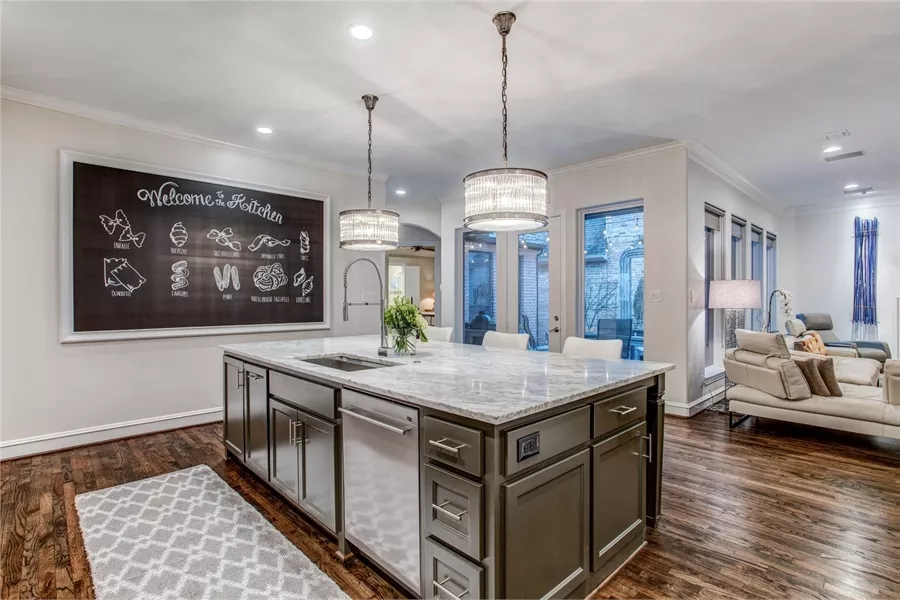

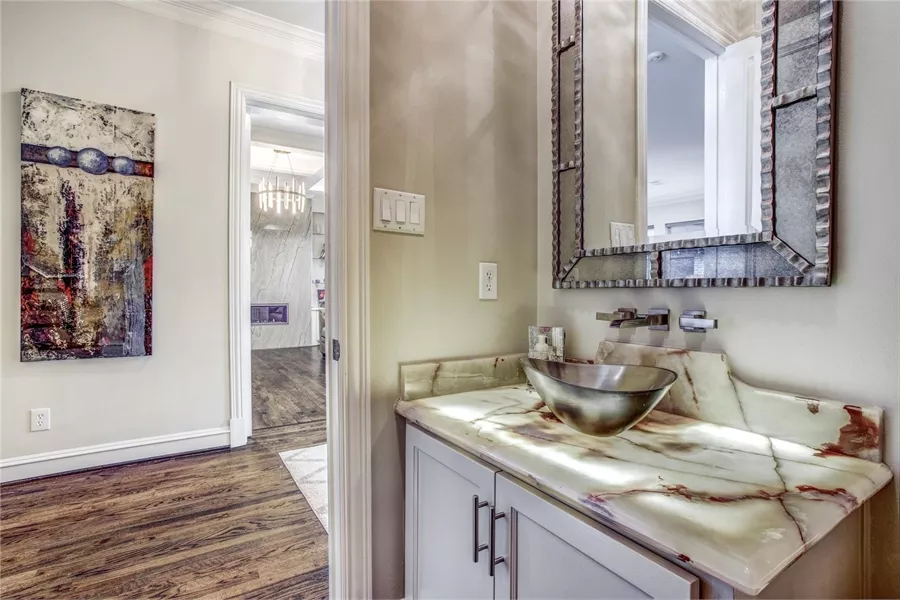

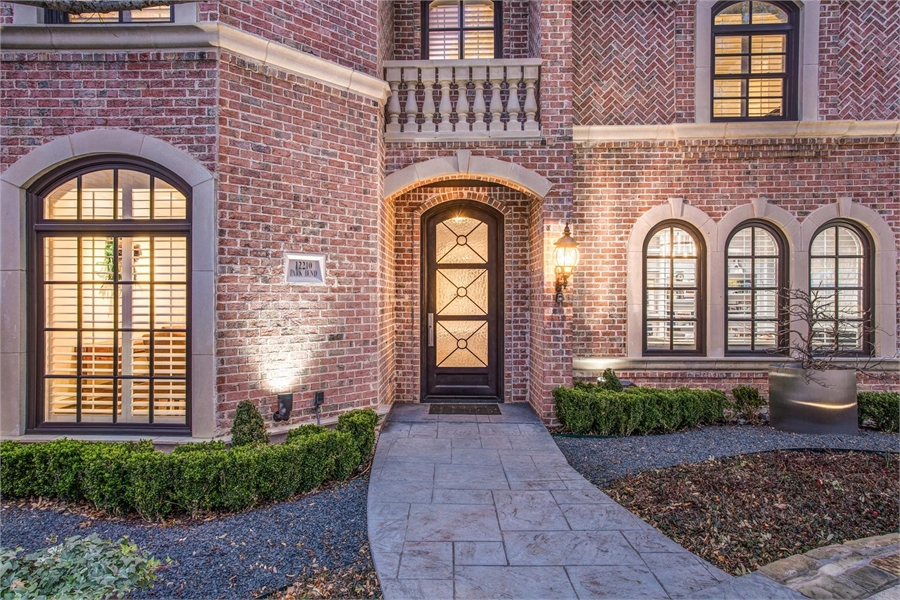

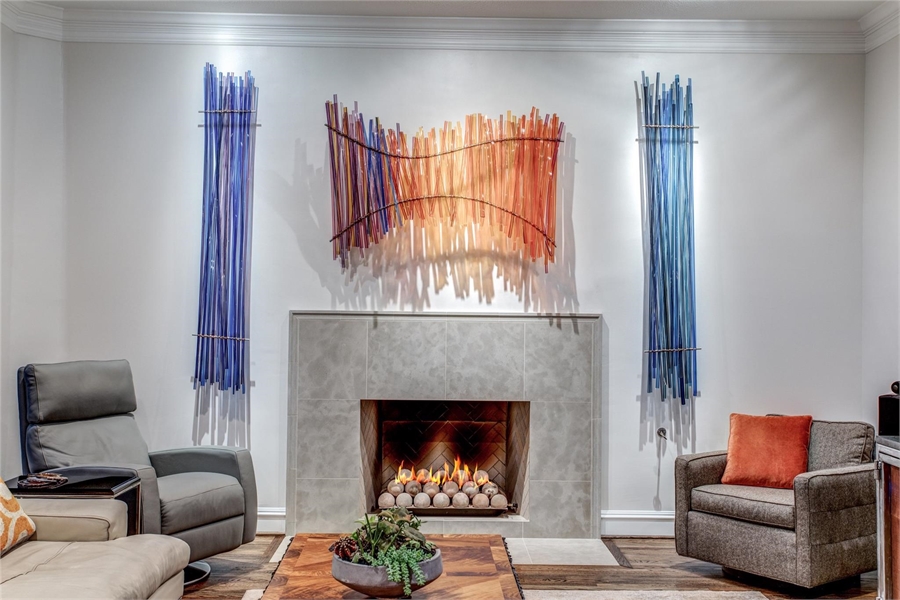

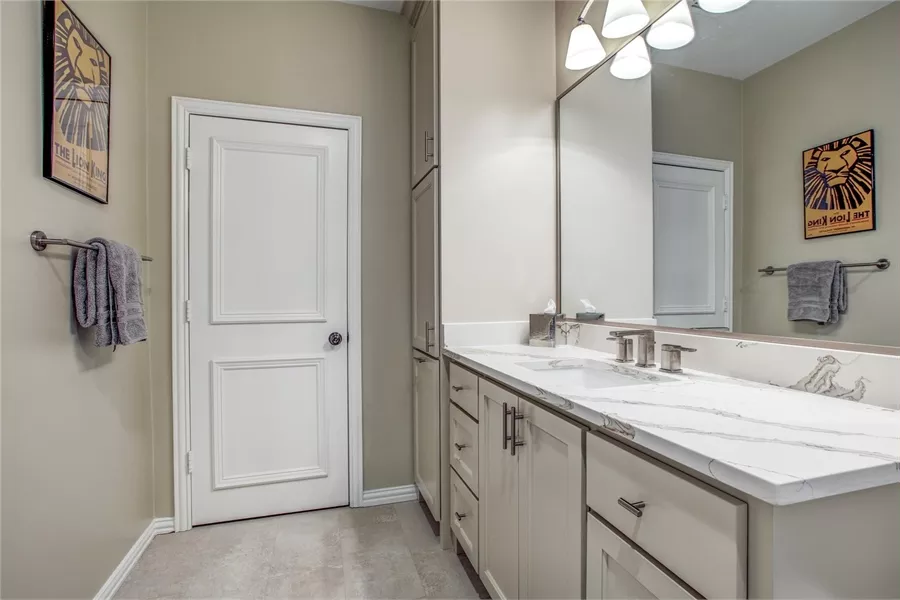

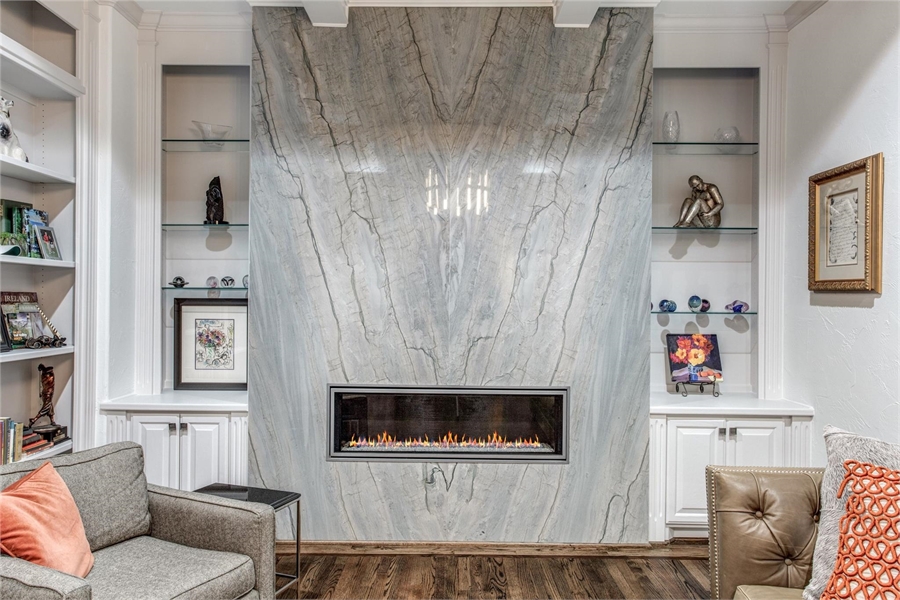

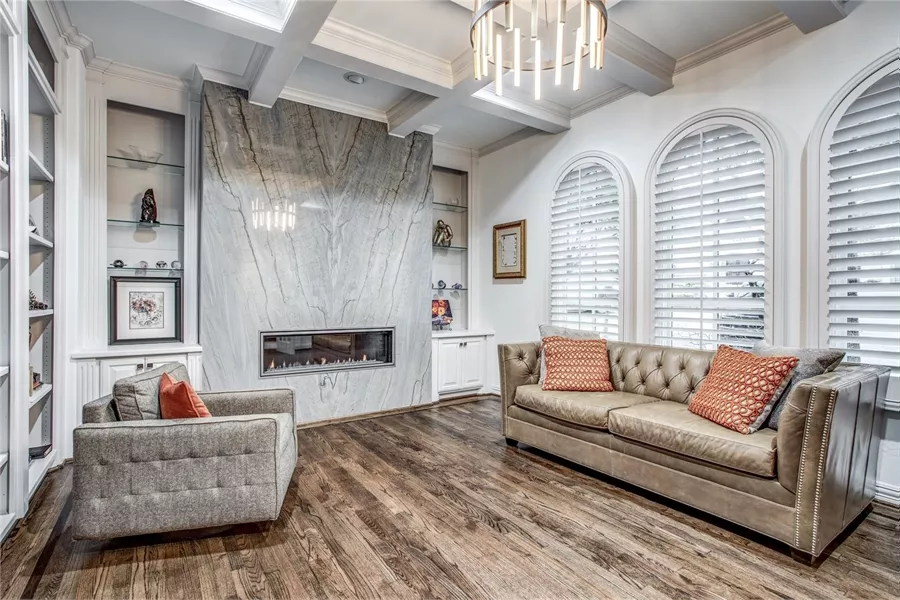

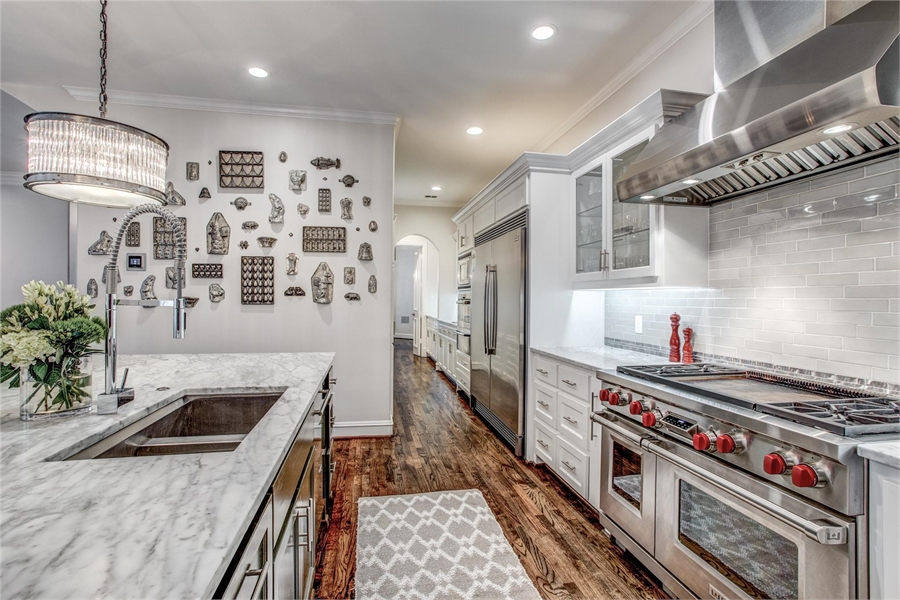

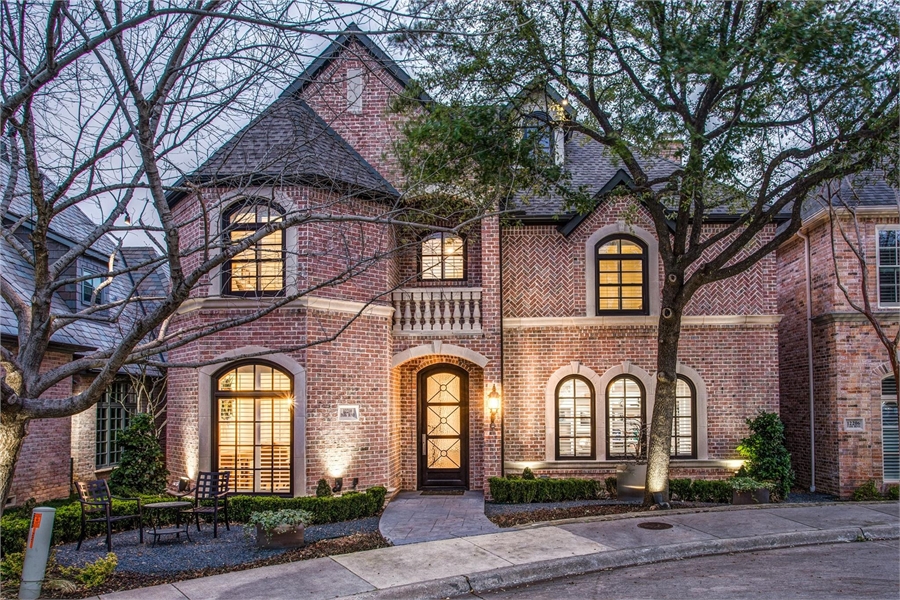

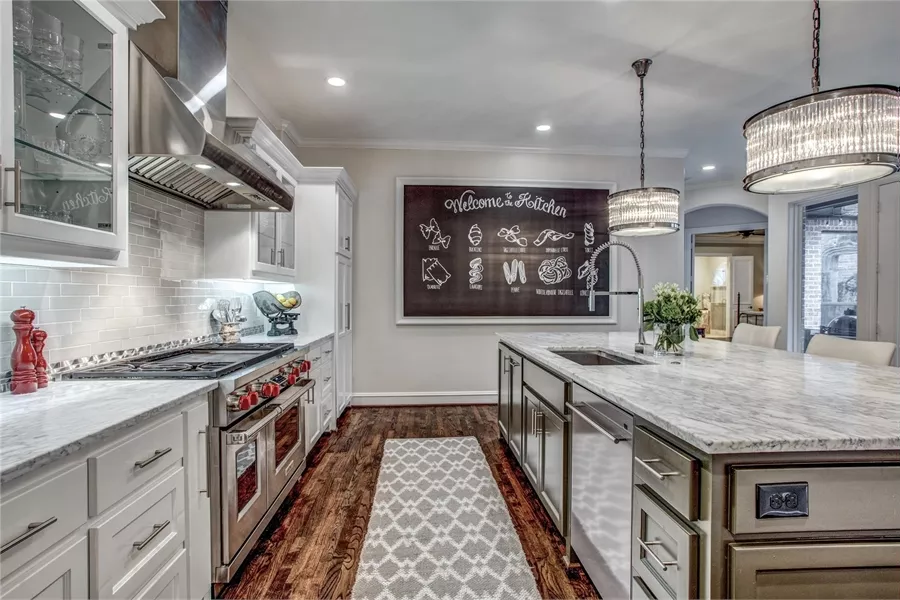

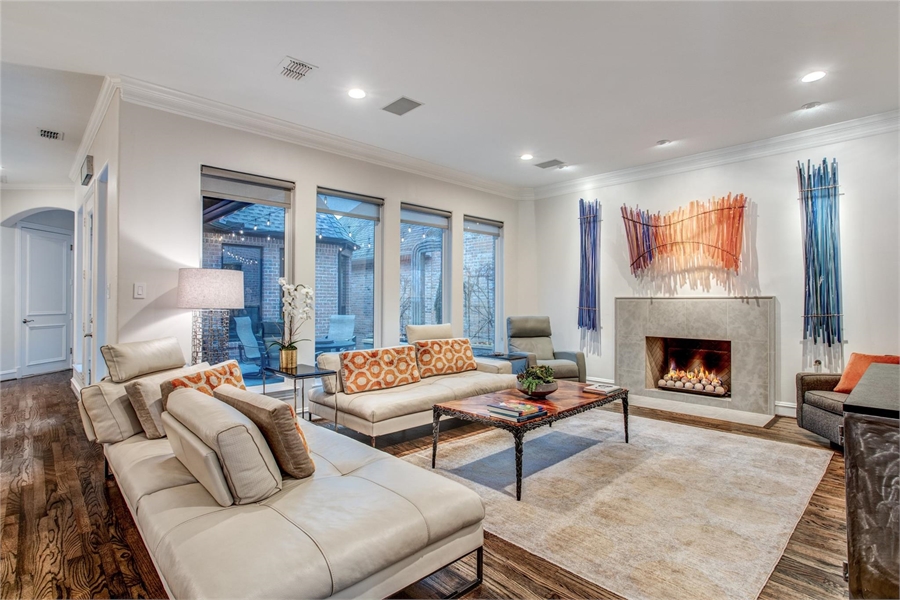

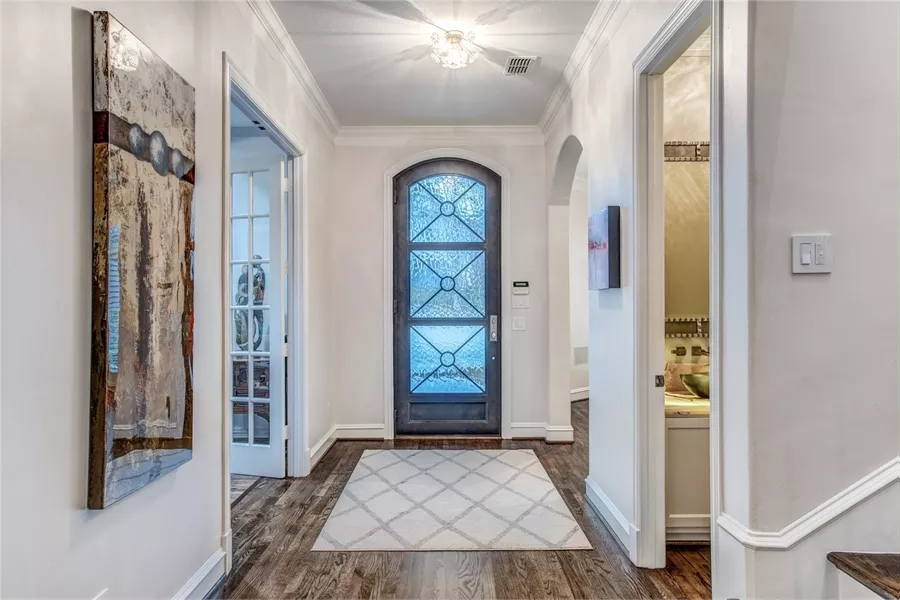

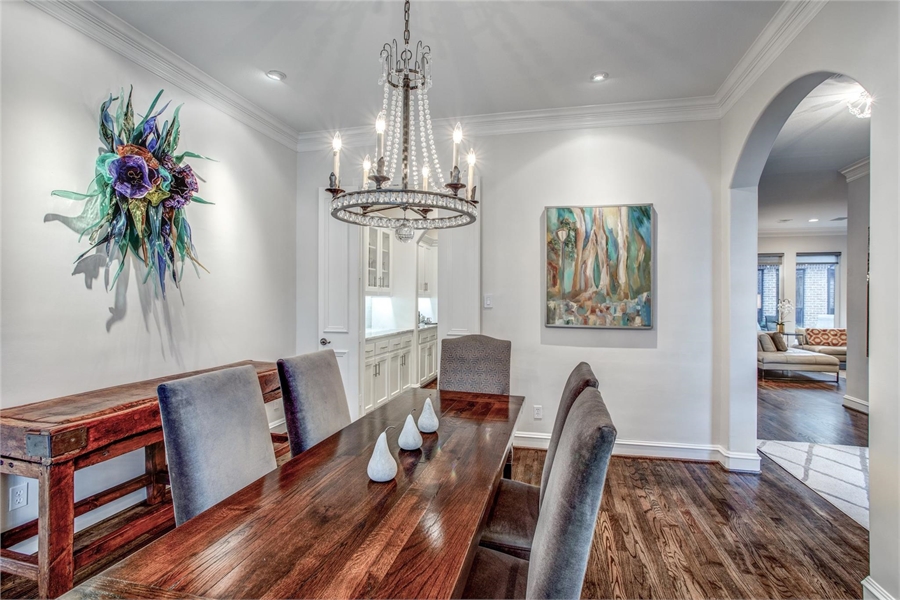

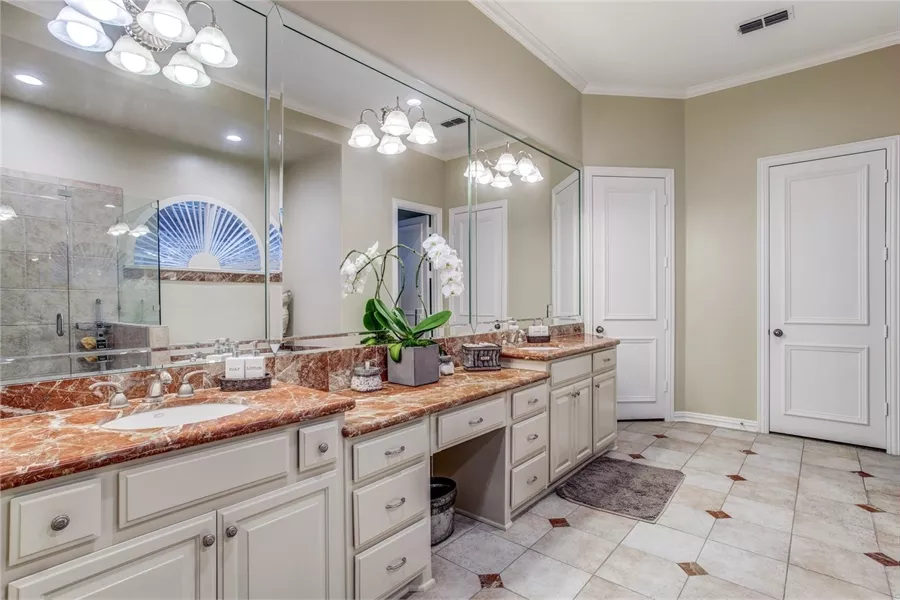

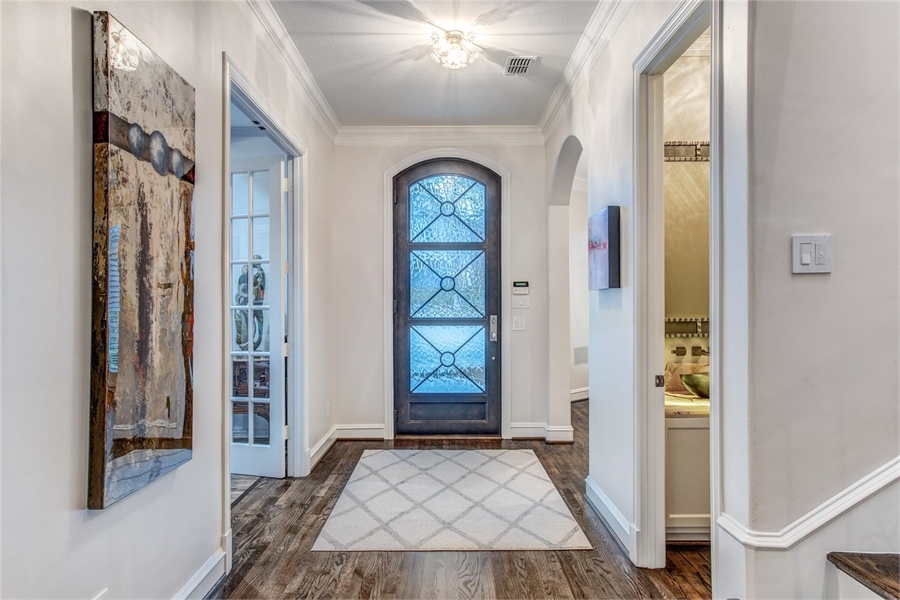

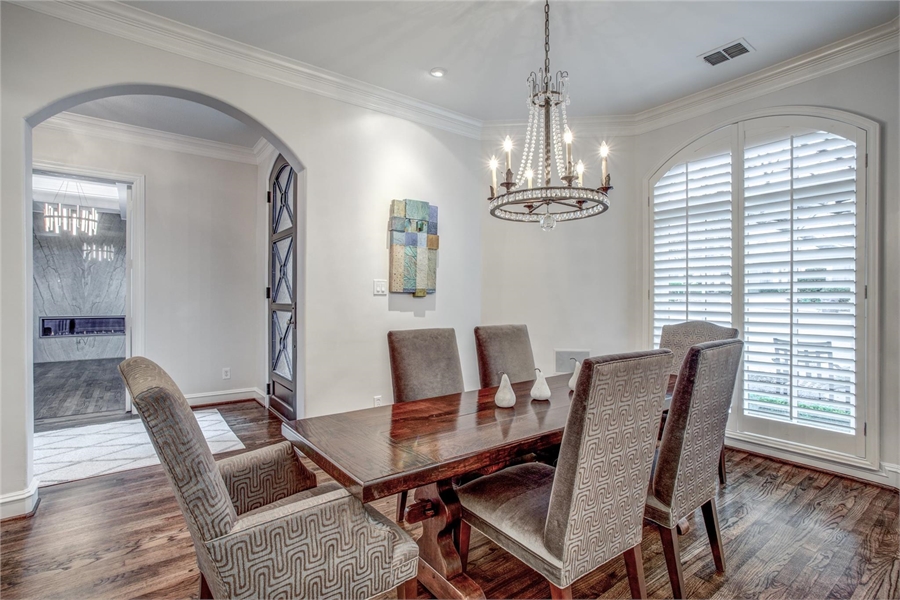

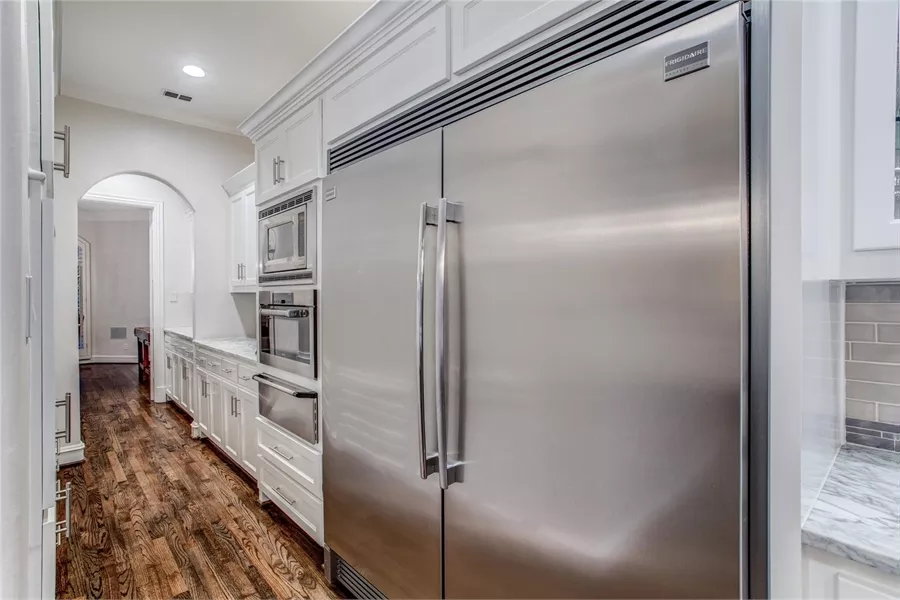

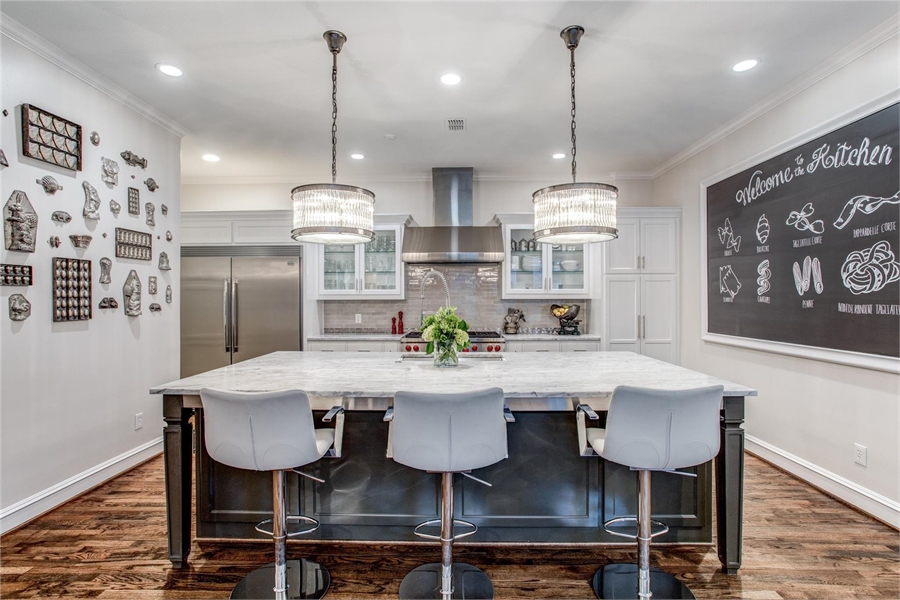

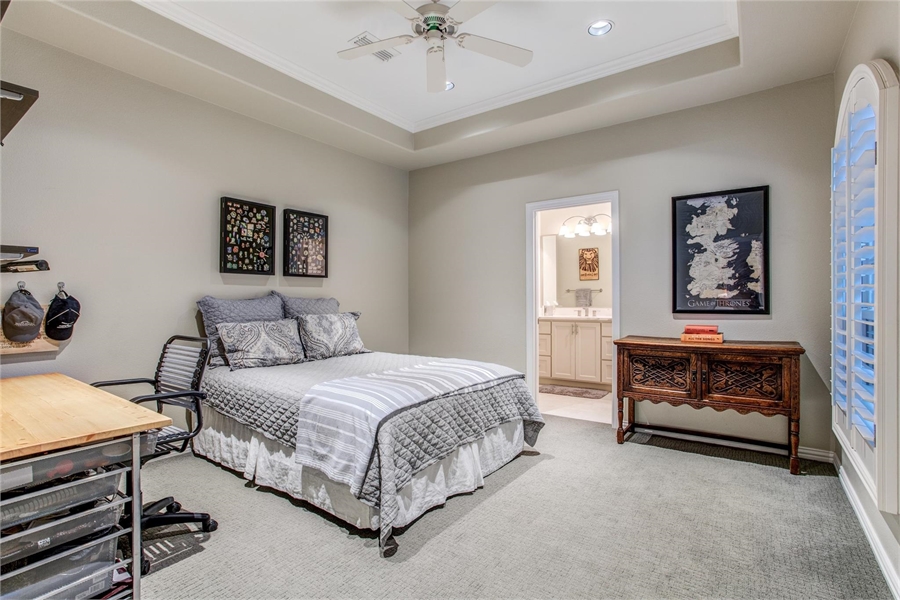

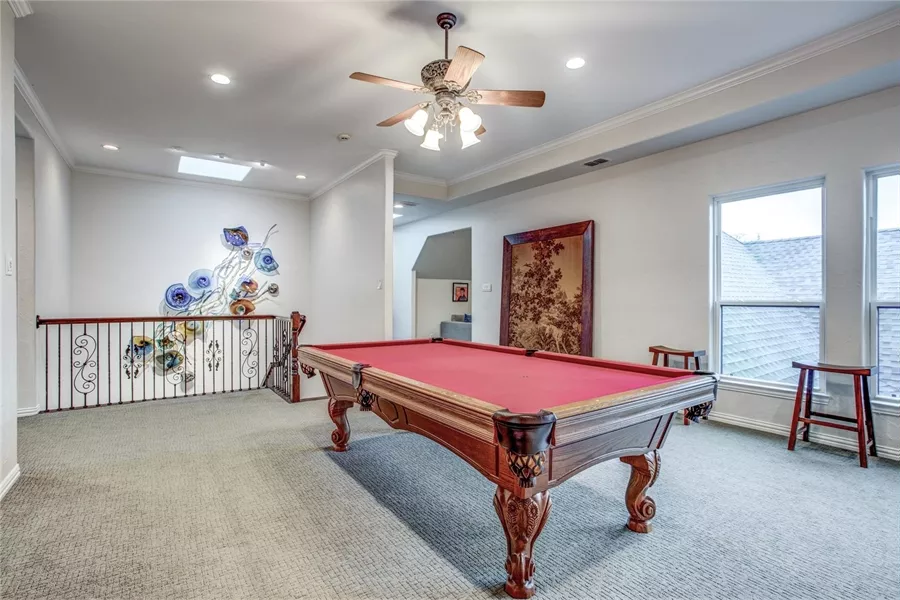

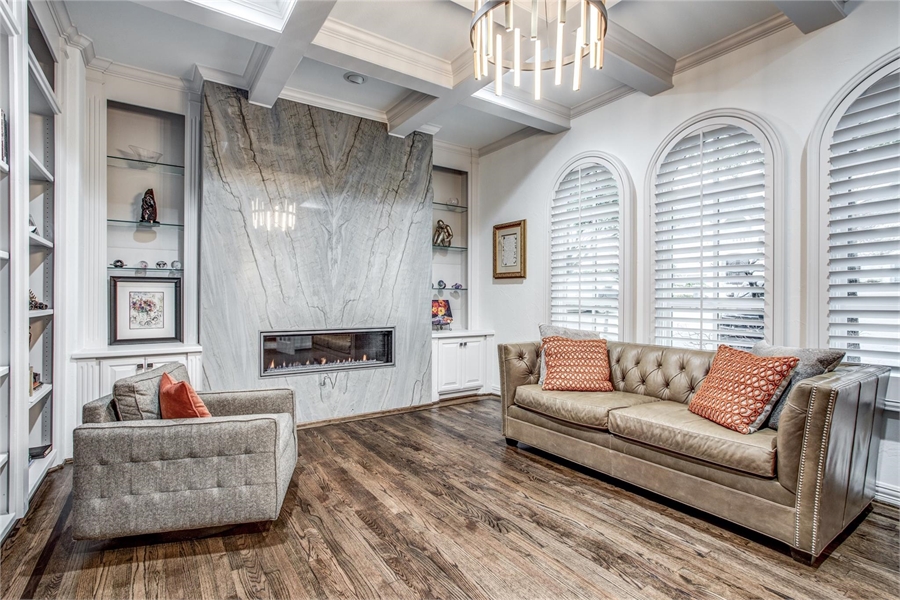

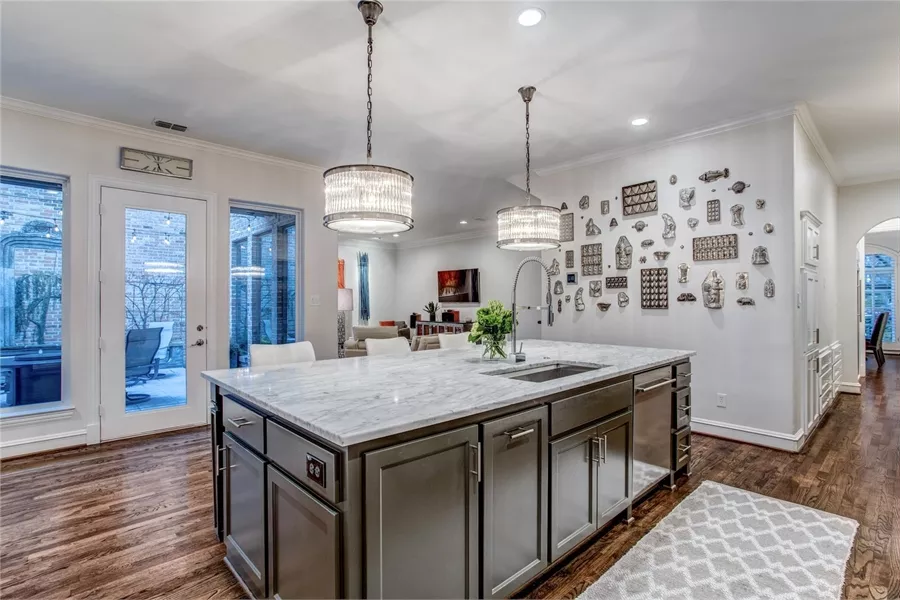

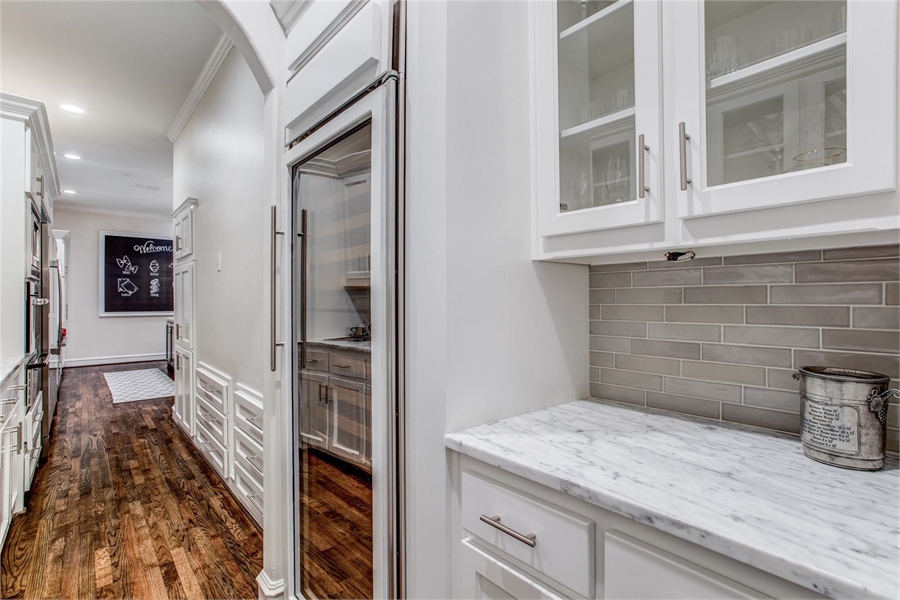

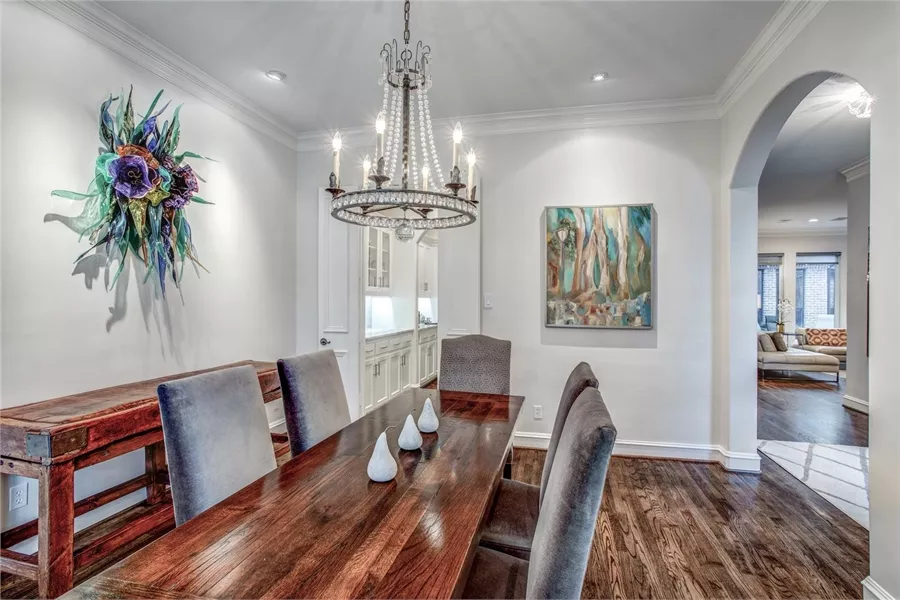

This Texas-inspired luxury house plan is designed for a zero lot line. This narrow house plan has an elegant foyer entrance, flanked by the study with warming fireplace and built ins; and the elegant dining room with bayed window and direct access to the wine room, butlery, pantry and kitchen for ease in serving. The family room, kitchen and breakfast area share space with the utility room and a built-in desk. The family room's fireplace will keep this entire family gathering area warm. The master suite with tray ceiling boasts a lavish master bath with his and hers sinks, separate tub and shower and large his and hers wardrobes. Upstairs two family bedrooms with walk-in closets and full baths share space with a game room, gym and bonus room. A balcony off the loft offers views to the main level, completing this luxury house plan.

FEATURES & DETAILS

Kitchen features

Butler's Pantry
Country Kitchen
Nook / Breakfast Area

Bedroom features

Double Vanity Sink
His and Hers Primary Closets
Primary Bdrm Main Floor
Separate Tub and Shower

Exterior features

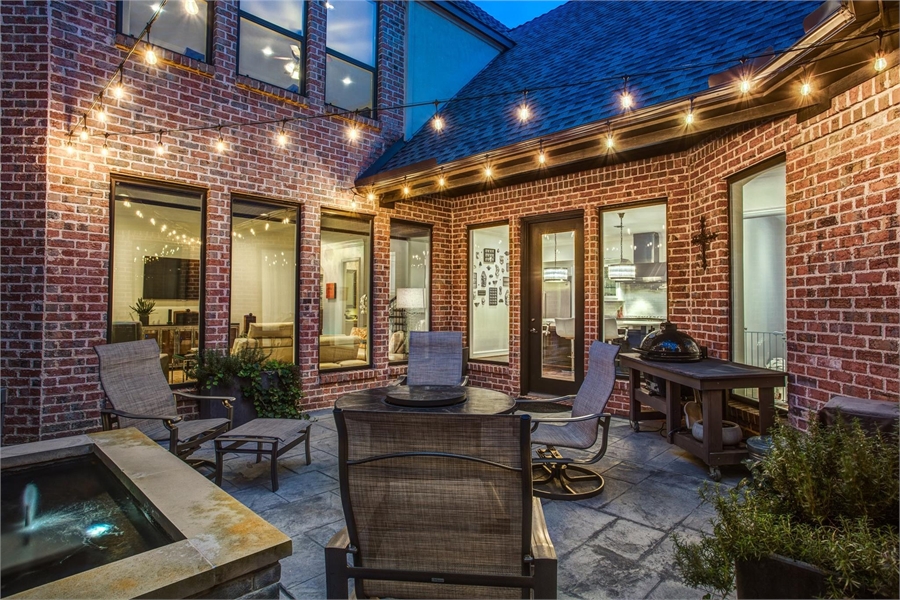

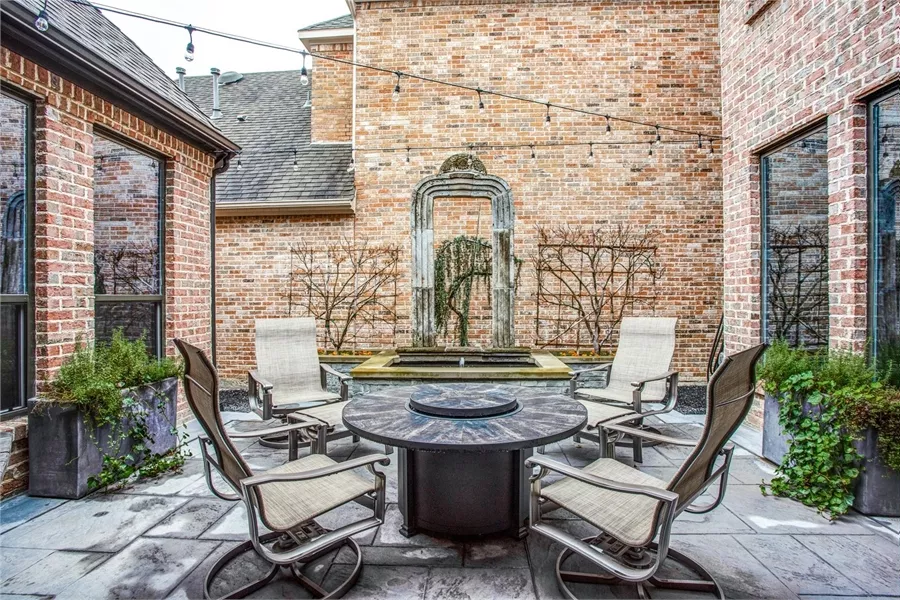

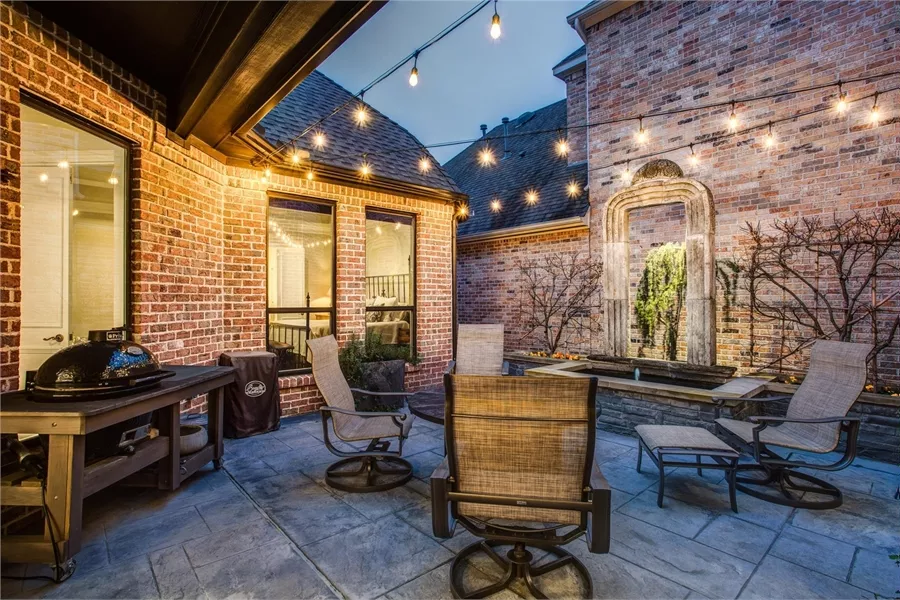

Courtyard
Covered Front Porch
Covered Rear Porch
Front Porch
Rear Porch

Foundation Options

Slab

Additional features

Bonus Room
Dining Room
Exercise Room
Family Room
Fireplace
Home Office
Laundry 1st Fl
Loft / Balcony
Open Floor Plan

Garage Location

Rear

Garage Options

Attached
Rear-entry

4,744 Ft

Total Structure

4,002 Ft

Total Heated

2,650 Ft

1st Floor

1,352 Ft

2nd Floor

Bedrooms

3.5

Bathrooms

Garage

Stories

42' 0"

Width

101' 0"

Depth

38' 0"

Height

10' 0"

Main Floor Ceiling

9' 0"

Upper Floor Ceiling

2x6

Framing

Stick

Roof Framing

Single

Dwelling Number

Unheated Living Space

483 Ft

Garage

25 Ft

Porch

25 Ft

Deck

71 Ft

Patio

138 Ft

Bonus Room

Exterior Styles

Country

Traditional

Collections

Plan Package Options

Important info before you buy

Select Plan Package

$1,365

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,365

$2,050

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$2,050

$2,360

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$2,360

Need To Reverse Plan? (Optional)

$175

Readable Reverse

Reverse house plans with readable text and dimensions

$175

Select Foundation Option

Add-Ons (Optional)

	Ground shipping within the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your house plan
	Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.

BEST PRICE GUARANTEE

find the same house plan (modifications included!) and package for less on another site, show us the URL and we'll give you the difference plus an additional 5% back.

100% SATISFACTION GUARANTEE

We offer a one-time, 14-day exchange policy for unused, non-electronic plan packages in the event you aren't satisfied with your first selection.
