House Plan 4951: GRAY RIDGE

This luxury starter castle home plan has awesome room styles and special ceiling treatments. You'll appreciate the four bedrooms. Entry through the double front doors into the barrel vaulted foyer offers plenty of large decorative pillars that define the various rooms.  Read more >

House Plan Details

Sq. Ft.
4,977
Beds
4
Baths
3.2
Stories
1
Garages
4
Width
83' 0"
Depth
96' 0"
1st Floor
4,977
Garage
1,259
Porch
300
Patio
420
Select Plan Package
Plan PDF Package
$1665
Select Foundation Options
$0
Slab
$0
Optional Add-Ons
Subtotal: $1665

PLAN IMAGES

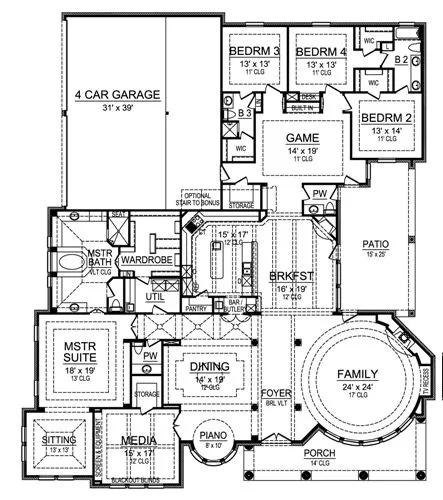

First Floor

First Floor
© copyright by designer

Plan Details

Basic Information
Bedrooms: 4
Bathrooms: 3.2
Garage: 4
Stories: 1
Exterior Style
European
Traditional
Dimensions
Width: 83' 0"
Height: 49' 0"
Depth: 96' 0"
Heated Living Space
Total Sq. Ft: 4,977
1st Floor: 4,977
Unheated Living Space
Garage: 1,259
Porch: 300
Patio: 420
Ceiling
Upper Ceiling Ft:
Main Ceiling Ft: 11
Framing Information
Framing: 2x4
Roof Framing: Stick
Bedroom Features
Double Vanity Sink
Master Bdrm Main Floor
Separate Tub and Shower
Sitting Area
Kitchen Features
Kitchen Island
Nook / Breakfast Area
Additional Room Features
Arches
Dining Room
Family Room
Fireplace
Foyer
Home Office
Laundry 1st Fl
Library/Media Rm
Open Floor Plan
Vaulted Ceilings
Garage Location
Rear
Garage Features
Attached
Side-entry
Lot Features
Roof Pitch

Our Guarantee

  • Only the highest quality plans
  • International Residential Code compliant
  • Complete structural details on all plans
  • Best plan and modification price guaranteed
  • Builder-ready construction drawings
  • Expert advice from leading designers
  • House plans delivered in minutes
  • 100% satisfaction guarantee
