House Plan 5822: Grant Park

Front and rear porches make city living more enjoyable in this stylish craftsman designed cottage. This compact plan offers open spacious vistas from kitchen to great room, foyer to screen porch, helping the owner feel they are sacrificing nothing to live on a narrow lot.

The rear garage, which can be oriented as a side or rear entry provides the additional main floor space for an expansive screen porch.  Read more >

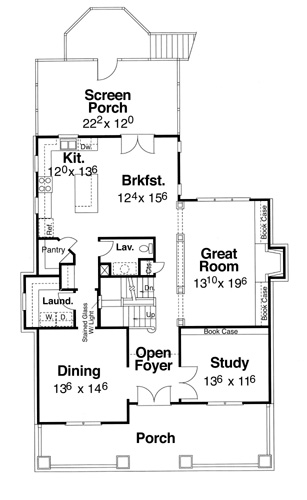

Click to Zoom In on Floor Plan
