Sq Ft
2,888 FT²
Bed
4
Bath
6.5
Stories
2
Garage
4
Depth
107'
Width
50'
On Sale
$2,057.00
$2,420.00
© copyright by designer
View All 17 Images | Photographs may reflect modified home
Sq Ft
2,888 FT²
From
$2,057.00
Bed
4
Bath
6.5
Stories
2
Garage
4
Depth
107'
Width
50'

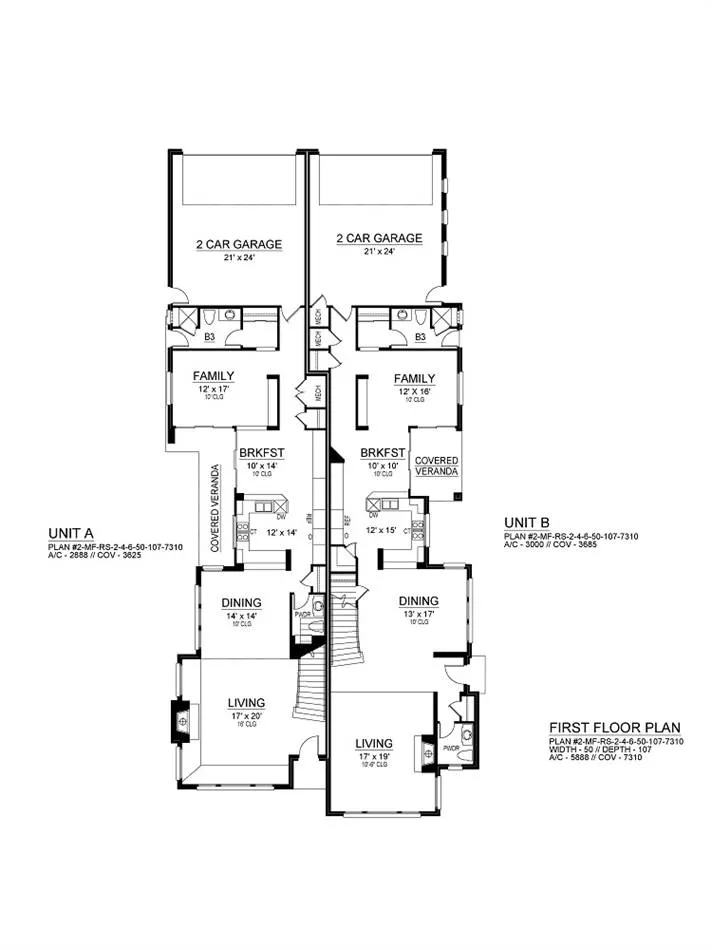

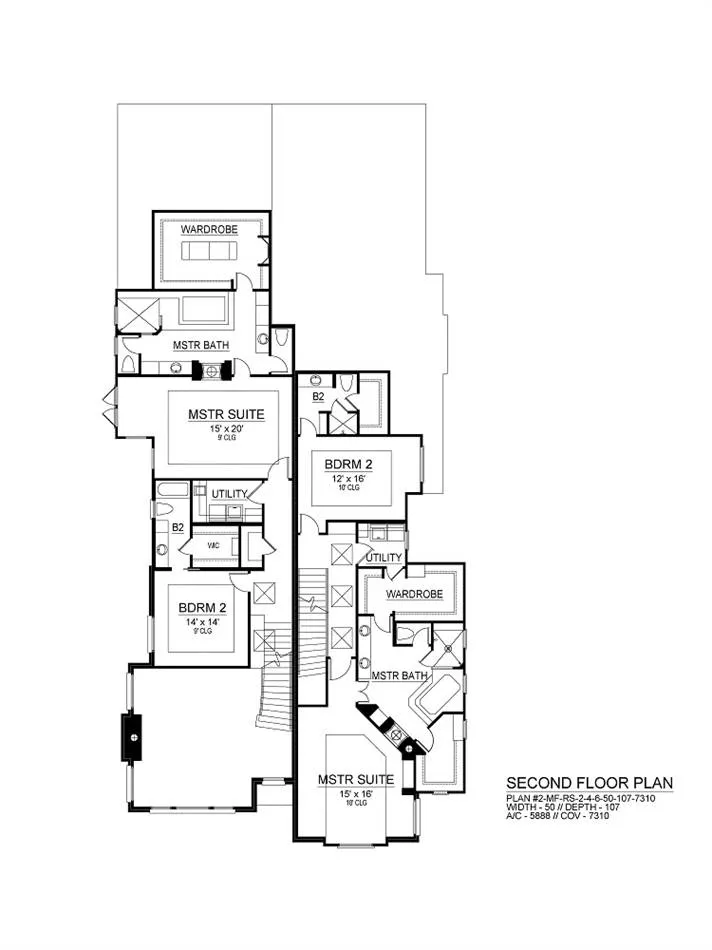

Click to Zoom In on Floor Plan
© copyright by designer



About This Plan

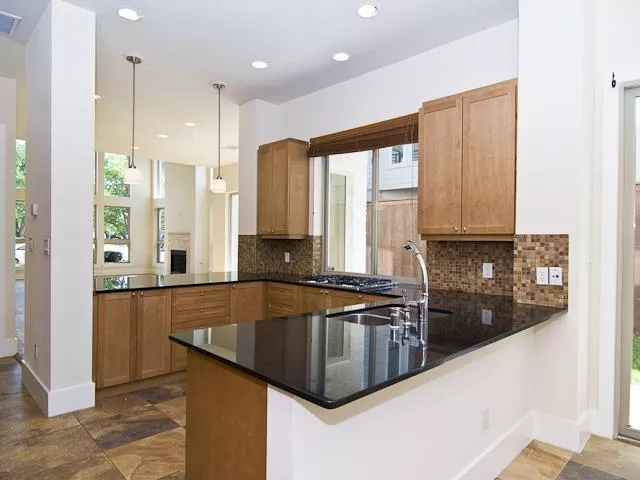

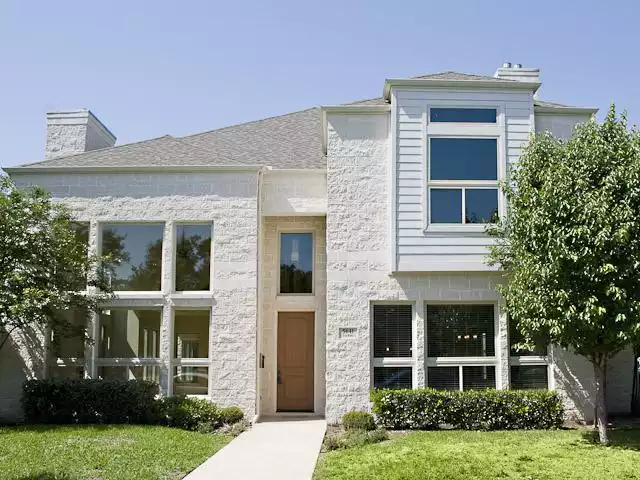

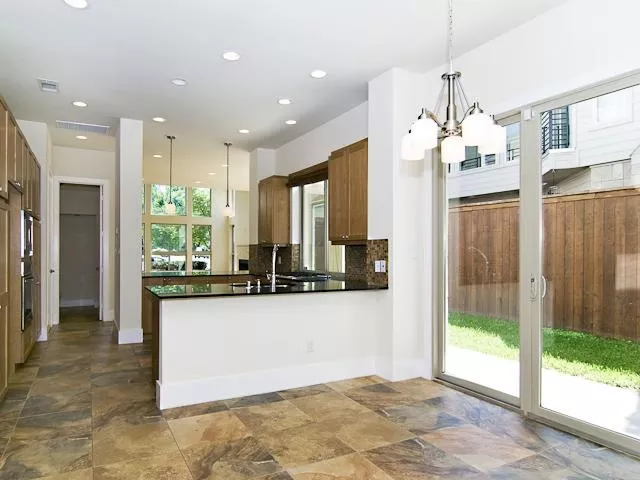

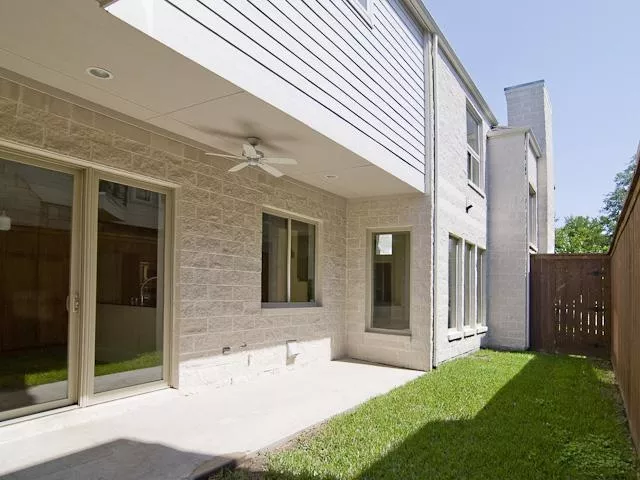

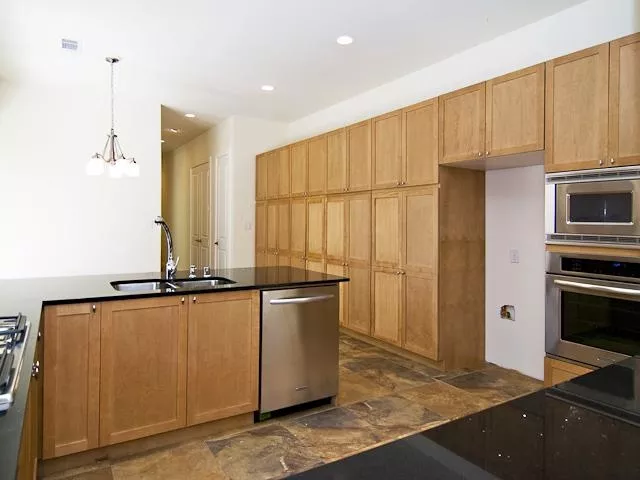

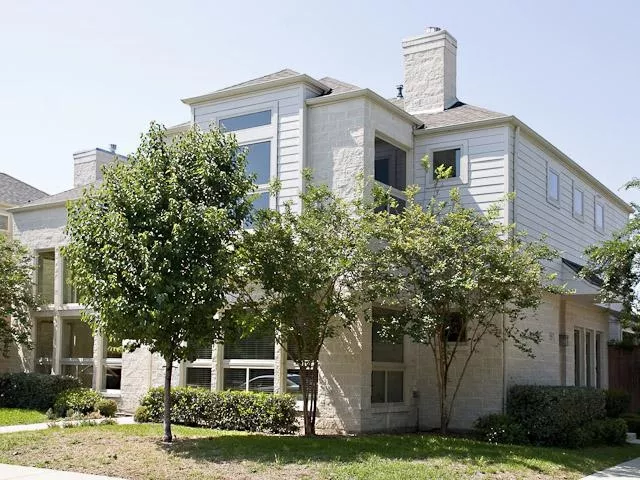

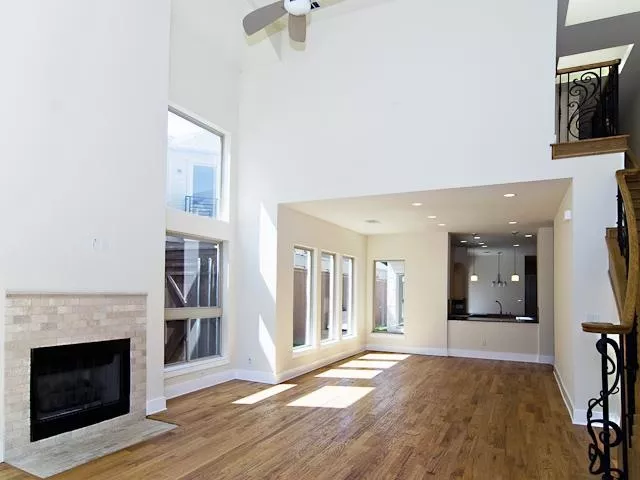

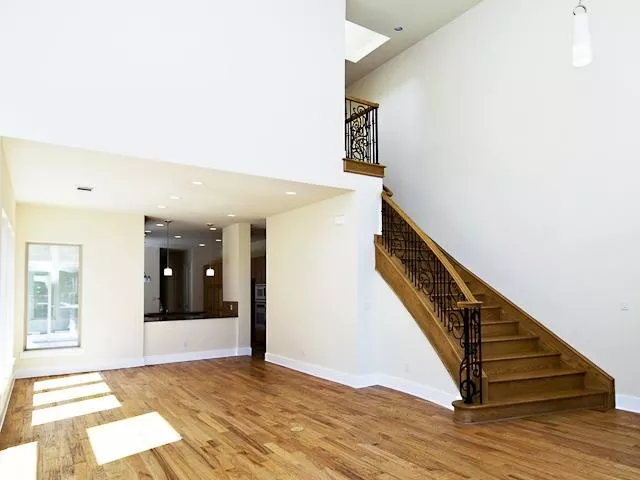

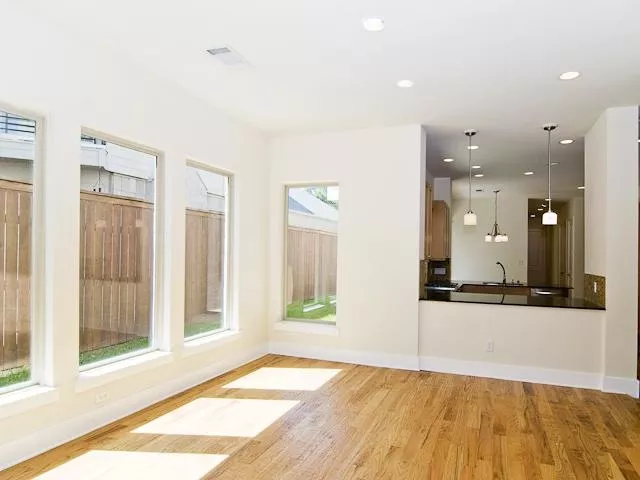

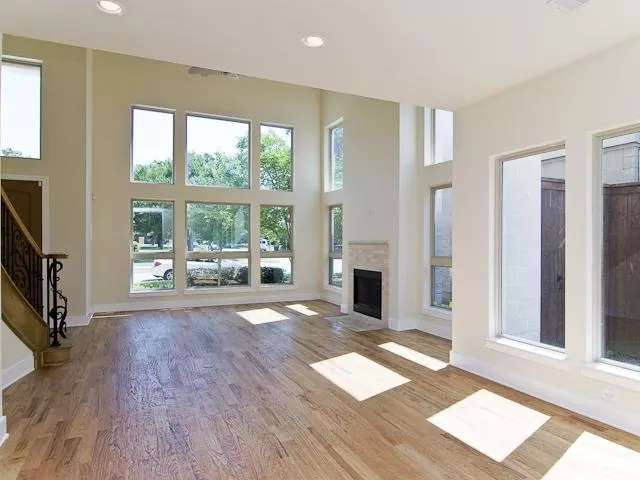

5,888 s.f. duplex - Unit A is 2,888 s.f. and Unit B is 3,000 s.f. This elegant contemporary house plan does not look like any duplex you have ever seen. Whether you live in one side and lease out the other, use half for your college children and/or in-laws, or just lease it all out, this elegant home will be a welcome place in which to dwell. The exterior facade is a sleek stucco with large windows, two covered verandas and covered entryways. Each have formal living rooms with fireplaces and sweeping stairs that step out of the elegant dining rooms and a conveniently located powder room. Large floor-to-ceiling windows allow the light in. Large modern kitchens are adjacent to the dining rooms and offer plenty of granite countertops, built-in appliances, and eating bars that seamlessly divide the gourmet kitchens from the cozy breakfast rooms. Each home has a family room off the breakfast rooms with built-ins, plenty of storage, and a shower bathroom. The rooms are spacious and modern with recessed and pendent lighting. Large sliding glass doors lead to the covered verandas, perfect for entertaining. A rear entry, two-car garage sits at the rear of each of these homes. Upstairs, each home boasts a master suite with trey ceiling and luxurious master bath with his and hers vanities, separate shower and marble tub and tile, and large wardrobes with built-ins. A utility room sits between the master suite and the family bedroom, complete with trey ceiling, walk-in closet, and full bath. You will love this beautiful duplex house plan in all its gracious splendor.


FEATURES & DETAILS

Kitchen features
Nook / Breakfast Area
Peninsula / Eating Bar
Bedroom features
Double Vanity Sink
Master Bdrm Upstairs

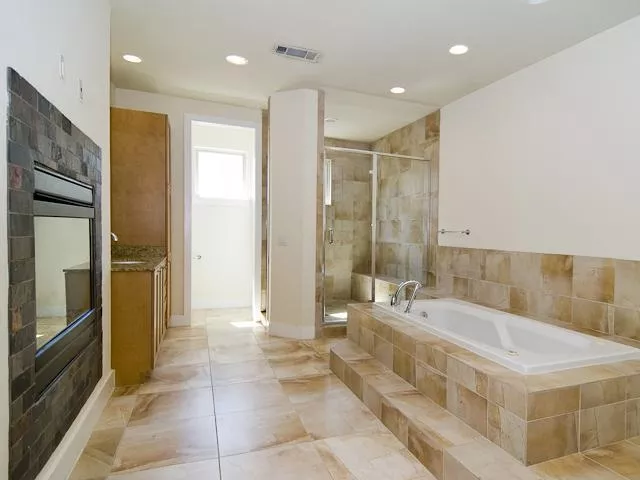

Separate Tub and Shower
Exterior features
Covered Front Porch
Foundation Options
Slab
Additional features
Family Room
Formal LR
Foyer
Laundry 2nd Fl
Garage Location
Rear
Garage Options
Attached
5,888 Ft
2
Total Structure
2,888 Ft
2
Unit Heated
3,185 Ft
2
1st Floor
2,703 Ft
2
2nd Floor
4
Bedrooms
6.5
Bathrooms
4
Garage
2
Stories
50' 0"
Width
107' 0"
Depth
34' 0"
Height
10'' 0"
Main Floor Ceiling
9'' 0"
Upper Floor Ceiling
2x4 or 2x6
Framing
Slab
Roof Framing
Duplex
Dwelling Number

Unheated Living Space
1,146 Ft
2
Garage
Exterior Styles


Plan Package Options

 Select Plan Package
$2,575
PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$2,575
$2,755
5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$2,755
$3,860
CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$3,860
 Need To Reverse Plan? (Optional)
$200
Readable Reverse

Reverse house plans with readable text and dimensions

$200
  Select Foundation Option
  Add-Ons (Optional)

Ground shipping within the Continental U.S.

FREE

Design consultation with the architect or designer to discuss your house plan

Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total
$0
Free Shipping
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
