HOUSE PLANS
START AT $2,277
SQ FT
4,475
BEDS
4
BATHS
3.5
STORIES
2
CARS
3
WIDTH
90'
DEPTH
61'
© copyright by designer

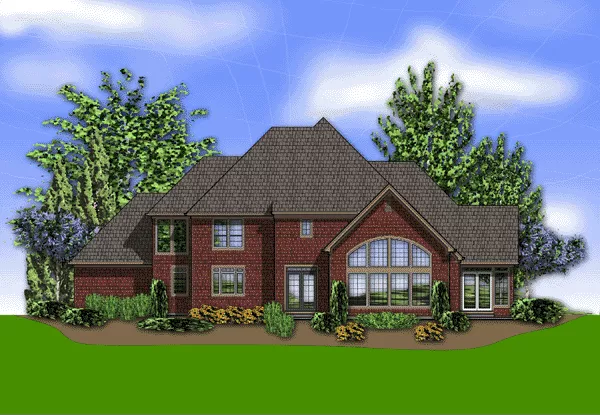

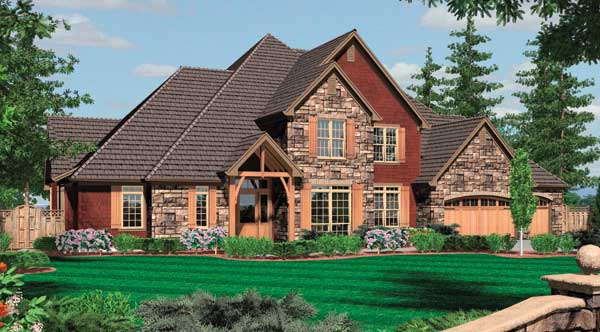

Photographs may reflect modified homes.   View all 3 photos
SQ FT
4,475
BEDS
4
BATHS
3.5
STORIES
2
CARS
3



House Plan 5304: Gloucester

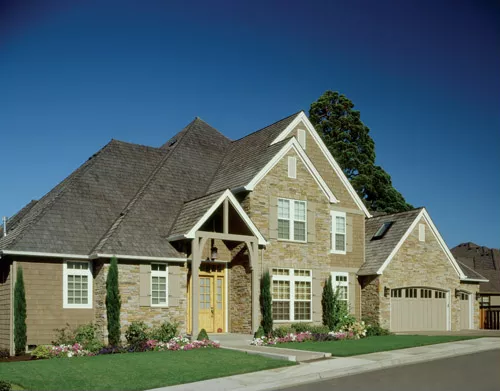

Cedar shingles with stone at the three-car garage and around the front entry of this home make a very strong visual statement. Interior spaces are grand, but not ostentatious and work together for a very livable floor plan. The two-story foyer (with half-bath and closet) separates the formal dining room from the two-story great room. A butlers pantry connects the dining room to the kitchen (with attached nook) and also leads to a den.  Read more >
Click to Zoom In on Floor Plan

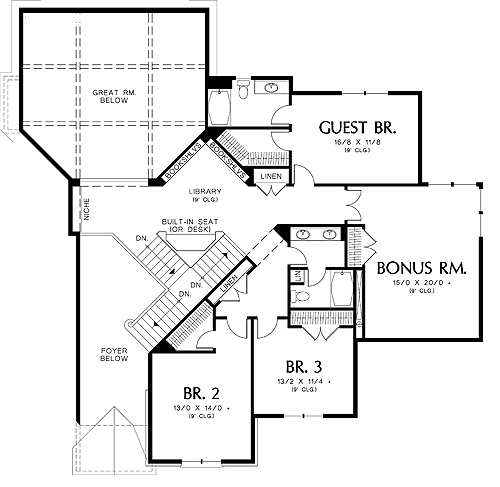

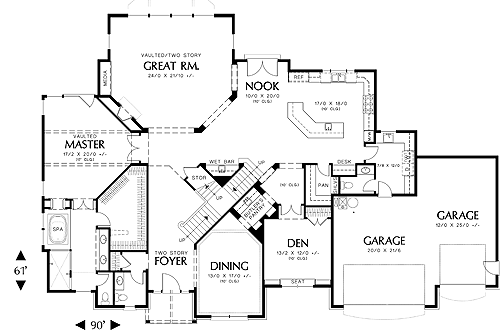

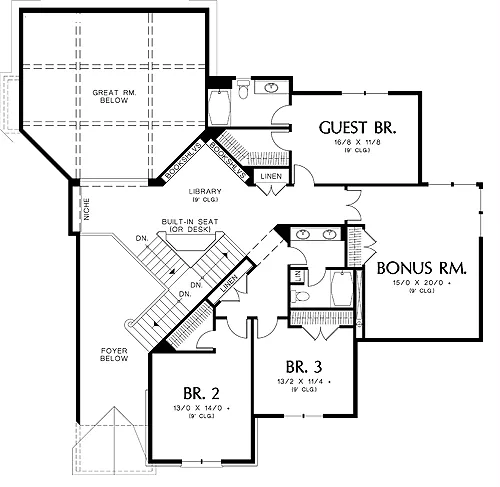

Floor Plans
© copyright by designer
Plan Packages
 Select Plan Package

PDF Bid Set


Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

PDF Bid Set
Digital set of plans for bidding purposes only
$1,927

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build
Most recommended package
$2,277

5 Printed Sets


Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets
Five printed sets of house plans
$2,452

5 Printed Sets + PDF


Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

5 Printed Sets + PDF
Digital plans plus 5 printed sets
$2,502

CAD Single Use


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Use
2D electronic editable computer files
$4,554
 Need To Reverse This Plan? (Optional)

Readable Reverse


Reverse house plans with readable text and dimensions

Readable Reverse
Reverses house plans with readable text and dimensions
$175
 Select Foundation Option
 Add-Ons (Optional)
Subtotal:
$0
Free Shipping
Features:
View All Plan Features
Kitchen features
Butler's Pantry
Kitchen Island
Nook / Breakfast Area
Walk-in Pantry
Bedroom features
Double Vanity Sink
Guest Suite
Master Bdrm Main Floor
Separate Tub and Shower
Split Bedrooms
Walk-in Closet
Lot features
Suited for view lot
Additional features
2 Story Volume
Bonus Room
Dining Room
Fireplace
Foyer
Great Room
Home Office
Laundry 1st Fl
Library/Media Rm
Open Floor Plan
Vaulted Ceilings
Garage Location
Front
Garage Features
Attached
Front-entry

Hide Plan Features
Details:
View All Plan Details
4,475 Ft
2
Total Heated:
3,172 Ft
2
1st Floor:
1,303 Ft
2
2nd Floor:
4
Bedrooms:
3.5
Bathrooms:
3
Garage:
2
Stories:
90' 0"
Width:
61' 0"
Depth:
39' 6"
Height:
Varies
Main Floor Ceiling:
9
Upper Floor Ceiling:
2x6
Framing:
Truss
Roof Framing:
12/12
Primary Roof Pitch:
Single
Dwelling Number:
2nd Floor
Bonus Access:
Unheated Living Space
797 Ft
2
Garage:
54 Ft
2
Porch:
350 Ft
2
Bonus Room:
Exterior Styles
Craftsman
Traditional
Collections
Mountain
Open Floor Plan
PDFs Fast!
Split Bedroom

Hide Plan Details
