Sq Ft
6,550 FT²
Bed
5
Bath
5.5
Stories
2
Garage
4
Depth
101' 3"
Width
111' 6"
On Sale
$2,431.00
$2,860.00
© copyright by designer
View All 16 Images | Photographs may reflect modified home
Sq Ft
6,550 FT²
From
$2,431.00
Bed
5
Bath
5.5
Stories
2
Garage
4
Depth
101' 3"
Width
111' 6"

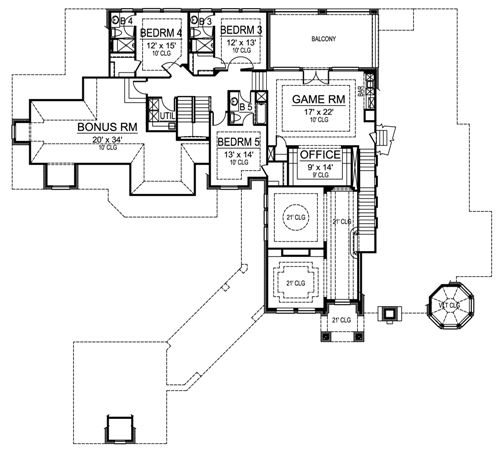

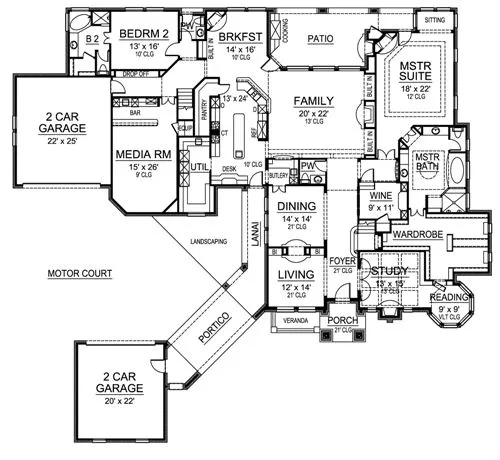

Click to Zoom In on Floor Plan
© copyright by designer



About This Plan

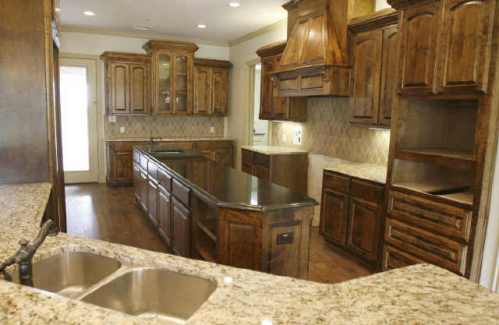

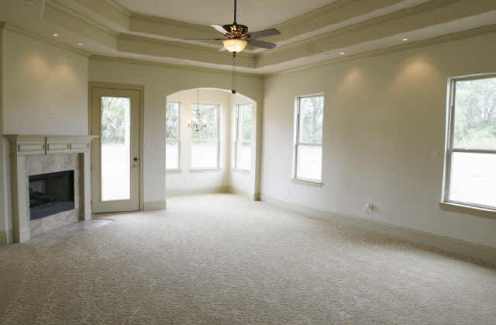

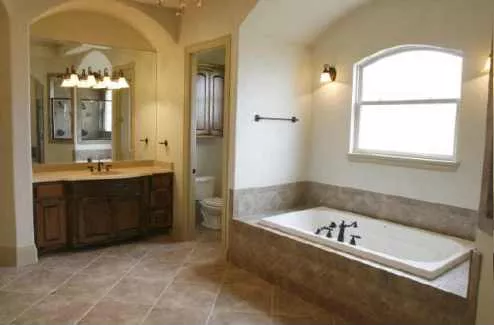

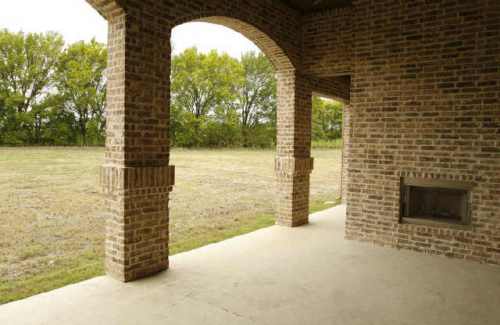

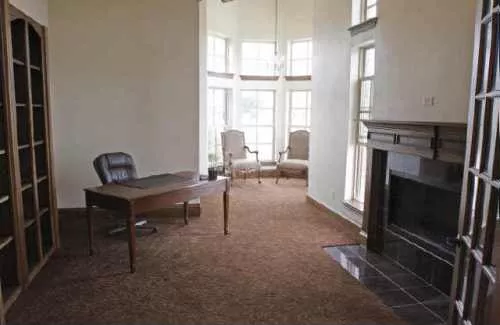

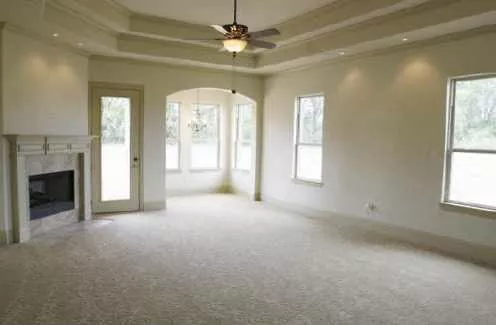

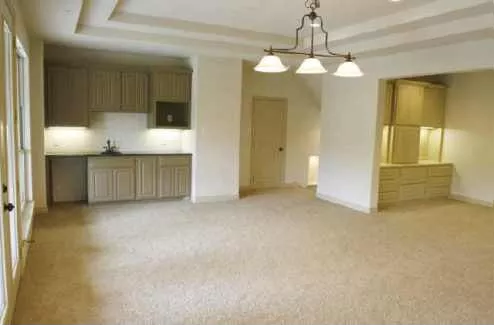

This luxury home offers everything a family could need. The inviting two-story foyer is flanked by the living room, study and wine cellar. Through the archway, enter the elegant two-story dining room with access to the butlery for ease in serving. French doors open into the quiet study, with its coffered ceiling and vaulted reading room. The reading room has access to the spacious master wardrobe. Beyond is the lavish master bath with his and hers vanities, and a separate tub and shower. The sleeping chamber boasts a fireplace close to the sitting room and entrance to the outdoor patio, showcasing the outdoor cooking area. The island kitchen incorporates a breakfast bar. The nearby utility/laundry room is perhaps the largest you've ever seen. The family room offers one of seven fireplaces throughout this house plan, including one on the patio. A second bedroom with corner garden tub, separate shower and walk-in closet could serve as an in-law suite or guest room. The media room with built-in bar and equipment room will be the perfect spot for family and friends to gather to watch movies or play games. Two separate two-car garages are divided by the motor court. A portico and a lanai complete this level of this luxury mansion house plan. Upstairs, three family bedrooms have tray ceilings, walk-in closets and full bath access. A game room with built-in bar and tray ceiling connects to a large balcony with wrought iron railing. A sprawling bonus room with utility area completes this level of this luxury home plan.


FEATURES & DETAILS

Kitchen features
Butler's Pantry
Kitchen Island
Nook / Breakfast Area
Peninsula / Eating Bar
Walk-in Pantry
Bedroom features
Double Vanity Sink
Guest Suite
Primary Bdrm Main Floor
Separate Tub and Shower
Sitting Area
Split Bedrooms
Walk-in Closet
Exterior features
Covered Front Porch
Covered Rear Porch
Front Porch
Rear Porch
Foundation Options
Slab
Lot Options
Suited for view lot
Additional features
2 Story Volume
Arches
Bonus Room
Dining Room

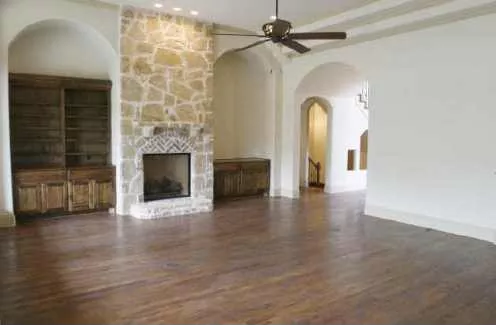

Family Room
Fireplace
Formal LR
Foyer
Home Office
In-law Suite
Laundry 1st Fl
Laundry 2nd Fl
Library/Media Rm
Loft / Balcony
Open Floor Plan
Rec Room
Unfinished Space
Vaulted Ceilings
Wine Cellar
Garage Location
Side
Garage Options
Attached
Detached
Front-entry
Rear-entry
8,965 Ft
2
Total Structure
6,550 Ft
2
Total Heated
4,844 Ft
2
1st Floor
1,706 Ft
2
2nd Floor
5
Bedrooms
5.5
Bathrooms
4
Garage
2
Stories
111' 6"
Width
101' 3"
Depth
34' 11"
Height
11' 0"
Main Floor Ceiling
9' 0"
Upper Floor Ceiling
2x4
Framing
Stick
Roof Framing
8
Primary Roof Pitch
12
Secondary Roof Pitch
18
Porch Roof Pitch
Single
Dwelling Number

Unheated Living Space
1,113 Ft
2
Garage
87 Ft
2
Porch
344 Ft
2
Deck
435 Ft
2
Patio


Plan Package Options

 Select Plan Package
$2,965
PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$2,965
$3,145
5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$3,145
$4,455
CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$4,455
 Need To Reverse Plan? (Optional)
$250
Readable Reverse

Reverse house plans with readable text and dimensions

$250
  Select Foundation Option
  Add-Ons (Optional)

Ground shipping within the Continental U.S.

FREE

Design consultation with the architect or designer to discuss your house plan

Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total
$0
Free Shipping
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
