Sq Ft
2,587 FT²

Beds
4

Baths
5.5

Stories
3

Garage
1

Depth
57' 5"

Width
40'

On Sale
$838.30
$1,010.00

Stunning Front View Featuring Brick and Columned Front Porch

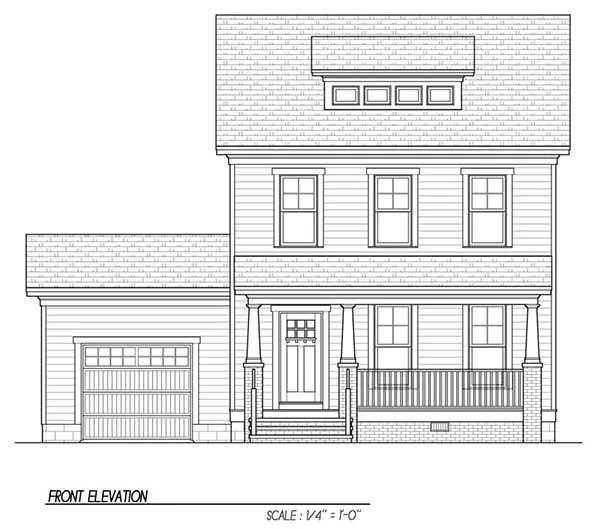

Front Elevation

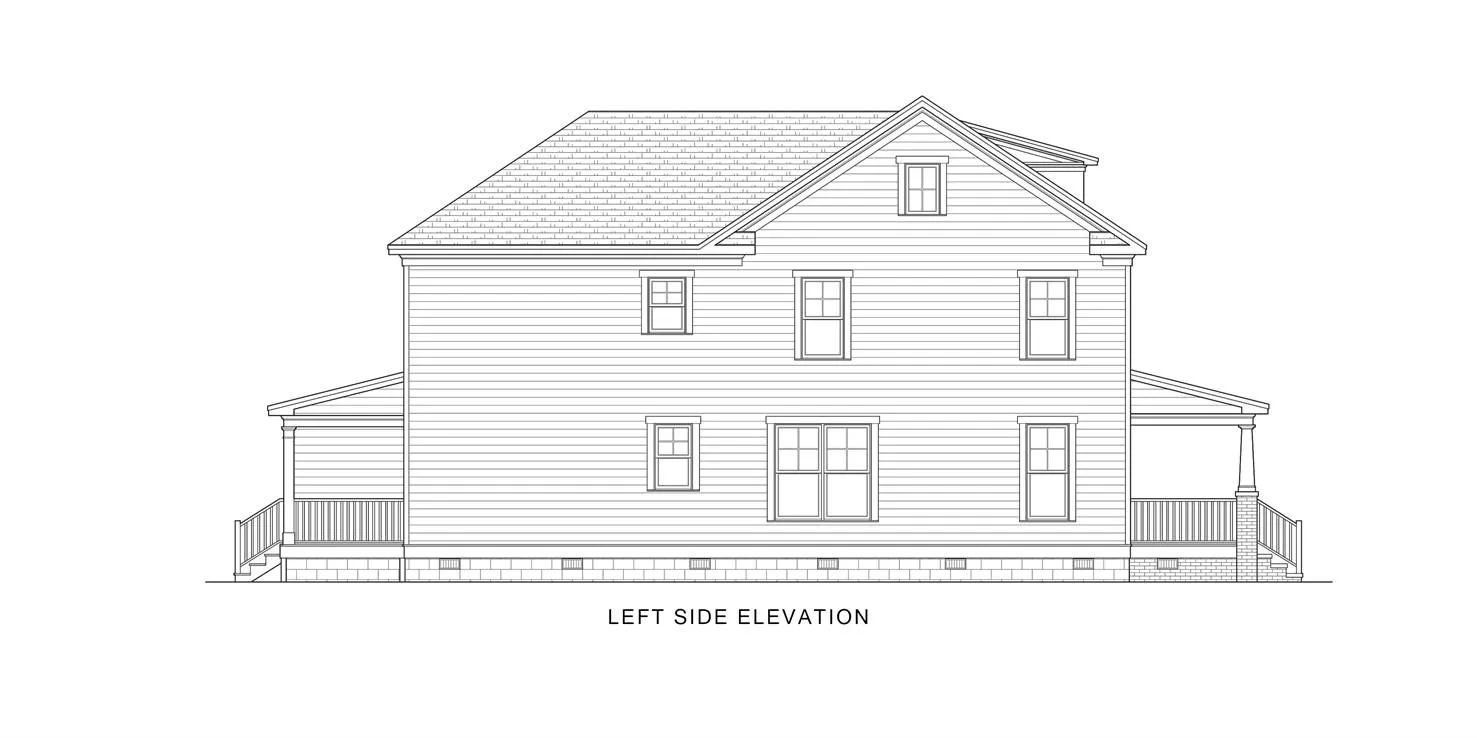

Left View

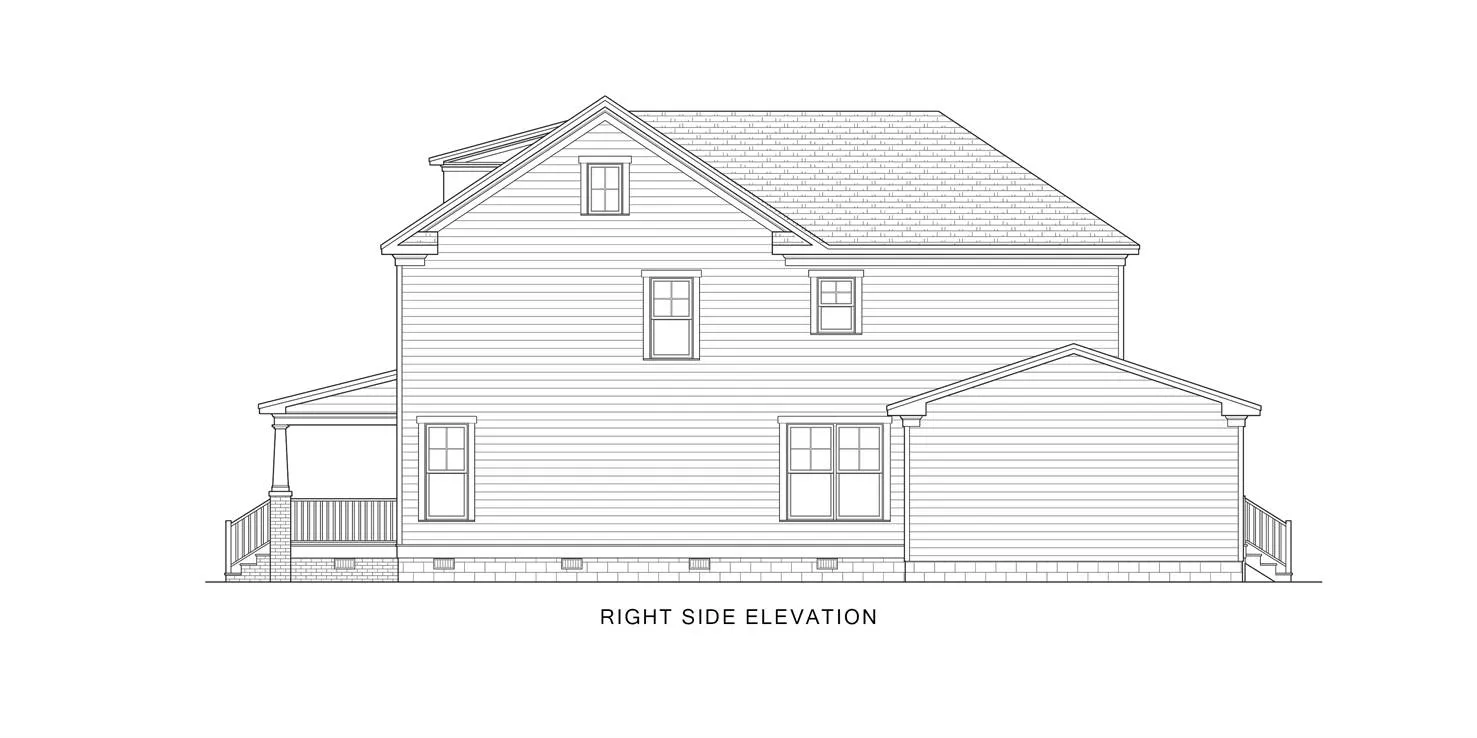

Right View

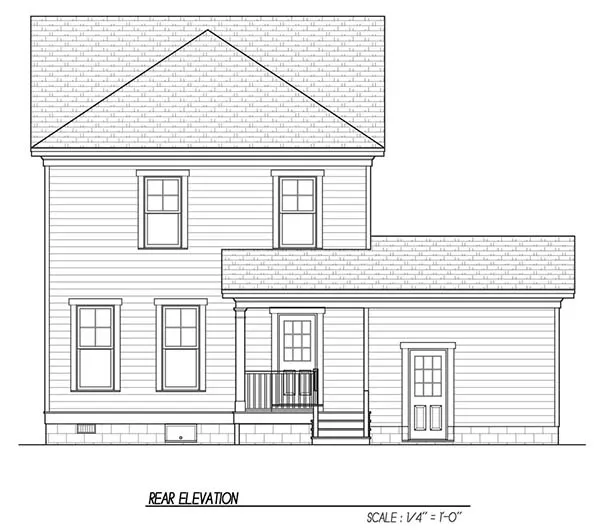

Rear Elevation

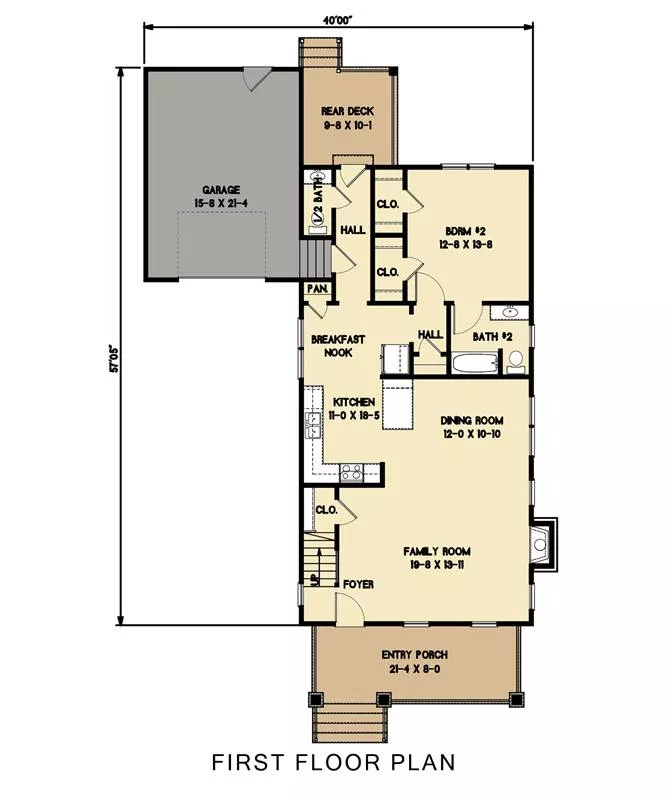

1st Floor

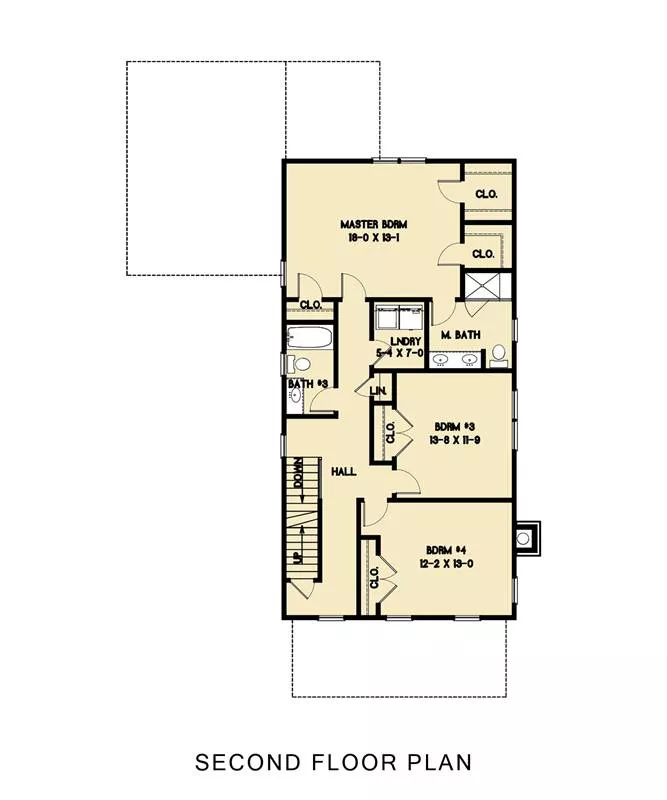

2nd Floor

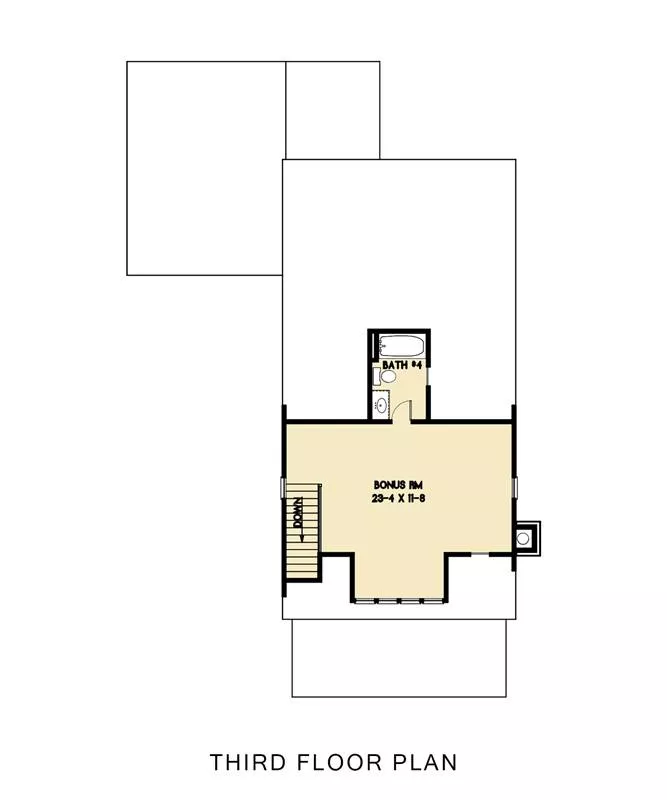

Bonus Plan

View All 8 Images | Photographs may reflect modified home

Sq Ft

2,587 FT²

From

$838.30

Beds

Baths

5.5

Stories

Garage

Depth

57' 5"

Width

40'

Modify

Cost Estimator

Designer's Plan Details

Reverse Plan

Click to Zoom In on Floor Plan

1st Floor

2nd Floor

Bonus Plan

1st Floor

2nd Floor

Bonus Plan

About This Plan

This plan is potentially a three-story traditional style model designed for a narrow lot. (The third floor can be left unfinished and provides an option for a fifth bedroom and another full bath.) This model shows a single car attached garage that could easily be eliminated to allow a driveway to reach a larger detached garage behind the house on the left side. Another special feature of this model is that it has two master bedrooms, one on each floor. The main house structure is just 24' wide, offering a lot of living space on a narrow project site.

See All Plan Options

FEATURES & DETAILS

Kitchen features

Country Kitchen
L-Shaped
Nook / Breakfast Area
Peninsula / Eating Bar

Bedroom features

Double Vanity Sink
Guest Suite
His and Hers Primary Closets
Primary Bdrm Main Floor
Primary Bdrm Upstairs
Walk-in Closet

Exterior features

Covered Front Porch
Covered Rear Porch
Front Porch
Rear Porch

Foundation Options

Crawlspace

Lot Options

Suited for corner lot
Suited for sloping lot

Additional features

Bonus Room
Dining Room
Family Room
In-law Suite
Laundry 1st Fl
Open Floor Plan

Garage Location

Side

Garage Options

Attached
Front-entry

2,758 Ft

Total Structure

2,587 Ft

Total Heated

1,136 Ft

1st Floor

1,136 Ft

2nd Floor

315 Ft

3rd Floor

Bedrooms

5.5

Bathrooms

Garage

Stories

40' 0"

Width

57' 5"

Depth

31' 9"

Height

9' 0"

Main Floor Ceiling

8' 0"

Upper Floor Ceiling

2x4

Framing

Stick

Roof Framing

8/12

Primary Roof Pitch

3/12

Secondary Roof Pitch

4/12

Porch Roof Pitch

Single

Dwelling Number

2nd Floor

Bonus Access

Unheated Living Space

359 Ft

Garage

171 Ft

Porch

74 Ft

Deck

Exterior Styles

Beach

Southern

Traditional

Collections

Plan Package Options

Important info before you buy

Select Plan Package

Sale: $208

PDF Bid Set

~~$250~~

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

Sale: $208

Sale: $838

PDF Single Build

~~$1,010~~

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

Sale: $838

Sale: $921

5 Printed Sets

~~$1,110~~

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

Sale: $921

Sale: $1,403

CAD Single Build

~~$1,690~~

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

Sale: $1,403

Need To Reverse Plan? (Optional)

$150

Readable Reverse

Reverse house plans with readable text and dimensions

$150

Select Foundation Option

Add-Ons (Optional)

INCLUDED WITH YOUR PURCHASE

	Free Ground shipping in the Continental U.S.	FREE
	Design consultation with the architect or designer to discuss your plan
	Home Building & Product Ideas Organizer

Sub Total

$0
Free Shipping

ADD TO CART

QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242

Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.
