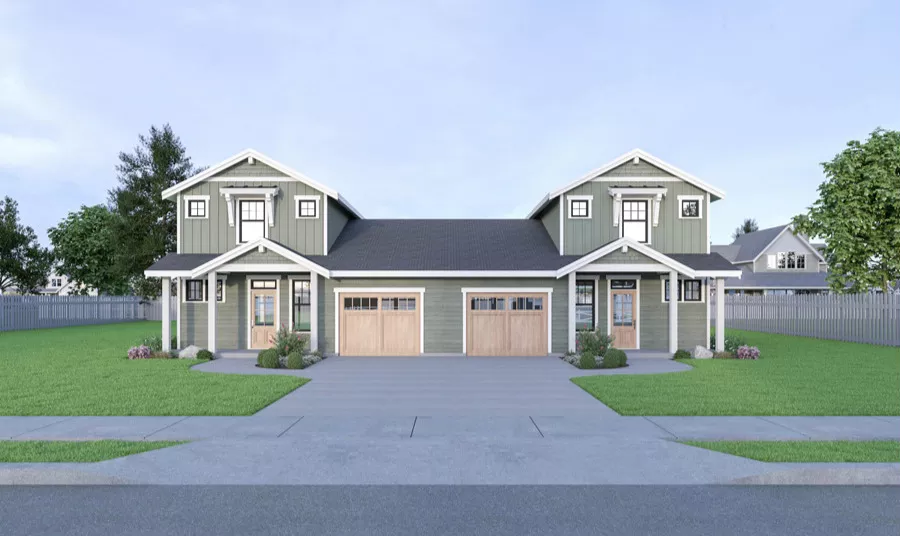

Front View
Rear View

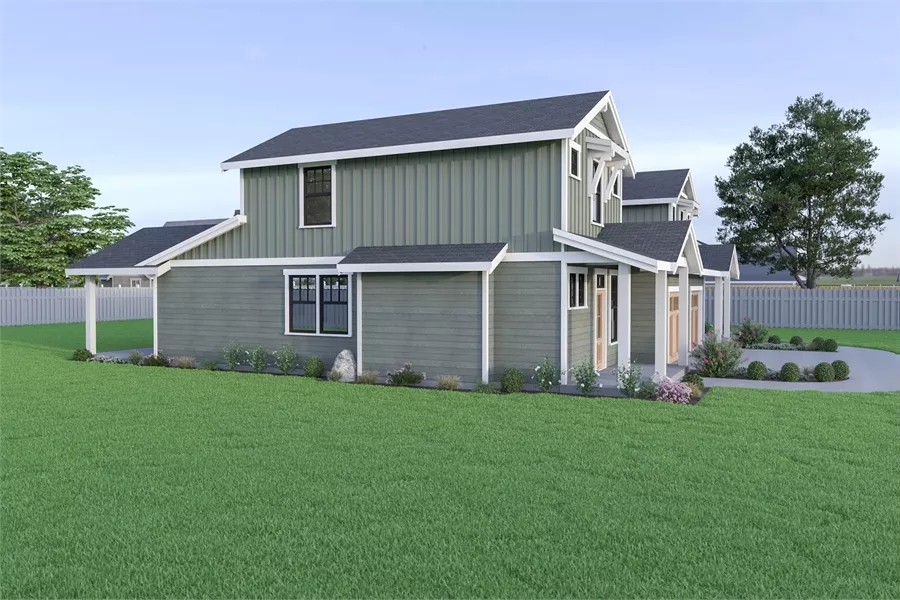

Side View
1st Floor

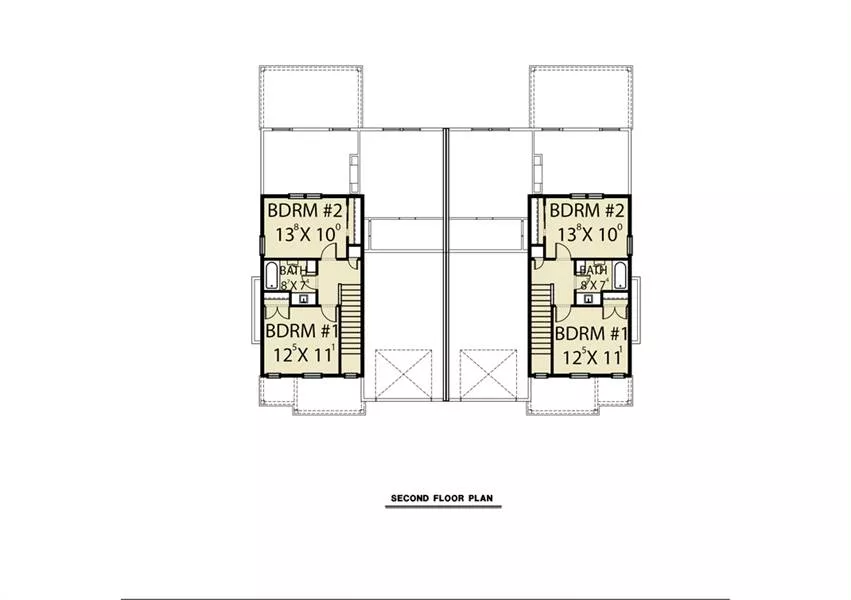

2nd Floor
© copyright by designer
Mouse over photo to pause

Builder Ready Craftsman Style Duplex House Plan 8302

If you are looking to save some money but maintain the privacy and comfort of your own home, this Craftsman duplex may be just what you are looking for. Each unit has 1,446 square feet along with 3 full bedrooms and a private garage.  Read more >

House Plan Details

Total
Sq. Ft.
2,880
Per Unit
Sq. Ft.
1,440
Beds
3
Baths
2.5
Stories
2
Garages
1
Width
64' 0"
Depth
57' 0"
Select Plan Package
PDF Construction Set - 1
$2250
Select Foundation Options
$0
Crawl Space
$0
Optional Add-Ons
Subtotal: $0
If a foundation or optional add-on is not listed, please live chat, email or call for availability.

PLAN IMAGES

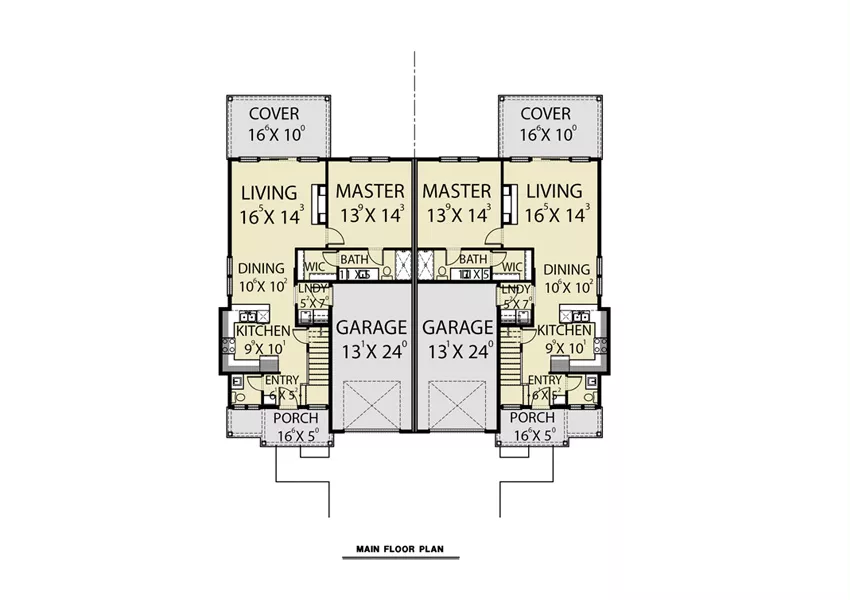

1st Floor

1st Floor
© copyright by designer
DETAILS
Total Structure SQ. FT.:
2,880
Unit Total SQ. FT.:
1,440
1st Floor SQ. FT.:
990
2nd Floor SQ. FT.:
450
Bedrooms:
3
Bathrooms:
2.5
Garage:
1
Stories:
2
Main Ceiling Height:
9'
Upper Ceiling Height:
8'
Framing:
2x6
Roof Framing:
Truss
Roof Pitch:
Primary: 6:12
Secondary: 4:12
Width:
64' 0"
Depth:
57' 0"
Height:
' "
Exterior Styles:
Country
Craftsman
Farm House
Traditional
Unheated Living Space:
HOME FEATURES
Bedroom Features:
Master Bdrm Main Floor
Walk-in Closet
Kitchen Features:
Kitchen Island
Peninsula / Eating Bar
U-Shaped
Additional Features:
Dining Room
Fireplace
Great Room
Laundry 1st Fl
Open Floor Plan
Garage Features:
Attached
Front-entry
Garage Location:
Front
Lot Features:
