Diamond Way 3 Bedroom Traditional Style House, Plan 7828

Sq Ft
3,827 FT²
Bed
3
Bath
3.5
Stories
2
Garage
2
Depth
80'
Width
40'
On Sale
$1,402.50
$1,402.50
© copyright by designer
View All 5 Images | Photographs may reflect modified home
Sq Ft
3,827 FT²
From
$1,402.50
Bed
3
Bath
3.5
Stories
2
Garage
2
Depth
80'
Width
40'

Click to Zoom In on Floor Plan
© copyright by designer



About This Plan

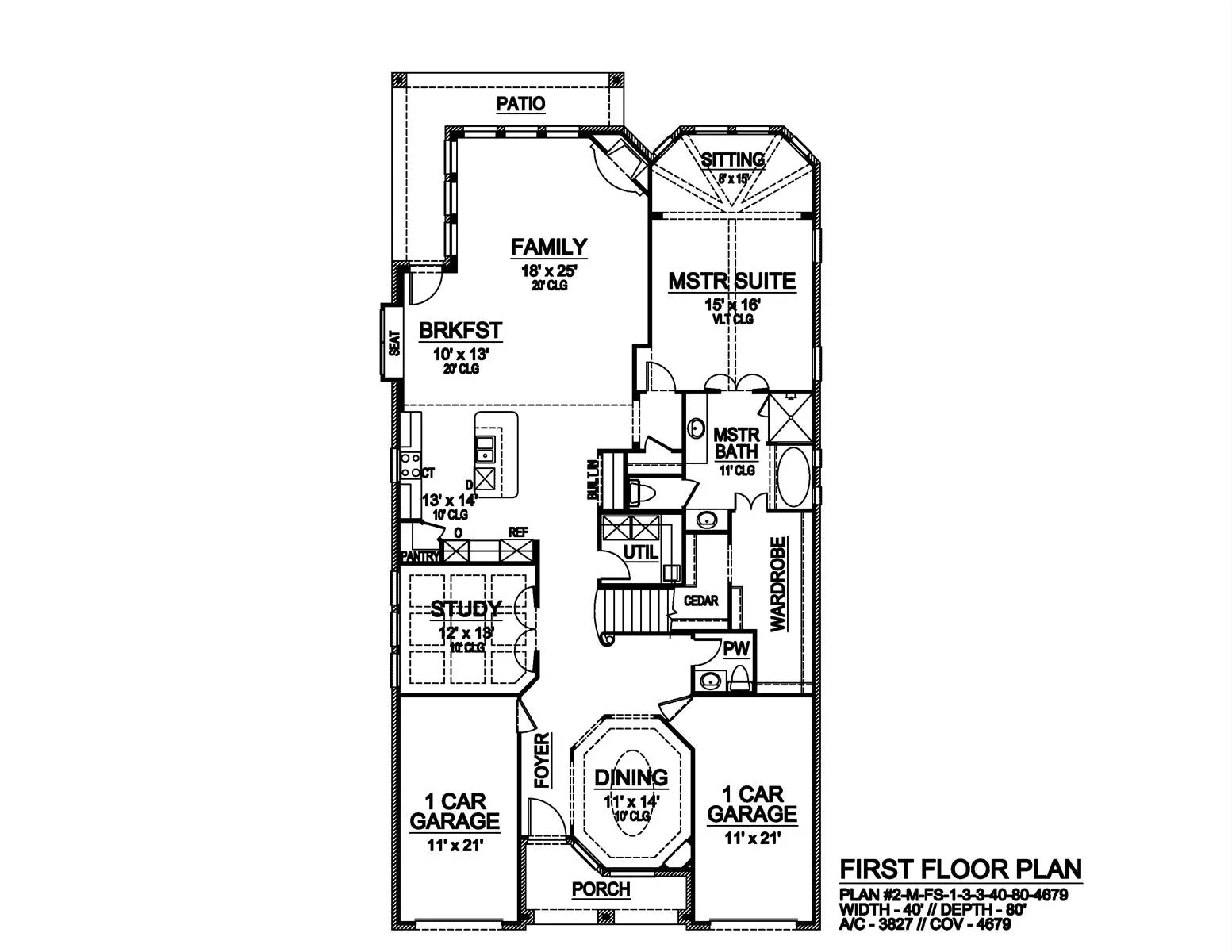

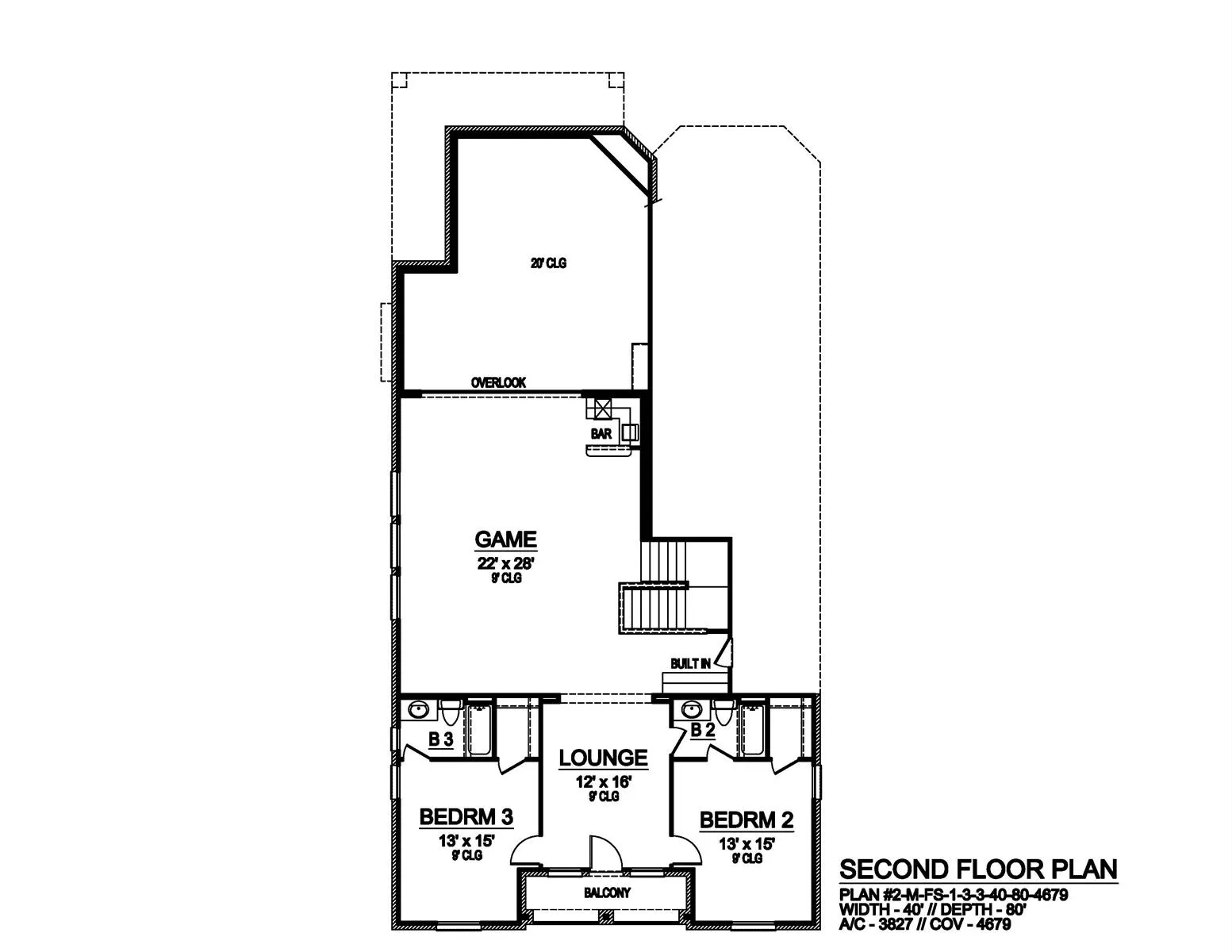

This luxury home plan is perfect for a narrow lot. The elegant dining room, with its octagonal trey ceiling, will greet you as you enter the foyer. A quiet study beyond with French doors and coffered ceiling is a soothing spot to settle down with your favorite book. The master suite offers a bayed sitting area, double doors into the lavish bath with its his and hers vanities, a separate shower, tub, and a large wardrobe. The family room has a corner fireplace and a large bank of windows facing the patio. A window seat in the breakfast room adds charm to this area. The upper level offers a lounge with balcony, flanked by two family bedrooms, each with a walk-in closet and full bath. Have a drink from the bar in the game room, and enjoy the view below from the overlook.


FEATURES & DETAILS

Kitchen features
Kitchen Island
Nook / Breakfast Area
Bedroom features
Double Vanity Sink
Master Bdrm Main Floor
Separate Tub and Shower
Sitting Area
Walk-in Closet
Exterior features
Covered Front Porch
Covered Rear Porch
Foundation Options
Slab
Additional features
Arches
Dining Room
Family Room
Fireplace
Foyer
Laundry 1st Fl
Open Floor Plan
Rec Room
Garage Location
Side
4,679 Ft
2
Total Structure
3,827 Ft
2
Total Heated
2,305 Ft
2
1st Floor
1,552 Ft
2
2nd Floor
3
Bedrooms
3.5
Bathrooms
2
Garage
2
Stories
40' 0"
Width
80' 0"
Depth
35' 0"
Height
10' 0"
Main Floor Ceiling
9' 0"
Upper Floor Ceiling
2x6
Framing
Truss
Roof Framing
8
Primary Roof Pitch
16
Secondary Roof Pitch
Single
Dwelling Number

Unheated Living Space
528 Ft
2
Garage
Exterior Styles
Collections


Plan Package Options

 Select Plan Package
$1,485
PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

$1,485
$1,665
5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

$1,665
$2,230
CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

$2,230
 Need To Reverse Plan? (Optional)
$175
Readable Reverse

Reverse house plans with readable text and dimensions

$175
  Select Foundation Option
  Add-Ons (Optional)

Ground shipping within the Continental U.S.

FREE

Design consultation with the architect or designer to discuss your house plan

Home Building Organizer & Product Ideas Binder for Your New Home

Sub Total
$0
Free Shipping
QUESTIONS OR NEED HELP ORDERING? LIVE CHAT OR CALL US AT 866-214-2242
Plan Packages

Each set of construction documents includes detailed, dimensioned floor plans, basic electric layouts, cross sections, roof details, cabinet layouts and elevations, as well as general IRC specifications. They contain virtually all of the information required to construct your home. The typical plan set does not include any plumbing, HVAC drawings, or engineering stamps due to the wide variety of specific needs, local codes, and climatic conditions. These details and specifications are easily obtained from your builder, contractor, and/or local engineers.

BEST PRICE GUARANTEE

find the same house plan (modifications included!) and package for less on another site, show us the URL and we'll give you the difference plus an additional 5% back.

100% SATISFACTION GUARANTEE

We offer a one-time, 14-day exchange policy for unused, non-electronic plan packages in the event you aren't satisfied with your first selection.
