House Plan 9754: Dalton

A welcoming front porch leads into the spacious floor plan with every convenience located on the main floor. An ample laundry/mudroom is complete with bench seating, a sink, cabinets and counter space. The large kitchen is open to the family room and offers a large island with eating bar, built-in refrigerator, double ovens and an oversized walk-in pantry.  Read more >

House Plan Details

Sq. Ft.
2,463
Beds
3
Baths
2.1
Stories
2
Garages
2
Width
49' 11"
Depth
78' 7"
1st Floor
2,198
2nd Floor
265
Bonus
318
Garage
476
Select Plan Package
PDF
$1320
Select Foundation Options
$0
Crawl Space
$0
Optional Add-Ons
Subtotal: $1115

Note: Please allow 2 weeks for the completion and shipment of this plan.

PLAN IMAGES

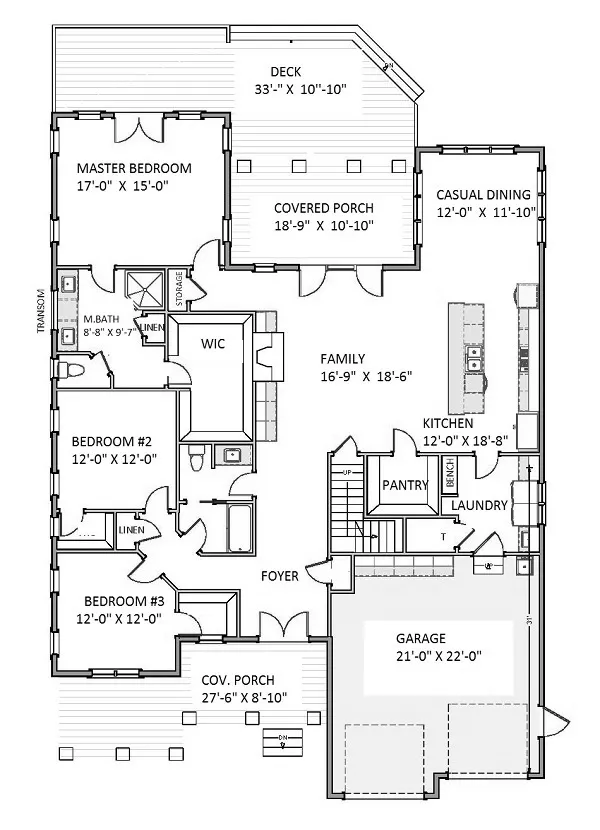

1st Floor

1st Floor
© copyright by designer

Plan Details

Basic Information
Bedrooms: 3
Bathrooms: 2.1
Garage: 2
Stories: 2
Exterior Style
Craftsman
Ranch
Dimensions
Width: 49' 11"
Height: 26' 0"
Depth: 78' 7"
Heated Living Space
Total Sq. Ft: 2,463
1st Floor: 2,198

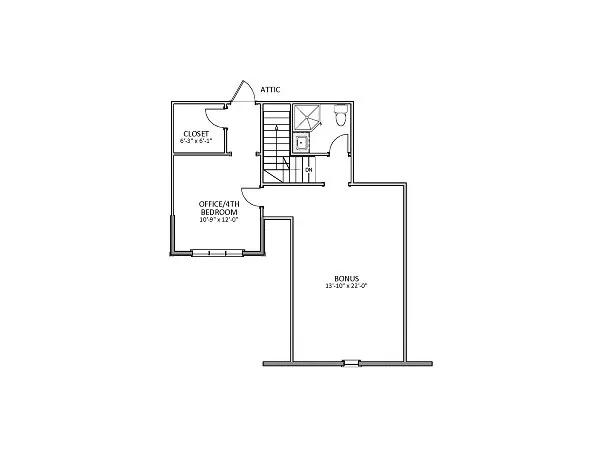

2nd Floor: 265
Bonus: 318
Unheated Living Space
Garage: 476
Porch: 446
Deck: 366
Ceiling
Upper Ceiling Ft: 9'
Main Ceiling Ft: 9'
Framing Information
Framing: 2x6
Roof Framing: Stick
Bedroom Features
Double Vanity Sink
Guest Suite
Master Bdrm Main Floor
Separate Tub and Shower
Walk-in Closet
Kitchen Features
Kitchen Island
Nook / Breakfast Area
Peninsula / Eating Bar
Walk-in Pantry
Additional Room Features
Bonus Room
Family Room
Fireplace
Foyer
Great Room
Home Office
In-law Suite
Laundry 1st Fl
Mud Room
Open Floor Plan
Storage Space
Unfinished Space
Garage Location
Front
Garage Features
Attached
Lot Features
Suited for narrow lot
Roof Pitch
Primary: 10/12
