House Plan 4586: Dalton

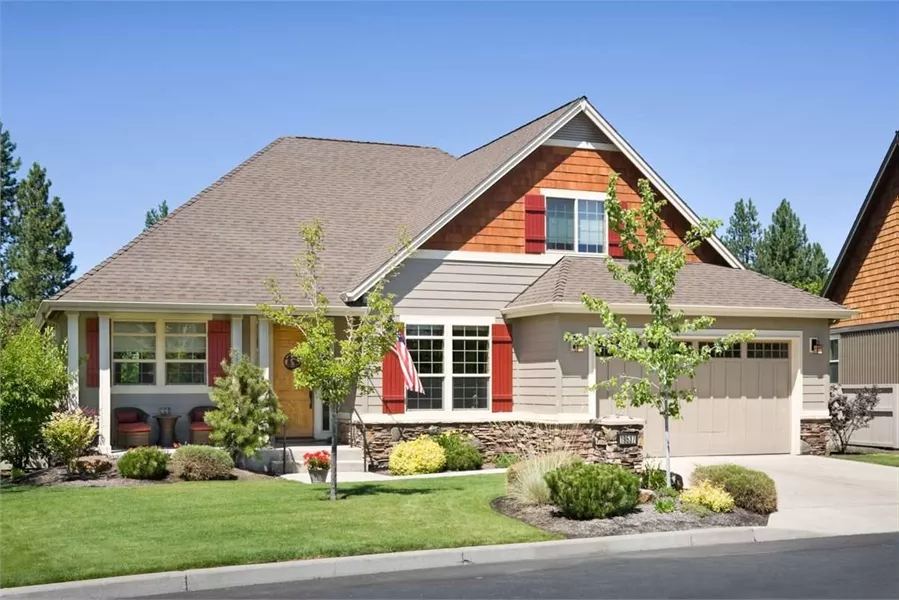

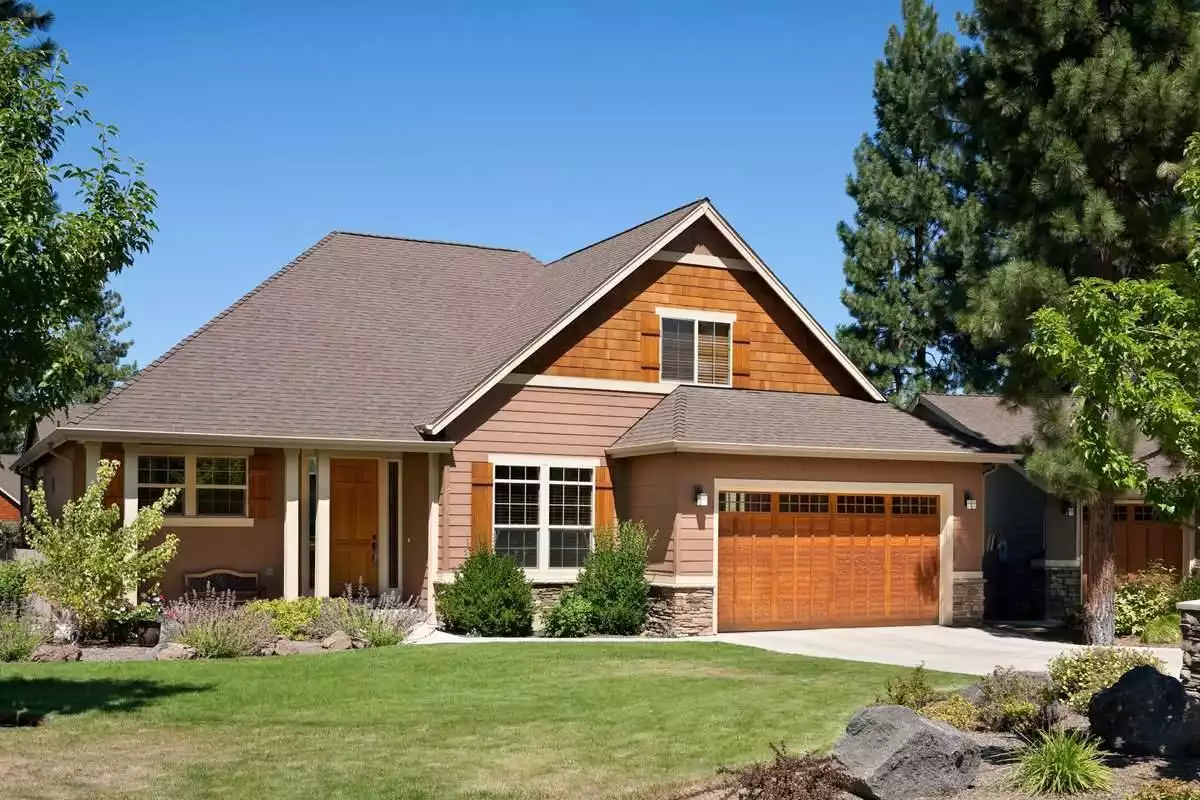

A fine example of Arts and Crafts influence, this 1-1/2-story home has a covered front porch, stonework at the foundation line and a high peaked roof with cedar detailing in the gable end. First-floor rooms are vaulted or feature nine-foot ceilings.  Read more >

House Plan Details

Sq. Ft.
2,074
Beds
3
Baths
2.1
Stories
2
Garages
3
Width
50' 0"
Depth
56' 0"
1st Floor
1,603
2nd Floor
471
Garage
581
Select Plan Package
PDF Files - Single Build
$1069
Select Foundation Options
$0
Crawlspace
$0
Optional Add-Ons
Subtotal: $0

PLAN IMAGES

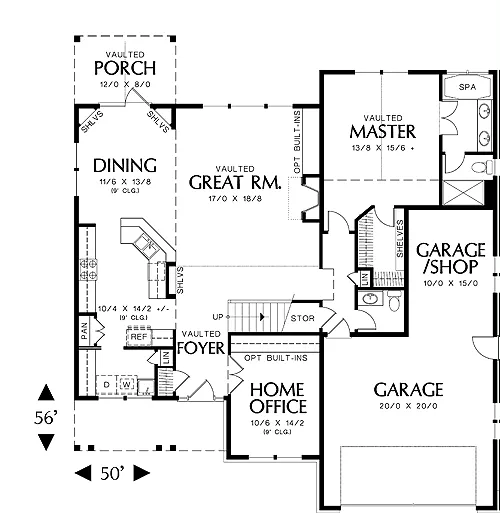

First Floor Plan

First Floor Plan
© copyright by designer

Plan Details

Basic Information
Bedrooms: 3
Bathrooms: 2.1
Garage: 3
Stories: 2
Exterior Style
Cottage
Craftsman
European
Dimensions
Width: 50' 0"
Height: 25' 0"
Depth: 56' 0"
Heated Living Space
Total Sq. Ft: 2,074
1st Floor: 1,603
2nd Floor: 471
Unheated Living Space
Garage: 581
Ceiling
Upper Ceiling Ft: 8' 1"
Main Ceiling Ft: 9' 1 "
Framing Information
Framing: 2x6
Roof Framing: Truss
Bedroom Features
Double Vanity Sink
Master Bdrm Main Floor
Separate Tub and Shower
Walk-in Closet
Kitchen Features
Country Kitchen
Peninsula / Eating Bar
Additional Room Features
Fireplace
Foyer
Great Room
Home Office
Laundry 1st Fl
Open Floor Plan
Vaulted Ceilings
Garage Location
Front
Garage Features
Attached
Oversized
Tandem
Lot Features
Suited for narrow lot
Roof Pitch
Primary: 10/12
Secondary: 8/12
Porch: 6/12
